GT17V-6DP-DS(70) datasheet, PDF

GT17V-6DP-DS(70): Descriptionconn pcb 6cond; CategoryThe connector The connector; File Size7MB，45 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric View All

GT17V-6DP-DS(70) Overview

conn pcb 6cond

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Other features	TRAY PACKAGING, ROHS COMPLIANT
Board mount options	PEG
body width	0.618 inch
subject depth	0.654 inch
body length	0.764 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact style	USB, SER A FLAT
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.4892 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1

Antenna, Sensor, and Communications Trunk Line Connections

GT 5

GT 13

PO5G

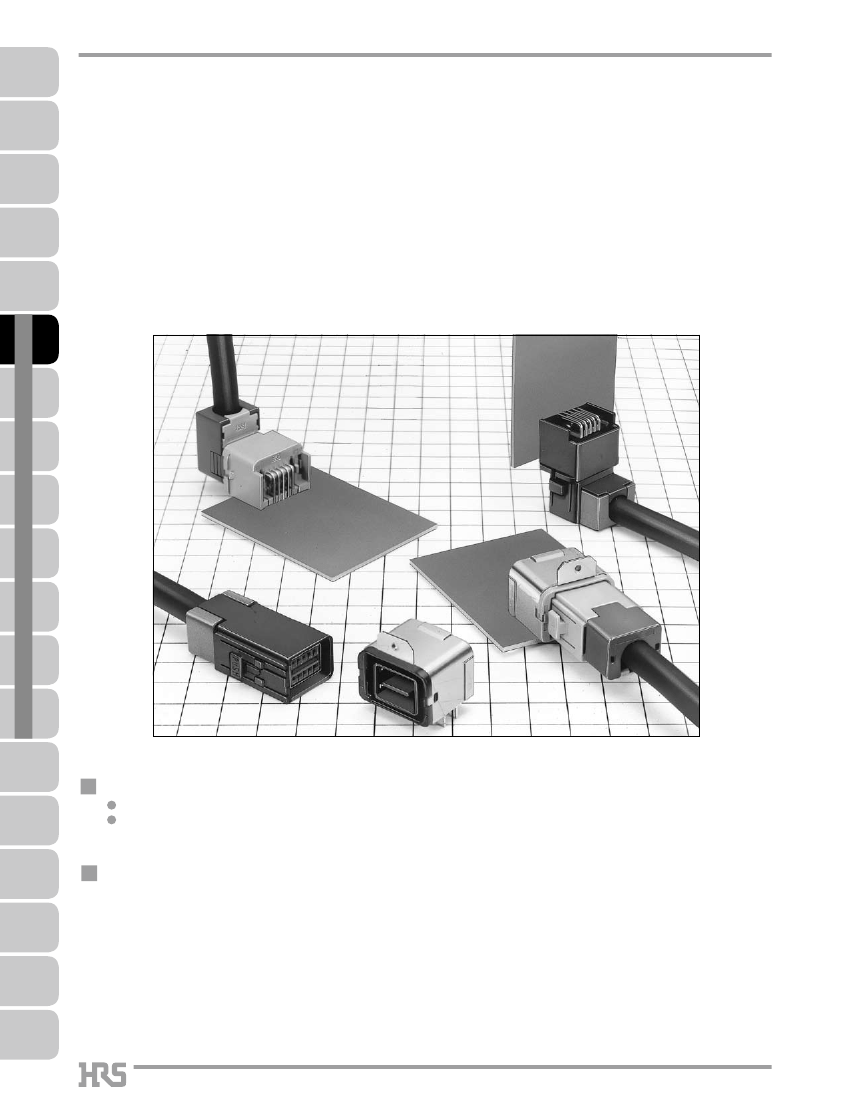

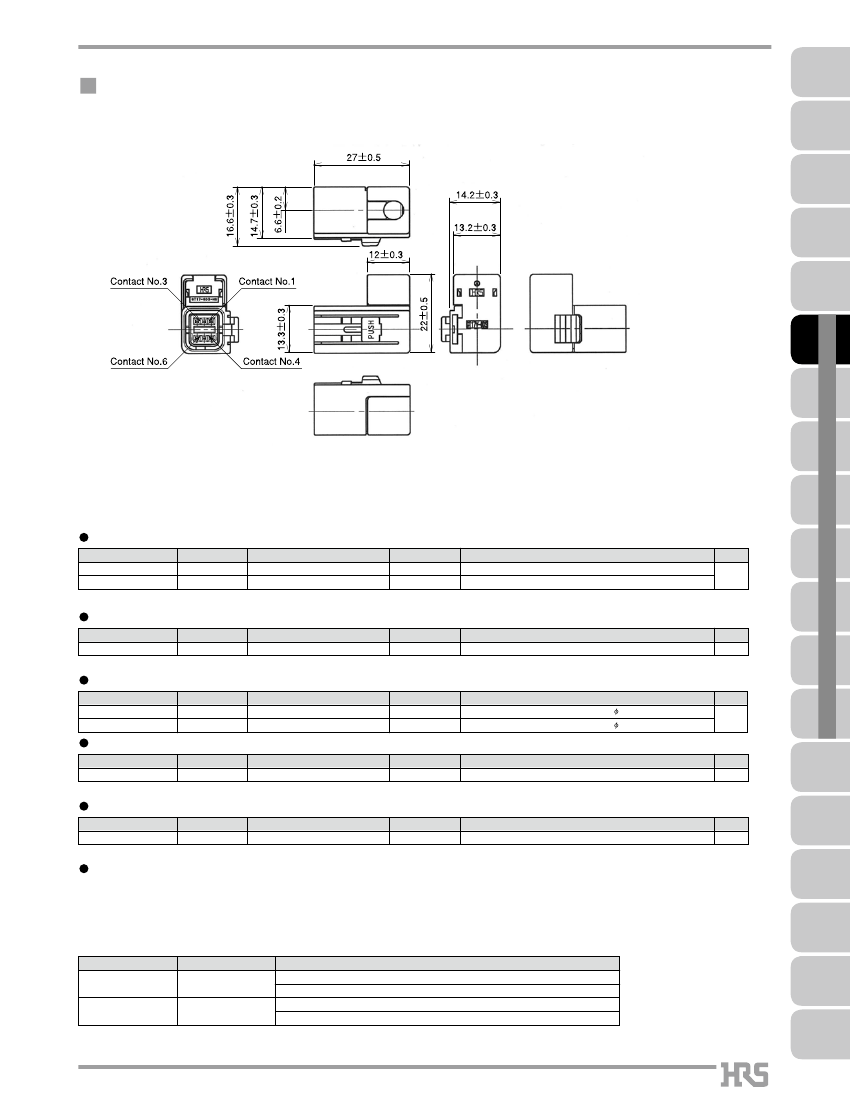

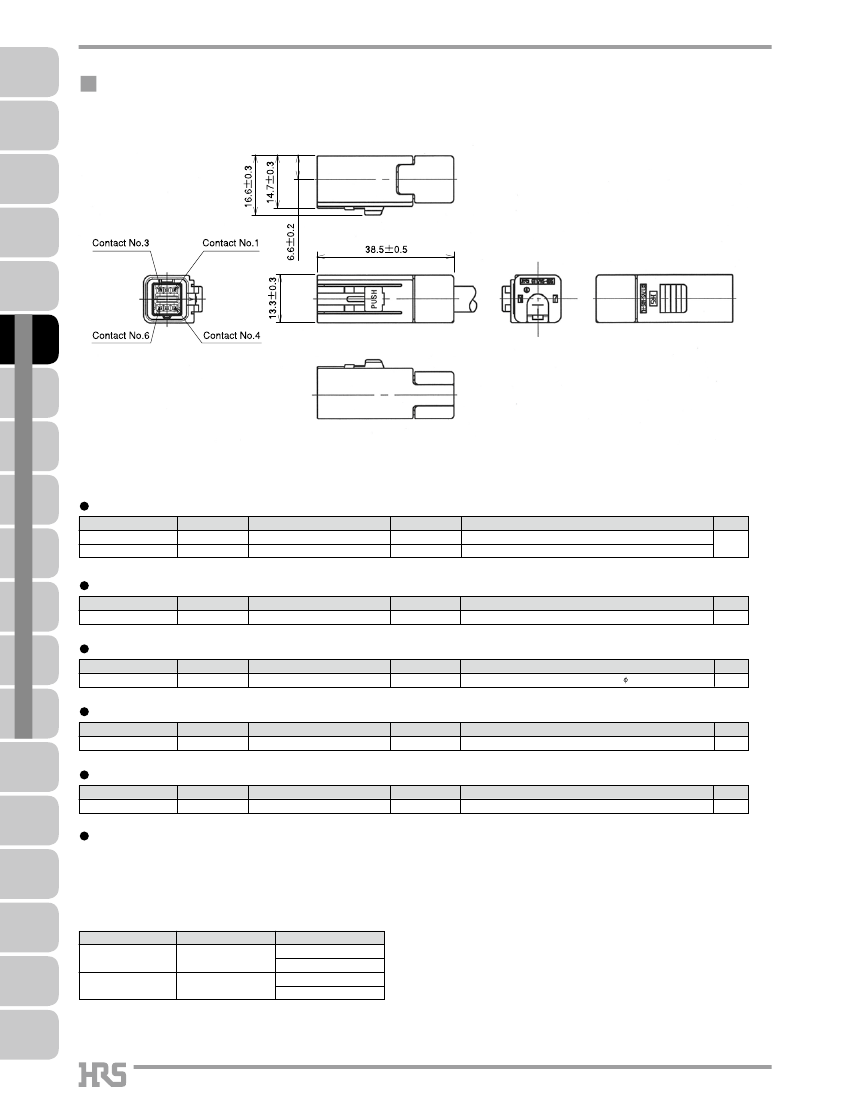

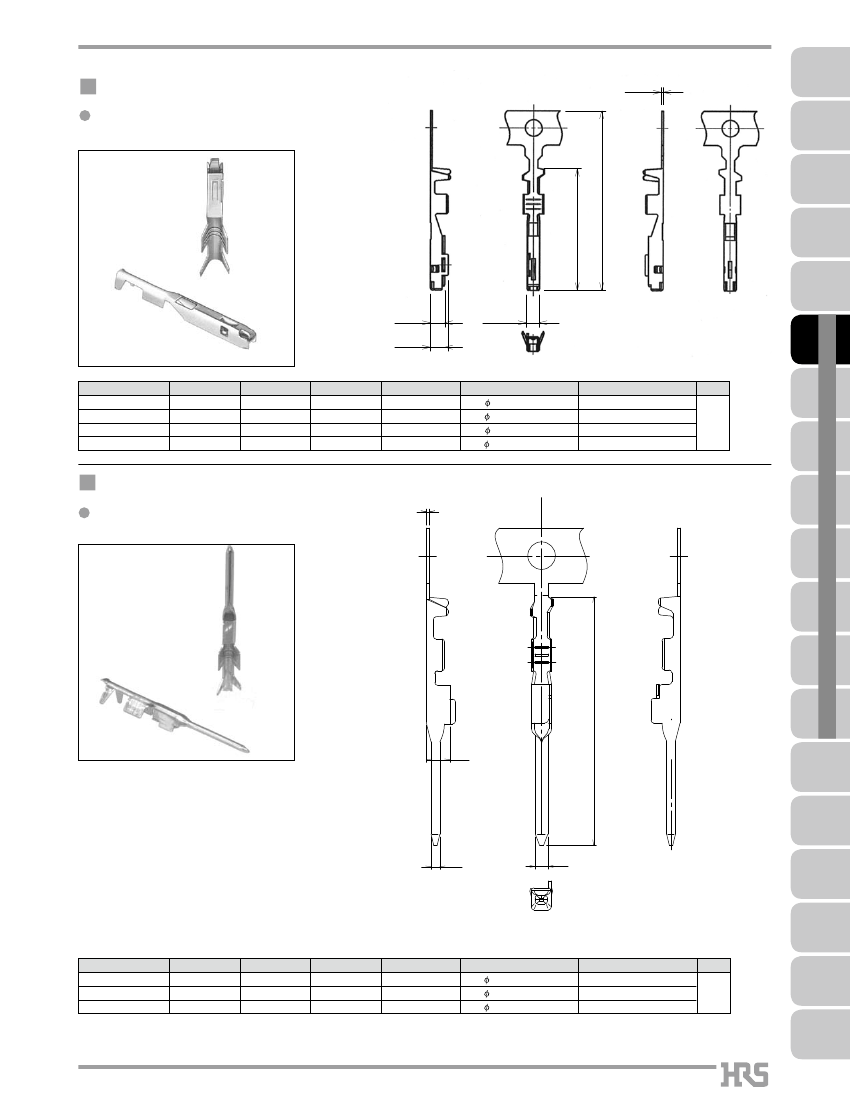

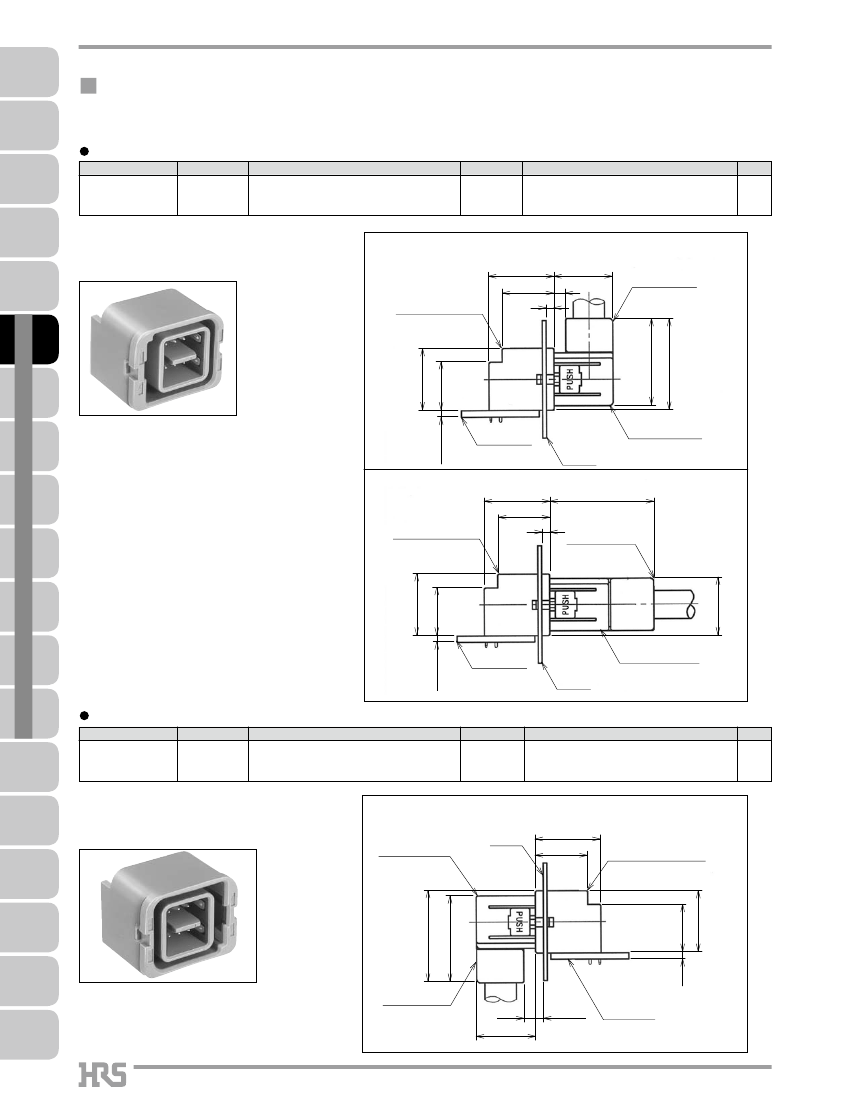

GT17 Series

— Multi contacts connector for high frequency Application —

(as USB,LVDS,GVIF)

Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines

GT 15 GT 18W GT 10

GT 7

GT 6W

GT 3

GT 27

GT 26

GT 19

GT 17

GT 11

GT 16

Features

All surface shielded construction.

Ideal for use as Automotive USB connectors.

GT 8

Applications

In-car data communications, etc.

100

GT 22

GT 25

GT 9
