5-102557-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5-102557-2

5-102557-2: Description20 MODII HDR DRST SHRD A/PIN; CategoryThe connector; File Size184KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-102557-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-102557-2	-	-	View	Buy Now

5-102557-2 Overview

20 MODII HDR DRST SHRD A/PIN

5-102557-2 Parametric

Parameter Name	Attribute value
PCB Connector Component Types	PCB mounting header
Connectors and terminals terminate to	A printed circuit board
Connector type	with hood
Line spacing	2.54 mm [ .1 in ]
sealing ring	Without
stabilizing device	Without
plate support	Without
stress relief	Without
Connector terminal load status	Fully loaded
PCB mounting direction	vertical
Number of Positions	20
Rows	2
keying	no
Medium pressure resistance	750 Vrms
Cylinder size	.64 mm [ .025 in ]
Terminal base material	copper alloy
PCB terminal termination area plating materials	tin
Terminal base material	nickel
Terminal protection	with
Terminal shape	square
Terminal type	Pin
Contact Current Rating (Max) (A)	3
Terminal Contact Plating Thickness (µin)	30
Terminal contact plating material	gold
Terminal protection type	with hood
PCB Termination Methods	Through hole
Termination cylinder length	6.35 mm [ .25 in ]
Terminal Plating Thickness (µin)	100 – 200
Terminal plating materials	Nickel base tin plating
PCB mounting fixation type	Function/Standard-compliant tail
PCB installation and fixation	with
Mating connector latch type	brake window
Panel mount features	Without
Engage connector latch	with
PCB installation method	Through hole
Joint alignment type	polarization
joint alignment	with
Centerline (Pitch)	2.54 mm [ .1 in ]
Shell type	4- Noodles
Shell material	thermoplastic
Shell color	black
Hooded end dimensions	3.81 mm [ .15 in ]
PCB thickness (recommended)	2.36 – 3.18 mm [ .093 – .125 in ]
Joint post length	8.13 mm [ .32 in ]
Working group temperature range (°C)	-55 – 105
High temperature shell	yes
High speed serial data connector	no
approved standards	CSA LE7189, UL E28476
UL flammability rating	UL 94V-0
Package quantity	90
Encapsulation method	tray

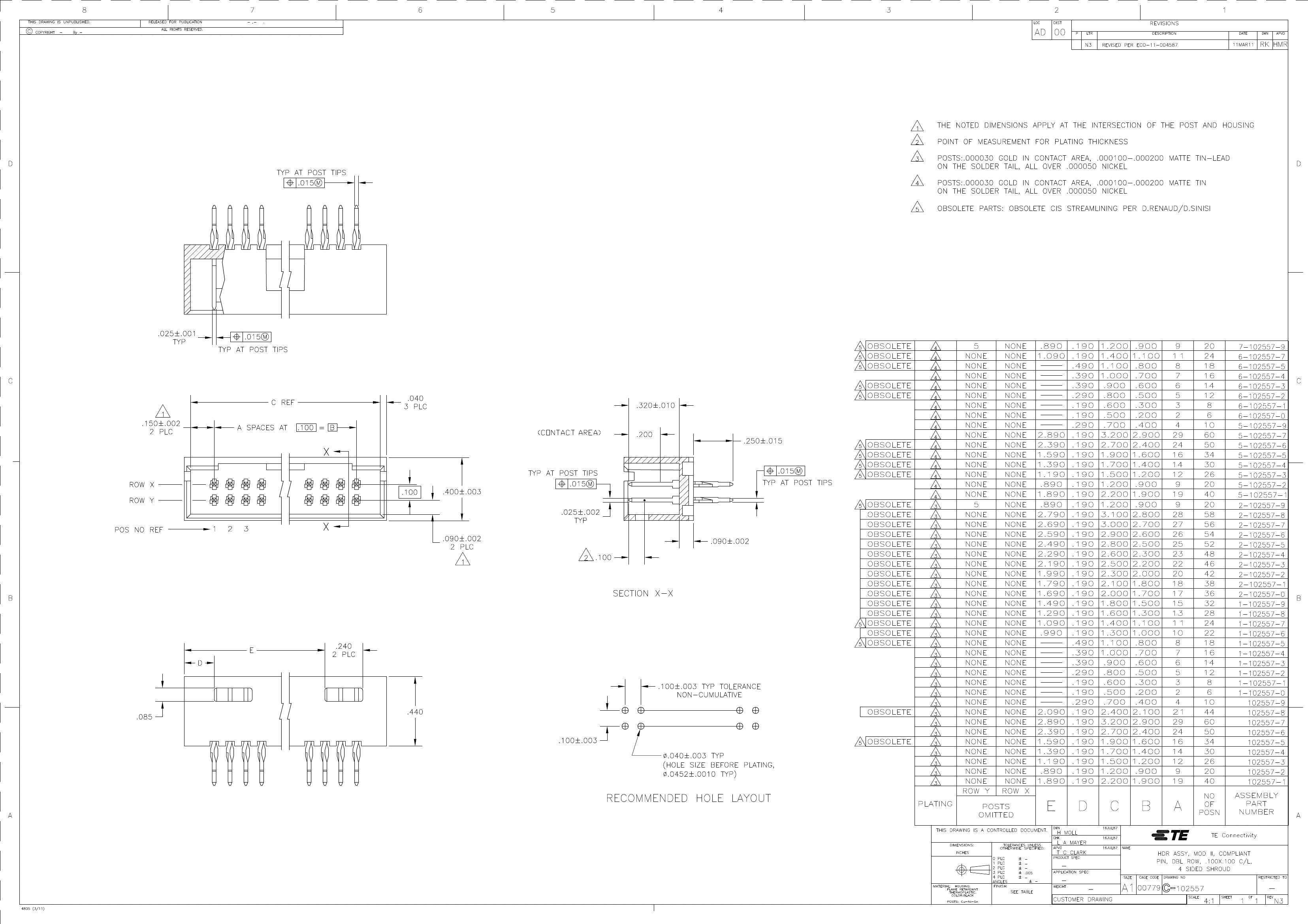

Preview
