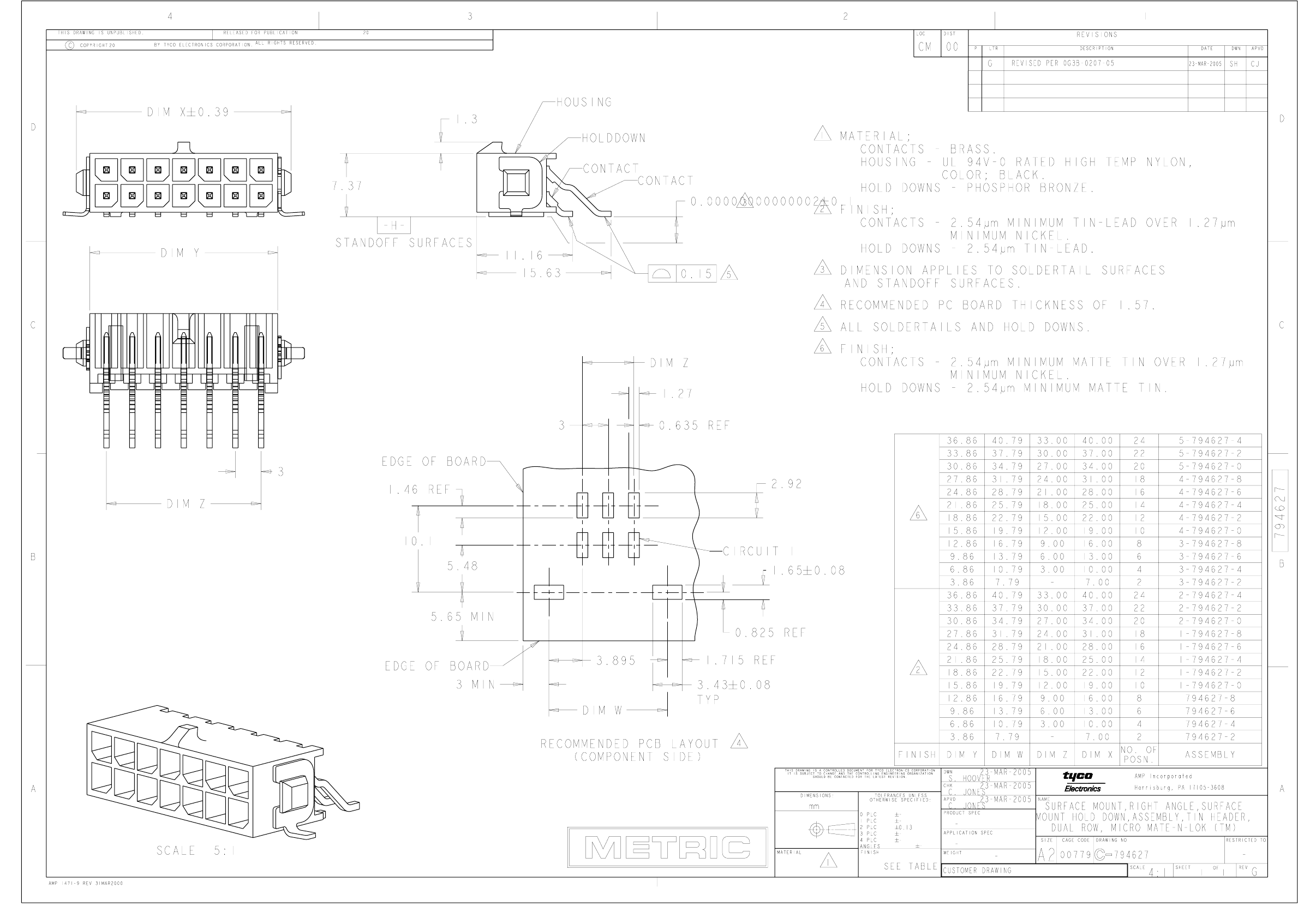

02P MICRO MNL ASSY,R/A,SMT LF
| Parameter Name | Attribute value |
| Brand Name | AMP |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | ELV AND ROHS COMPLIANT |
| Board mount options | SOLDER HOLDING POSTS |
| body width | 0.29 inch |
| subject depth | 0.615 inch |
| body length | 0.276 inch |
| Body/casing type | RECEPTACLE |
| Connector type | RECTANGULAR POWER CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1500VAC V |
| Durability | 30 Cycles |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 6.672 N |
| Insulation resistance | 100000000 Ω |
| Insulator color | BLACK |
| insulator material | NYLON |
| MIL compliance | NO |
| Plug contact pitch | 0.118 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 4.6228 mm |
| Plating thickness | 100u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 5 A |
| Guideline | CSA, UL |
| reliability | COMMERCIAL |
| Shell material | POLYAMIDE |
| Terminal pitch | 2.9972 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 2 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .6672 N |
| Base Number Matches | 1 |
| 3-794627-2 | 4-794627-0 | 5-794627-4 | 4-794627-6 | 4-794627-8 | |
|---|---|---|---|---|---|
| Description | 02P MICRO MNL ASSY,R/A,SMT LF | 10P MICRO MNL ASSY, RA, SMT, L | 24P MICRO MNL ASSY,RA,SMT,LF | 16P MICRO MNL ASSY,RA,SMT,LF | 18P MICRO MNL ASSY,RA,SMT,LF |
| Brand Name | AMP | AMP | AMP | AMP | AMP |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compliant | compli | compli | compli | compli |
| Other features | ELV AND ROHS COMPLIANT | POLARIZATION | POLARIZATION | POLARIZATION | POLARIZATION |
| Board mount options | SOLDER HOLDING POSTS | SOLDER HOLDING POSTS | SOLDER HOLDING POSTS | SOLDER HOLDING POSTS | SOLDER HOLDING POSTS |
| body width | 0.29 inch | 0.29 inch | 0.29 inch | 0.29 inch | 0.29 inch |
| subject depth | 0.615 inch | 0.615 inch | 0.615 inch | 0.615 inch | 0.615 inch |
| body length | 0.276 inch | 0.748 inch | 1.575 inch | 1.102 inch | 1.22 inch |
| Body/casing type | RECEPTACLE | PLUG | PLUG | PLUG | PLUG |
| Connector type | RECTANGULAR POWER CONNECTOR | POWER CONNECTOR | POWER CONNECTOR | POWER CONNECTOR | POWER CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | MALE | MALE | MALE | MALE | MALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 1500VAC V | 1500VAC V | 1500VAC V | 1500VAC V | 1500VAC V |
| Durability | 30 Cycles | 30 Cycles | 30 Cycles | 30 Cycles | 30 Cycles |
| empty shell | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO |
| Insulation resistance | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK | BLACK |
| insulator material | NYLON | NYLON | NYLON | NYLON | NYLON |
| MIL compliance | NO | NO | NO | NO | NO |
| Plug contact pitch | 0.118 inch | 0.118 inch | 0.118 inch | 0.118 inch | 0.118 inch |
| Mixed contacts | NO | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 4.6228 mm | 4.6228 mm | 4.6228 mm | 4.6228 mm | 4.6228 mm |
| Plating thickness | 100u inch | 100u inch | 100u inch | 100u inch | 100u inch |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 5 A | 5 A | 5 A | 5 A | 5 A |
| Guideline | CSA, UL | CSA, UL | CSA, UL | CSA, UL | CSA, UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell material | POLYAMIDE | NYLON | NYLON | NYLON | NYLON |
| Terminal pitch | 2.9972 mm | 2.9972 mm | 2.9972 mm | 2.9972 mm | 2.9972 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 2 | 10 | 24 | 16 | 18 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Evacuation force-minimum value | .6672 N | .6672 N | .6672 N | .6672 N | .6672 N |
| Base Number Matches | 1 | 2 | 1 | 1 | 1 |
| ECCN code | EAR99 | - | EAR99 | EAR99 | EAR99 |
| package instruction | - | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| Plug information | - | 1-794617-0 | 2-794617-4 | 1-794617-6 | 1-794617-8 |
