2-1586037-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-1586037-2

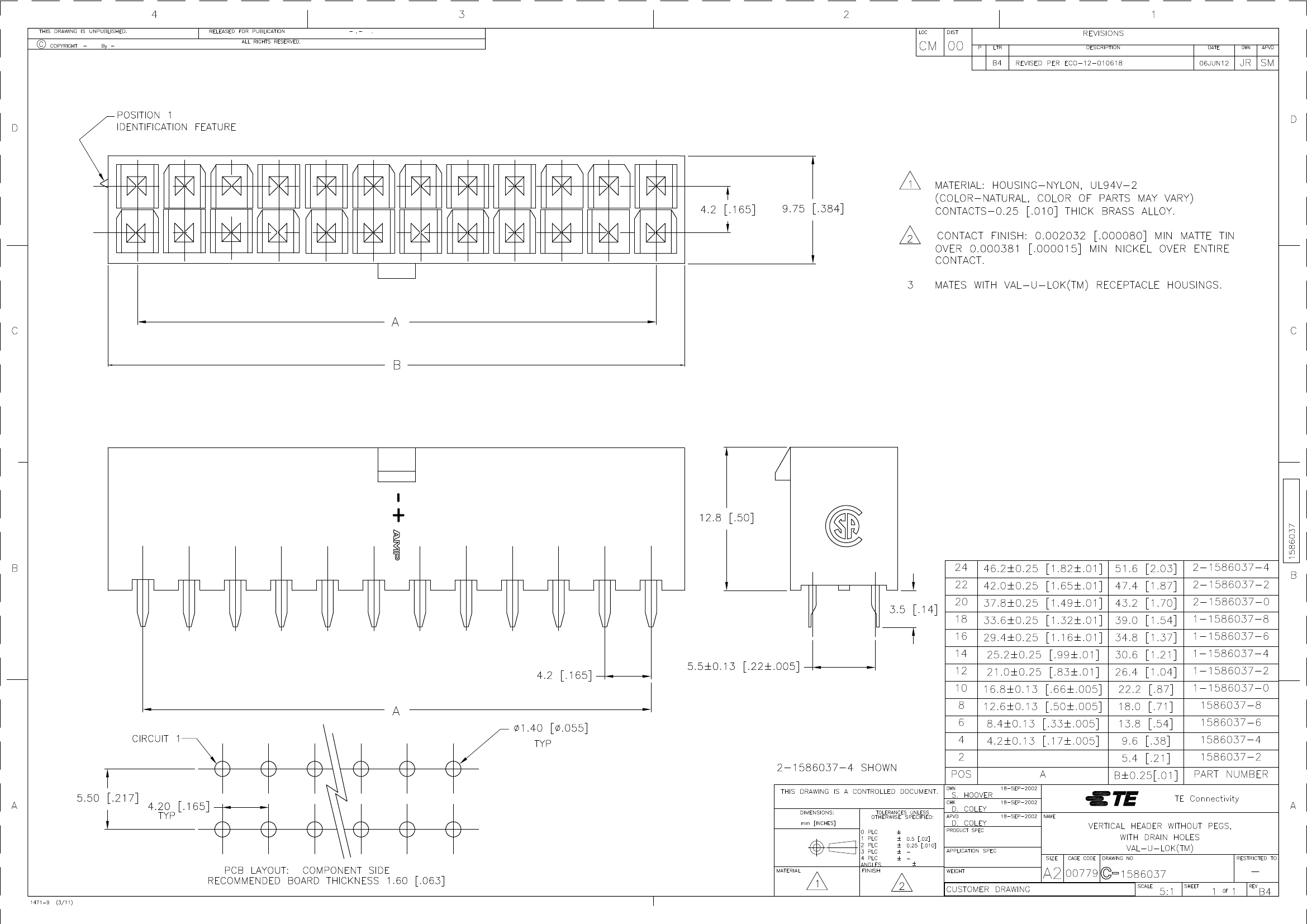

2-1586037-2: Description22P VERT HDR VAL-U-LOK V2; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2-1586037-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-1586037-2	-	-	View	Buy Now

2-1586037-2 Overview

22P VERT HDR VAL-U-LOK V2

2-1586037-2 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2135989777
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	15 weeks 3 days
Samacsys Description	Configuration Features: PCB Mount Orientation Vertical \| Number of Rows 2 \| Number of Power Positions 22 \| Number of Positions 22 \| Contact Features: Contact Mating Area Plating Material Tin \| Contact Retention Within Housing Without \| Contact Mating Area Plating Material Thickness 2.03 MICM \| Contact Mating Area Plating Material Thickness 80 MICIN \| PCB Contact Termination Area Plating Material Tin \| Contact Layout Inline \| Contact Layout Matrix \| Contact Type Pin \| Contact Current Rating (Max) 9 AMP \| Dim
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2024-04-02 12:57:53
YTEOL	8
Other features	VAL-U-LOK
body width	0.384 inch
subject depth	0.504 inch
body length	1.866 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT APPLICABLE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	50 Cycles
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Minimum insulation diameter	2.39 inch
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
MIL compliance	NO
Power Connector Ratings	9A
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LATCHING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
Panel mounting	NO
Plating thickness	80u inch
polarization key	POLARIZED
Rated current (signal)	9 A
Guideline	CSA, UL
Terminal length	0.138 inch
Terminal pitch	4.2 mm
Termination type	SOLDER
Total number of contacts	22
UL Flammability Code	94V-2
Evacuation force-minimum value	.5004 N
