Part Number

Search

85875-1

Description
04 MODI HDR SRST .156CL
CategoryThe connector    The connector
File Size189KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

85875-1 Online Shopping

Suppliers Part Number Price MOQ In stock
85875-1 - - View Buy Now

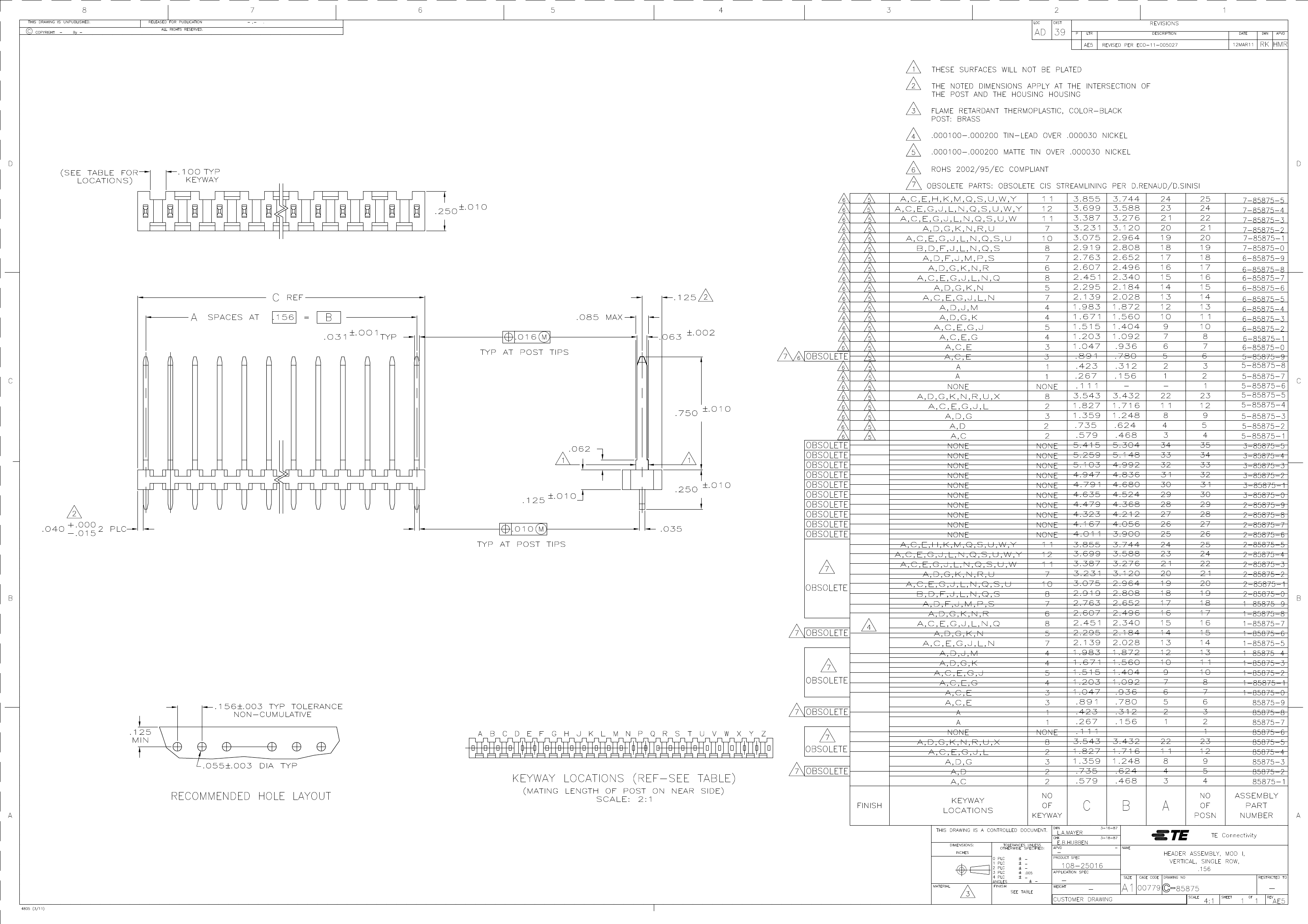

85875-1 Overview

04 MODI HDR SRST .156CL

85875-1 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codecompli
ECCN codeEAR99
Factory Lead Time40 weeks
Other featuresAMPMODU
body width0.25 inch
subject depth0.125 inch
body length0.579 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN LEAD (100) OVER NICKEL
Contact completed and terminatedTin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance12 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1200VAC V
Durability75 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force4.448 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
JESD-609 codee0
MIL complianceNO
Plug contact pitch0.156 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature60 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness100u inch
Rated current (signal)5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.125 inch
Terminal pitch3.96 mm
Termination typeSOLDER
Total number of contacts4
UL Flammability Code94V-0
Evacuation force-minimum value.278 N
Base Number Matches1

85875-1 Related Products

85875-1 7-85875-0 1-85875-7 1-85875-5 85875-9 85875-3
Description 04 MODI HDR SRST .156CL 19 MODI HDR SRST .156CL, ROHS 16 MODI HDR SRST .156CL 14 MODI HDR SRST .156CL 06 MODI HDR SRST .156CL 09 MODI HDR SRST .156CL
Brand Name AMP AMP AMP AMP AMP AMP
Is it lead-free? Contains lead Lead free Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible conform to incompatible incompatible incompatible incompatible
Maker TE Connectivity TE Connectivity TE Connectivity TE Connectivity TE Connectivity TE Connectivity
Reach Compliance Code compli compli compliant compliant compliant compliant
Factory Lead Time 40 weeks 16 weeks 10 weeks 10 weeks 8 weeks 3 days 8 weeks 3 days
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation TIN LEAD (100) OVER NICKEL NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED TIN LEAD (100) OVER NICKEL
Contact point gender MALE MALE MALE MALE MALE MALE
Contact material BRASS BRASS BRASS BRASS BRASS BRASS
DIN compliance NO NO NO NO NO NO
Filter function NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO
MIL compliance NO NO NO NO NO NO
Mixed contacts NO NO NO NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD
Number of rows loaded 1 1 1 1 1 1
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 3.96 mm 3.96 mm 3.96 mm 3.96 mm 3.96 mm 3.96 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 4 19 16 14 6 9
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Base Number Matches 1 1 1 1 1 1
ECCN code EAR99 - EAR99 EAR99 EAR99 EAR99
Other features AMPMODU - AMPMODU AMPMODU AMPMODU AMPMODU
body width 0.25 inch - 0.25 inch 0.25 inch 0.25 inch 0.25 inch
subject depth 0.125 inch - 0.125 inch 0.125 inch 0.125 inch 0.125 inch
body length 0.579 inch - 2.451 inch 2.139 inch 0.891 inch 1.359 inch
Body/casing type RECEPTACLE - RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
contact mode RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 12 mΩ - 12 mΩ 12 mΩ 12 mΩ 12 mΩ
Contact style SQ PIN-SKT - SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
Dielectric withstand voltage 1200VAC V - 1200VAC V 1200VAC V 1200VAC V 1200VAC V
Durability 75 Cycles - 75 Cycles 75 Cycles 75 Cycles 75 Cycles
maximum insertion force 4.448 N - 4.448 N 4.448 N 4.448 N 4.448 N
Insulation resistance 5000000000 Ω - 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω
Insulator color BLACK - BLACK BLACK BLACK BLACK
insulator material THERMOPLASTIC - THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC
Plug contact pitch 0.156 inch - 0.156 inch 0.156 inch 0.156 inch 0.156 inch
Plug information MULTIPLE MATING PARTS AVAILABLE - MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Number of connectors ONE - ONE ONE ONE ONE
PCB row number 1 - 1 1 1 1
Maximum operating temperature 60 °C - 60 °C 60 °C 60 °C 60 °C
Minimum operating temperature -65 °C - -65 °C -65 °C -65 °C -65 °C
PCB contact pattern RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Plating thickness 100u inch - 100u inch 100u inch 100u inch 100u inch
Rated current (signal) 5 A - 5 A 5 A 5 A 5 A
Guideline UL, CSA - UL, CSA UL, CSA UL, CSA UL, CSA
reliability COMMERCIAL - COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.125 inch - 0.125 inch 0.125 inch 0.125 inch 0.125 inch
Evacuation force-minimum value .278 N - .278 N .278 N .278 N .278 N
