PUD
CONNECTOR
2.0mm pitch/Disconnectable Crimp style connectors
• High reliability contact
• Superior operability
• Secure locking structure
• Polarizing key for mounting on PC board
Specifications –––––––––––––––––––
• Current rating: 3A AC, DC (AWG#22)
• Voltage rating: 250V AC, DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance: 1,000M
Ω
min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: 001 type/AWG #26 to #22
002 type/AWG #28 to #24
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
This is a board-to-wire connector with
secure locking device that has been
designed to 2.0mm pitch, crimping style
and double-row. In spite of realizing low
insertion force, the stable electric
connection is demonstrated against the
condition such as vibration, pinching and
dry circuit. It is possible to unfasten the
locking even if the header is surrounded
with a case wall within height of header
because the tip of locking device in
receptacle does not protrude from its area.
Standards
––––––––––––––––––––––
0
Recognized E 60389

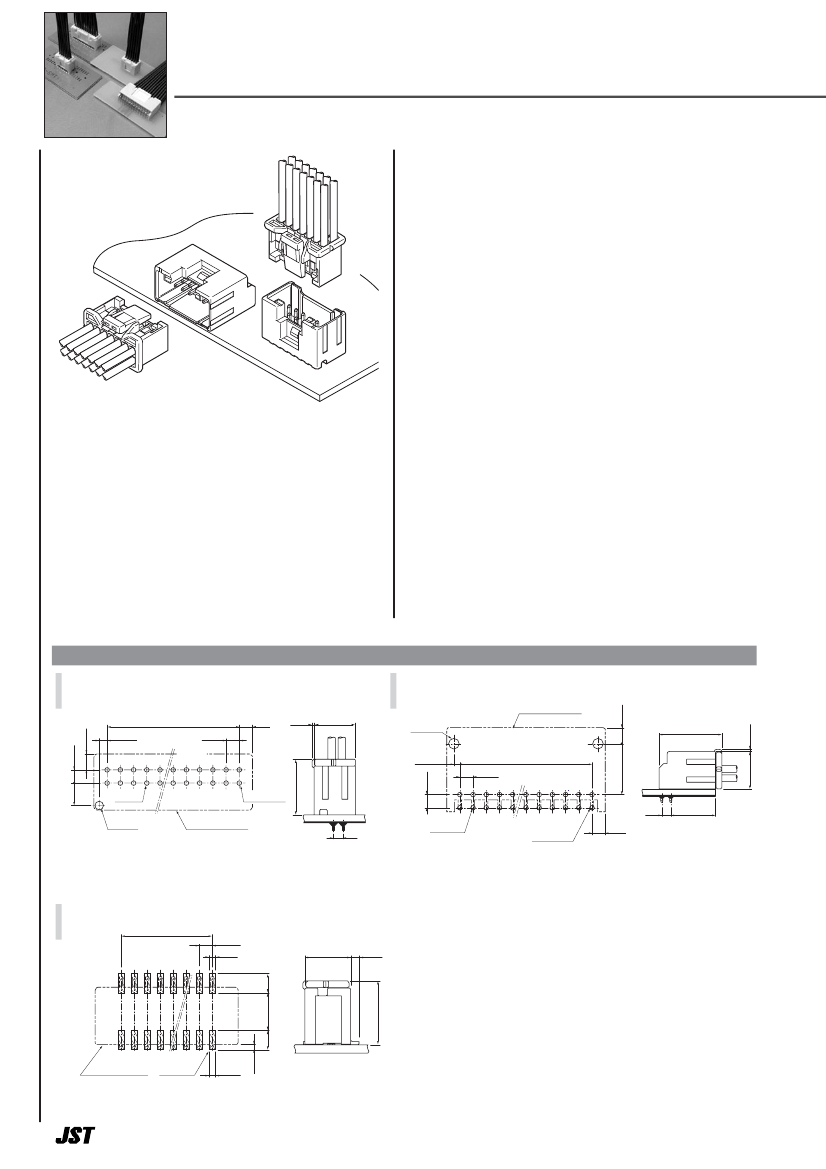

PC board layout (viewed from component side) and Assembly layout
Top entry type
（0.4）
8.3
Side entry type
(2.4)
Connector outline
A
±0.05
(2.4)
φ1.6
＋0.1
0
1.2
±0.05
Even
number
circuits
2
±0.05
7.7
±0.05
0.9
±0.05
2
±0.05
2
±0.05
11
A
±0.05
Even number
circuits
(14.1)
2
±0.05
3.4
±0.05
φ0.7
＋0.1
0
Odd
number
circuits
Circuit No.1
2
2
φ0.7
＋0.1
0
10.1
φ1.3
＋0.1
0
Connector outline
Odd number
circuits
Circuit No.1
(2)
Note: 1.Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method.
The dimensions above should serve as a guideline. Contact JST for details.
SMT type
A
±0.1
2
±0.05
1min
Even number circuits
3min
8.8
(1.6)
5.7
±0.1
Odd number circuits
Connector outline
Circuit No.1
1min
Note: 1.Tolerances are non-cumulative:
±
0.05mm for all centers.
2.The dimensions above should serve as a guideline. Contact JST for details.
1
（0.8）
3min
(12.3)
8.5
（0.4）
(2)

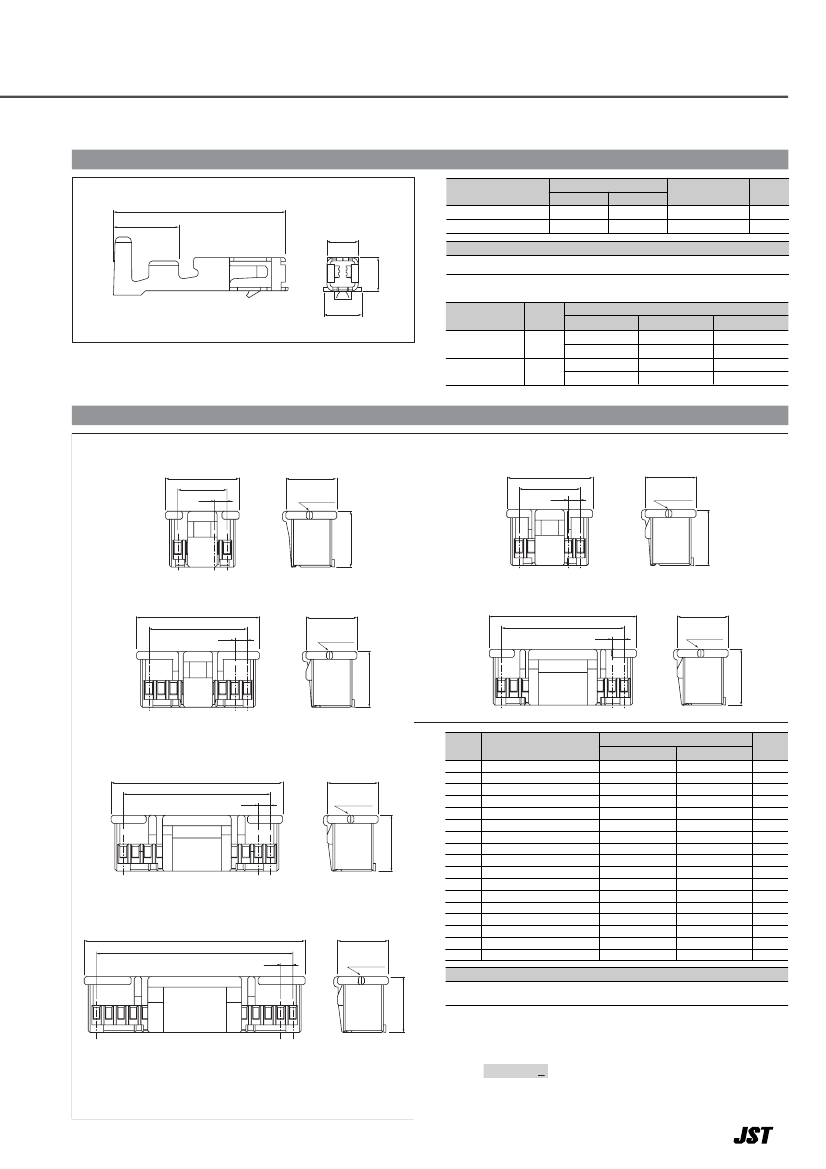

PUD CONNECTOR
Contact
Model No.
7.5
2.85
1.35
Applicable wire
AWG#
mm
2
0.13∼0.33
0.08∼0.22
26∼22
28∼24
Insulation O.D.
(mm)
0.95∼1.5
0.8 ∼1.5
Q’ty /
reel
8,000
8,000
SPUD-001T-P0.5
SPUD-002T-P0.5
Material and Finish
1.45
Copper alloy, tin-plated (reflow treatment)
RoHS compliance
Crimping
machine Crimp applicator
MKS-L
ー
MKS-L
ー
1.65
Contact
Applicator
Dies
ー
ー
Crimp applicator with dies
ー
ー
SPUD-001T-P0.5
AP-K2N
SPUD-002T-P0.5
AP-K2N
MK/SPUD-001-05 APLMK SPUD001-05
MK/SPUD-002-05 APLMK SPUD002-05
Housing
〈8,
10 circuits〉
B
A
2
8.3
Circuit No.1
mark
〈12,
14 circuits〉
B
A
2
8.3
Circuit No.1
mark
〈16,
18 circuits〉
B
A
2
8.3
Circuit No.1
mark
9.1
〈20,
22 circuits〉
B
A
2
8.3
Circuit No.1
mark
9.1
9.1
〈24
to 28 circuits〉
B
A
2
8.3
Circuit No.1
mark
Circuits
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
Model No.
PUDP-08V-S
PUDP-10V-S
PUDP-12V-S
PUDP-14V-S
PUDP-16V-S
PUDP-18V-S
PUDP-20V-S
PUDP-22V-S
PUDP-24V-S
PUDP-26V-S
PUDP-28V-S
PUDP-30V-S
PUDP-32V-S
PUDP-34V-S
PUDP-36V-S
PUDP-38V-S
PUDP-40V-S
Dimensions (mm)
A
B
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
34.0
36.0
38.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
34.0
36.0
38.0
40.0
42.0
9.1
Q’ty /
bag
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
500
500
500
500
500
500
500
〈30
to 40 circuits〉
B
A
2
8.3
Circuit No.1
mark
9.1
Material
PBT, UL94V-0, natural
9.1
RoHS compliance
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
PUDP-08V-S
S...natural Z...ivory E...blue R...red K...black TR...tomato red
MG...moss green DPK...dark pink CB...cobalt blue
DO...dark orange DP...dark purple DH...dark gray LE...light blue
2
PUD CONNECTOR
Through-hole type shrouded header
Top entry type
〈8,
10 circuits〉
B
A
8.3
Circuits
8
10
12
9.6
Model No.
Top entry type
Side entry type
Dimensions
(mm)
A
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
34.0
36.0
38.0
Without boss With boss
With boss
B08B-PUDSS B08B-PUDSS-1 S08B-PUDSS-1
B10B-PUDSS B10B-PUDSS-1 S10B-PUDSS-1
B12B-PUDSS B12B-PUDSS-1 S12B-PUDSS-1
B14B-PUDSS B14B-PUDSS-1 S14B-PUDSS-1
B16B-PUDSS B16B-PUDSS-1 S16B-PUDSS-1
B18B-PUDSS B18B-PUDSS-1 S18B-PUDSS-1
B20B-PUDSS B20B-PUDSS-1 S20B-PUDSS-1
B22B-PUDSS B22B-PUDSS-1 S22B-PUDSS-1
B24B-PUDSS B24B-PUDSS-1 S24B-PUDSS-1
B26B-PUDSS B26B-PUDSS-1 S26B-PUDSS-1
B28B-PUDSS B28B-PUDSS-1 S28B-PUDSS-1
B30B-PUDSS B30B-PUDSS-1 S30B-PUDSS-1
B32B-PUDSS B32B-PUDSS-1 S32B-PUDSS-1
B34B-PUDSS B34B-PUDSS-1 S34B-PUDSS-1
B36B-PUDSS B36B-PUDSS-1 S36B-PUDSS-1
B38B-PUDSS B38B-PUDSS-1 S38B-PUDSS-1
B40B-PUDSS B40B-PUDSS-1 S40B-PUDSS-1
Material and Finish
B
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
34.0
36.0
38.0
40.0
42.0
Q’ty /
box
3,300
2,750
2,310
1,980
1,760
1,650
1,430
1,320
1,210
1,100
1,100
990
880
880
770
770
770
14
0.8
16
18
20
3.4
2
2
Circuit No.1
3.1
22
24
8.3
〈12
to 18 circuits〉
B
A
26
28
30
9.6
32
34
0.8
36
38
3.4
2
3.1
2
Circuit No.1
40
〈20
to 40 circuits〉
B
A
8.3
Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
Wafer: Glass-filled PA 66, UL94V-0, natural
RoHS compliance
This product displays (LF)(SN) on a label.
Note: Color indication was changed.
Berofe change;
S...natural (ivory)
’After
change; S...natural
0.8
9.6
2
Circuit No.1
3.4
2
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
B08B-PUDSS-1
S...natural Z...ivory E...blue R...red K...black TR...tomato red
MG...moss green DPK...dark pink CB...cobalt blue
DO...dark orange DP...dark purple DH...dark gray LE...light blue
Side entry type
〈8,
10 circuits〉
B
A
8.5
0.8
3.1
12.7
2
Circuit No.1
3
〈12
to 18 circuits〉
B
A
8.5
0.8
2
7.7
10.1
12.7
Circuit No.1
3
8.5
0.8
2
12.7
Circuit No.1
3
2
7.7
10.1
7.7
10.1
2
〈20
to 40 circuits〉
B
A
2
3
PUD CONNECTOR
SMT type shrouded header
Circuits
Model No.
BM10B-PUDSS-TFC
BM12B-PUDSS-TFC
BM14B-PUDSS-TFC
BM16B-PUDSS-TFC
BM18B-PUDSS-TFC
BM20B-PUDSS-TFC
BM22B-PUDSS-TFC
BM24B-PUDSS-TFC
BM26B-PUDSS-TFC
BM28B-PUDSS-TFC
BM30B-PUDSS-TFC
BM32B-PUDSS-TFC
BM34B-PUDSS-TFC
BM36B-PUDSS-TFC
BM38B-PUDSS-TFC
BM40B-PUDSS-TFC
〈10
circuits〉
10
B
A
2
Dimensions (mm)
A
B
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
34.0
36.0
38.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
34.0
36.0
38.0
40.0
42.0
44.0
Q’ty /
reel
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
12
8.8
14
16
18
20
10.8
22
24
26
Circuit No.1
28
30
32
34
〈12
to
18 circuits〉
B
A
2
8.8
36
38
40
Material and Finish
Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
Wafer: Polyamide, UL94V-0, natural
10.8
RoHS compliance
This product displays (LF)(SN) on a label.
Circuit No.1
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
BM-10B-PUDSS-TFC
S...natural Z...ivory K...black TR...tomato red
MG...moss green DPK...dark pink CB...cobalt blue
DO...dark orange DP...dark purple DH...dark gray LE...light blue
〈20,
22 circuits〉
B
A
2
8.8
Circuit No.1
〈24
to 28 circuits〉
B
A
2
8.8
10.8
Circuit No.1
〈30
to 40 circuits〉
B
A
8.8
2
10.8
Circuit No.1
10.8
4
