1-917337-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-917337-2

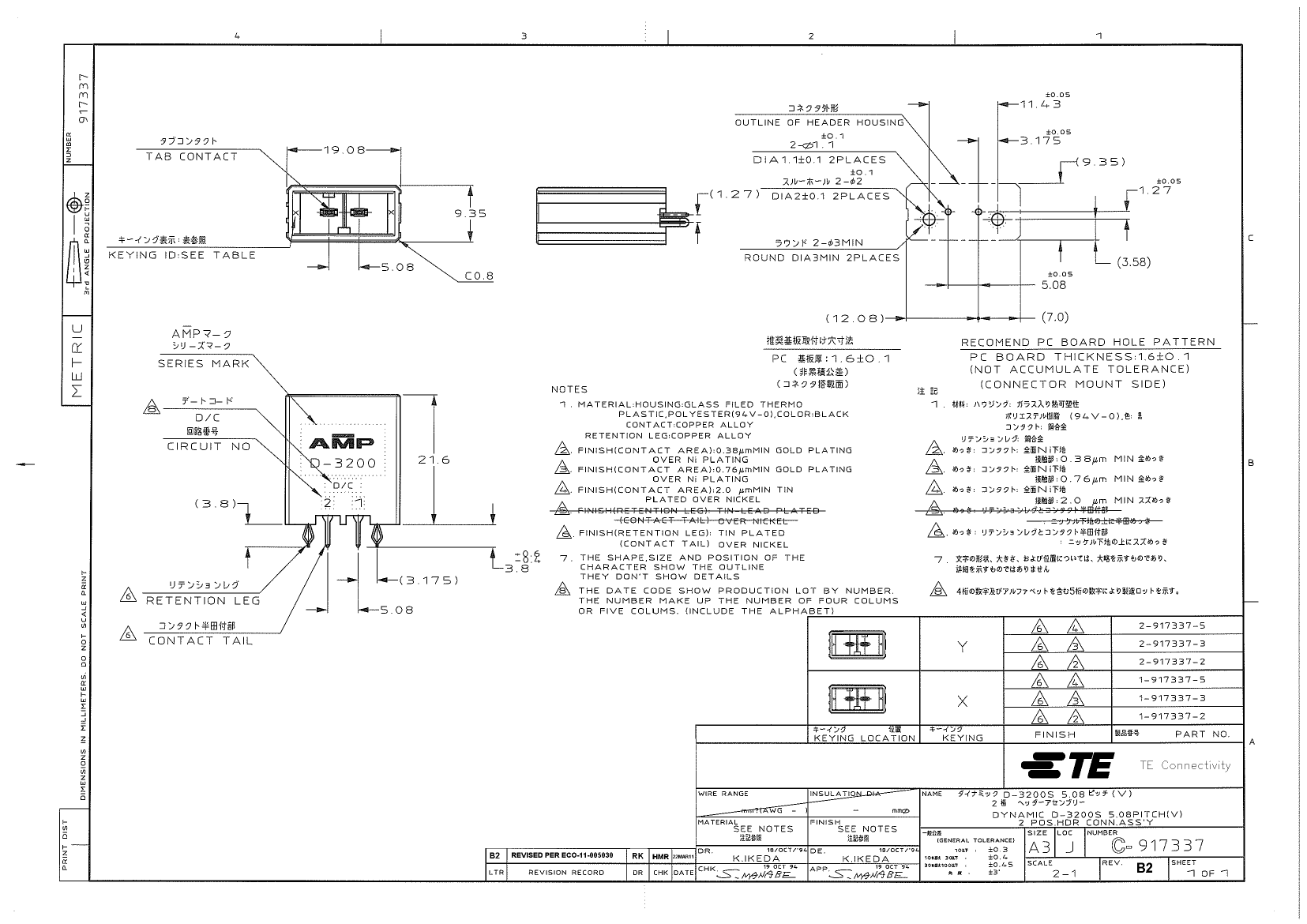

1-917337-2: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-917337-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-917337-2	-	-	View	Buy Now

1-917337-2 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Plug

1-917337-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1932646722
Reach Compliance Code	compliant
Factory Lead Time	17 weeks 5 days
Samacsys Description	PCB Mount Header, Vertical, Wire-to-Board, 2 Position, 5.08 mm [.2 in] Centerline, Fully Shrouded, Gold, Through Hole - Solder, Dynamic 3000 Series
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2024-03-25 20:00:27
YTEOL	7.5
Board mount options	SOLDERABLE RETENTION CLIPS
body width	0.368 inch
subject depth	0.85 inch
body length	0.751 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S0P2
Contact to complete cooperation	NOT APPLICABLE
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT APPLICABLE
DIN compliance	NO
Durability	500 Cycles
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Power Connector Ratings	15A
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Plating thickness	15u inch
polarization key	POLARIZED
Rated current (signal)	15 A
Guideline	UL
Terminal length	0.15 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

1-917337-2 Related Products

	1-917337-2	1-917337-5	2-917337-2	1-917337-3	2-917337-5	2-917337-3
Description	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Plug	(2-917337-2) DYNAMIC D-3 VERTI. HDR ASSY 2P	(1-917337-3) DYNAMIC D-3 VERTI. HDR ASSY 2P	DYNAMIC D-3 VERTI. HDR ASSY 2P	DYNAMIC D-3 VERTI. HDR ASSY 2P
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Board mount options	SOLDERABLE RETENTION CLIPS	PEG	PEG	SOLDERABLE RETENTION CLIPS	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.368 inch	0.368 inch	0.368 inch	0.368 inch	0.368 inch	0.368 inch
subject depth	0.85 inch	0.85 inch	0.85 inch	0.85 inch	0.85 inch	0.85 inch
body length	0.751 inch	0.751 inch	0.751 inch	0.751 inch	0.751 inch	0.751 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	RECEPTACLE	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S0P2	S0P2	S0P2	S0P2	S0P2	S0P2
Contact to complete cooperation	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO	NO
Durability	500 Cycles	100 Cycles	500 Cycles	500 Cycles	100 Cycles	500 Cycles
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	15u inch	80u inch	15u inch	30u inch	79u inch	30u inch
Guideline	UL	UL	UL	UL	UL, CSA	UL, CSA
Terminal length	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch
Terminal pitch	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	2	2	2	2	2	2
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Objectid	1932646722	1932646724	1932646737	1932646723	-	-
Samacsys Description	PCB Mount Header, Vertical, Wire-to-Board, 2 Position, 5.08 mm [.2 in] Centerline, Fully Shrouded, Gold, Through Hole - Solder, Dynamic 3000 Series	Body Features: Primary Product Color Black \| Configuration Features: Number of Rows 1 \| PCB Mount Orientation Vertical \| Number of Positions 2 \| Contact Features: Contact Mating Area Plating Material Thickness 80 MICIN \| Contact Mating Area Plating Material Finish Matte \| Contact Type Pin \| Contact Mating Area Plating Material Tin \| Contact Mating Area Plating Material Thickness 2 MICM \| Contact Current Rating (Max) 15 AMP \| Housing Features: Centerline (Pitch) 5.08 MM \| Housing Material Polyester GF \| Cent	Body Features: Primary Product Color Black \| Configuration Features: PCB Mount Orientation Vertical \| Number of Positions 2 \| Number of Rows 1 \| Contact Features: Contact Mating Area Plating Material Thickness 15 MICIN \| Contact Current Rating (Max) 15 AMP \| Contact Mating Area Plating Material Gold \| Contact Mating Area Plating Material Thickness .38 MICM \| Contact Type Pin \| Housing Features: Centerline (Pitch) .2 INCH \| Centerline (Pitch) 5.08 MM \| Housing Material Polyester GF \| Industry Standards: UL F	Headers & Wire Housings 2 POS HDR VERT 30 AU KEY X	-	-
Samacsys Manufacturer	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	-	-
Samacsys Modified On	2024-03-25 20:00:27	2024-03-25 20:00:27	2024-04-03 09:25:58	2024-03-25 20:00:27	-	-
YTEOL	7.5	7.5	7.5	7.5	-	-
Electromagnetic interference shielding	NO	NO	NO	NO	-	-
empty shell	YES	YES	YES	YES	-	-
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	POLYBUTYLENE TEREPHTHALATE	-
Power Connector Ratings	15A	15A	15A	15A	-	-
Number of ports	1	1	1	1	-	-
Panel mounting	NO	NO	NO	NO	-	-
polarization key	POLARIZED	POLARIZED	POLARIZED	POLARIZED	-	-
Rated current (signal)	15 A	15 A	15 A	15 A	-	-
Brand Name	-	-	AMP	AMP	AMP	AMP
Is it lead-free?	-	-	Lead free	Lead free	Lead free	Lead free
