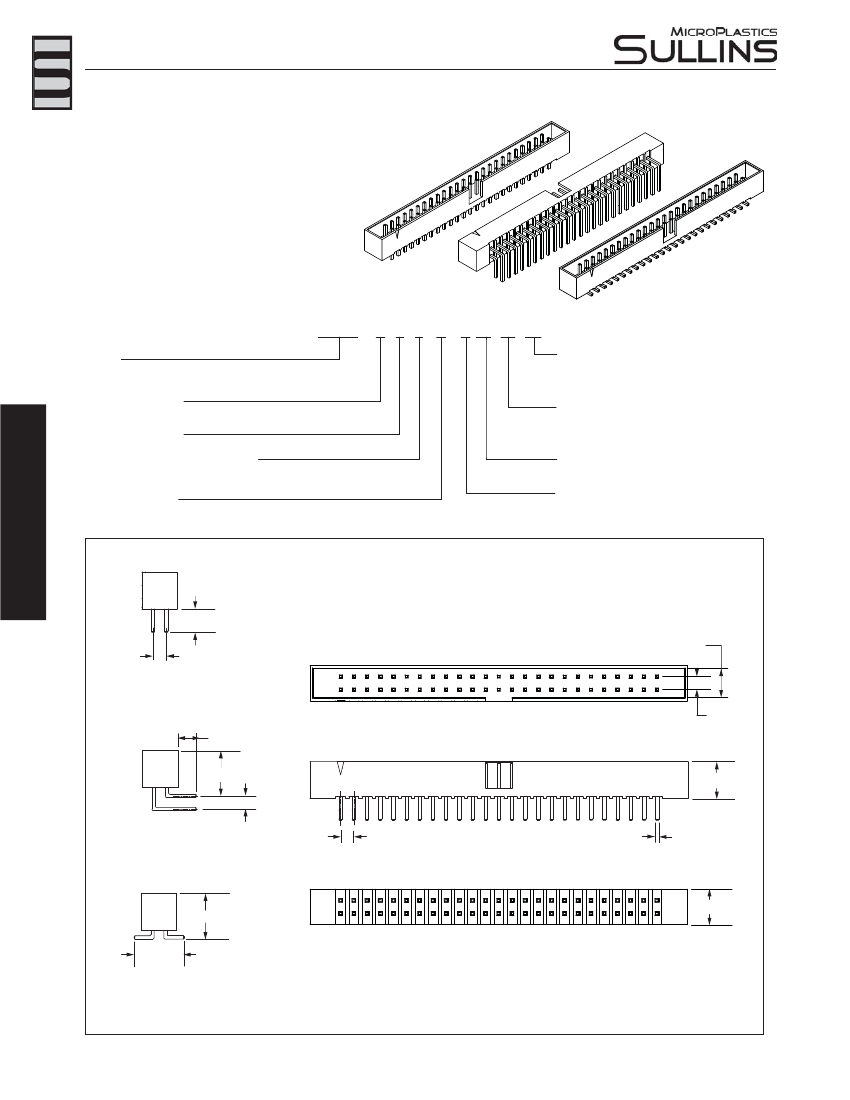

Sullins Headers
.079” [2.00] Male Shrouded Box Headers, Straight, Right Angle, SMT
SPECIFICATIONS
• Centered Polarizing Notch
•
Operating Temperature: - 40
0
C to + 85
0
C
• Processing Temperature: 230
0
C for 60 seconds Max.
(260
0
C, 10 seconds)
• UL Flammability Rating: 94V-0
• Voltage Rating: 20m OHMs Max.
• Current Rating: 2 AMP per contact
• Voltage Drop: AC 500 V.
• Insulation Resistance: 1000 Mega OHMS
• Mates with SFH21 series (See opposite page)
PART NUMBER OPTIONS
SBH21 - N B P
N - D 10 - ST - BK
COLOR
BK = Black
Other Color Options Available
(Consult Factory)
TERMINATION TYPE
ST = Straight
RA = Right Angle
SM = Surface Mount
NUMBER OF CONTACT POSITIONS (Pins per Row)
03 thru 20, 22, 25, 27, 28, 30, 31, 32, 34
NUMBER OF ROWS
D = Dual Row
SERIES
SBH21 = Male Box Header with Centered Polarizing
Notch, .079” [2.00mm] Contact Centers
HOUSING MATERIAL
N = Nylon 6T
CONTACT MATERIAL
B = Brass
CONTACT FINISH - RoHS Compliant
P = Gold Flash Overall
CONTACT CENTERS
N = .079” [2.00mm]
Sullins Headers
DIMENSIONS
For complete drawings, go to www.sullinscorp.com or e-mail techsupport@sullinscorp.com
.110[2.80]
.173[4.40]
.079[2.00]
STRAIGHT (ST)
Example P/N:
SBH21-NBPN-D20-ST-BK
.079[2.00]
.110[2.80]
.270[6.85]
.079[2.00]
.220[5.60]
RIGHT ANGLE (RA)
Example P/N:
SBH21-NBPN-D20-RA-BK
.079[2.00]
SQ .020[0.50]
.213[5.40]
.274[6.95]
.299[7.60]
SURFACE MOUNT (SM)
Example P/N:
SBH21-NBPN-D20-SM-BK
86
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com

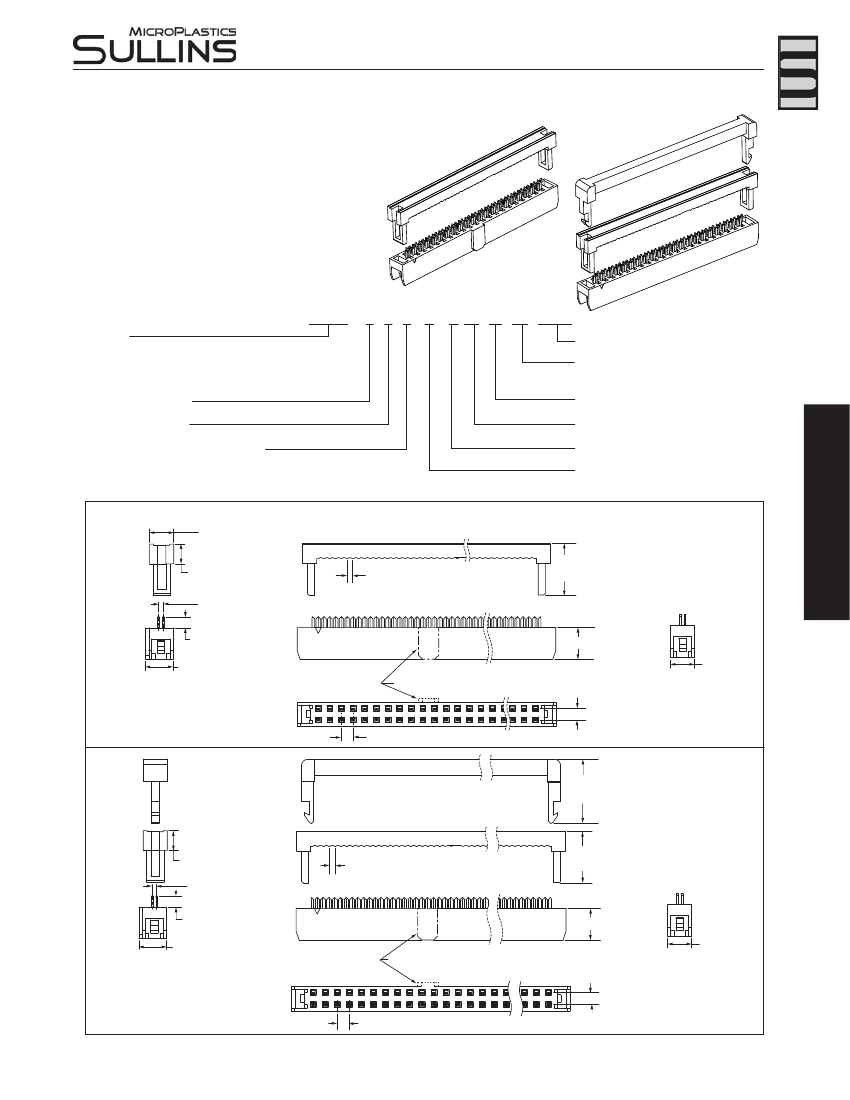

Sullins Headers
.079” [2.00] IDC Sockets, Insulation Displacement
With or Without Strain Relief
SPECIFICATIONS
• Centered Polarizing Key Optional
•
Operating Temperature: - 45
0
C to + 85
0
C
• UL Flammability Rating: 94V-0
• Current Rating: 1 AMP per contact
• Dielectric Withstanding: 500 VAC
• Insulation Resistance: 1000 Mega OHMS
• Mates with SBH21 series (See opposite page)
PART NUMBER OPTIONS
SFH21 - P P P
N - D 10 - ID - BK - M181
MODIFICATION (Omit for Standard)
M181 = Without Centered Polarizing Key
COLOR
BK = Black
GY = Grey
TERMINATION TYPE (Opposite Page)
ID = Insulation Displacement
NUMBER OF CONTACT POSITIONS
03 thru 13, 15, 17, 20, 22, 25, 30, 34
NUMBER OF ROWS
D = Dual Row
CONTACT CENTERS
N = .079” [2.00mm]
SERIES
SFH21 = Female Box Header Without Strain Relief,
.079” [2.00mm] Contact Centers
SFH213 = Female Box Header With Strain Relief,
.079” [2.00mm] Contact Centers
HOUSING MATERIAL
P = PBT
CONTACT MATERIAL
P = Phosphor Bronze
CONTACT FINISH - RoHS Compliant
P = Gold Flash Overall
E = .000100” Pure Tin, Matte, Overall
V = Gold Flash on Contact Surface, Nickle Underplate on Tails
Sullins Headers
DIMENSIONS
For complete drawings, go to www.sullinscorp.com or e-mail techsupport@sullinscorp.com
.163[4.15]
.348
[8.85]
.134[3.40]
.031[0.80]
.039[1.00]
-M181 Modification
(No Centered
Polarizing Key)
.075[1.90]
.187[4.75]
.215[5.45]
.163[4.15]
Centered Polarizing Key Optional, Requres -M181 Modification to Remove
.079[2.00]
.079[2.00]
INSULATION DISPLACEMENT (ID)
without Strain Relief,
requires SFH21
Example P/N:
SFH21-PPPN-D20-ID-BK
.432
[10.98]
.134[3.40]
.031[0.80]
.075[1.90]
.187[4.75]
.039[1.00]
.348
[8.85]
-M181 Modification
(No Centered
Polarizing Key)
.215[5.45]
.163[4.15]
Centered Polarizing Key Optional, Requres -M181 Modification to Remove
INSULATION DISPLACEMENT (ID)
with Strain Relief,
requires SFH213
Example P/N:
SFH213-PPPN-D20-ID-BK
.079[2.00]
.079[2.00]
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
87
