2-794616-4 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 2-794616-4

Preview

2-794616-4: DescriptionFREE HANG DBL ROW HSG 24 POS; CategoryThe connector The connector; File Size126KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2-794616-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-794616-4	-	-	View	Buy Now

2-794616-4 Overview

FREE HANG DBL ROW HSG 24 POS

2-794616-4 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
body width	0.27 inch
subject depth	0.665 inch
body length	1.45 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	150 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA,UL,VDE
reliability	COMMERCIAL
Shell material	NYLON66
Termination type	CRIMP
Total number of contacts	24
UL Flammability Code	94V-0
Evacuation force-minimum value	.6672 N
Base Number Matches	1

Preview

Download Datasheet

View All

4

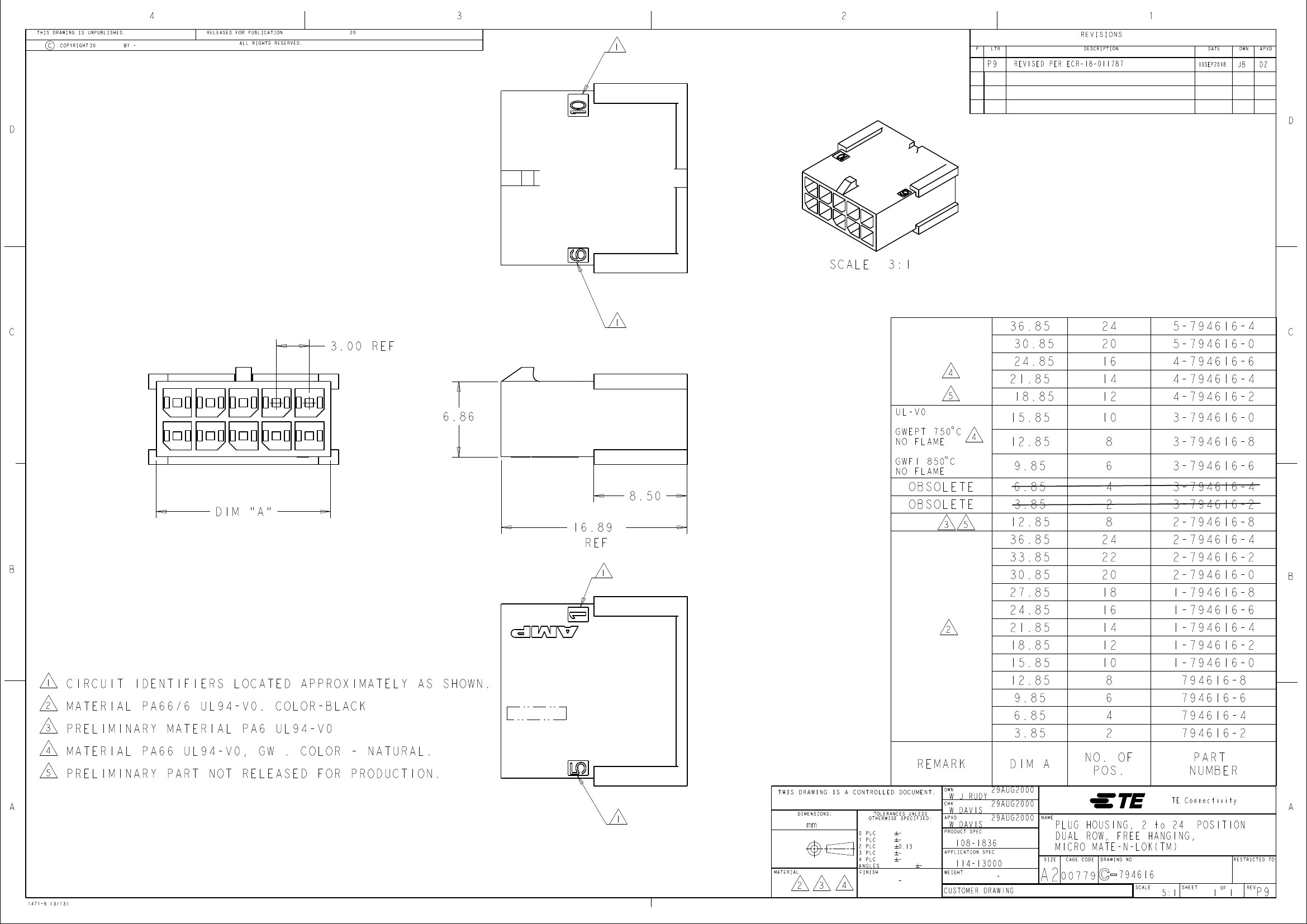

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

1

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

P9

REVISED PER ECR-18-011787

10SEP2018

JB

DZ

D

SCALE

3:1

C

1

36.85

3.00

REF

4

5

30.85

24.85

18.85

24

20

14

12

10

8

6

4

2

24

22

20

18

16

14

12

10

8

6

4

2

NO. OF

POS.

8

16

5-794616-4

4-794616-6

4-794616-4

4-794616-2

3-794616-0

3-794616-8

3-794616-6

3-794616-4

2-794616-8

2-794616-4

2-794616-2

2-794616-0

1-794616-8

1-794616-6

1-794616-4

1-794616-2

1-794616-0

794616-8

794616-6

794616-4

794616-2

PART

NUMBER

TE Connectivity

5-794616-0

C

21.85

15.85

4

6.86

UL-V0

GWEPT 750 $ C

NO FLAME

GWFI 850 $ C

NO FLAME

12.85

9.85

6.85

3.85

DIM "A"

8.50

16.89

REF

1

OBSOLETE

3

5

12.85

36.85

33.85

30.85

27.85

24.85

3-794616-2

B

2

21.85

18.85

15.85

12.85

9.85

6.85

3.85

1

2

3

4

5

CIRCUIT IDENTIFIERS LOCATED APPROXIMATELY AS SHOWN.

MATERIAL PA66/6 UL94-V0. COLOR-BLACK

PRELIMINARY

MATERIAL PA6 UL94-V0

REMARK

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

MATERIAL PA66 UL94-V0, GW . COLOR - NATURAL.

PRELIMINARY PART NOT RELEASED FOR PRODUCTION.

1

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DIM A

29AUG2000

NAME

A

W J RUDY

W DAVIS

mm

APVD

A

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.13

-

PRODUCT SPEC

W DAVIS

APPLICATION SPEC

108-1836

114-13000

SIZE

PLUG HOUSING, 2 to 24 POSITION

DUAL ROW, FREE HANGING,

MICRO MATE-N-LOK(TM)

CAGE CODE

DRAWING NO

-

2

1471-9 (3/13)

3

4

-

WEIGHT

-

CUSTOMER DRAWING

A2

00779

RESTRICTED TO

794616

SCALE

5:1

SHEET

1

OF

1

REV

P9
