SBH41-NBPB-D10-SP-BK datasheet, PDF

Datasheet> All Categories > The connector> SBH41-NBPB-D10-SP-BK

SBH41-NBPB-D10-SP-BK: Descriptionconn headr 1.27mm 20pos gold smd; CategoryThe connector; File Size303KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

SBH41-NBPB-D10-SP-BK Overview

conn headr 1.27mm 20pos gold smd

SBH41-NBPB-D10-SP-BK Parametric

Parameter Name	Attribute value
Datasheets
S(B,F)H41 Series Catalog Page
Product Photos
SBH41-NBPB-D10-SP-BK
Product Training Modules
Box Header Line
IDC Header Line
Catalog Drawings
1.27mm Shrouded F
1.27mm Shrouded Side
Featured Produc
Fully Shrouded Box Headers
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Tube
Contact Type	Male Pi
Connector Type	Header, Shrouded
Number of Positions	20
Number of Positions Loaded	All
Pitch	0.050" (1.27mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Contact Mating Length	-
Mounting Type	Surface Mou
Terminati	Solde
Fastening Type	-
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	Flash
Col	Black
Dynamic Catalog	SBH Series
Mating Products	S9162-ND - CONN RCPT 20POS 1.27MM IDT GOLDS9153-ND - CONN RCPT 20POS 1.27MM IDT GOLD
Other Names	S9144SBH41NBPBD10SPBK

Preview

Download Datasheet

View All

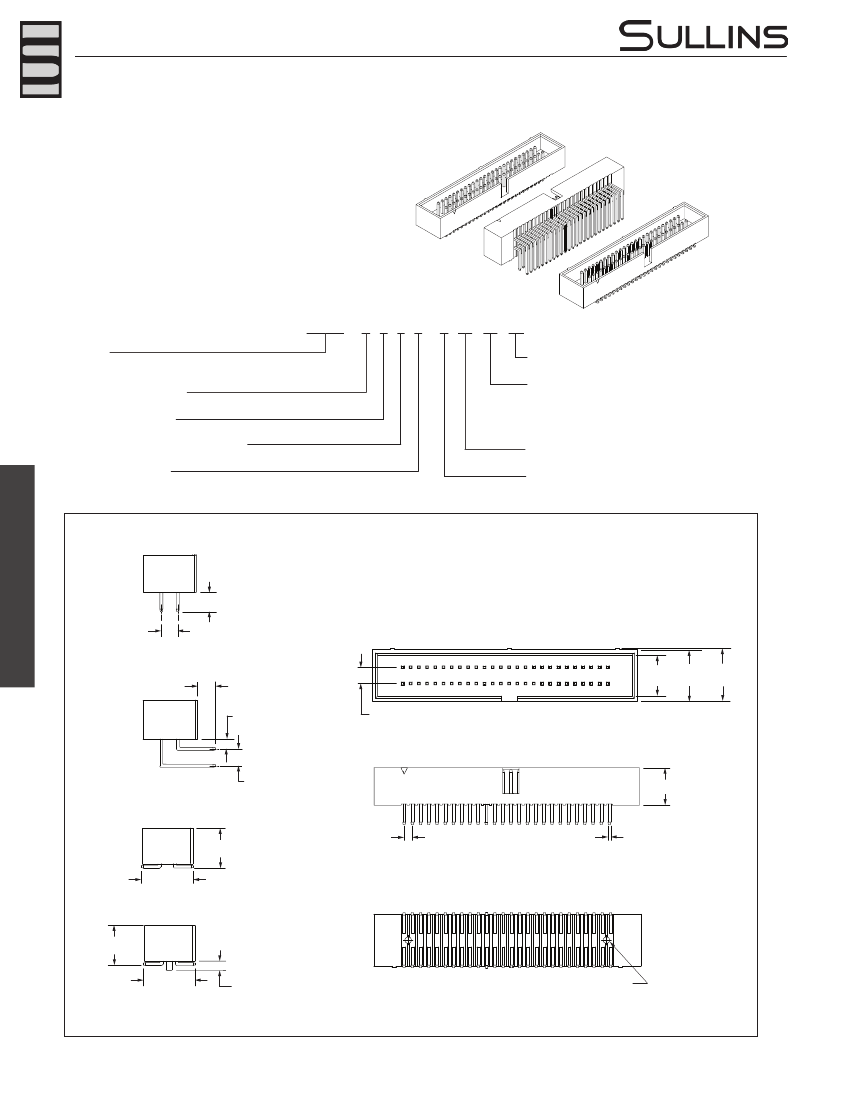

Headers

.050” [1.27 mm] Contact Centers Shrouded (Box) Headers, .100” [2.54 mm] Row Spacing

Straight/Right Angle/SMT With or Without Post- SBH Series

Mates with SFH41 series (See opposite page)

SPECIFICATIONS

• Centered Polarizing Notch

• Operating Temperature: -40°C to +105°C

• Processing Temperature: 230°C Max. for 60 seconds,

(260°C Max. for 10 seconds)

• UL Flammability Rating: 94V-0

• Voltage Rating: 20 milli Ohms Max.

• Current Rating: 1 Amp

• Dielectric Withstanding: 500 VAC

• Insulation Resistance: 1000 Megohms

PART NUMBER OPTIONS

SBH41

- N B P B - D 10 - ST -

COLOR

BK = Black

TERMINATION TYPE

RA = Right Angle

SM = Surface Mount

SP = Surface Mount with Guide Posts

NUMBER OF CONTACT POSITIONS (Pins per Row)

05 thru 50

NUMBER OF ROWS

D = Dual Row

ST =

Straight

SERIES

SBH41 = Box Header, .050” [1.27 mm] Contact Centers by

.100” [2.54 mm] Row Spacing

INSULATOR MATERIAL

N = Nylon

CONTACT MATERIAL

B = Brass

CONTACT FINISH - RoHS Compliant

P = Gold Flash Overall

CONTACT CENTERS

B = .050” [1.27 mm]

DIMENSIONS

For complete drawings, go to www.sullinscorp.com or e-mail techsupport@sullinscorp.com

Headers

Dimensions in [ ] are in millimeters, all others are in inches.

.118[3.00]

.100[2.54]

STRAIGHT (ST)

Example P/N:

SBH41-NBPB-D20-ST-BK

.106[2.70] ± .010[0.25]

.059[1.50] ± .010[0.25]

.100[2.54]

.252 .315 .323

[6.40] [8.00] [8.20]

.100[2.54]

RIGHT ANGLE (RA)

Example P/N:

SBH41-NBPB-D20-RA-BK

.256[6.50]

.335[8.50]

.050[1.27]

.228[5.80]

.018[0.46] SQ.

SURFACE MOUNT (SM)

Example P/N:

SBH41-NBPB-D20-SM-BK

.256[6.50]

.335[8.50]

2X .059[1.50]

.039[1.00]

SURFACE MOUNT with Posts (SP)

Example P/N:

SBH41-NBPB-D20-SP-BK

Surface Mount with Posts (SP) Only

www.sullinscorp.com

760-744-0125

toll-free 888-774-3100

fax 760-744-6081

info@sullinscorp.com
