5-102570-5 datasheet, PDF - EEWORLD Datasheet

5-102570-5: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector; File Size275KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

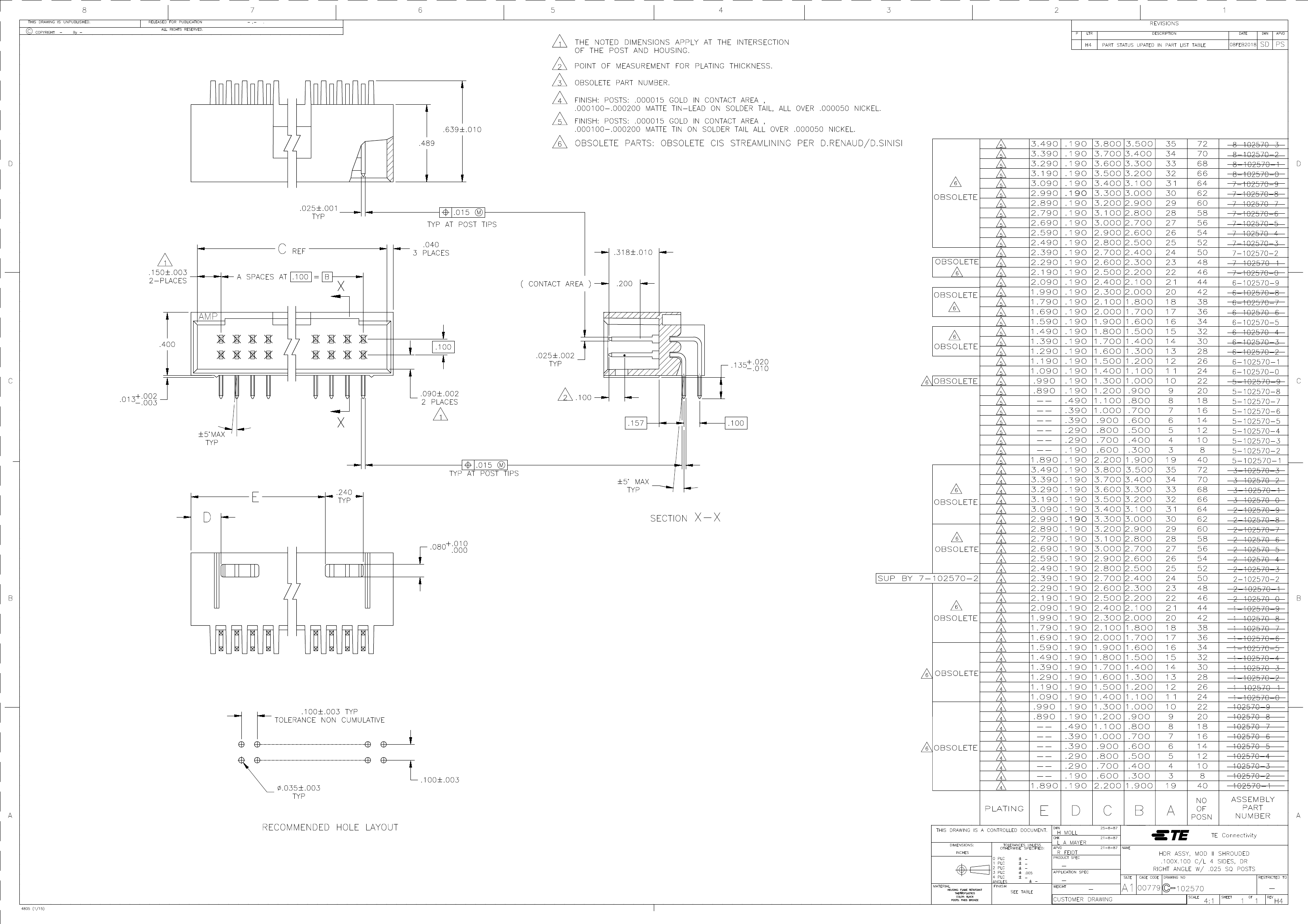

Download Datasheet Parametric View All

5-102570-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-102570-5	-	-	View	Buy Now

Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2129258348
Reach Compliance Code	compliant
Samacsys Description	14 MODII HDR DRRA SHRD LF
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-10 19:58:25
YTEOL	9.1
body width	0.413 inch
subject depth	0.639 inch
body length	0.98 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Power Connector Ratings	3A
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Panel mounting	NO
Plating thickness	15u inch
polarization key	POLARIZED
Rated current (signal)	3 A
Guideline	CSA, UL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0
