GTC16SFBN-M30: Descriptionconn header 16pos .100 sgl smd; CategoryThe connector; File Size444KB，1 Pages; ManufacturerSullins Connector Solutions

Download Datasheet Parametric View All

GTC16SFBN-M30 Overview

conn header 16pos .100 sgl smd

GTC16SFBN-M30 Parametric

Parameter Name	Attribute value
Datasheets
GxCxxSFBN-M30 HEADERS
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Male Pins
Packaging	Bulk
Contact Type	Male Pi
Connector Type	Header, Unshrouded
Number of Positions	16
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	1
Row Spacing	-
Contact Mating Length	0.318" (8.08mm)
Mounting Type	Surface Mou
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Tin-Lead
Contact Finish Thickness	100µin (2.54µm)
Col	Black
Mating Products	S7049-ND - CONN HEADER FMALE 16POS .1" GOLDS7014-ND - CONN HEADER FEMALE 16POS.1" TINS5647-ND - CONN FMALE 16POS .1" SMD GOLDS5608-ND - CONN FEMALE 16POS .1" SMD TINS5491-ND - CONN FEMALE 16POS .100" R/A GOLDS5452-ND - CONN FEMALE 16POS .100" R/A TINS4546-ND - CONN FMALE 16POS .1" SMD GOLDS4507-ND - CONN FEMALE 16POS .1" SMD TINS4390-ND - CONN FEMALE 16POS .100" R/A GOLDS4351-ND - CONN FEMALE 16POS .100" R/A TINS4116-ND - CONN HEADER FEM 16POS .1"SGL GLDS4016-ND - CONN HEADER FEM 16POS.1" SGL TIN
Other Names	S1023-16

Preview

Download Datasheet

View All

8

7

6

5

4

3

2

1

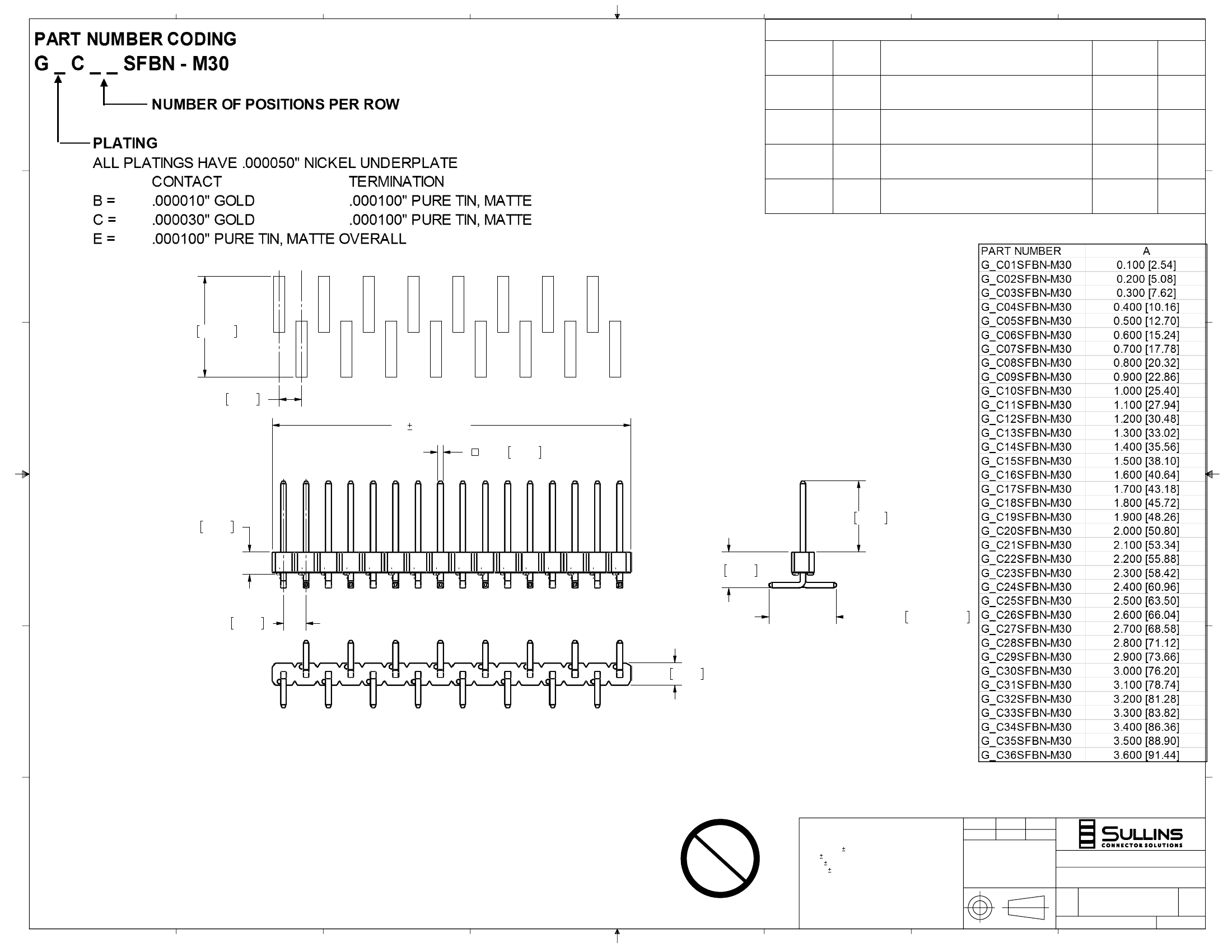

REVISIONS

REV.

F

ECO.

NO

474

841

1694

1902

DESCRIPTION

ORIGINAL RELEASE

REVERSE BENDS

ADDING TOLERANCE

UPDATE PCB LAYOUT, REMOVE

BOM

DATE

10-20-05

11/28/2005

5/16/2008

1/22/2009

BY

MNH

HT

IA

JH

F

A

B

C

D

E

.450 11.43

D

.100 2.54

A .010 [.25]

.025 0.64

D

.100 2.54

C

.318 8.08

C

.160 4.06

.300±.025 7.62±0.64

.100 2.54

B

A

NOTES:

1. INSULATOR MATERIAL: PA9T.

2. CONTACT MATERIAL: PHOSPHOR BRONZE

3. PLATING: SEE TABLE

4. OPERATING TEMPERATURE: -65°C TO +125°C

5. PROCESSING TEMPERATURE: 260°C MAX FOR 120 SECS MAX.

6. UL FLAMMABILITY: 94V-0

7. VOLTAGE RATING: 600 VDC MINIMUM AT SEA LEVEL.

8. CURRENT RATING: 3 AMP

9. INSULATION RESISTANCE: 5000 MEGA OHMS.

10. MODIFICATION: SURFACE MOUNT.

CUSTOMER COPY

Pb

R

oHS COMPLIANT

5

4

DIMENSIONS ARE IN INCHES[MM]

TOLERANCES:

ANGULAR: 30'

.XX= .02 [.508]

.XXX= .005 [.1270]

.XXXX= .0005 [.0127]

SURFACE FINISH: 63 Ra

UNLESS OTHERWISE SPECIFIED:

DRAWN

DATE

NAME

Aria

REMOVE ALL BURRS AND SHARP EDGES .010 MAX

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

DESCRIPTION

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

PART NUMBER

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

HEADER, .100 CC

REV

A

G_C_ _SFBN-M30

SIZE DWG. NO.

INTERPRET DIMENSIONS AND GEOMETRIC

TOLERANCING

PER: ANSI Y14.5M-1994

3

2

SCALE: 4:1

1

C

C10584

D

SHEET 1 OF 1

8

7

6

FILE NAME: Z:\ECO PENDING\1902\C10584, G_C_ _SFBN-M30 HEADERS PRINT: 2/9/2009
