REVISIONS
REV.
A
ECO. NO
2364
DESCRIPTION
INITIAL RELEASE
DATE
06/08/2011
BY
LH
F
F
B
E
C
E
2.70 .106
4.30 .169
D
D
2.00 .079
3.40 .134
2.50 .098
C
1.00 .039
0.30 .012
1.00 .039
C
A
1.00 .039
1.00 .039
B
A
0.60 .024
A
NOTES:
1. INSULATOR MATERIAL: LCP, UL 94V-0, BLACK.
2. CONTACT MATERIAL: PHOSPHOR BRONZE.
3. CONTACT PLATING: SEE PART NUMBER CODING.
4. CURRENT RATING: 1 AMP PER CONTACT.
5. INSULATOR RESISTANCE: 1000 MEGA OHMS MIN.
6. CONTACT RESISTANCE: 20 MILLIOHMS MAX.
7. DIELECTRIC WITHSTANDING: 300V AC.
8. OPERATING TEMPERATURE: -40° C TO +125° C.
9. *PROCESSING TEMP.: 230° C FOR 60 SECS MAX.
(260° C FOR 10 SECS MAX.)
10. MATES WITH SFM210 SERIES.
*INDICATED TEMPERATURE AND TIME IS FOR COMPONENT
INSULATOR. HIGHER PROCESSING TEMPERATURES MAY BE USED,
PROVIDED HEAT IS APPLIED FROM BACK SIDE OF PCB, AND INSULATOR
DOES NOT EXCEED INDICATED TEMPERATURE AND TIME.
8
7
6
RECOMMENDED PCB LAYOUT
B
DRAWN
DATE
06/08/2011
NAME
LH
TITLE
Pb
R
oHS COMPLIANT
5
4
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MM[INCHES]
TOLERANCES: ANGULAR:
.X= .3 [.01]
.XX= .20 [.008]
.XXX= .100 [.0040]
INTERPRET DIMENSIONS
AND TOLERANCING
PER: ASME Y14.5M-2009
3
THE INFORMATION HEREIN CONTAINS
PROPIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.

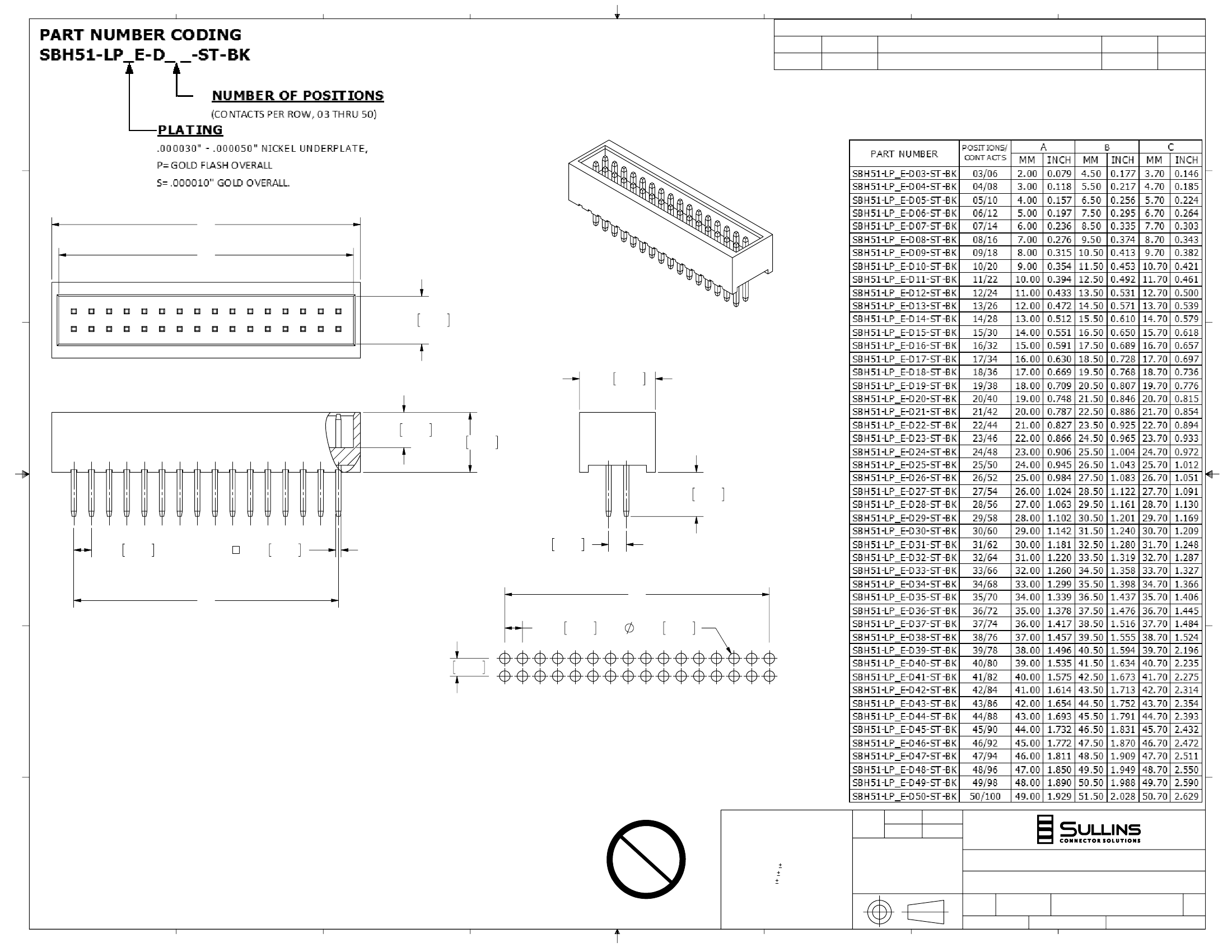

BOX HEADER, 1.00mm[.039"] CC/RS, ST
A
PART NUMBER
SIZE
SBH51-LP_E-D_ _-ST-BK
DWG. NO.
SCALE: 8:1
2
C
CAGE CODE
54453
11774
SHEET 1 OF 1
1
REV
A
FILE NAME: Z:\ECO PENDING\2364, SBH51 BOX HEADER\11774, SBH51-LP_E-D_ _-ST-BK PRINT: 6/10/2011
