Part Number

Search

2-178296-2

Description
DYNAMIC 3100 HDR ASSY 6P H K/Y
CategoryThe connector    The connector
File Size446KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance

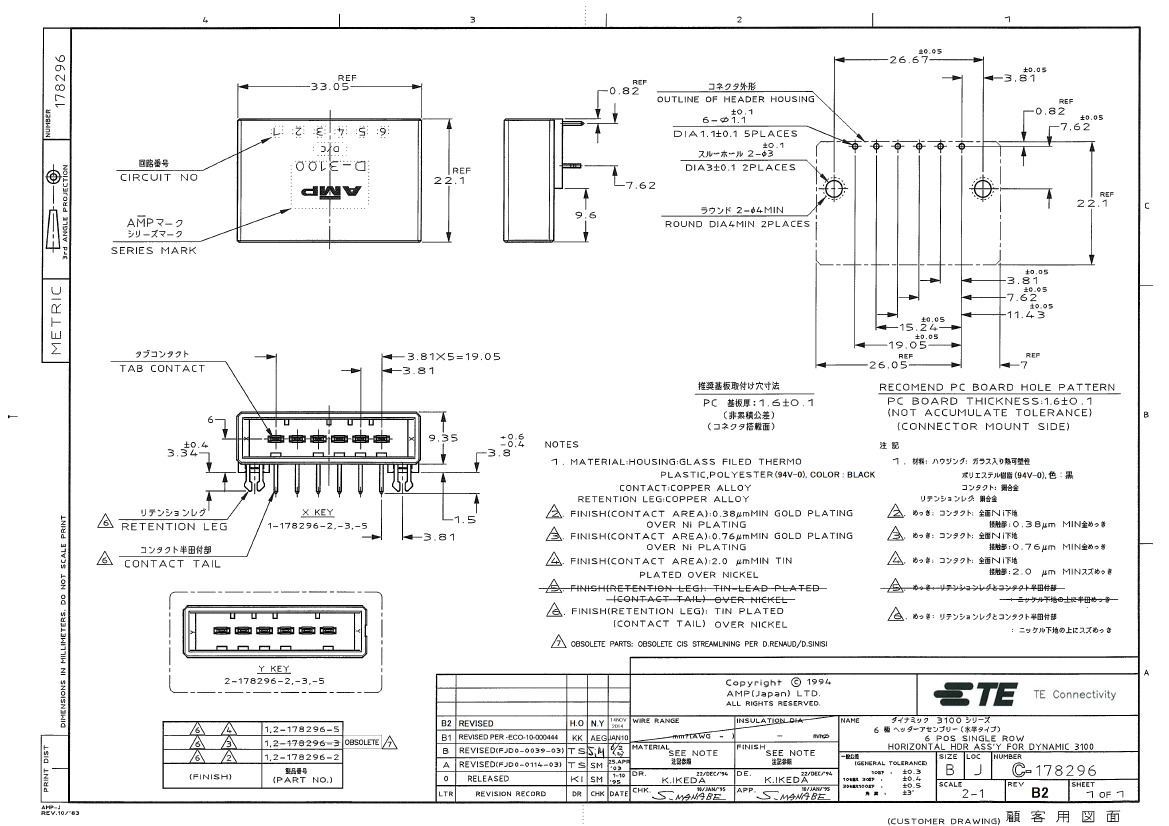

Download Datasheet Parametric Compare View All

2-178296-2 Online Shopping

Suppliers Part Number Price MOQ In stock
2-178296-2 - - View Buy Now

2-178296-2 Overview

DYNAMIC 3100 HDR ASSY 6P H K/Y

2-178296-2 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
Other featuresPOLARIZED
Board mount optionsSPLIT BOARD LOCK
body width0.427 inch
subject depth0.87 inch
body length1.301 inch
Body/casing typePLUG
Connector typeRECTANGULAR POWER CONNECTOR
Contact arrangementS0P6
Contact to complete cooperationGOLD (15)
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrie
Contact point genderMALE
Contact materialCOPPER ALLOY
Contact styleBLADE PIN-SKT
DIN complianceNO
Dielectric withstand voltage1500VAC V
Durability500 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
maximum insertion force4.8928 N
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
JESD-609 codee4
MIL complianceNO
Plug information2-178288-6
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Plating thickness15u inch
GuidelineCSA, UL
reliabilityCOMMERCIAL
Shell materialGLASS FILLED POLYETHYLENE POLYESTER
Terminal length0.15 inch
Termination typeSOLDER
Total number of contacts6
Evacuation force-minimum value.28912 N
Base Number Matches1

2-178296-2 Related Products

2-178296-2 1-178296-2 10120782-G0112ALF
Description DYNAMIC 3100 HDR ASSY 6P H K/Y (1-178296-2) DYNAMIC 3100 HDR ASSY 6P H K/X Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Black Insulator
Is it Rohs certified? conform to conform to conform to
Reach Compliance Code compli compliant compliant
body width 0.427 inch 0.427 inch 0.157 inch
subject depth 0.87 inch 0.87 inch 0.335 inch
body length 1.301 inch 1.301 inch 0.945 inch
Connector type RECTANGULAR POWER CONNECTOR RECTANGULAR POWER CONNECTOR BOARD CONNECTOR
Contact point gender MALE MALE MALE
Contact material COPPER ALLOY NOT APPLICABLE COPPER ALLOY
Contact style BLADE PIN-SKT BLADE PIN-SKT SQ PIN-SKT
Insulator color BLACK BLACK BLACK
insulator material GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED THERMOPLASTIC
Installation method RIGHT ANGLE RIGHT ANGLE STRAIGHT
Number of connectors ONE ONE ONE
Plating thickness 15u inch 15u inch 30u inch
Total number of contacts 6 6 24
Brand Name AMP AMP -
Is it lead-free? Lead free Lead free -
Other features POLARIZED POLARIZED -
Board mount options SPLIT BOARD LOCK SOLDERABLE RETENTION CLIPS -
Body/casing type PLUG PLUG -
Contact arrangement S0P6 S0P6 -
Contact to complete cooperation GOLD (15) NOT APPLICABLE -
Contact completed and terminated Gold (Au) - with Nickel (Ni) barrie - Matte Tin (Sn) - with Nickel (Ni) barrier
DIN compliance NO NO -
Durability 500 Cycles 500 Cycles -
empty shell NO YES -
Filter function NO NO -
IEC compliance NO NO -
maximum insertion force 4.8928 N 4.8928 N -
Insulation resistance 100000000 Ω 100000000 Ω -
JESD-609 code e4 - e3
MIL compliance NO NO -
Plug information 2-178288-6 1-178288-6 -
Mixed contacts NO NO -
Installation option 1 LOCKING LOCKING -
Installation type BOARD BOARD -
Maximum operating temperature 105 °C 105 °C -
Minimum operating temperature -55 °C -55 °C -
Options GENERAL PURPOSE GENERAL PURPOSE -
Guideline CSA, UL UL -
reliability COMMERCIAL - COMMERCIAL
Shell material GLASS FILLED POLYETHYLENE POLYESTER GLASS FILLED POLYETHYLENE POLYESTER -
Terminal length 0.15 inch 0.15 inch -
Termination type SOLDER SOLDER -
Evacuation force-minimum value .28912 N .28912 N -
Objectid - 2118301885 316041469
ECCN code - EAR99 EAR99
Number of rows loaded - 1 2
Terminal pitch - 3.81 mm 2.0066 mm
