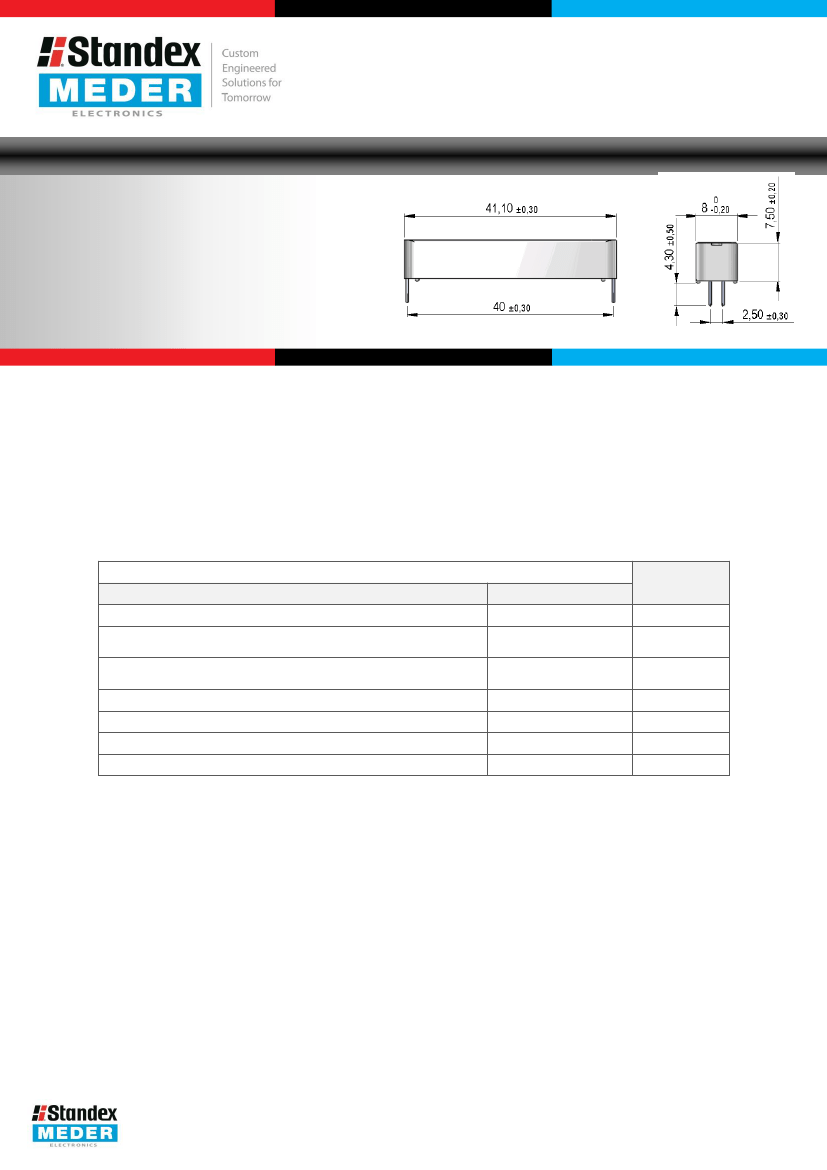

530-70 Series
Optocouplers
Features: Optocoupler for Safe Circuits with a High-Level Galvanic Separation
Applications: Electronics for Mining, Test & Measurement, Automation Technology
Markets: Oil & Gas Production, Refinery, Mining, Medical, Test and Measurement, and others
Part Description:
Customer Options
Coupler Characteristics
530-70-2-22
Unit
22,000
0.8
100
39.0
39.0
22.6
10
12
VDC
%
kHz
mm
mm
mm
Ohm
Isolation Voltage Input / Output (min.)
Current Transfer Ratio (min.)
Ic/If CTR (If = 10mA)
Cut-Off Frequency (typ.)
Creeping Distance (min.)
Air Path Input / Output (min.)
Insulation Distance Emitter-Detector (min.)
Insulation Resistance Input / Output (min.)
USA:
Europe:
Asia:
+1.866.782.6339
+49.7731.8399.0
+86.21.37820625
│
salesusa@standexmeder.com
│ info@standexmeder.com
│ salesasia@standexmeder.com
Version 02
29.09.2015
D. Stastny
Modifications in the sense of technical progress are reserved.
A Global Leader in the Design, Development, and
Manufacture of Sensor and Magnetic Components

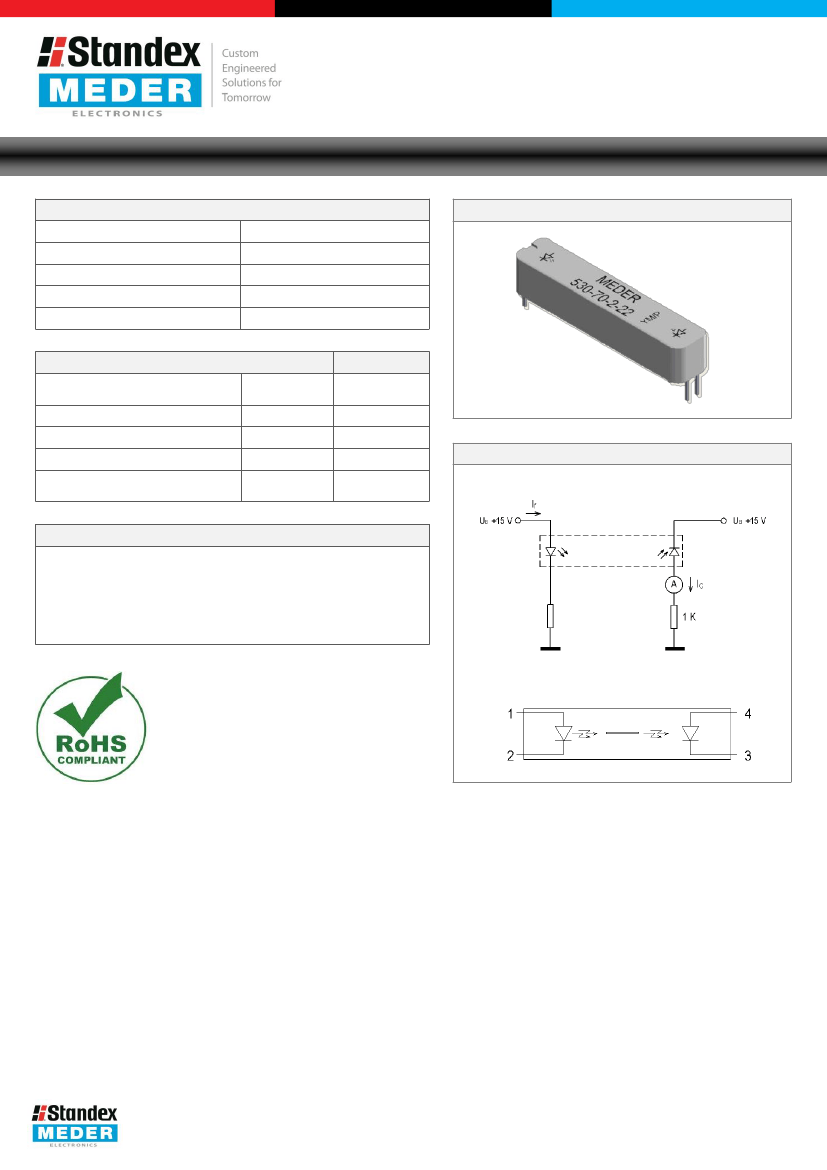

Series Datasheet – 530 Optocouplers
Housing and Material Specifications
Housing Material
Case Color
Sealing Compound
Connection Pins
Washability
PBT Glass Fibre Reinforced
White
Polyurethan
Cu-Alloy Tinned
Fully Sealed
www.standexmeder.com
530-70 Optocoupler
Environmental Data
Shock Resistance (max.)
1/2 sine wave duration 11ms
Unit
50
20
-40 to 85
-40 to 100
260
g
g
°C
°C
°C
Vibration Resistance (max.)
Operating Temperature
Storage Temperature
Soldering Temperature (max.)
5 sec. max.
Test Circuit and Layout
Test Circuit
Handling Instructions
It is advised that normal static precautions be taken in
handling and assembly of this component to prevent damage
and/or degradation which may be induced by ESC.
Layout
USA:
Europe:
Asia:
+1.866.782.6339
+49.7731.8399.0
+86.21.37820625
│
salesusa@standexmeder.com
│ info@standexmeder.com
│ salesasia@standexmeder.com
Version 02
29.09.2015
D. Stastny
Modifications in the sense of technical progress are reserved.
