https://www.phoenixcontact.com/us/products/3029538

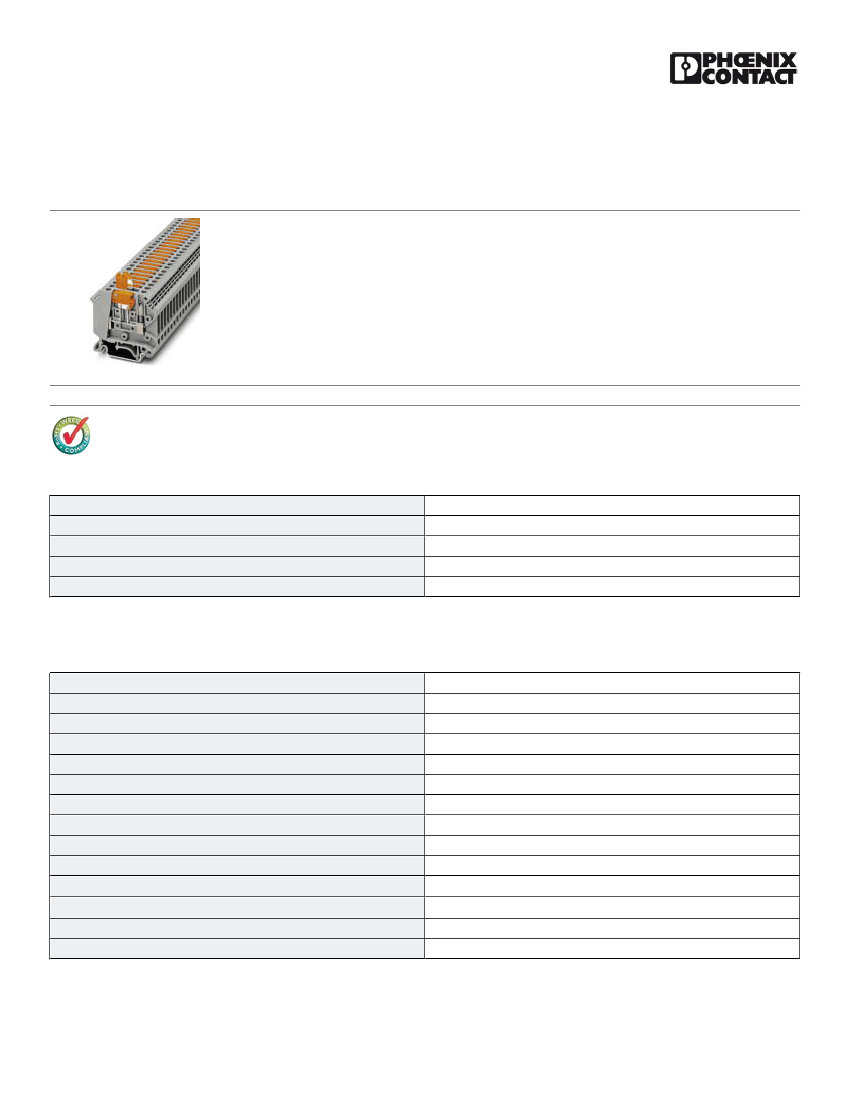

Knife disconnect terminal block - UK 5-MTK-P/P OG - 3029538
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Knife disconnect terminal block, Connection type: Screw connection, Cross section: 0.2 mm² - 4 mm²,
AWG: 24 - 12, Nominal current: 16 A, Nominal voltage: 500 V, Length: 51 mm, Width: 6.2 mm, Color: orange,
Assembly: NS 32, NS 35/7,5, NS 35/15
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
50 1
13.2 GRM
85369010
Germany
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Nominal current I
N
Nominal voltage U
N
Open side panel
Number of positions
1
2
orange
PA
V0
16 A (with 4 mm² conductor cross section)
6 kV
3
III
I
16 A
500 V
nein
1
19.11.2013 Page 1 / 13
https://www.phoenixcontact.com/us/products/3029538
Knife disconnect terminal block - UK 5-MTK-P/P OG - 3029538
Technical data
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
Height NS 32
6.2 mm
51 mm
58.5 mm
66 mm
63.5 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.2 mm²
4 mm²
0.2 mm²
4 mm²
24
12
0.25 mm²
4 mm²
0.25 mm²
2.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
2.5 mm²
sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Screw connection
8 mm
A3
M3
0.5 Nm
0.6 Nm
19.11.2013 Page 2 / 13
https://www.phoenixcontact.com/us/products/3029538
Knife disconnect terminal block - UK 5-MTK-P/P OG - 3029538
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141117
27141117
27141126
27141126
27141126
27141126
27141126
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000902
EC000902
EC000902
EC000902
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / GOST / PRS / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
19.11.2013 Page 3 / 13
https://www.phoenixcontact.com/us/products/3029538
Knife disconnect terminal block - UK 5-MTK-P/P OG - 3029538
Approvals
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
18-10
15 A
300 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
22-12
15 A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
22-12
15 A
600 V
GOST
PRS
GOST
cULus Recognized
19.11.2013 Page 4 / 13
https://www.phoenixcontact.com/us/products/3029538
Knife disconnect terminal block - UK 5-MTK-P/P OG - 3029538

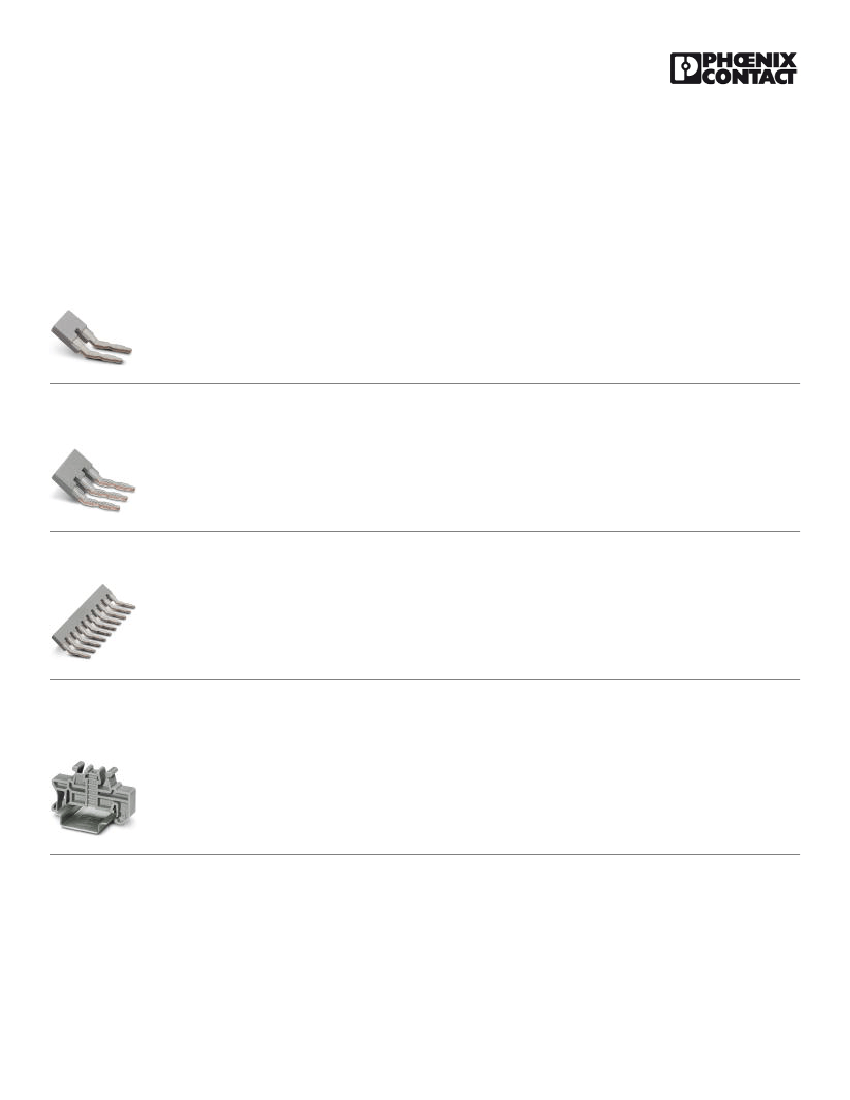

Accessories
Accessories
Bridge
Insertion bridge - EB 2- 6 - 0201155
Insertion bridge, Number of positions: 2, Color: gray
Insertion bridge - EB 3- 6 - 0201142
Insertion bridge, Number of positions: 3, Color: gray
Insertion bridge - EB 10- 6 - 0201139
Insertion bridge, Number of positions: 10, Color: gray
End block
End clamp - CLIPFIX 35 - 3022218
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
19.11.2013 Page 5 / 13
