3-794678-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-794678-6

3-794678-6: Description06P MICRO MNL ASSY,R/A,THRU,LF; CategoryThe connector The connector; File Size209KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-794678-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-794678-6	-	-	View	Buy Now

3-794678-6 Overview

06P MICRO MNL ASSY,R/A,THRU,LF

3-794678-6 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Board mount options	SPLIT BOARD LOCK
body width	0.29 inch
subject depth	0.469 inch
body length	0.512 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	75 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.9972 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	NYLON
Terminal length	0.113 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Evacuation force-minimum value	.695 N
Base Number Matches	1

Preview

Download Datasheet

View All

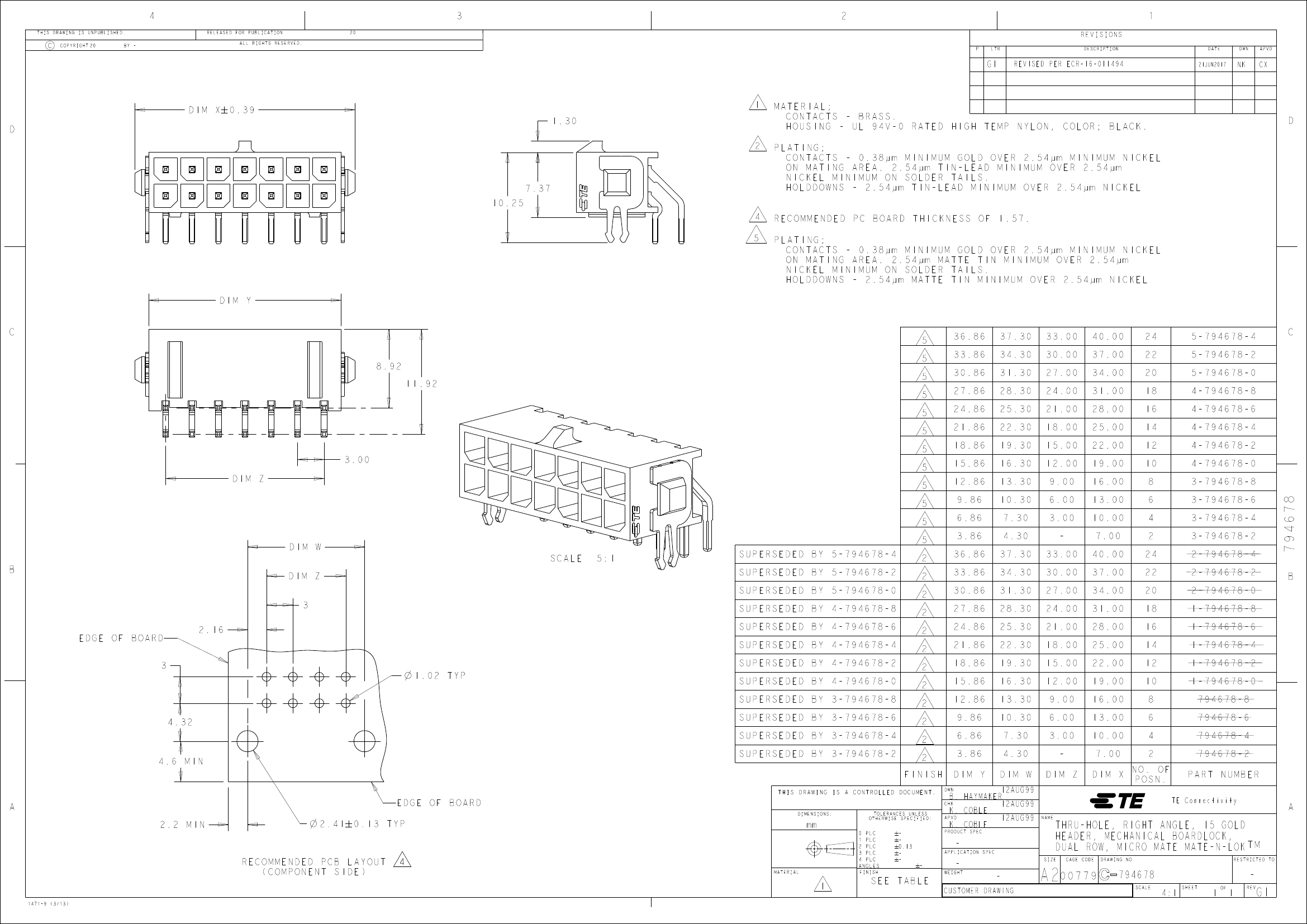

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECR-16-011494

21JUN2017

DIM X # 0.39

1.30

MATERIAL;

CONTACTS - BRASS.

HOUSING - UL 94V-0 RATED HIGH TEMP NYLON, COLOR; BLACK.

PLATING;

CONTACTS - 0.38µm MINIMUM GOLD OVER 2.54µm MINIMUM NICKEL

ON MATING AREA. 2.54µm TIN-LEAD MINIMUM OVER 2.54µm

NICKEL MINIMUM ON SOLDER TAILS.

HOLDDOWNS - 2.54µm TIN-LEAD MINIMUM OVER 2.54µm NICKEL

RECOMMENDED PC BOARD THICKNESS OF 1.57.

PLATING;

CONTACTS - 0.38µm MINIMUM GOLD OVER 2.54µm MINIMUM NICKEL

ON MATING AREA. 2.54µm MATTE TIN MINIMUM OVER 2.54µm

NICKEL MINIMUM ON SOLDER TAILS.

HOLDDOWNS - 2.54µm MATTE TIN MINIMUM OVER 2.54µm NICKEL

10.25

7.37

DIM Y

8.92

11.92

3.00

DIM Z

DIM W

SUPERSEDED BY 5-794678-4

SUPERSEDED BY 5-794678-2

SUPERSEDED BY 5-794678-0

SUPERSEDED BY 4-794678-8

SUPERSEDED BY 4-794678-6

SUPERSEDED BY 4-794678-4

1.02

TYP

SUPERSEDED BY 4-794678-2

SUPERSEDED BY 4-794678-0

SUPERSEDED BY 3-794678-8

4.32

SUPERSEDED BY 3-794678-6

SUPERSEDED BY 3-794678-4

SUPERSEDED BY 3-794678-2

FINISH

EDGE OF BOARD

2.2

MIN

2.41

0.13

TYP

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

DIM Y

B. HAYMAKER

K. COBLE

37.30

34.30

31.30

28.30

25.30

22.30

19.30

16.30

13.30

10.30

7.30

4.30

37.30

34.30

31.30

28.30

25.30

22.30

19.30

16.30

13.30

10.30

7.30

4.30

DIM W

12AUG99

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM Z

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

DIM X

NO. OF

POSN.

5- 794678 -4

5- 794678 -2

5- 794678 -0

4- 794678 -8

4- 794678 -6

4- 794678 -4

4- 794678 -2

4- 794678 -0

3- 794678 -8

3- 794678 -4

3- 794678 -2

2- 794678 -4

2- 794678 -2

2- 794678 -0

1- 794678 -8

1- 794678 -6

1- 794678 -4

1- 794678 -2

1- 794678 -0

794678 -8

794678 -6

794678 -4

794678 -2

PART NUMBER

TE Connectivity

SCALE

5:1

DIM Z

EDGE OF BOARD

2.16

4.6

MIN

APVD

RECOMMENDED PCB LAYOUT

(COMPONENT SIDE)

1471-9 (3/13)

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

PRODUCT SPEC

K. COBLE

NAME

APPLICATION SPEC

SEE TABLE

WEIGHT

CUSTOMER DRAWING

00779

SIZE

THRU-HOLE, RIGHT ANGLE, 15 GOLD

HEADER, MECHANICAL BOARDLOCK,

DUAL ROW, MICRO MATE MATE-N-LOK

CAGE CODE

DRAWING NO

RESTRICTED TO

794678

SCALE

4:1

SHEET

REV

794678

3- 794678 -6
