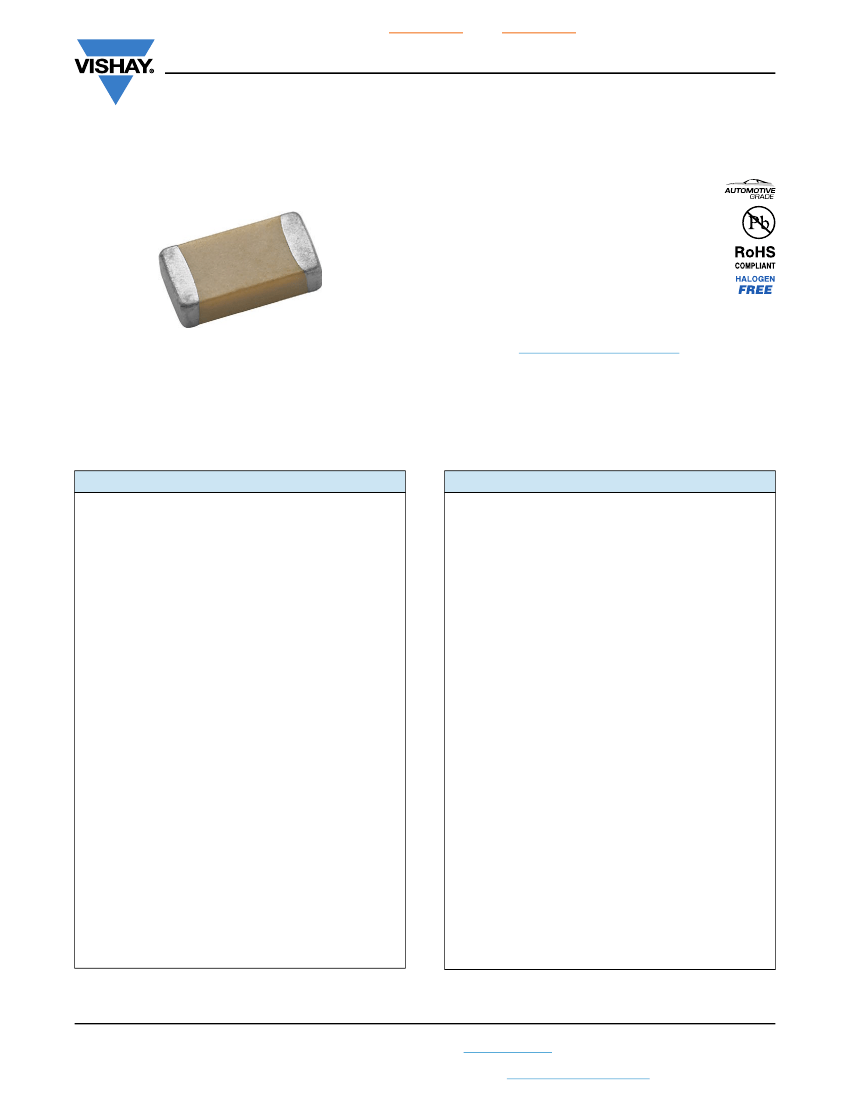

Alternative Device Available, See GA....31G and GA....34G Automotive MLCC
VJ....31X RoHS Automotive MLCC
www.vishay.com
Vishay Vitramon
Surface Mount Multilayer Ceramic Chip Capacitors
for Automotive Applications
FEATURES
• AEC-Q200 qualified with PPAP available
• Available in 0402 to 1812 body size
• High operating temperature
• Wet build process
• Reliable Noble Metal Electrode (NME) system
• Parts compliant with ELV directive
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
For more than 25 years Vishay Vitramon has supported the automotive industry with robust, highly reliable MLCCs that have
made it a leader in this segment. All Vishay Vitramon MLCCs are manufactured in “Precious Metal Technology” (PMT / NME)
and a wet build process. They are qualified according to AEC-Q200 with PPAP available on request. Applications for these
devices include automotive “under the hood”, safety and comfort electronics. Their termination finish is 100 % matte tin plate
finish. A polymer (flexible) termination with 100 % matte tin plate finish is offered for boardflex sensitive applications.
C0G (NP0) DIELECTRIC
GENERAL SPECIFICATION
Note
Electrical characteristics at +25 °C unless otherwise specified
X7R, X8R DIELECTRIC
GENERAL SPECIFICATION
Note
Electrical characteristics at +25 °C unless otherwise specified
Operating Temperature:
-55 °C to +150 °C
(above +125 °C changed characteristics, see 2.2)
Capacitance Range:
1 pF to 22 nF
Voltage Range:
25 V
DC
to 3000 V
DC
Temperature Coefficient of Capacitance (TCC):
0 ppm/°C ± 30 ppm/°C from -55 °C to +125 °C
Dissipation Factor (DF):
0.1 % maximum at 1.0 V
RMS
and
1 MHz for values
1000 pF
0.1 % maximum at 1.0 V
RMS
and
1 kHz for values > 1000 pF
Insulating Resistance:
at +25 °C 100 000 M min. or 1000
F
whichever is less
at +125 °C 10 000 M min. or 100
F
whichever is less
Aging:
0 % maximum per decade
Dielectric Strength Test:
performed per method 103 of EIA 198-2-E.
Applied test voltages
250 V
DC
-rated:
250 % of rated voltage
500 V
DC
-rated:
200 % of rated voltage
630 V
DC
, 1000 V
DC
-rated:
150 % of rated voltage
3000 V
DC
-rated:
120 % of rated voltage
Operating Temperature:
-55 °C to +150 °C
(X7R above +125 °C changed characteristics, see 2.2)
Capacitance Range:
120 pF to 1.0 μF
Voltage Range:
16 V
DC
to 1000 V
DC
Temperature Coefficient of Capacitance (TCC):
X7R: ± 15 % from -55 °C to +125 °C, with 0 V
DC
applied
X8R: ± 15 % from -55 °C to +150 °C, with 0 V
DC
applied
Dissipation Factor (DF):
16 V, 25 V ratings: 3.5 % maximum at 1.0 V
RMS
and 1 kHz
> 25 V ratings: 2.5 % maximum at 1.0 V
RMS
and 1 kHz
Insulating Resistance:
at +25 °C 100 000 M min. or 1000
F
whichever is less
at +125 °C 10 000 M min. or 100
F
whichever is less
X8R: at +150 °C 10 000 M
min. or 100
F whichever is less
Aging Rate:
1 % maximum per decade
Dielectric Strength Test:
performed per method 103 of EIA 198-2-E.
Applied test voltages
250 % of rated voltage
250 V
DC
-rated:
500 V
DC
-rated:
min. 150 % of rated voltage
630 V
DC
, 1000 V
DC
-rated: min. 120 % of rated voltage
Revision: 21-Jan-2020
Document Number: 45226
1
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Alternative Device Available, See GA....31G and GA....34G Automotive MLCC
VJ....31X RoHS Automotive MLCC
www.vishay.com
Vishay Vitramon
ORDERING INFORMATION - TIN TERMINATION
VJ0805
CASE
CODE
Y
102
K
CAPACITANCE
TOLERANCE
X
A
B
MARKING
(3)
C
PACKAGING
31X
PROCESS
CODE
DIELECTRIC CAPACITANCE
NOMINAL
CODE
A = C0G
(NP0)
Y = X7R
H = X8R
TERMINATION DC VOLTAGE
RATING
(1)
0402
0603
0805
1206
1210
1812
Expressed in
B = ± 0.10 pF
X = Ni barrier
picofarads (pF).
C = ± 0.25 pF
100 % matte tin
The first two
D = ± 0.5 pF
plate finish
digits are
F=±1%
B = polymer
significant, the
G=±2%
100 % matte tin
third is a
J=±5%
plate finish
(2)
multiplier. An
K = ± 10 %
“R” indicates a
M = ± 20 %
decimal point.
Note
Examples
C0G (NP0):
4R7 = 4.7 pF
B, C, D < 10 pF
102 = 1000 pF F, G, J, K 10 pF
X7R / X8R:
J, K, M
J = 16 V
X = 25 V
A = 50 V
B = 100 V
C = 200 V
P = 250 V
E = 500 V
L = 630 V
G = 1000 V
H = 3000 V
A = unmarked
B = marked
Note
Marking for
0805 and 1206
vendor ID and
date code
31X =
Automotive
MLCC
RoHS
conform
T = 7" reel / plastic tape
C = 7" reel / paper tape
R = 11 1/4" / 13" reel / plastic tape
P = 11 1/4" / 13" reel / paper tape
Notes
(1)
DC voltage rating should not be exceeded in application. Other application factors may affect the MLCC performance.
Consult for questions:
mlcc@vishay.com
(2)
Polymer termination contact
mlcc@vishay.com
for availability of ratings. Packaging only in plastic tape “T” / “R”
(3)
No marking on 1206 size - 1000 V
DIMENSIONS
in inches (millimeters)
L
W
T
MAX.
P
CASE
CODE
0402
0603
0805
1206
1210
1812
STYLE
LENGTH
(L)
0.040 + 0.004 / - 0.002
(1.00 + 0.10 / - 0.05)
0.063 ± 0.006
(1.60 ± 0.15)
0.079 ± 0.008
(2.00 ± 0.20)
0.126 ± 0.010
(3.20 ± 0.25)
0.126 ± 0.010
(3.20 ± 0.25)
0.177 ± 0.010
(4.50 ± 0.25)
WIDTH
(W)
0.020 + 0.004 / - 0.002
(0.50 + 0.10 / - 0.05)
0.031 ± 0.006
(0.80 ± 0.15)
0.049 ± 0.008
(1.25 ± 0.20)
0.063 ± 0.010
(1.60 ± 0.25)
0.098 ± 0.010
(2.50 ± 0.25)
0.126 ± 0.010
(3.20 ± 0.25)
MAXIMUM
THICKNESS
(T)
0.024
(0.60)
0.038
(0.97)
0.057
(1.45)
0.067
(1.70)
0.076
(1.94)
0.086
(2.18)
TERMINATIONS PAD
(P)
MINIMUM
0.004
(0.10)
0.012
(0.30)
0.010
(0.25)
0.010
(0.25)
0.010
(0.25)
0.010
(0.25)
MAXIMUM
0.016
(0.41)
0.018
(0.46)
0.028
(0.71)
0.028
(0.71)
0.028
(0.71)
0.030
(0.76)
VJ0402
VJ0603
VJ0805
VJ1206
VJ1210
VJ1812
Note
• Polymer (B-termination) have increased dimensions:
part length increased by 0.006" (0.15 mm)
Revision: 21-Jan-2020
Document Number: 45226
3
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Alternative Device Available, See GA....31G and GA....34G Automotive MLCC
VJ....31X RoHS Automotive MLCC
www.vishay.com
Vishay Vitramon
C0G (NP0)
VJ0603
0603
100
200
B
C
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
•
•
•
SELECTION CHART
DIELECTRIC
STYLE
CASE CODE
VOLTAGE (V
DC
)
VOLTAGE CODE
CAP. CODE
CAP.
1R0
1.0 pF
1R2
1.2 pF
1R5
1.5 pF
1R8
1.8 pF
2R2
2.2 pF
2R7
2.7 pF
3R3
3.3 pF
3R9
3.9 pF
4R7
4.7 pF
5R6
5.6 pF
6R8
6.8 pF
8R2
8.2 pF
100
10 pF
120
12 pF
150
15 pF
180
18 pF
220
22 pF
270
27 pF
330
33 pF
390
39 pF
470
47 pF
560
56 pF
680
68 pF
820
82 pF
101
100 pF
121
120 pF
151
150 pF
181
180 pF
221
220 pF
271
270 pF
331
330 pF
391
390 pF
471
470 pF
561
560 pF
681
680 pF
821
820 pF
102
1.0 nF
122
1.2 nF
152
1.5 nF
182
1.8 nF
222
2.2 nF
272
2.7 nF
332
3.3 nF
392
3.9 nF
472
4.7 nF
562
5.6 nF
682
6.8 nF
822
8.2 nF
103
10 nF
123
12 nF
153
15 nF
183
18 nF
223
22 nF
273
27 nF
333
33 nF
393
39 nF
473
47 nF
563
56 nF
Note
•• Paper tape, • Plastic tape
Revision: 21-Jan-2020
Document Number: 45226
4
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ0402
0402
50
A
••
••
••
••
••
••
••
••
••
••
••
••
VJ0805
0805
100
200
B
C
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
•
•
•
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
•
•
•
•
•
25
X
••
••
••
••
••
••
••
••
••
••
••
••
100
B
••
••
••
••
••
••
••
••
••
••
••
••
50
A
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
50
A
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
•
•
•
•
•
500
E
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
•
•
•
•
•
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
Alternative Device Available, See GA....31G and GA....34G Automotive MLCC
VJ....31X RoHS Automotive MLCC
www.vishay.com
Vishay Vitramon
SELECTION CHART
DIELECTRIC
C0G (NP0)
STYLE
VJ1206
VJ1210
(1)
CASE CODE
1206
1210
VOLTAGE (V
DC
)
50 100 200 250 500 630 50 100 200 500 630
VOLTAGE CODE
A
B
C
P
E
L
A
B
C
E
L
CAP. CODE
CAP.
1R0
1.0 pF
•• ••
••
••
••
1R2
1.2 pF
•• ••
••
••
••
1R5
1.5 pF
•• ••
••
••
••
1R8
1.8 pF
•• ••
••
••
••
2R2
2.2 pF
•• ••
••
••
••
2R7
2.7 pF
•• ••
••
••
••
3R3
3.3 pF
•• ••
••
••
••
3R9
3.9 pF
•• ••
••
••
••
4R7
4.7 pF
•• ••
••
••
••
5R6
5.6 pF
•• ••
••
••
••
6R8
6.8 pF
•• ••
••
••
••
8R2
8.2 pF
•• ••
••
••
••
100
10 pF
•• ••
••
••
••
120
12 pF
•• ••
••
••
••
150
15 pF
•• ••
••
••
••
180
18 pF
•• ••
••
••
••
220
22 pF
•• ••
••
••
••
270
27 pF
•• ••
••
••
••
330
33 pF
•• ••
••
••
••
390
39 pF
•• ••
••
••
••
470
47 pF
•• ••
••
••
••
560
56 pF
•• ••
••
••
••
680
68 pF
•• ••
••
••
••
820
82 pF
•• ••
••
••
••
101
100 pF
•
•
•
•
•
•
•
•
•
•
121
120 pF
•
•
•
•
•
•
•
•
•
•
151
150 pF
•
•
•
•
•
•
•
•
•
•
181
180 pF
•
•
•
•
•
•
•
•
•
•
221
220 pF
•
•
•
•
•
•
•
•
•
•
271
270 pF
•
•
•
•
•
•
•
•
•
•
331
330 pF
•
•
•
•
•
•
•
•
•
•
391
390 pF
•
•
•
•
•
•
•
•
•
•
471
470 pF
•
•
•
•
•
•
•
•
•
•
561
560 pF
•
•
•
•
•
•
•
•
•
•
681
680 pF
•
•
•
•
•
•
•
•
•
•
821
820 pF
•
•
•
•
•
•
•
•
•
•
102
1.0 nF
•
•
•
•
•
•
•
•
•
•
122
1.2 nF
•
•
•
•
•
•
•
•
152
1.5 nF
•
•
•
•
•
•
•
•
182
1.8 nF
•
•
•
•
•
•
•
•
222
2.2 nF
•
•
•
•
•
•
•
272
2.7 nF
•
•
•
•
•
•
332
3.3 nF
•
•
•
•
•
•
392
3.9 nF
•
•
•
•
•
472
4.7 nF
•
•
•
•
•
562
5.6 nF
•
•
•
•
•
682
6.8 nF
•
•
•
•
•
822
8.2 nF
•
•
•
•
•
103
10 nF
•
•
123
12 nF
•
•
153
15 nF
183
18 nF
223
22 nF
273
27 nF
333
33 nF
393
39 nF
473
47 nF
563
56 nF
Notes
•• Paper tape, • Plastic tape
(1)
See soldering recommendations within this data book, or visit
www.vishay.com/doc?45034
VJ1812
(1)
1812
200 500 630
C
E
L
50
A
100
B
1000
G
3000
H
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Revision: 21-Jan-2020
Document Number: 45226
5
For technical questions, contact:
mlcc@vishay.com
