SQT-149-01-L-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> SQT-149-01-L-D

SQT-149-01-L-D: Descriptionconn rcpt 2mm 98pos DL vert pcb; CategoryThe connector; File Size501KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SQT-149-01-L-D Overview

conn rcpt 2mm 98pos DL vert pcb

SQT-149-01-L-D Parametric

Parameter Name	Attribute value
Datasheets
SQT Drawing
SQT Series Spec Shee
SQT Double Row Thru Hole Footpri
Product Training Modules
Board-to-Board Connectors
Catalog Drawings
SQT Series Dual Vertical
Featured Produc
Board-To-Board Interconnect Systems
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Receptacles, Female Sockets
Packaging	Bulk
Connector Type	Receptacle
Contact Type	Female Socke
Number of Positions	98
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	2
Row Spacing	0.079" (2.00mm)
Mounting Type	Through Hole
Terminati	Solde
Fastening Type	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	10µin (0.25µm)
Col	Black
Dynamic Catalog	FleXYZ™ SQT Series
Mating Products	SAM1177-49-ND - CONN HEADER 98POS DUAL 2MM T/HSAM1175-49-ND - CONN HEADER 98POS DUAL 2MM T/HSAM1173-49-ND - CONN HEADER 98POS DUAL 2MM T/HSAM1171-49-ND - CONN HEADER 98POS DUAL 2MM SMDSAM1169-49-ND - CONN HEADER 98POS DUAL 2MM SMDSAM1167-49-ND - CONN HEADER 98POS DUAL 2MM SMD
Other Names	SAM1245-49

Preview

Download Datasheet

View All

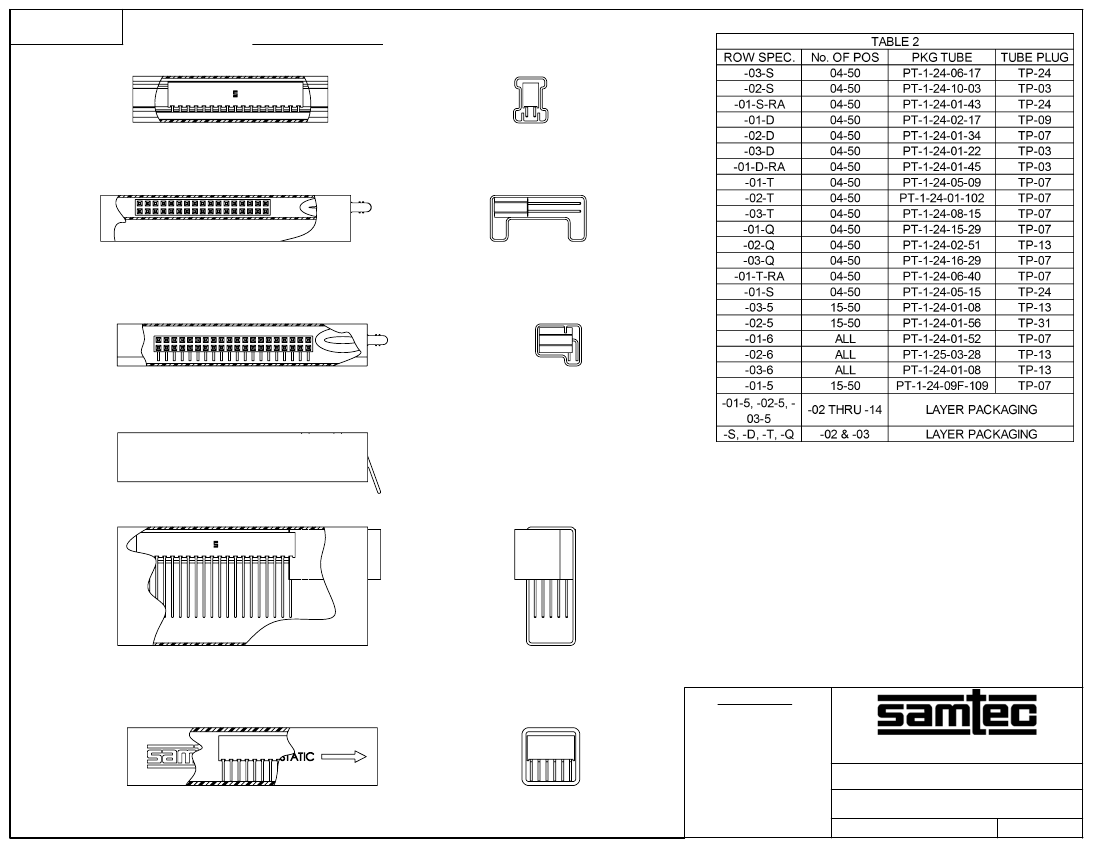

REVISION BY

DO NOT

SCALE FROM

THIS PRINT

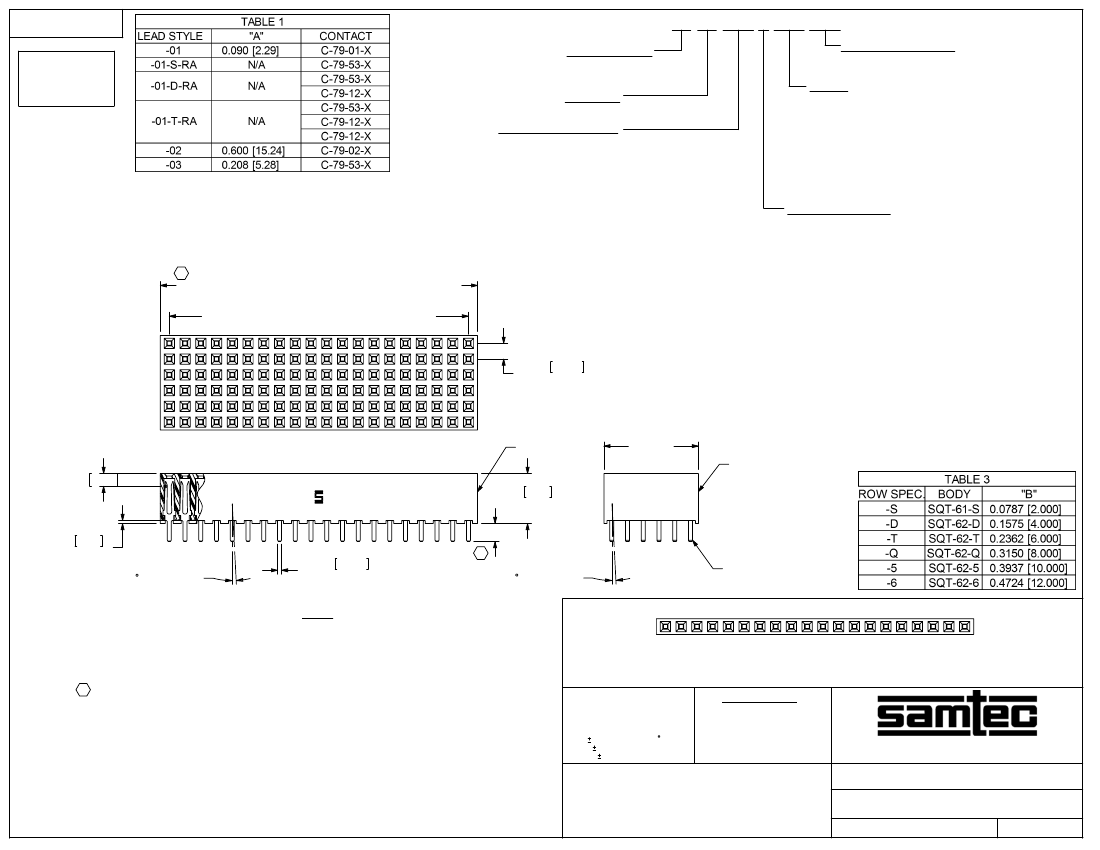

SQT-1XX-XX-XXX-X-XXX-XXX

No OF POSITIONS

-02 THRU -50

(PER ROW)

-01 (SEE NOTE 3)

LEAD STYLE

(SEE TABLE 1)

PLATING SPECIFICATION

-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL.

-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL.

-G: 20µ" SELECTIVE GOLD IN CONTACT AREA,

3µ" SELECTIVE GOLD ON TAIL.

-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL.

-H: 50µ" SELECTIVE GOLD IN CONTACT AREA,

3µ" SELECTIVE GOLD ON TAIL.

-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL.

-LM: 10µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL.

-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL.

-STL: 30µ" SELECTIVE GOLD IN CONTACT AREA,

SnPb ON TAIL.

POLARIZATION OPTION

-XXX: INDICATES POSITION

(SEE NOTE 10)

OPTION

-RA: RIGHT ANGLE

(-01 LEAD STYLE, ROWS -S, -D, -T ONLY)

(NOT AVAILABLE ON -Q, -5 & -6 ROWS)

(SINGLE, DOUBLE, TRIPLE ROW: SEE FIG 2, SHT 2)

*-SD1: SOLDER DONUT (SEE FIG 3, SHT 2)

(AVAILABLE ON -S, -D, -T ONLY)

**-MW: METAL WASHER (SHT 2, SEE FIG 4)

(AVAILABLE ON LEAD STYLES -01 & -03 ONLY)

(5 POS MIN, 30 POS MAX, .300 MAX TAIL)

ROW SPECIFICATION

-S: SINGLE (USE SQT-61-S)

-D: DOUBLE (USE SQT-62-D)

-T: TRIPLE (USE SQT-62-T)

-Q: QUAD

(USE SQT-62-Q)

-5: FIVE ROW (USE SQT-62-5)

-6: SIX ROW (USE SQT-62-6)

* NOT RELEASED

{(No OF POS x .0787[2.000]) + .0117[0.300] ± .010[0.25]

(No OF POS x .0787[2.000] - .0787[2.000] REF

* = NOT RELEASED FOR PRODUCTION

** = MW OPTION, DO NOT DESIGN IN, SAMTEC WILL

ONLY SUPPORT EXISTING BUSINESS 02/06/2002

.0787 2.000

REF (TYP)

(SEE NOTE 7)

.064 1.63 REF

"B" REF

SQT-XX-X

(SEE TABLE 3)

.250 6.35

REF

"A"

.0197 0.500

SQ REF (TYP)

2 MAX SWAY

(EITHER DIRECTION)

.015 0.38

REF

2 MAX SWAY

(EITHER DIRECTION)

C-79-XX-X

(SEE TABLE 1)

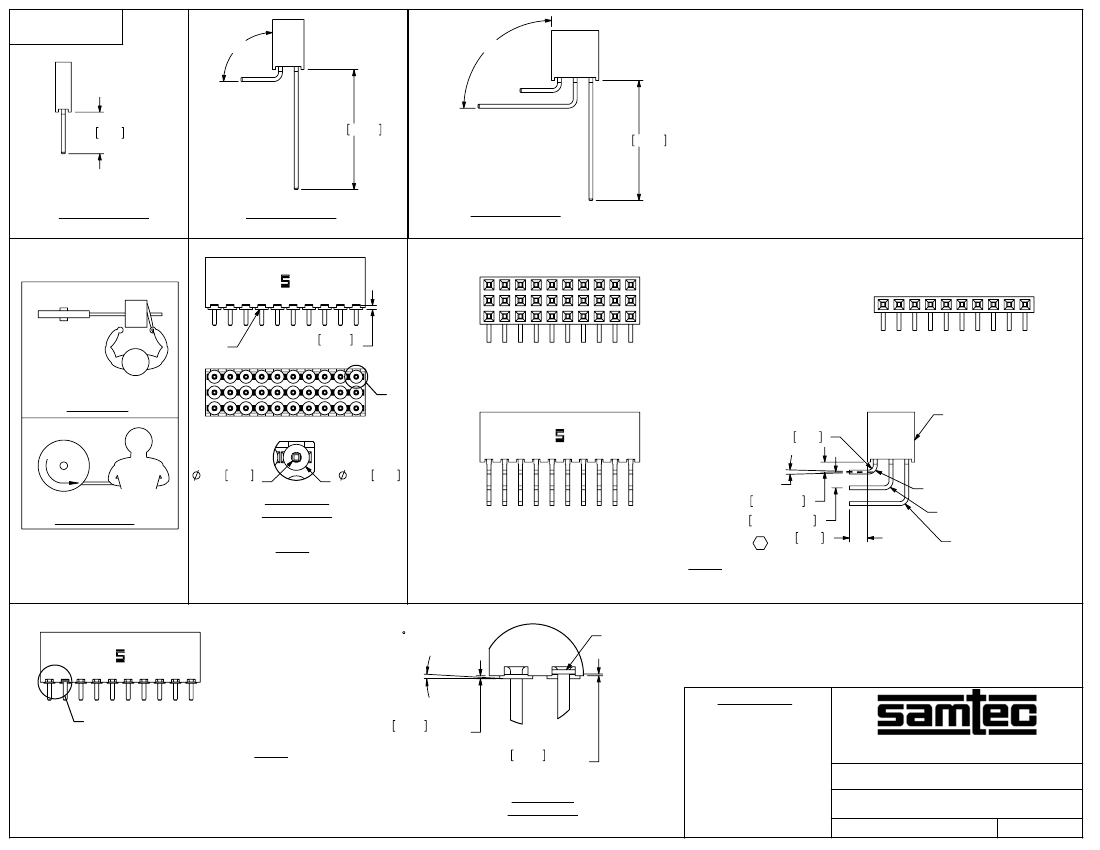

SQT-120-01-XX-6 SHOWN

01 02

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MINIMUM CONTACT RETENTION: .5 LB

3. -01 POSITION OFFERED FOR SINGLE ROW& ONLY FOR -S, -D, & -T

ROWS RIGHT ANGLE ONLY.

4. -01, -02, & -03 & ONLY FOR -S, -D, & -T ROWS POSITIONS TO BE

LAYER PACKAGED.

5. STOCK 62 POSITION FOR -D AND 61 POSITION FOR

-S, -01 LEAD STYLE ONLY. TO BE CUT TO POSITION FOR CUSTOMER.

6. MAXIMUM BURR: .005[0.13]

7. ENDWALL AFTER CUTTING: .033[0.84]±.004[0.10], VOIDS MAY BE PRESENT.

CONTACTS MUST NOT BE VISIBLE THROUGH THE ENDWALL.

8. MAXIMUM CUT FLASH: .020[0.50]

9. MAXIMUM HEIGHT VARIATION: .005[0.13]

10. INSERT PK-07-N INTO SPECIFIED POSITION AND BREAK OFF TAB.

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

FIG 1

(POSITON PATTERN SINGLE ROW ONLY)

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

INSULATOR: LCP, UL 94 VO, COLOR: BLACK

CONTACT: PHOS BRONZE

MAX BOW ALLOWED: .004[.10] IN/IN

F:\DWG\MISC\MKTG\SQT-1XX-XX-XXX-X-XXX-XXX-MKT.SLDDRW

2MM SOCKET STRIP ASSEMBLY

BY:

BRATCHER 07/24/1995

SQT-1XX-XX-XXX-X-XXX-XXX

SHEET
