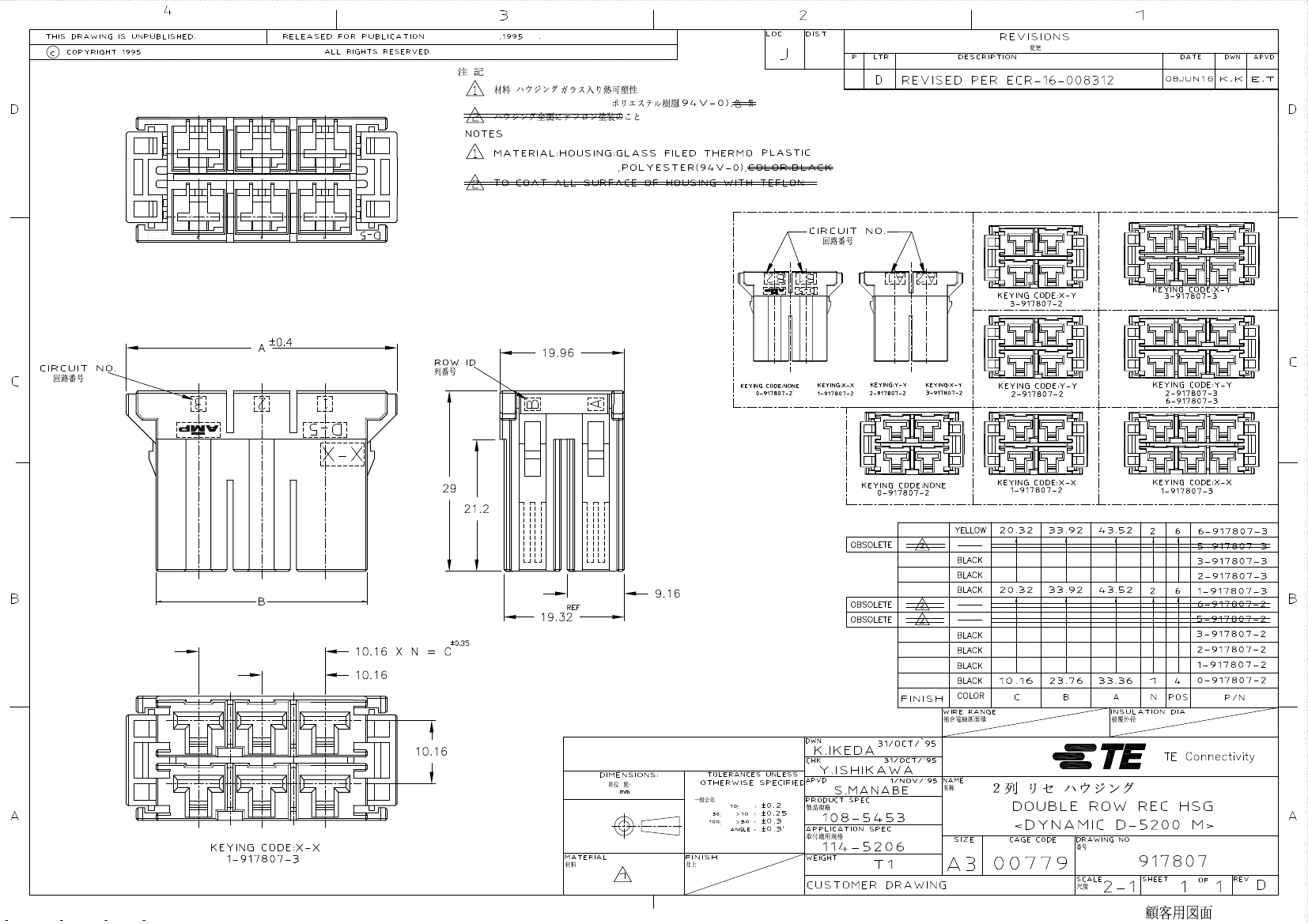

Preview

3-917807-3: DescriptionDYNAMIC D-5200M REC HSG 6P X-Y; CategoryThe connector The connector; File Size291KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-917807-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-917807-3	-	-	View	Buy Now

3-917807-3 Overview

DYNAMIC D-5200M REC HSG 6P X-Y

3-917807-3 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	COMPATIBLE CONTACTS: 179955-2; 179955-3; 316040-2; 316040-3; 179956-2
body width	0.786 inch
subject depth	1.142 inch
body length	1.713 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P6
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	2 mΩ
DIN compliance	NO
Dielectric withstand voltage	3000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	9.7856 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1
