87961-5 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 87961-5

Preview

87961-5: Description12 MODII HORZ DR CE 100CL/115; CategoryThe connector The connector; File Size310KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

87961-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87961-5	-	-	View	Buy Now

87961-5 Overview

12 MODII HORZ DR CE 100CL/115

87961-5 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	12 weeks
Samacsys Descripti	12 MODII HORZ DR CE 100CL/115
Other features	AMPMODU, POLARIZATION AVAILABLE, STANDARD: MIL-C-55302
body width	0.238 inch
subject depth	0.32 inch
body length	0.64 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1050VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	87961
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.874 mm
Plating thickness	50u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.115 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N

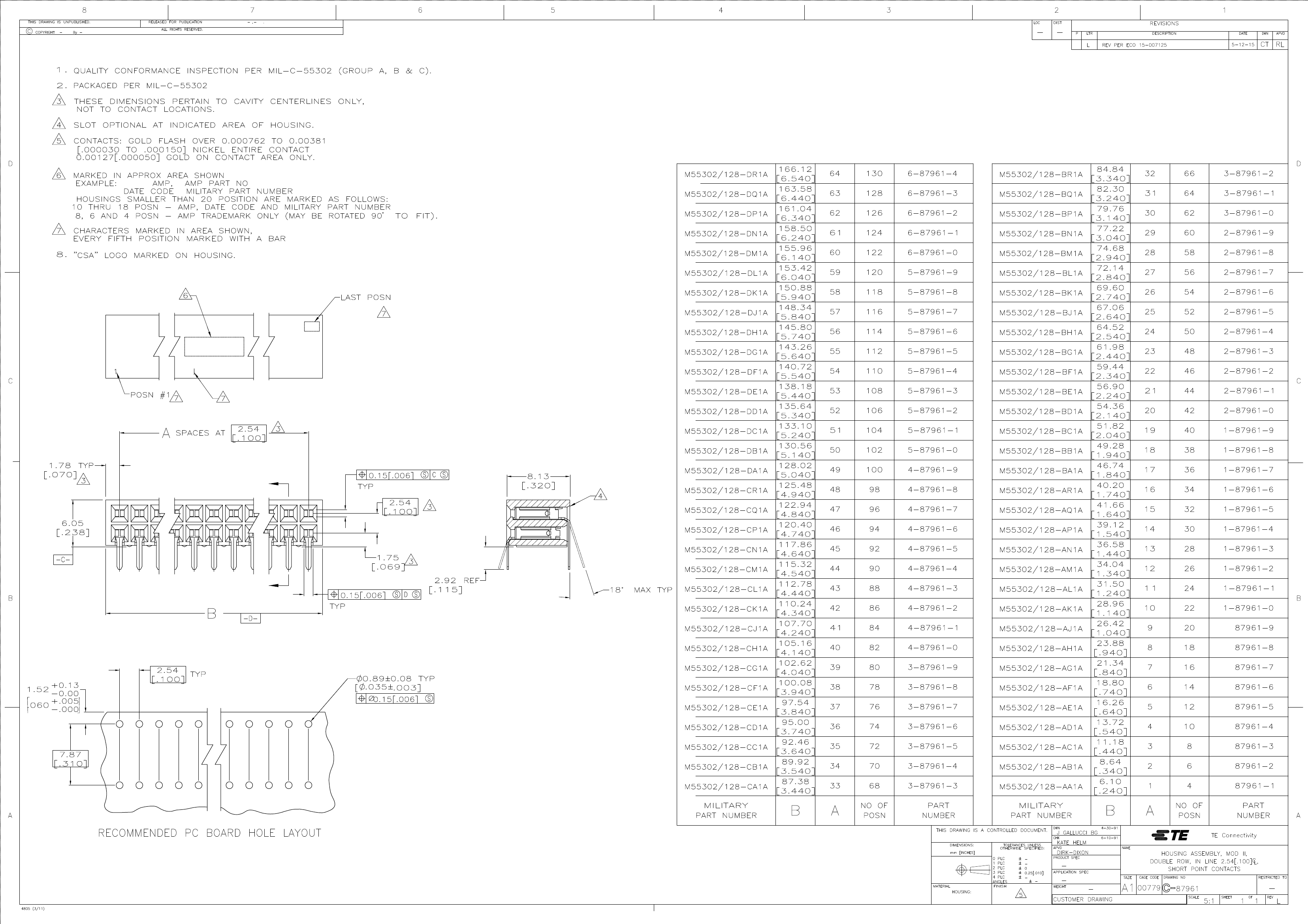

87961-5 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

87961-5 Related Products

	87961-5	6-87961-4	3-87961-3
Description	12 MODII HORZ DR CE 100CL/115	130 MODII HORZ DR CE 100CL/115	68 MODII HORZ DR CE 100CL/115
Brand Name	AMP	AMP	AMP
Is it lead-free?	Lead free	Contains lead	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compliant
ECCN code	EAR99	EAR99	EAR99
Factory Lead Time	12 weeks	12 weeks	16 weeks
Other features	AMPMODU, POLARIZATION AVAILABLE, STANDARD: MIL-C-55302	AMPMODU, RECEPTACLE	AMPMODU, RECEPTACLE
body width	0.238 inch	0.238 inch	0.238 inch
subject depth	0.32 inch	0.32 inch	0.238 inch
body length	0.64 inch	6.54 inch	3.44 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL	GOLD FLASH OVER NICKEL	NOT SPECIFIED
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie	Gold Flash (Au) - with Nickel (Ni) barrie	Gold Flash (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	12 mΩ	12 mΩ	12 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO
Durability	200 Cycles	200 Cycles	200 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	2.224 N	2.224 N	2.224 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULFIDE
MIL compliance	YES	YES	NO
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO
Installation option 1	LOCKING	LOCKING	GUIDE PIN
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	7.874 mm	7.874 mm	7.874 mm
Plating thickness	50u inch	50u inch	50u inch
Rated current (signal)	3 A	3 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA
Terminal length	0.115 inch	0.115 inch	0.115 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	12	130	68
UL Flammability Code	94V-0	94V-0	94V-0
Evacuation force-minimum value	.278 N	.278 N	.278 N
Maker	TE Connectivity	TE Connectivity	-
Dielectric withstand voltage	1050VAC V	1050VAC V	-
reliability	COMMERCIAL	COMMERCIAL	-
