3-87631-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-87631-3

3-87631-3: Description38 MODIV HSG COMP DR .100 POL; CategoryThe connector The connector; File Size188KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-87631-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-87631-3	-	-	View	Buy Now

3-87631-3 Overview

38 MODIV HSG COMP DR .100 POL

3-87631-3 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1896190056
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	9 weeks
Samacsys Description	38 MODIV HSG COMP DR .100 POL
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-11 10:54:44
YTEOL	9.15
Other features	COMPATIBLE CONTACTS: 87107-5; 102348-2; 102316-5; 102920-2; 103455-4
body width	0.24 inch
subject depth	0.24 inch
body length	1.9 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
MIL compliance	NO
Power Connector Ratings	3A
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LATCHING
Installation type	CABLE
Number of connectors	ONE
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Rated current (signal)	3 A
Guideline	CSA, LR, U
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	CRIMP
Total number of contacts	38
UL Flammability Code	94V-0
Maximum wire diameter	20 AWG
Minimum wire diameter	32 AWG

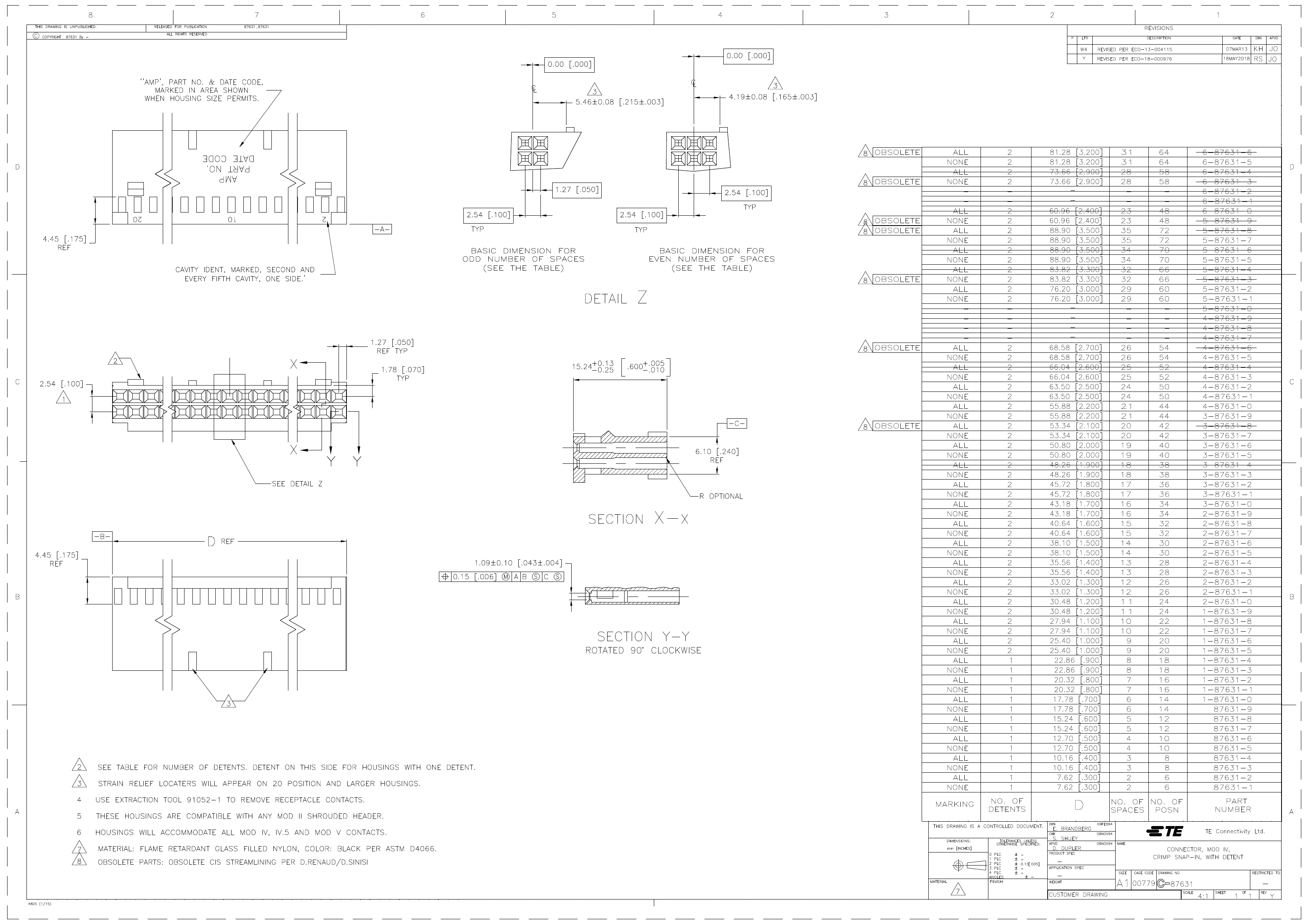

Preview

Download Datasheet

View All

3-87631-3 Related Products

	3-87631-3	4-87631-5	10120783-S01V03ALF	6-87631-5	4-87631-3	4-87631-0	5-87631-7
Description	38 MODIV HSG COMP DR .100 POL	54 MODIV HSG COMP DR .100 POL	Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator	64 MODIV HSG COMP DR .100 POL	52 MODIV HSG COMP DR .100 POL	44 MODIV HSG DR MRKD .100 POL	72 MODIV HSG COMP DR .100 POL
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.24 inch	0.24 inch	0.157 inch	0.24 inch	0.24 inch	0.24 inch	0.24 inch
subject depth	0.24 inch	0.6 inch	0.461 inch	0.24 inch	0.24 inch	0.24 inch	0.6 inch
body length	1.9 inch	2.7 inch	0.236 inch	3.2 inch	2.6 inch	2.2 inch	3.6 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	MALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY	NOT APPLICABLE	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYAMIDE	THERMOPLASTIC	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	THERMOPLASTIC
Plug contact pitch	0.1 inch	0.1 inch	0.079 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.079 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LATCH	LATCH	LOCKING	LATCH	LATCH	LATCH	LATCH
Installation type	CABLE	CABLE	BOARD	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2
Termination type	CRIMP	CRIMP	SURFACE MOUNT	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	38	54	6	64	52	44	72
Brand Name	AMP	AMP	-	AMP	AMP	AMP	AMP
Is it lead-free?	Lead free	Lead free	-	Lead free	Lead free	Lead free	Lead free
Objectid	1896190056	-	7072669334	1896190088	1896190066	1896190063	-
Factory Lead Time	9 weeks	20 weeks	-	7 weeks 6 days	-	142 weeks 5 days	10 weeks
Samacsys Description	38 MODIV HSG COMP DR .100 POL	-	-	Body Features: Primary Product Color Black \| Configuration Features: Number of Rows 2 \| Number of Positions 64 \| Contact Features: Contact Current Rating (Max) 3 AMP \| Contact Type Socket \| Contact Base Material Beryllium Copper \| Dimensions: Row-to-Row Spacing 2.54 MM \| Connector Length 3.2 INCH \| Connector Length 81.28 MM \| Row-to-Row Spacing .1 INCH \| Connector Height .24 INCH \| Connector Height 6.1 MM \| Electrical Characteristics: Operating Voltage 250 VAC \| Dielectric Withstanding Voltage (Max) 750 V \|	Body Features: Primary Product Color Black \| Configuration Features: Number of Positions 52 \| Number of Rows 2 \| Contact Features: Contact Current Rating (Max) 3 AMP \| Contact Base Material Beryllium Copper \| Contact Type Socket \| Dimensions: Connector Height .24 INCH \| Connector Length 2.6 INCH \| Row-to-Row Spacing .1 INCH \| Row-to-Row Spacing 2.54 MM \| Connector Height 6.1 MM \| Connector Length 66.04 MM \| Electrical Characteristics: Dielectric Withstanding Voltage (Max) 750 V \| Termination Resistance 12 M	44 MODIV HSG DR MRKD .100 POL	-
Samacsys Manufacturer	TE Connectivity	-	-	TE Connectivity	TE Connectivity	TE Connectivity	-
Samacsys Modified On	2020-10-11 10:54:44	-	-	2024-04-05 12:28:58	2024-04-03 12:22:25	2020-10-11 10:54:44	-
YTEOL	9.15	-	8.4	9.15	9.15	9.15	-
Other features	COMPATIBLE CONTACTS: 87107-5; 102348-2; 102316-5; 102920-2; 103455-4	COMPATIBLE CONTACTS: 87107-5; 102348-2; 102316-5; 102920-2; 103455-4	-	COMPATIBLE CONTACTS: 87107-5; 102348-2; 102316-5; 102920-2; 103455-4	COMPATIBLE CONTACTS: 87107-5; 102348-2; 102316-5; 102920-2; 103455-4	POLARIZED	COMPATIBLE CONTACTS: 87107-5; 102348-2; 102316-5; 102920-2; 103455-4
Body/casing type	RECEPTACLE	PLUG	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-	NOT APPLICABLE	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	-	NO	NO	NO	NO
Electromagnetic interference shielding	NO	-	-	NO	NO	NO	-
empty shell	YES	-	-	YES	YES	YES	-
Filter function	NO	NO	-	NO	NO	NO	NO
IEC compliance	NO	NO	-	NO	NO	NO	NO
Insulation resistance	5000000000 Ω	-	-	5000000000 Ω	5000000000 Ω	5000000000 Ω	-
MIL compliance	NO	NO	-	NO	NO	NO	NO
Power Connector Ratings	3A	-	-	3A	3A	3A	-
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	-	NO	NO	NO	NO
Installation option 2	LATCHING	-	-	LATCHING	LATCHING	LATCHING	-
Number of connectors	ONE	-	ONE	ONE	ONE	ONE	-
Number of ports	1	-	-	1	1	1	-
Maximum operating temperature	105 °C	-	-	105 °C	105 °C	105 °C	-
Minimum operating temperature	-65 °C	-	-	-65 °C	-65 °C	-65 °C	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	-	-	NO	NO	NO	-
Rated current (signal)	3 A	3 A	-	3 A	3 A	3 A	3 A
Guideline	CSA, LR, U	-	UL	CSA, LR, U	CSA, LR, U	CSA, LR, U	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	-	2.0066 mm	2.54 mm	2.54 mm	2.54 mm	-
UL Flammability Code	94V-0	-	-	94V-0	94V-0	94V-0	-
Maximum wire diameter	20 AWG	20 AWG	-	20 AWG	20 AWG	20 AWG	20 AWG
Minimum wire diameter	32 AWG	32 AWG	-	32 AWG	32 AWG	32 AWG	32 AWG
