342-10-152-00-594000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 342-10-152-00-594000

Preview

342-10-152-00-594000: Descriptionconn header 52pos .100 L.835; CategoryThe connector socket; File Size387KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

342-10-152-00-594000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	342-10-152-00-594000	-	-	View	Buy Now

342-10-152-00-594000 Overview

conn header 52pos .100 L.835

342-10-152-00-594000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP52
Shell material	POLYETHYLENE
JESD-609 code	e4
Number of contacts	52
Base Number Matches	1

Preview

Download Datasheet

View All

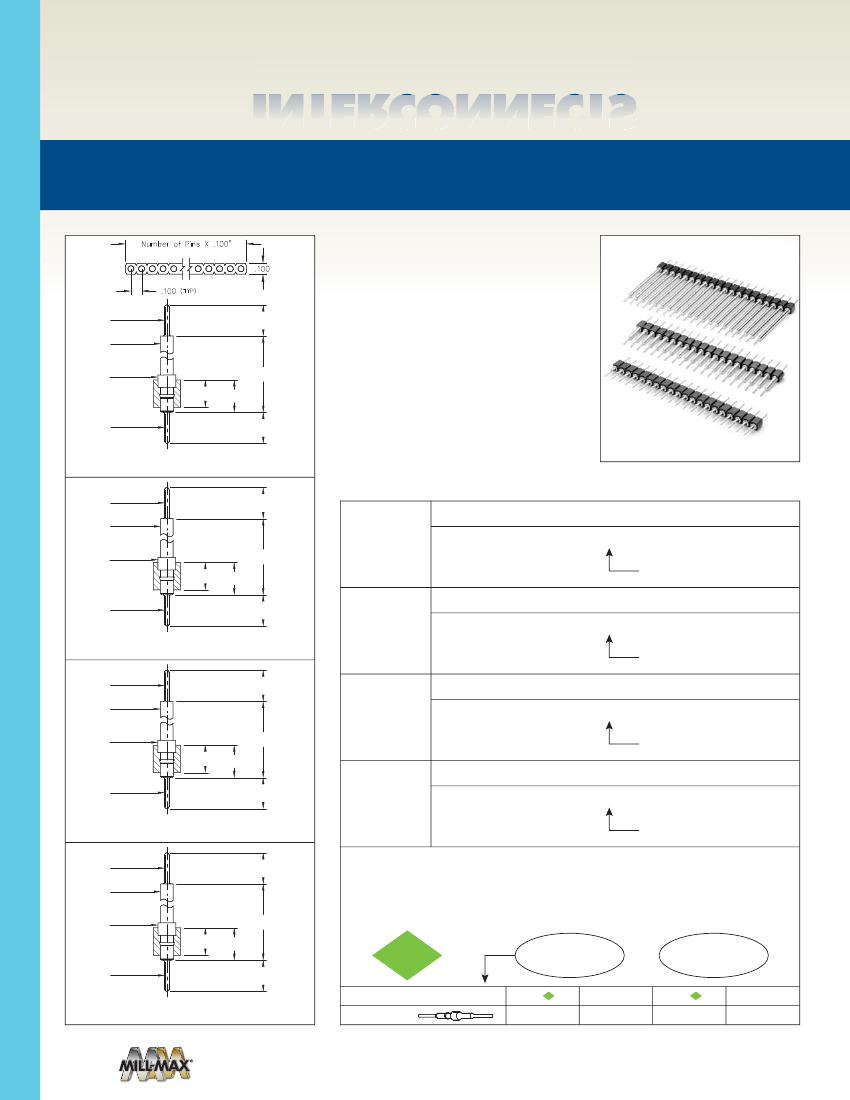

INTERCONNECTS

SERIES 342 • .100” GRID BOARD STACKING HEADERS •

SINGLE ROW STRIPS

•

Series 342 interconnect header strips come in

four heights with .018” dia. pluggable solder

tails at both ends

.018 DIA.

.050 DIA.

.125

.072 DIA.

.110

.129

.210

342...591 uses pin #4259-1

342...592 uses pin #4259-2

342...593 uses pin #4259-3

342...594 uses pin #4259-4

See page 212 for details

( L = .210” )

( L = .335” )

( L = .585” )

( L = .835” )

•

Insulators are high temperature thermoplastic,

.018 DIA.

.125

suitable for all soldering operations

FIG. 1

.018 DIA.

.050

DIA.

ORDERING INFORMATION

.125

Series 342...591

.335

.110

.129

.018” / .018” Dia. Solder Tails

342-XX-1_ _-00-591000

.072

DIA.

FIG. 1

Series 342...592

Specify number of pins

.125

01-64

.018 DIA.

.018” / .018” Dia. Solder Tails

342-XX-1_ _-00-592000

FIG. 2

.018 DIA.

.050

DIA.

.125

FIG. 2

Series 342...593

Specify number of pins

01-64

.018” / .018” Dia. Solder Tails

342-XX-1_ _-00-593000

FIG. 3

.072

DIA.

.110

.129

.585

Specify number of pins

01-64

Series 342...594

.018 DIA.

.125

.018” / .018” Dia. Solder Tails

342-XX-1_ _-00-594000

FIG. 4

FIG. 3

PAGE 82 | INTERCONNECTS

.018 DIA.

.050

DIA.

.125

Specify number of pins

01-64

.072

DIA.

.110

.129

.835

RoHS - 2

2011/65/EU

.125

.018 DIA.

XX=Plating Code

See Below

10

”

Au

For

Electrical, Mechanical

& Enviromental Data,

See page 264

SPECIFY PLATING CODE XX=

90

200

”

Sn/Pb

40

200

”

Sn

FIG. 4

Pin Plating

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
