CM300DU-12F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> CM300DU-12F

CM300DU-12F: DescriptionTrench Gate Design Dual IGBTMOD⑩ 300 Amperes/600 Volts; CategoryDiscrete semiconductor The transistor; File Size59KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric View All

CM300DU-12F Overview

Trench Gate Design Dual IGBTMOD⑩ 300 Amperes/600 Volts

CM300DU-12F Parametric

Parameter Name	Attribute value
package instruction	FLANGE MOUNT, R-XUFM-X7
Reach Compliance Code	unknow
Shell connection	ISOLATED
Maximum collector current (IC)	300 A
Collector-emitter maximum voltage	600 V
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND RTC
Gate-emitter maximum voltage	20 V
JESD-30 code	R-XUFM-X7
Number of components	2
Number of terminals	7
Maximum operating temperature	150 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	830 W
Certification status	Not Qualified
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
transistor applications	MOTOR CONTROL
Transistor component materials	SILICON
VCEsat-Max	2.2 V
Base Number Matches	1

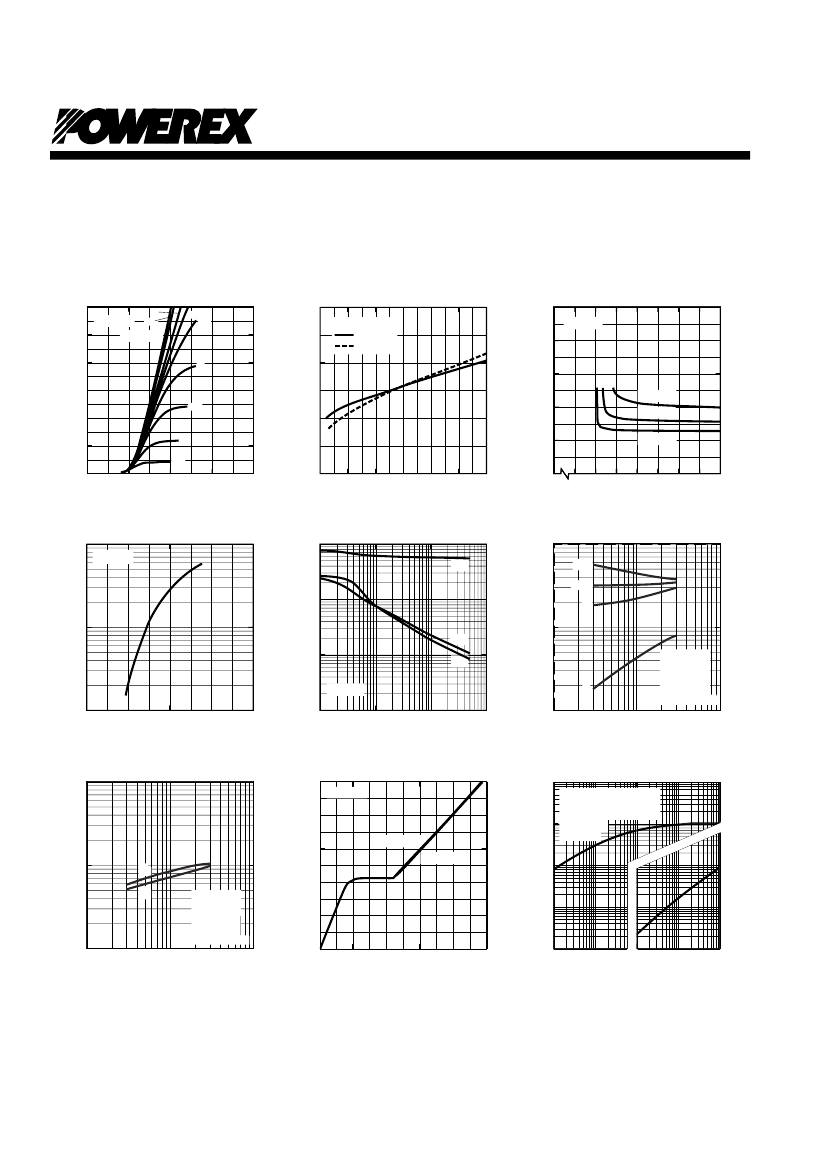

Preview

Download Datasheet

View All

CM300DU-12F

Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

Trench Gate Design

Dual IGBTMOD™

300 Amperes/600 Volts

TC MEASURING

POINT

T (4 TYP.)

B E

C2E1

S - NUTS (3 TYP)

RTC

C2E1

RTC

Description:

Powerex IGBTMOD™ Modules

are designed for use in switching

applications. Each module consists

of two IGBT Transistors in a half-

bridge configuration with each tran-

sistor having a reverse-connected

super-fast recovery free-wheel

diode. All components and inter-

connects are isolated from the

heat sinking baseplate, offering

simplified system assembly and

thermal management.

Features:

□

Low Drive Power

□

Low V

CE(sat)

□

Discrete Super-Fast Recovery

Free-Wheel Diode

□

Isolated Baseplate for Easy

Heat Sinking

Applications:

□

AC Motor Control

□

UPS

□

Battery Powered Supplies

Ordering Information:

Example: Select the complete

module number you desire from

the table - i.e. CM300DU-12F is a

600V (V

CES

), 300 Ampere Dual

IGBTMOD™ Power Module.

Type

Current Rating

Amperes

300

CES

Volts (x 50)

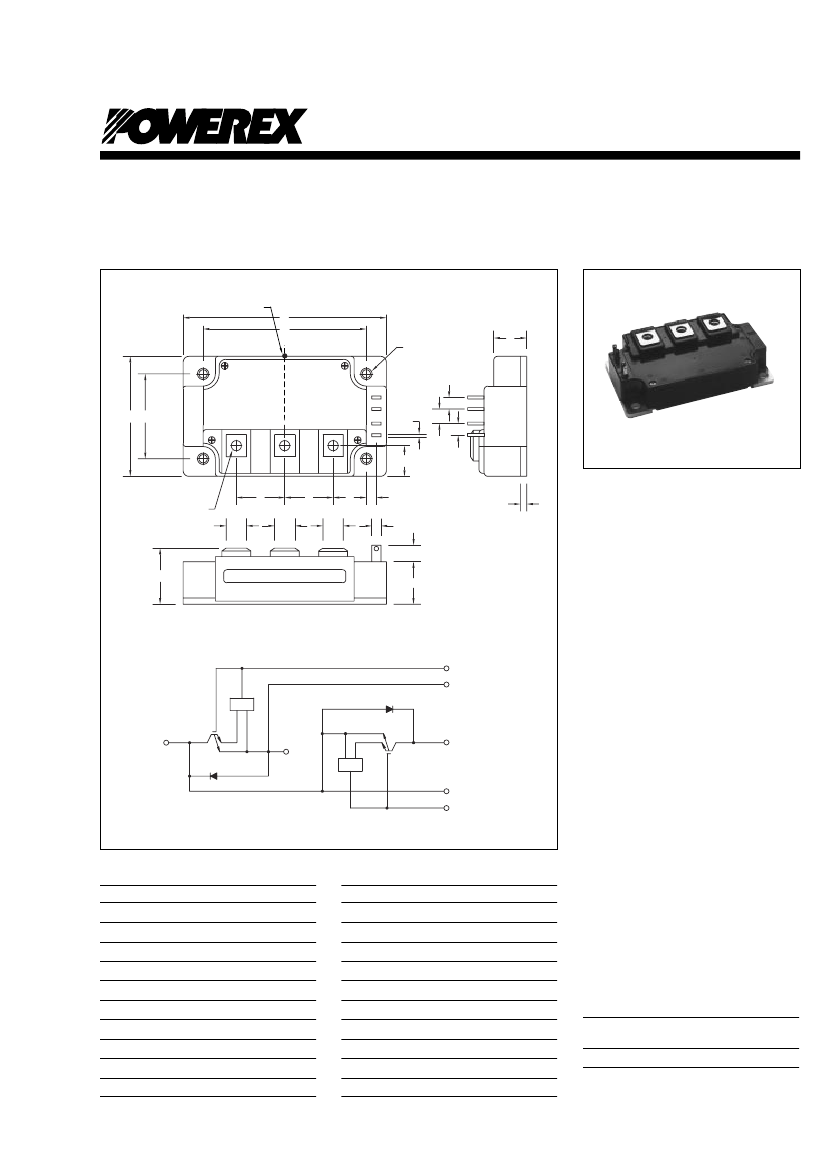

Outline Drawing and Circuit Diagram

Dimensions

Inches

4.25

2.44

Millimeters

108.0

62.0

Dimensions

Inches

0.87

0.33

0.10

0.85

0.98

0.11

0.26 Dia

0.02

0.62

Millimeters

22.0

8.5

2.5

21.5

25.0

2.8

6.5 Dia.

0.5

15.85

1.14 +0.04/-0.02 29.0 +1.0/-0.5

3.66±0.01

1.88±0.01

0.67

0.16

0.24

0.59

0.55

93.0±0.25

48.0±0.25

17.0

4.0

6.0

15.0

14.0
