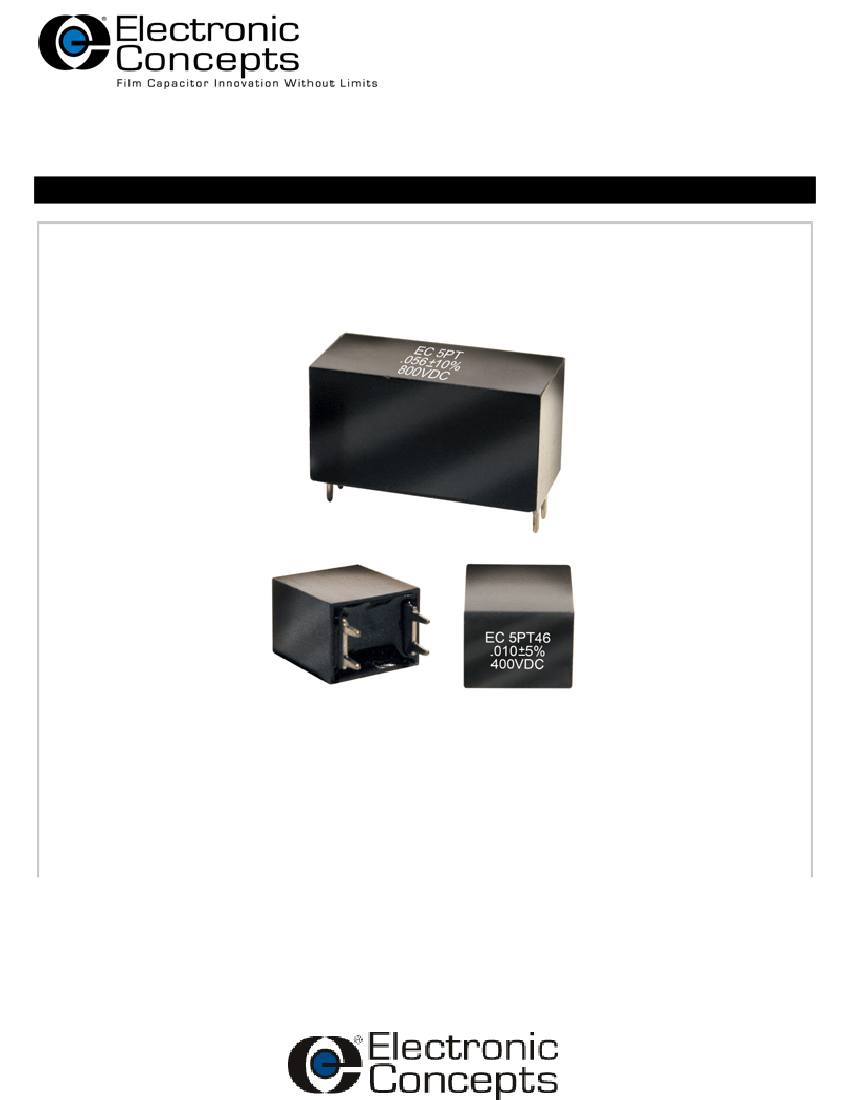

Speci cation Summary
Capacitance Range
0.010µF to 0.100µF
Capacitance Tolerance
Standard tolerance is ± 10%. Tolerances of ±5%, ±2%, and
±1% are also available.
Operating Temperature Range
-55°C to +105°C
Enclosure/ Construction
Extended Foil
Voltage Rating
400VDC to 1500VDC 230VAC to 460VAC
Quality Control
Capacitors are tested 100% for:
° Capacitance tolerance
° Dissipation Factor
° Dielectric withstanding voltage
° Insulation Resistance
Process and inspection data are maintained on le and available
on special request.
Environmental
Parameter
Vibration
Immersion
Shock
Humidity
Thermal Shock
Life
Method
204
104
213
106
107
108
Condition
D
B
I
-
A
F
Reference MIL-STD-202

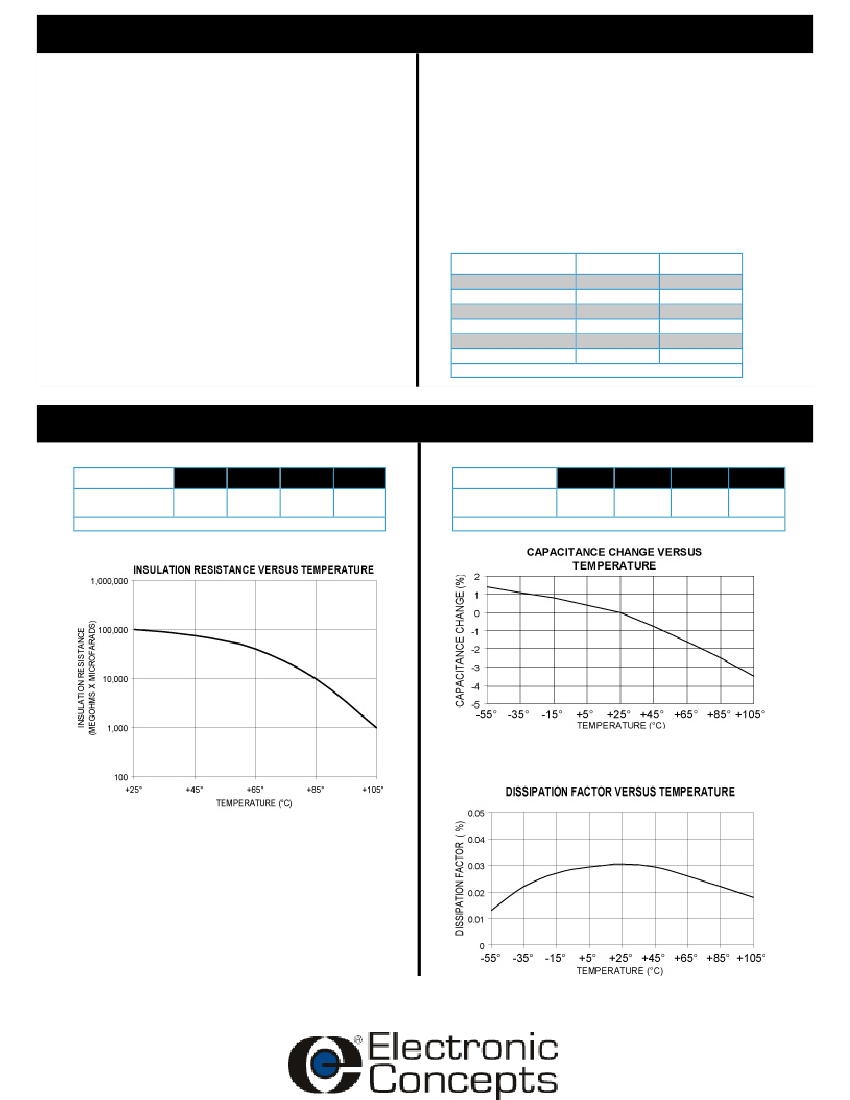

Characteristics
Insulation Resistance
Temperature(°C)
25
Megaohmsx
100,000
Microfarads
85
10,000
105
1,000
Capacitance Change
Temperature(°C)
-55
PercentageChange
1.6
(typical)
25
0
105
-2.2
Insulation Resistance
CapacitanceChange
Dissipation Factor
When measured at the frequency speci ed for capacitance
measurement, the dissipation factor will not exceed 0.1%.
Dielectric Strength
Capacitors withstand a DC potential of 1.5 x rated
voltage for one (1) minute without damage or
breakdown. Test voltage is applied and discharged
through a minimum resistance of 100 OHMS per volt.
Rev. 2
ADDITIONAL
INFORMATION
Its uniquely shaped lugs are mechanically sturdy and able to accommodate higher current with minimum
inductance.The termination lugs are also a direct "plug-in" type which adds to overall performance
e ciency.
With the advent of the 5PT, the designer can maximize frequency characteristics -- and at the
same time simplify system design with miniaturization, reduce assembly work -- plus realize
signi cant overall system cost savings.

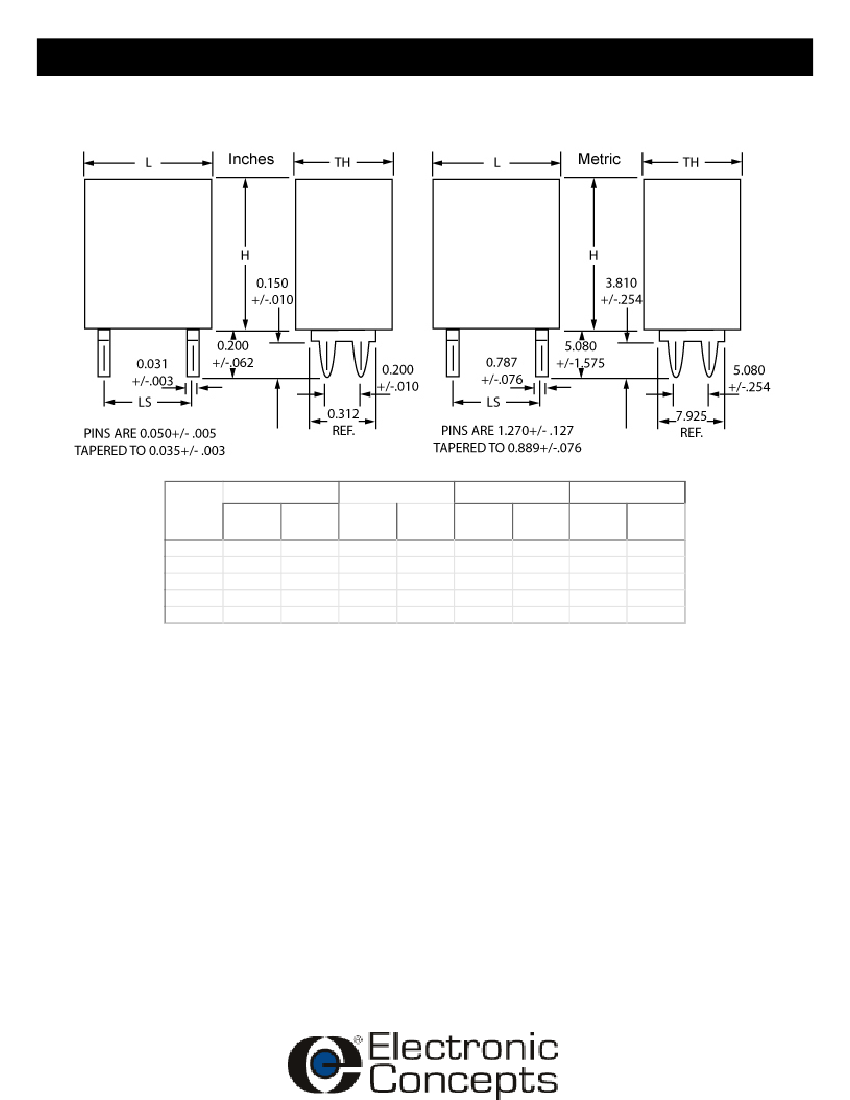

HOW TO ORDER
TYPE
Polypropylene & Foil
5PT
46 J
103
K
STYLE
46; / J=400VDC; N=800VDC; etc.
/ VOLTAGE
CAPACITANCE
TOLERANCE
The rst two digits are signi cant, the third represents the number of zeros
K= ±10%. Tolerances of ±5%, ±2%, and ±1% are also available.
IN PICOFARADS
Marking and Date Code
All capacitors are marked with company initials "EC", corporate logo or EC trademark—in addition to type 5PT, capacitance,
tolerance, rated DC working voltage and date code. The rst two digits of the date code represent the year, the second two digits the
week, i.e., 0952 is the 52nd week of 2009, 0902 is the second week of 2009.
Quality Asurance
Major emphasis is placed on quality assurance. EC is an ISO 9001-2000 and AS9100:2004 Certi ed Company. Raw material
inspection and the use of SPC manufacturing procedures assure the highest quality standards. Procedures are fully described in the
EC Quality Control Manual. Electronic Concepts will continue to advance the state-of-the-art by utilizing leading edge technology,
compact capacitor designs and establishing reliability procedures.
