S8-C12000-3-B-C-B-SE-X-X datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> S8-C12000-3-B-C-B-SE-X-X

S8-C12000-3-B-C-B-SE-X-X: DescriptionSeries - 3Rd Overtone Quartz Crystal, 120MHz Nom,; CategoryPassive components Crystal/resonator; File Size290KB，2 Pages; ManufacturerWi2Wi; Environmental Compliance

Download Datasheet Parametric View All

S8-C12000-3-B-C-B-SE-X-X Overview

Series - 3Rd Overtone Quartz Crystal, 120MHz Nom,

S8-C12000-3-B-C-B-SE-X-X Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1544156173
Reach Compliance Code	compliant
YTEOL	5.77
Other features	TR
Ageing	3 PPM/YEAR
Crystal/Resonator Type	SERIES - 3RD OVERTONE
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	25 ppm
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	120 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L8.0XB8.0XH2.45 (mm)/L0.315XB0.315XH0.096 (inch)
Series resistance	70 Ω
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

S8-Series Specifications

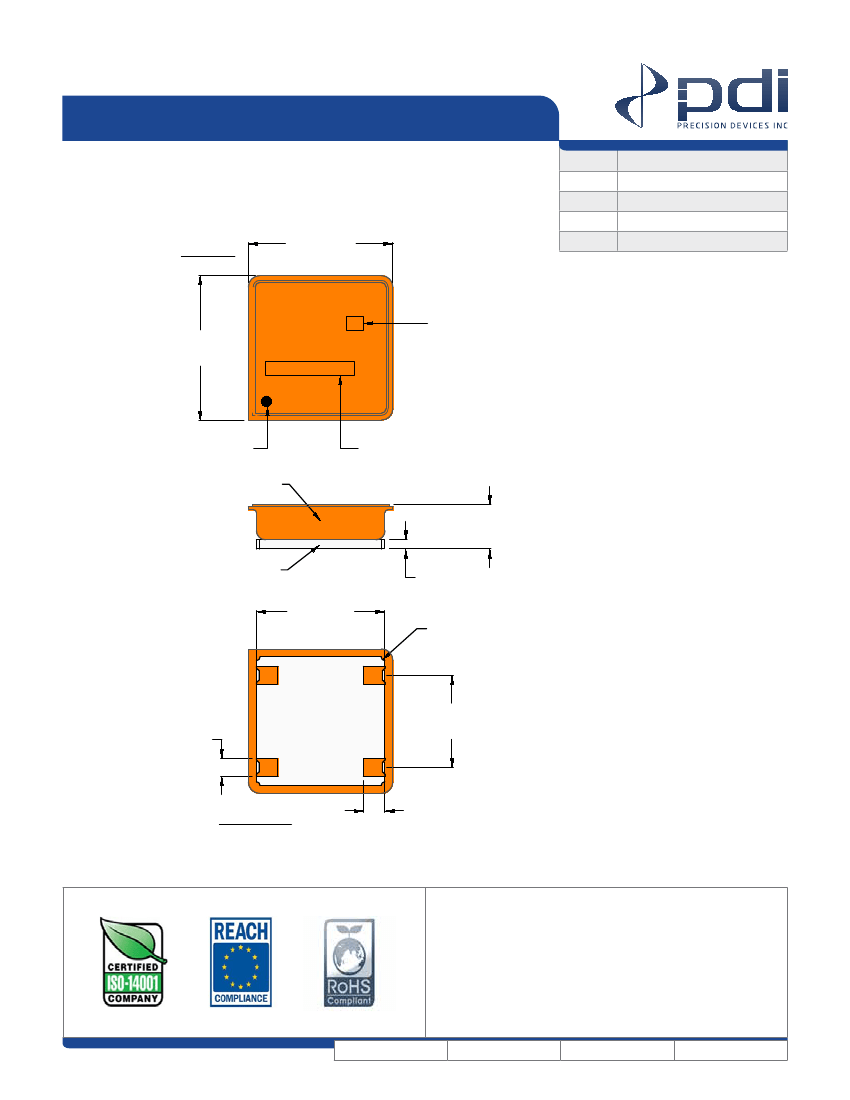

8.00L x 8.00W x 2.45H

(mm)

PDI

S8-Series

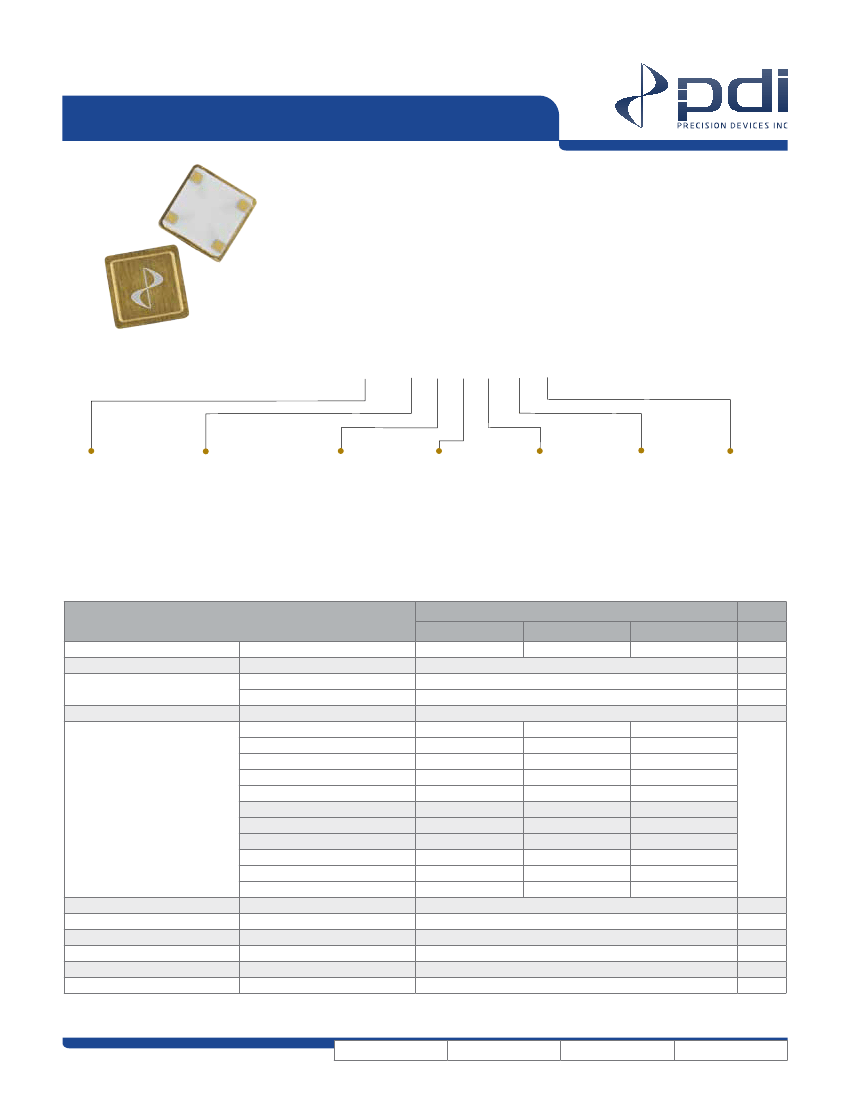

is a hermetically sealed quartz crystal in a surface mount

package. This crystal, designed to meet your most demanding specification,

is available in standard or custom frequencies and/or with customized

parameters. PDI provides quick-turn sampling for your proto-typing needs,

mass production capability, and competitive pricing.

ex)

S8—25000X—F—B—C—B—18—X—X

FREQUENCY

08000X – 99999X

8.0000MHz -

99.999MHz -

C10000 – C20000

100.00MHz -

200.00MHz -

MODE

= Fundamental

= 3rd Overtone

= 5th Overtone

TOLERANCE

@ 25°C

= ±10

= ±25

= ±50

= Special

FREQUENCY

STABILITY

= ±25

= ±50

= ±100

= Special

OPERATING

TEMPERATURE

= 0 to +70°C

= -20 to +70°C

= -40 to +85°C

= -55 to +125°C

= Special

Mode

LOAD

08-99

= pF

SE =

Series

PACKAGE

= Surface Mount

*(X) for standard or assigned for custimization.

Parameter

Frequency Range

Frequency Tolerance

Temperature Range

Frequency Stability

Fundamental

3rd Overtone

5th Overtone

Units

MHz

ppm

°C

ppm

Equivalent Series Resistance

(Maximum)

@ +25°C

Operating

Storage

Over Operating Temperature

8.000000 to 10.000000 MHz

10.000000 to 13.000000 MHz

13.000000 to 20.000000 MHz

20.000000 to 30.000000 MHz

25.000000 to 40.000000 MHz

40.000000 to 60.000000 MHz

60.000000 to 80.000000 MHz

80.000000 to 120.000000 MHz

60.000000 to 100.000000 MHz

100.000000 to 150.000000 MHz

125.000000 to 200.000000 MHz

Drive Level (Typical)

Shunt Capacitance (Maximum)

Load Capacitance (Typical)

Aging (Maximum)

Seal Method

Insulation Resistance

Per Year

8.0000 to 40.0000 40.0000 to 120.0000 60.0000 to 200.0000

Per Option

- 55 to +125

Per Option

100

7.0

Per Option

±3.0

Resistance Weld

500MΩ Minimum @100Vdc ±15V

ppm

*1 - Not all Frequency/Stability/Temperature combinations are available.

REV:

SIZE:

CAGE:
