1351760000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1351760000

1351760000: Descriptionterm block hdr 5pos R/A 5.08mm; CategoryThe connector The connector; File Size365KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet Parametric View All

1351760000 Overview

term block hdr 5pos R/A 5.08mm

1351760000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Weidmuller
Reach Compliance Code	compli
Factory Lead Time	10 weeks
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

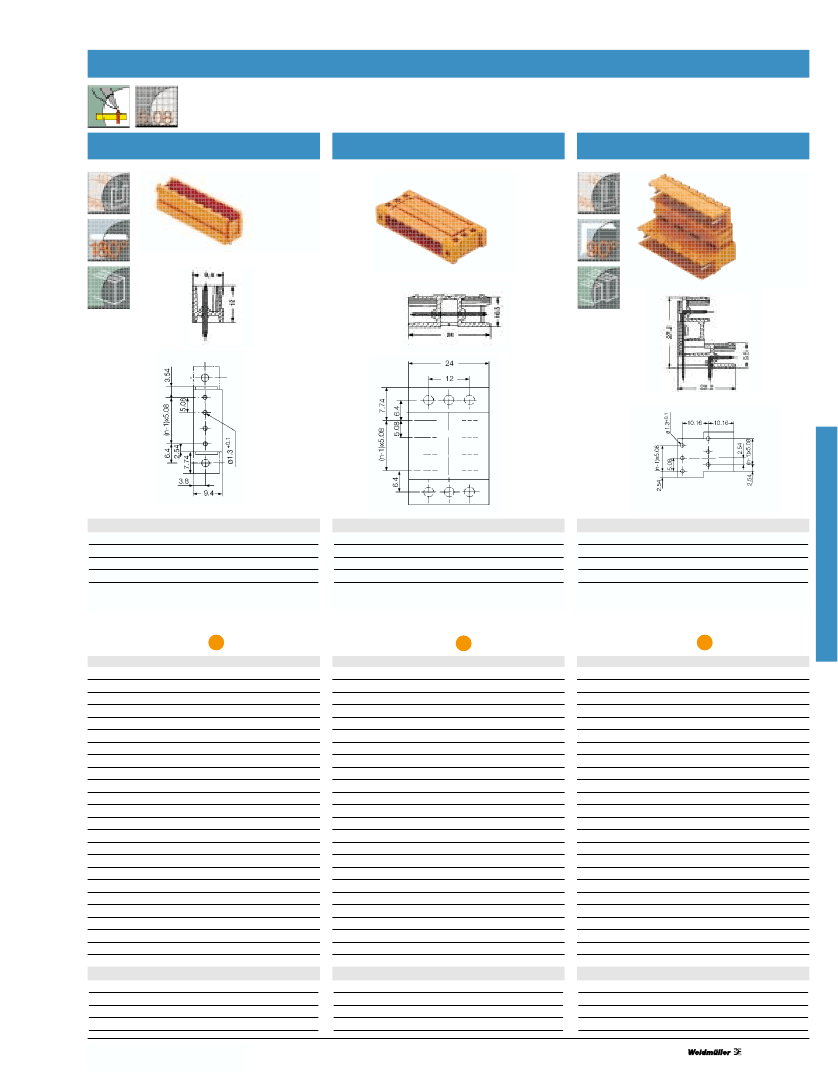

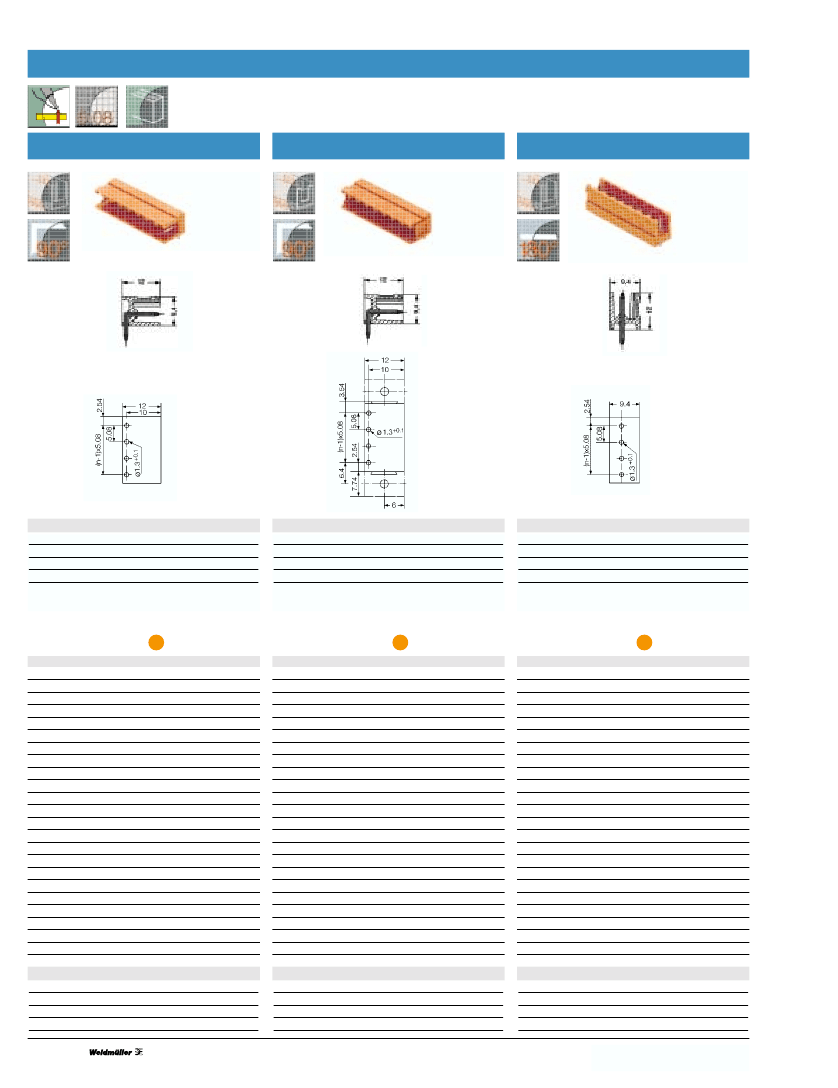

Unimate Range - SLA/BLA

Pin headers SLA 5.08/90

Pin headers SLA 5.08/90B

Pin headers SLA 5.08/180

T echnical data

Rated voltage (V)

Rated current (A)

VDE

250*

300

CSA

300

T echnical data

Rated voltage (V)

Rated current (A)

VDE

250*

300

CSA

300

T echnical data

Rated voltage (V)

Rated current (A)

VDE

250*

300

CSA

300

*Pollution severity 3 / Overvoltage category III

Additional technical data see page 227

*Pollution severity 3 / Overvoltage category III

Additional technical data see page 227

*Pollution severity 3 / Overvoltage category III

Additional technical data see page 227

Solder pin length

Color

Poles

4.5 mm

Solder pin length

Color

Poles

4.5 mm

Solder pin length

Color

Poles

4.5 mm

T ype

SLA 5.08/2/90

SLA 5.08/3/90

SLA 5.08/4 /90

SLA 5.08/5/90

SLA 5.08/6 /90

SLA 5.08/7/90

SLA 5.08/8/90

SLA 5.08/9/90

SLA 5.08/10/90

SLA 5.08/11/90

SLA 5.08/12/90

SLA 5.08/13/90

SLA 5.08/14 /90

SLA 5.08/15/90

SLA 5.08/16 /90

SLA 5.08/17/90

SLA 5.08/18/90

SLA 5.08/19/90

SLA 5.08/20/90

SLA 5.08/21/90

SLA 5.08/22/90

SLA 5.08/23/90

SLA 5.08/24 /90

Part No.

13 46 86 0000

13 46 96 0000

13 47 06 0000

13 47 16 0000

13 47 26 0000

13 47 3 6 0000

13 47 46 0000

13 47 56 0000

13 47 6 6 0000

13 47 7 6 0000

13 47 86 0000

13 47 96 0000

13 4806 0000

13 4816 0000

13 4826 0000

13 483 6 0000

13 4846 0000

13 4856 0000

13 486 6 0000

13 487 6 0000

13 4886 0000

13 4896 0000

13 4906 0000

Qty.

100

Page

–

190

193

199

T ype

SLA 5.08/2/90B

SLA 5.08/3/90B

SLA 5.08/4 /90B

SLA 5.08/5/90B

SLA 5.08/6 /90B

SLA 5.08/7/90B

SLA 5.08/8/90B

SLA 5.08/9/90B

SLA 5.08/10/90B

SLA 5.08/11/90B

SLA 5.08/12/90B

SLA 5.08/13/90B

SLA 5.08/14 /90B

SLA 5.08/15/90B

SLA 5.08/16 /90B

SLA 5.08/17/90B

SLA 5.08/18/90B

SLA 5.08/19/90B

SLA 5.08/20/90B

SLA 5.08/21/90B

SLA 5.08/22/90B

SLA 5.08/23/90B

SLA 5.08/24 /90B

Part No.

13 5146 0000

13 5156 0000

13 516 6 0000

13 517 6 0000

13 5186 0000

13 5196 0000

13 5206 0000

13 5216 0000

13 5226 0000

13 523 6 0000

13 5246 0000

13 5256 0000

13 526 6 0000

13 527 6 0000

13 5286 0000

13 5296 0000

13 53 06 0000

13 53 16 0000

13 53 26 0000

13 53 3 6 0000

13 53 46 0000

13 53 56 0000

13 53 6 6 0000

Qty.

100

Page

187*

190

193

199

T ype

SLA 5.08/2/180

SLA 5.08/3/180

SLA 5.08/4 /180

SLA 5.08/5/180

SLA 5.08/6 /180

SLA 5.08/7/180

SLA 5.08/8/180

SLA 5.08/9/180

SLA 5.08/10/180

SLA 5.08/11/180

SLA 5.08/12/180

SLA 5.08/13/180

SLA 5.08/14 /180

SLA 5.08/15/180

SLA 5.08/16 /180

SLA 5.08/17/180

SLA 5.08/18/180

SLA 5.08/19/180

SLA 5.08/20/180

SLA 5.08/21/180

SLA 5.08/22/180

SLA 5.08/23/180

SLA 5.08/24 /180

Part No.

13 4916 0000

13 4926 0000

13 493 6 0000

13 4946 0000

13 4956 0000

13 496 6 0000

13 497 6 0000

13 4986 0000

13 4996 0000

13 5006 0000

13 5016 0000

13 5026 0000

13 503 6 0000

13 5046 0000

13 5056 0000

13 506 6 0000

13 507 6 0000

13 5086 0000

13 5096 0000

13 5106 0000

13 5116 0000

13 5126 0000

13 513 6 0000

Qty.

100

Page

–

190

193

–

Accessories

Mounting

Mark ing

Coding

Miscellaneous

152

Accessories

Mounting

Mark ing

Coding

Miscellaneous

Accessories

Mounting

Mark ing

Coding

Miscellaneous

* See Note, page 187
