5962D9569202VEC datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> 5962D9569202VEC

5962D9569202VEC: Description4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, CERAMIC, DIP-16; CategoryAnalog mixed-signal IC The signal circuit; File Size178KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962D9569202VEC Overview

4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, CERAMIC, DIP-16

5962D9569202VEC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	_compli
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
Maximum negative supply voltage (Vsup)	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	4
Number of functions	1
Number of terminals	16
Nominal off-state isolation	50 dB
Maximum on-state resistance (Ron)	400 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	5.08 mm
Maximum signal current	0.008 A
Maximum supply current (Isup)	2.4 mA
Maximum supply voltage (Vsup)	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	1000 ns
Maximum connection time	1000 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	10k Rad(Si) V
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HS-0508RH, HS-0509RH

Data Sheet

August 1999

FN3977.2

Radiation Hardened Single 8/Differential

4-Channel CMOS Analog Multiplexers

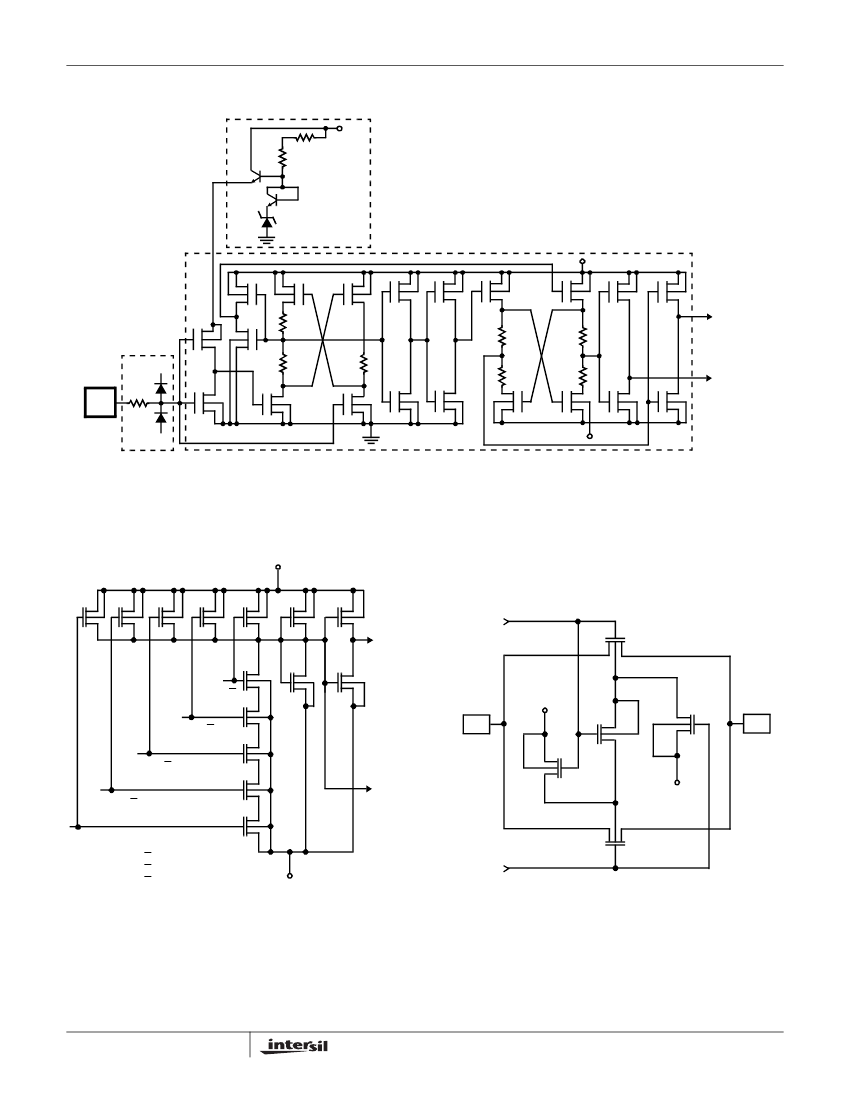

These radiation hardened monolithic CMOS multiplexers

each include an array of eight analog switches, a digital

decode circuit for channel selection, a voltage reference for

logic thresholds, and an ENABLE input for device selection

when several multiplexers are present.

The Dielectric Isolation (DI) process used in fabrication of

these devices eliminates the problem of latch-up. Also, DI

offers much lower substrate leakage and parasitic

capacitance than conventional junction-isolated CMOS.

Switches are guaranteed to break-before-make, so that two

channels are never shorted together. The switching

threshold for each digital input is established by an internal

+5V reference, providing a guaranteed minimum 2.4V for

logic “1” and maximum 0.8 for logic “0”. This allows direct

interface without pull-up resistors to signals from most logic

families: CMOS, TTL, DTL and some PMOS. For protection

against transient overvoltage, the digital inputs include a

series 200Ω resistor and a diode clamp to each supply. The

HS-0508RH is an eight channel single-ended multiplexer,

and the HS-0509RH is a four channel differential version. If

input overvoltage protection is needed, the HS-0548RH and

HS-0549RH multiplexers are recommended.

Specifications for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed here must be used when ordering.

Detailed Electrical Specifications for these devices are

contained in SMD 5962-95692. A “hot-link” is provided

on our homepage for downloading.

http://www.intersil.com/spacedefense/space.htm

Features

• Electrically Screened to SMD # 5962-95692

• QML Qualified per MIL-PRF-38535 Requirements

• Gamma Dose . . . . . . . . . . . . . . . . . . . . . . 1 x 10

RAD(Si)

• No Latch-Up

• No Channel Interaction During Overvoltage

• Low On Resistance . . . . . . . . . . . . . . . . . . . . <200Ω (Typ)

• 44V Maximum Power Supply

• Break-Before-Make Switch

• Analog Signal Range . . . . . . . . . . . . . . . . . . . . . . . .

±15V

• Access Time. . . . . . . . . . . . . . . . . . . . . . . . . <300ns (Typ)

Applications

• Data Acquisition Systems

• Control Systems

• Telemetry

Ordering Information

ORDERING NUMBER

5962D9569201VEA

5962D9569201VEC

5962D9569202VEA

5962D9569202VEC

INTERNAL

MKT. NUMBER

HS1-0508RH-Q

HS1B-0508RH-Q

HS1-0509RH-Q

HS1B-0509RH-Q

TEMP. RANGE

(

-55 to 125

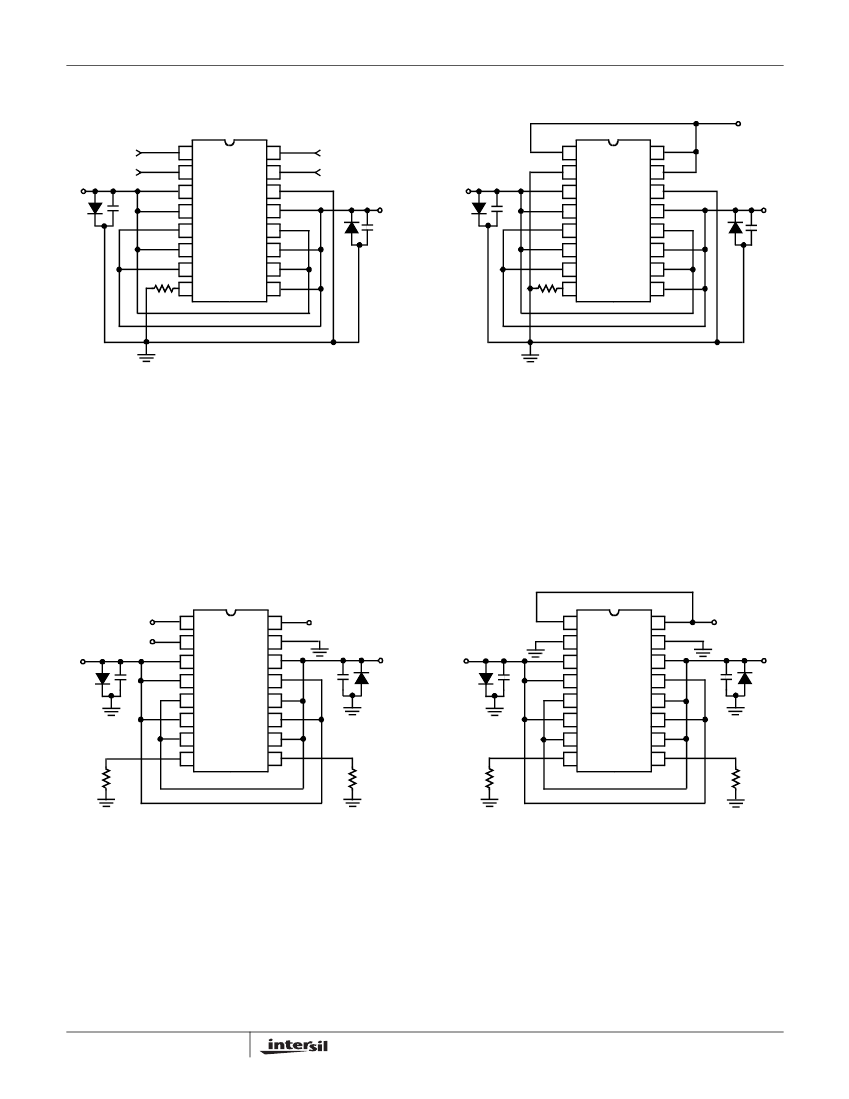

Pinouts

HS-0508RH GDIP1-T16 (CERDIP)

OR CDIP2-T16 (SBDIP)

TOP VIEW

HS-0509RH GDIP1-T16 (CERDIP)

OR CDIP2-T16 (SBDIP)

TOP VIEW

A0 1

ENABLE 2

-VSUPPLY 3

IN 1 4

IN 2 5

IN 3 6

IN 4 7

OUT

16 A1

15 A2

14 GND

13 +VSUPPLY

12 IN 5

11 IN 6

10 IN 7

9 IN 8

A0 1

ENABLE 2

-VSUPPLY 3

IN 1A

IN 2A

IN 3A

IN 4A

16 A1

15 GND

14 +VSUPPLY

13 IN 1B

12 IN 2B

11 IN 3B

10 IN 4B

9 OUT B

OUTA 8

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143

Intersil (and design) is a trademark of Intersil Americas Inc.

5962D9569202VEC Related Products

	5962D9569202VEC	5962D9569201VEA	5962D9569202VEA
Description	4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, CERAMIC, DIP-16	8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, CERAMIC, DIP-16	4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, CERAMIC, DIP-16
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP-16
Contacts	16	16	16
Reach Compliance Code	_compli	not_compliant	not_compliant
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-CDIP-T16	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0	e0
Maximum negative supply voltage (Vsup)	-22 V	-22 V	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of channels	4	8	4
Number of functions	1	1	1
Number of terminals	16	16	16
Nominal off-state isolation	50 dB	50 dB	50 dB
Maximum on-state resistance (Ron)	400 Ω	400 Ω	400 Ω
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V
Maximum seat height	5.08 mm	5.08 mm	5.08 mm
Maximum signal current	0.008 A	0.008 A	0.008 A
Maximum supply current (Isup)	2.4 mA	2.4 mA	2.4 mA
Maximum supply voltage (Vsup)	22 V	22 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	NO	NO	NO
Maximum disconnect time	1000 ns	1000 ns	1000 ns
Maximum connection time	1000 ns	1000 ns	1000 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
total dose	10k Rad(Si) V	10k Rad(Si) V	10k Rad(Si) V
width	7.62 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1
