Low Cost Four-Way SMT Power Splitter/Combiner
2200 - 2500 MHz
DS54-0004
V4.00
Features
q
q
q
q
q
q
q
SOW-16
Pin 16
Small Size and Low Profile
Industry Standard SOW-16 SMT Plastic Package
Superior Repeatability
Insertion Loss: 1.0 dB Typical
Isolation: 21 dB Typical
Amplitude Balance: 0.2 dB Typical
Low Cost
Orientation
Mark
Pin 1
.2914-.2992
.394-.419
(7.40-7.60)
(10.00-10.65)
-B-
.010(0.25) M B M
Description
M/A-COM’s DS54-0004 is an IC-based monolithic power
splitter/combiner in a low cost SOW 16-lead plastic
package. This four-way power splitter/combiner is ide-
ally suited for applications where small size, low profile
and low cost, without sacrificing performance, are
required. Typical applications include base stations,
portables and PCMCIA cards for wireless data
LAN/WAN and other applications using the 2200-2500
MHz frequency range. Available in tape and reel.
The DS54-0004 is fabricated using a passive-integrated
circuit process. The process features full chip passiva-
tion for increased performance and reliability.
.004 (0.10)
0.050(1.27) BSC.
.3977-.4133
(10.10-10.50)
-A-
.0926-.1043
(7.40-7.60)
0°-8°
-C-
.010-.029 x
45° Chamfer
(0.25-0.75)
.0040-.0118
.013-.020 TYP
(0.10-0.30)
(0.33-0.51)
.010(0.25) M C A M B S
.016-.050
(0.40-1.27)
.0091-.0125
(0.23-0.32)
16-Lead SOP outline dimensions
Wide body (.300)
(All dimensions per JEDEC No. MS-013-AA, Issue C)
Dimensions in ( ) are in mm.
Unless Otherwise Noted: .xxx = ± 0.010 (.xx = ± 0.25)
.xx = ± 0.02 (.x = ± 0.5)
Ordering Information
Part Number
DS54-0004
DS54-0004-TR
DS54-0004-RTR
assignment.
Package
SOW 16-Lead Plastic Package
Forward Tape & Reel*
Reverse Tape & Reel*
*
If specific reel size is required, consult factory for part number
Typical Electrical Specifications
1
,
T
A
= +25°C
Parameter
Insertion Loss Above 6.0 dB
Isolation
VSWR Input
Output
Amplitude Balance
Phase Balance
Units
dB
dB
Min.
15
Typ.
1.0
21
1.5:1
1.4:1
0.2
2
Max.
1.2
1.9:1
1.7:1
0.5
5
dB
°
1. All specifications apply with a 50-ohm source and load impedance.
Specifications Subject to Change Without Notice.
M/A-COM, Inc.
North America:
Tel. (800) 366-2266
Fax (800) 618-8883
s
1
Asia/Pacific: Tel. +81 (03) 3226-1671
Fax +81 (03) 3226-1451
s
Europe: Tel. +44 (1344) 869 595
Fax +44 (1344) 300 020
Low Cost Four-Way SMT Power Splitter/Combiner
Absolute Maximum Ratings
1
Parameter
Input Power
2
Operating Temperature
Storage Temperature
Absolute Maximum
1 W CW
-40°C to +85°C
-65°C to +150°C
DS54-0004
V4.00

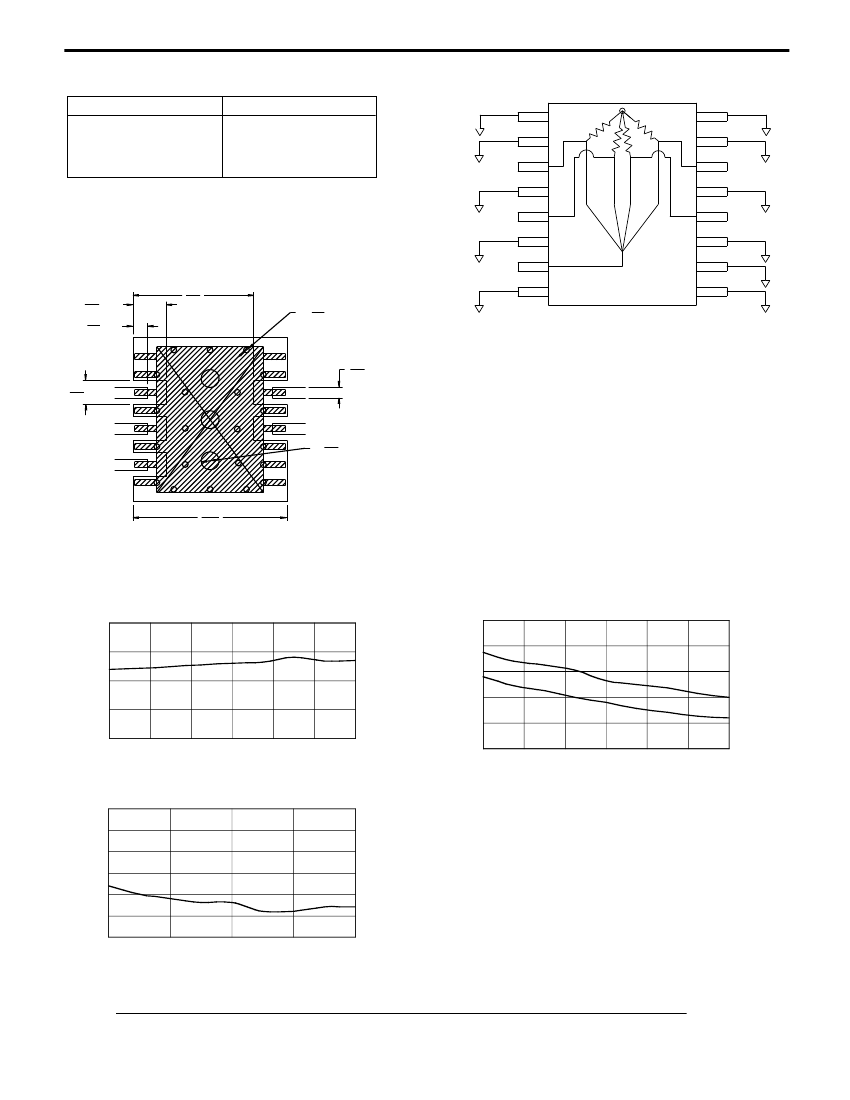

Functional Diagram
3
GND
1
GND
2
RF 2 (OUT)
3
GND
4
RF 1 (OUT)
5
GND
6
RF IN
7
GND
8
GND
16
GND
15
RF 3 (OUT)
14
GND
13
RF 4 (OUT)
12
GND
11
GND
10
GND
9
1. Exceeding these limits may cause permanent damage.
2. With internal load dissipation of 0.125 W maximum.
Recommended PCB Configuration
.093
TYP.
2,36
.041
TYP.
1,04
.335
8,51
ø
.016
PLATED THRU (21X)
0,41
3. Pins 1, 2, 4, 6, 7, 8, 9, 10, 11, 13, 15 and 16 must
be DC and RF grounded.
.030
TYP.
0,76
.067
TYP. RF 2
1,7
RF 3
RF 1
RF 4
ø
.050
PLATED THRU (3X)
1,27
RF IN
.428
10,87
(Dimensions in Inches)
Typical Performance
@ +25°C
INSERTION LOSS vs FREQUENCY
(ABOVE THEORETICAL SPLIT LOSS)
INSERTION LOSS (dB)
0.0
-0.5
2.0
1.8
VSWR vs FREQUENCY
VSWR
-1.0
-1.5
1.6
Input
1.4
Output
1.2
-2.0
2200
2250
2300
2350
2400
2450
2500
1.0
2200
2250
2300
2350
2400
2450
2500
FREQUENCY (MHz)
FREQUENCY (MHz)
ISOLATION vs FREQUENCY
0
ISOLATION (dB)
-5
-10
-15
-20
-25
-30
2200
2275
2350
2425
2500
FREQUENCY (MHz)
Specifications Subject to Change Without Notice.
2
North America:
Tel. (800) 366-2266
Fax (800) 618-8883
s
M/A-COM, Inc.
Asia/Pacific: Tel. +81 (03) 3226-1671
Fax +81 (03) 3226-1451
s
Europe: Tel. +44 (1344) 869 595
Fax +44 (1344) 300 020
