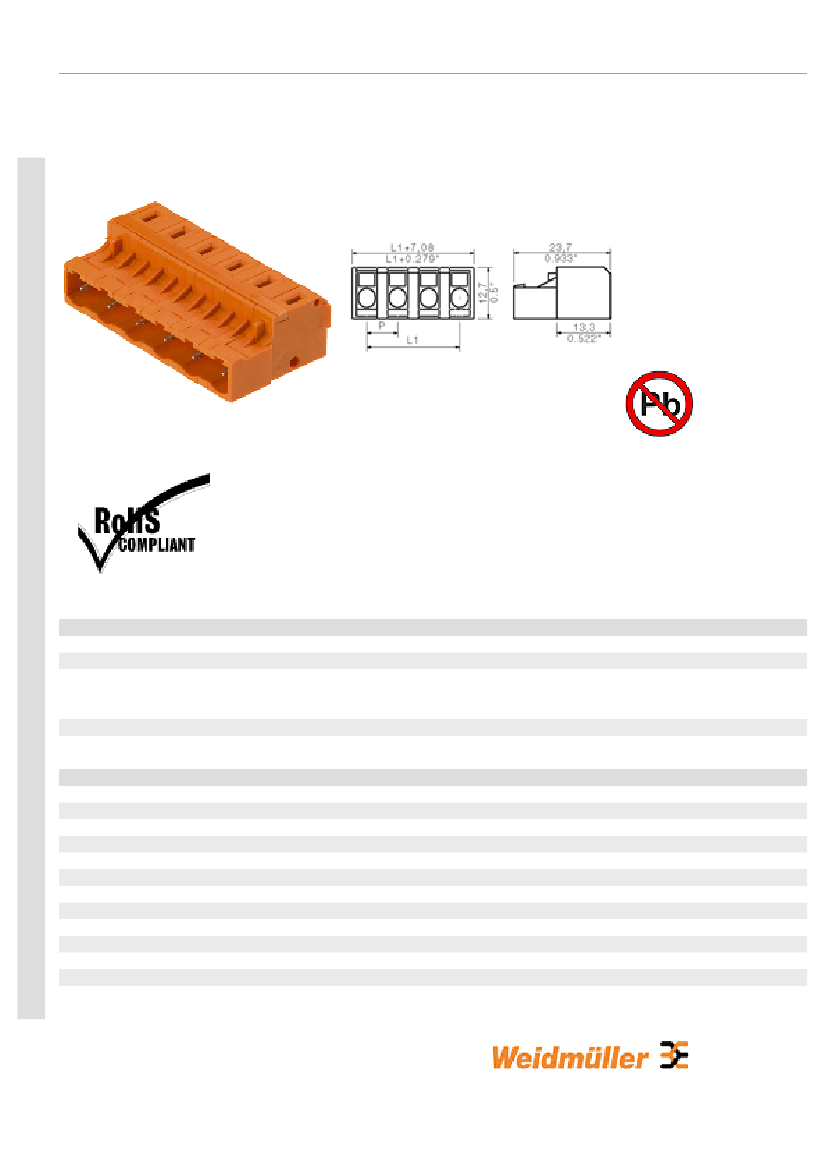

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.50 / 7.62 mm (0.295 / 0.300 inch) | Plug
connectors, tension spring connection, pitch 7.50/7.62 | SLZFS 7.62 | SLZFS 7.62/180
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Conductor connection system
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
No. of rows
Screwdriver blade
Screwdriver blade standard
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
1754490000
SLZF 7.62/6 SN OR
PCB plug-in connector, Male connectors, Tension
clamp connection, Clamping range, max.: 38840
mm², Pitch: 7.62 mm, No. of poles: 6, 180°, Box
4032248149490
50 pc(s).
Tension clamp connection
180°
7.62 mm
0.3 inch
6
1
0.6 x 3.5
DIN 5264-A
7 mm
38.1 mm
1.5 inch
IP20 plugged/ IP10 unplugged
Finger-safe plugged/ back-of-hand-safe
unplugged
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.50 / 7.62 mm (0.295 / 0.300 inch) | Plug
connectors, tension spring connection, pitch 7.50/7.62 | SLZFS 7.62 | SLZFS 7.62/180
System parameters
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
PBT
orange
Similar to RAL 2000
I
V-0
>= 600
E-Cu
tinned
0.14 mm²
38,840 mm²
26
14
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.5 mm²
1.5 mm²
0.5 mm²
1.5 mm²
2.4 mm x 1.5 mm;
24 A
24 A
20 A
20 A
800 V
630 V
500 V
6 kV
6 kV
6 kV
3 x 1s with 120 A
300 V
10 A
26
14
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.50 / 7.62 mm (0.295 / 0.300 inch) | Plug
connectors, tension spring connection, pitch 7.50/7.62 | SLZFS 7.62 | SLZFS 7.62/180
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
Approvals
Approvals institutes
300 V
10 A
26
14
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1754450000
1754460000
1754470000
1754480000
1754500000
Part designation
SLZF 7.62/2 SN OR
SLZF 7.62/3 SN OR
SLZF 7.62/4 SN OR
SLZF 7.62/5 SN OR
SLZF 7.62/7 SN OR
Version
PCB plug-in connector, Male connectors, Tension clamp connection,
Clamping range, max.: 38840 mm², Pitch: 7.62 mm, No. of poles: 2,
180°, Box
PCB plug-in connector, Male connectors, Tension clamp connection,
Clamping range, max.: 38840 mm², Pitch: 7.62 mm, No. of poles: 3,
180°, Box
PCB plug-in connector, Male connectors, Tension clamp connection,
Clamping range, max.: 38840 mm², Pitch: 7.62 mm, No. of poles: 4,
180°, Box
PCB plug-in connector, Male connectors, Tension clamp connection,
Clamping range, max.: 38840 mm², Pitch: 7.62 mm, No. of poles: 5,
180°, Box
PCB plug-in connector, Male connectors, Tension clamp connection,
Clamping range, max.: 38840 mm², Pitch: 7.62 mm, No. of poles: 7,
180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 7.50 / 7.62 mm (0.295 / 0.300 inch) | Plug
connectors, tension spring connection, pitch 7.50/7.62 | SLZFS 7.62 | SLZFS 7.62/180
1754510000
1754520000
1754530000
1754540000
1754550000
SLZF 7.62/8 SN OR
SLZF 7.62/9 SN OR
SLZF 7.62/10 SN OR
SLZF 7.62/11 SN OR
SLZF 7.62/12 SN OR
PCB plug-in connector, Male connectors, Tension clamp connection,
Clamping range, max.: 38840 mm², Pitch: 7.62 mm, No. of poles: 8,
180°, Box
PCB plug-in connector, Male connectors, Tension clamp connection,
Clamping range, max.: 38840 mm², Pitch: 7.62 mm, No. of poles: 9,
180°, Box
PCB plug-in connector, Male connectors, Tension clamp connection,
Clamping range, max.: 38840 mm², Pitch: 7.62 mm, No. of poles:
10, 180°, Box
PCB plug-in connector, Male connectors, Tension clamp connection,
Clamping range, max.: 38840 mm², Pitch: 7.62 mm, No. of poles:
11, 180°, Box
PCB plug-in connector, Male connectors, Tension clamp connection,
Clamping range, max.: 38840 mm², Pitch: 7.62 mm, No. of poles:
12, 180°, Box
-4-
