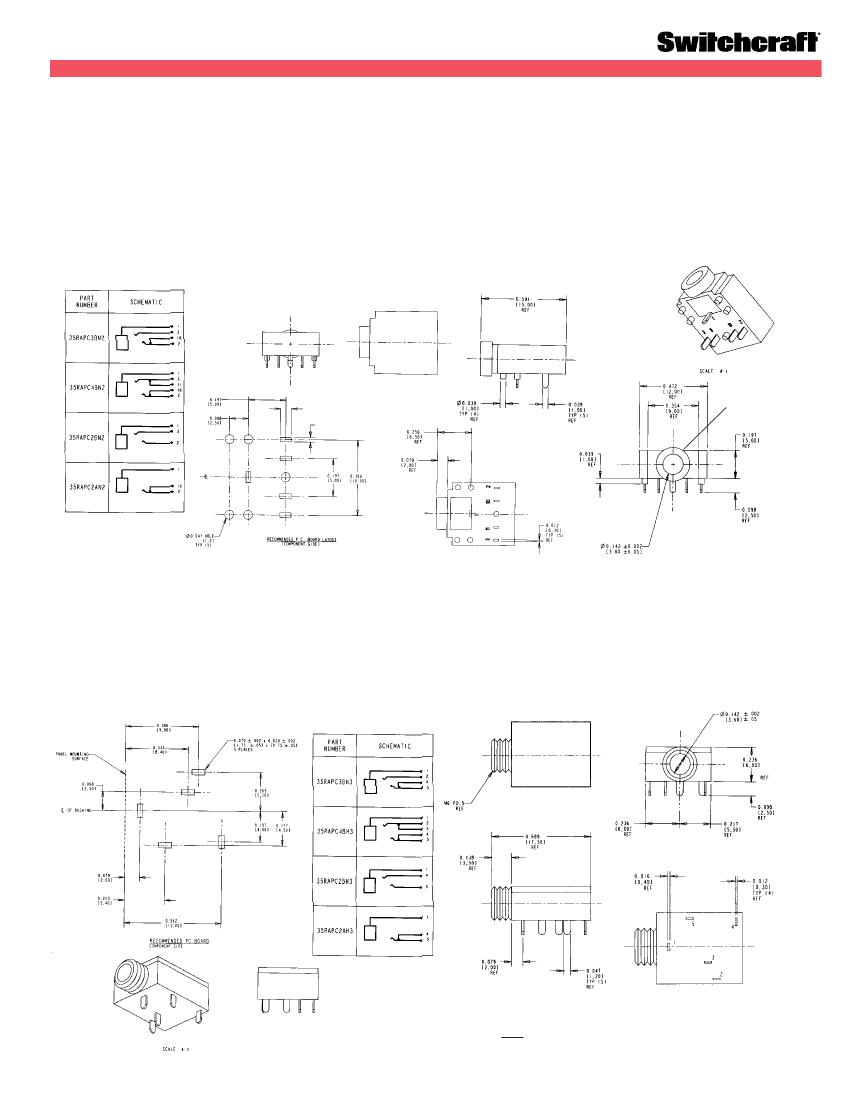

3.5 mm SINGLE MONO AND STEREO JACKS
35RAPC2BHN2 - STEREO, HORIZONTAL, NON-THREADED
MATERIALS
Cover:
Thermoplastic, UL 94V-1 black color.
Ring Spring:
Copper alloy.
Tip Spring:
Silver-plated copper alloy.
Ground Terminal:
Silver-plated copper alloy.
Metal:
Copper alloy, nickel plating.
Body:
Thermoplastic, UL 94V-0 black color.
PERFORMANCE SPECIFICATIONS
Contact Resistance:
30 milliohms maximum, initial
100 milliohms maximum, after life.
Insulation Resistance:
100 megohms minimum
at 500V DC.
Dielectric Withstanding Voltage:
500V AC.
Life:
5000 cycles, minimum.
Insertion Force:
0.88 pounds - 6.6 pounds.
Withdrawal Force:
0.88 pounds - 6.6 pounds.
0.059 +.005/-0
[1.5 +0.1/-0]
0.024 +.005/-0
[0.6 +0.1/-0]
.236
[6.00]
**
**Same drawing for jack with non-threaded bushing.
35RAPC2BH3 - STEREO, HORIZONTAL , THREADED
MATERIALS
Coil Springs:
Steel wire.
Tip Spring:
Silver-plated copper alloy.
Ring Spring:
Silver-plated copper alloy.
Ground Terminal:
Silver-plated copper alloy.
Bushing:
Nickel-plated copper alloy.
Cover:
Thermoplastic, transparent UL 94V-2.
Body:
Thermoplastic, UL 94V-1 black color.
PERFORMANCE SPECIFICATIONS
Contact Resistance:
20 milliohms maximum, initial
100 milliohms maximum, after life.
Insulation Resistance:
100 megohms minimum.
Dielectric Withstanding Voltage:
250V AC.
Life:
5000 cycles, minimum.
Insertion Force:
0.88
lbs.
- 3.50
lbs.
Withdrawal Force:
0.88
lbs.
- 3.10
lbs.
**
**
**Same drawing for jack with non-threaded bushing.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
NOTE:
Contact your Switchcraft Representative for price and delivery.
