C0805C120F2GAC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> C0805C120F2GAC

C0805C120F2GAC: DescriptionCeramic Capacitor, Multilayer, Ceramic, 200V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.000012uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size86KB，9 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

C0805C120F2GAC Overview

Ceramic Capacitor, Multilayer, Ceramic, 200V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.000012uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT

C0805C120F2GAC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2109494729
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.000012 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.3 mm
JESD-609 code	e3
length	2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	1%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 7 INCH
positive tolerance	1%
Rated (DC) voltage (URdc)	200 V
size code	0805
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.25 mm

Preview

Download Datasheet

View All

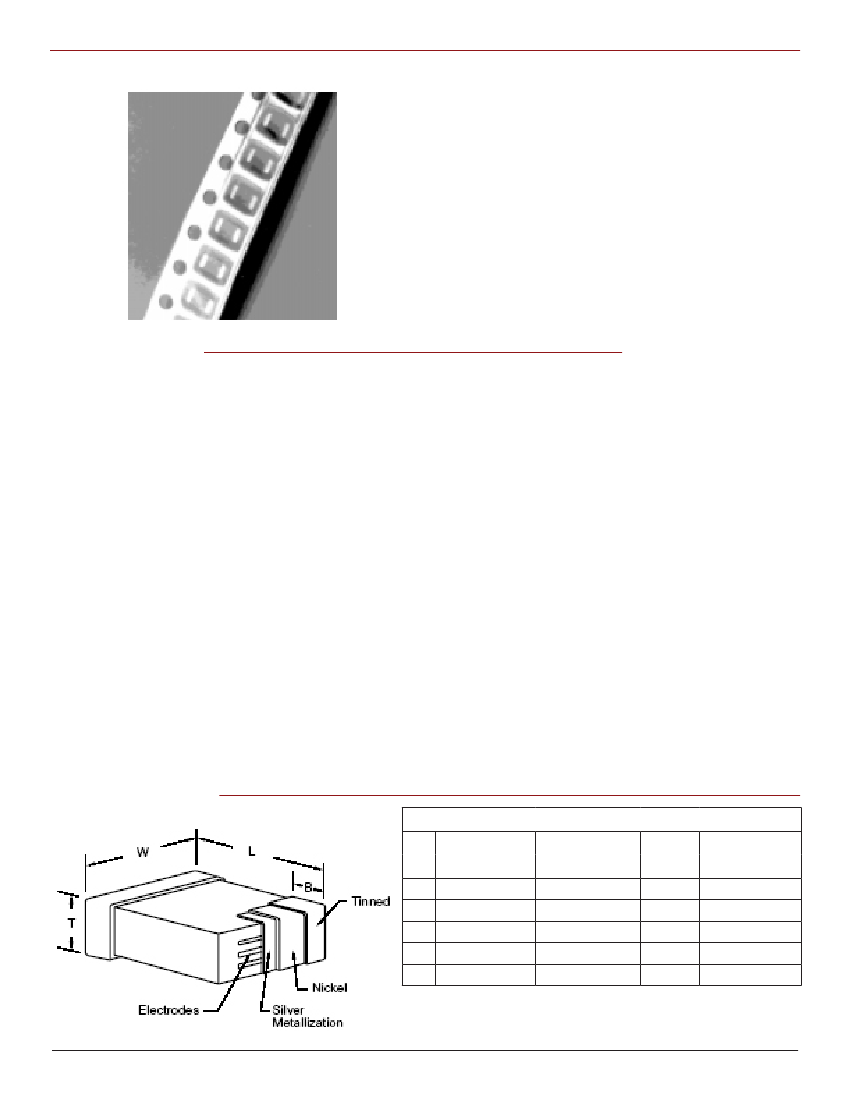

Type C

Multilayer Ceramic Chip Capacitors

Surface Mount Chip Capacitors

Type C surface mount multilayer chip capacitors are

available on tape and reel in COG (NPO), X7R, Z5U

and Y5V temperature coefficients. Five standard sizes

(0402, 0603, 0805, 1206, and 1210) are available in

most of the temperature coefficients - 0603 is not

available in Z5U.

Highlights

•

Nickel barrier/solder terminations

50 Vdc units can be used in 63 Vdc applications

Tape and reel standard

Surface Mount

Specifications

Capacitance Range:

0.5 pF

COG

150 pF

X7R

Z5U

6800 pF

Y5V

0.022 µF

Voltage Range:

COG

X7R

Z5U

Y5V

Standard Sizes:

Tape & Reel:

0.012 µF

0.33 µF

0.47 µF

2.2 µF

RoHS Compliant

10, 16, 25, 50, 100, 200 Vdc

50, 100 Vdc

10, 16, 25, 50 Vdc

0402, 0603, 0805, 1206, 1210

(0603 not available in Z5U)

Parts with ^ (caret) following the part number are 2,500 pieces

per reel. Parts with # following the part number are 10,000

pieces per reel.

13” reels are available by special request

7” reel per EIA RS 481-1

Outline Drawing

Dimensions – Millimeters (Inches)

Size

Code

0402

0603

0805

1206

1210

Length

1.0(.040) ±0.05(.002)

1.6(.063) ±0.15(.006)

2.0(.079) ±0.20(.008)

3.2(.126) ±0.20(.008)

Width

0.50(.020) ±0.05(.002)

0.80(.032) ±0.15(.006)

1.25(.049) ±0.20(.008)

1.60(.063) ±0.20(.008)

2.50(.098) ±0.20(.008)

T Max.

Thickness

0.55(.022)

0.90(.035)

1.30(.051)

1.50(.059)

1.70(.067)

Bandwidth

0.20(.008) Minimum

0.35(.014) ±0.15(.006)

0.50(.020) ±0.25(.010)

Z5U meets all Y5V requirements and can be used in its place

Y5V - ΔC ≤ +22/–82% over –30 ºC to +85 ºC

Z5U - ΔC ≤ +22/ –56% over +10ºC to +85ºC
