7501-2041

Description
Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.197 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size67KB,1 Pages
ManufacturerConexcon Group
Download Datasheet Parametric View All

7501-2041 Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.197 inch Pitch, Solder Terminal, Receptacle

7501-2041 Parametric

Parameter NameAttribute value
Objectid304390006
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.236 inch
subject depth0.126 inch
body length0.886 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Durability60 Cycles
maximum insertion force14.6784 N
Insulation resistance1000000000 Ω
insulator materialNYLON
Manufacturer's serial number7501
Plug contact pitch0.197 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.138 inch
Terminal pitch5.0038 mm
Termination typeSOLDER
Total number of contacts4
Evacuation force-minimum value1.4734 N

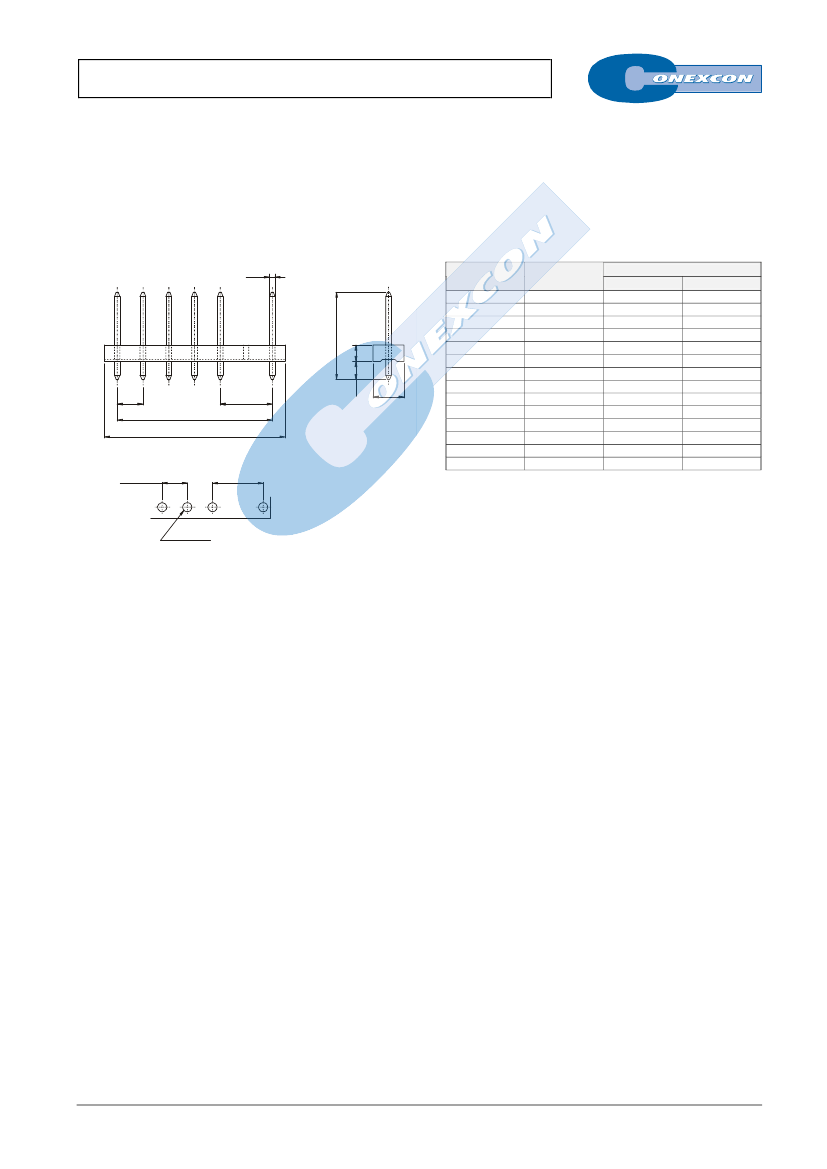

7.50/5.00mm STRAIGHT HEADER
7501 SERIES.
7.50–5.00mm(0.295” – 0.197”). For PCB Solder
Features
Available in 2 through 15 circuits
Different pin length and plating options are available
Insulator Material: Nylon 6/6 UL 94V-2
1.14mm(.045”) square pin in tinned brass
Mates with 7500 series socket
Dimensional Information
Ordering and Dimensional Information
1.14
.045
Circuit Size
02
03
Part Number
7501- 2021
7501- 2031
7501- 2041
7501- 2051
7501- 2061
7501- 2071
7501- 2081
7501- 2091
7501- 2101
7501- 2111
7501- 2121
7501- 2131
7501- 2141
7501- 2151
Dimensions
A
7,50(0,295)
12,50(0,492)
17,50(0,689)
22,50(0,886)
27,50(1,083)
32,50(1,280)
37,50(1,476)
42,50(1,673)
47,50(1,870)
52,50(2,067)
57,50(2,264)
62,50(2,461)
67,50(2,657)
72,50(2,854)
B
12,50(0,492)
17,50(0,689)
22,50(0,886)
27,50(1,083)
32,50(1,280)
37,50(1,476)
42,50(1,673)
47,50(1,870)
52,50(2,067)
57,50(2,264)
62,50(2,461)
67,50(2,657)
72,50(2,854)
77.50 (3.051)
16.95
.667
04
05
.126
3.2
06
07
08
09
10
11
12
13
14
15
3.50
.138
5.00
.197
7.50
A
B
.295
6.0
.236
RECOMMENDED HOLE PATTERN
5.00±0.05
.197±.002
7.50±0.05
.295±.002
1.80±0.10
.071±0.004
