CONNECTOR OVERALL DIMENSIONS WITH COVER KIT AND LEVER ASSEMBLED
97.0
0.5
5.7
E2
E3
E4
E5
REVISED PER ECO-11-005033
ECR-12-016287
ECR-14-008540
REVISED PER ECO-18-014477
24MAR2011
17SEP2012
06SEP2014
12SEP2018
RK
M.P.
M.G.
AP
HMR
M.G.
M.G.
VN
D
+0.5
-0.5
P/N 284743-1 AS SHOWN
FIAT VERSION
2
D
74.3
5
54.5
+0.5
-0.5
6
ITEM 1 AS SUPPLIED
20.0
20X2.5=
50.00
3.0
7.7
SCALE
1
1:1
"A"
3.0
C
3
C
46.0
1) CONNECTOR IS SUITABLE TO BE MATED WITH COUNTERPART P/N 284617-1
2) CONNECTOR CAVITIES ARE SUITABLE FOR CONTACTS:
- 0.64 MQS Clean Body contact WSR 0.35÷0.50 mm² P/N 1703296-1 (FIAT
(Minimum insulation diameter: 1.2 mm; Maximum isolation diameter: 1.6 mm)
restricted version)
5.2
6.6
0.25
- 0.64 MQS Clean Body contact WSR 0.35 mm² P/N 968220-1
(Minimum insulation diameter 1.2 mm; Maximum isolation diameter: 1.3 mm)
VIEW FROM A
- 0.64 MQS Clean Body contact WSR 0.75 mm² P/N 1703298-1 (FIAT restricted
(Minimum insulation diameter 1.7 mm; Maximum isolation diameter: 1.9 mm)
- 0.64 MQS Clean Body contact WSR 0.50÷0.75 mm² P/N 968221-1
(Minimum insulation diameter 1.4 mm; Maximum isolation diameter: 1.9 mm)
- 1.5 MQS Clean Body contact WSR 0.50 mm² P/N 1452158-1
(Minimum insulation diameter 1.4 mm; Maximum isolation diameter: 1.6 mm)
- 1.5 MQS Clean Body contact WSR 0.75÷1.50 mm² P/N 1241608-1
(Minimum insulation diameter 1.7 mm; Maximum isolation diameter: 2.4 mm)
- 2.8K MCP Contacts SWS, WSR 0.35 mm² P/N 1241392-1
(Minimum insulation diameter 1.2 mm; Maximum isolation diameter: 1.3 mm)
- 2.8K MCP Contacts SWS, WSR 0.5÷1.0 mm² P/N 1241394-1
(Minimum insulation diameter 1.4 mm; Maximum isolation diameter: 2.1 mm)
- 2.8K MCP Contacts SWS, WSR > 1.0÷2.5 mm² P/N 1241396-1
(Minimum insulation diameter 2.0 mm; Maximum isolation diameter: 3.0 mm)
version)
VIEW FROM WIRE INSERTION SIDE
73
6
5
51
94
72
CAVITIES POSITION
CONTACT P/N
968220-1
&
968221-1
1452158-1
&
1241608-1
1241394-1
&
1241396-1
POSITION
8 to 28; 30 to 50;
52 to 72; 74 to 94
B
3
1
2
29
7
CABLE EXIT
50
28
7, 29, 51, 73
B
1 to 6
SINGLE WIRE SEAL
P/N 963294-1 FOR
P/N 963293-1 FOR
P/N 963292-1 FOR
FOR
WSR
WSR
WSR
MCP 2.8K:
0.35-1.0 mm²;
1.5 mm²;
2.5 mm².
-
1
1
1
1
1
QTY.
1
1
1
1
1
1
QTY.
PA6.6 GF30
PA6.6 GF13
PA6.6 GF30
PA6.6 GF30
PA6.6 GF30
PA6.6 GF30/PBT+ASA-GF20
PA6.6 GF13 + GF33
SILICON
MATERIALS
PART-NO.
REV
YELLOW
BLACK
BLACK
VIOLET
VIOLET
BLACK/LIGHT BROWN:HOUSING
YELLOW:PERIPHERAL SEAL
RED-BROWN:FAMILY SEAL
COLOURS
C.P.A.
COVER
LEVER
SECONDARY LOCK 6 POSN.
SECONDARY LOCK 88 POSN.
CARRIER HSG.
DESCRIPTION
6
5
4
3
2
1
ITEM
3) TO CLOSE UNUSED CAVITIES:
- P/N 284583-1 for MQS Clean Body contacts cavities
- P/N 1394872-1 for 1.5 mm Clean Body contact cavities
- P/N 828922-1 for 2.8K MCP contact cavities
4) ITEM 2, 3
AND 4 ARE SUPPLIED NOT ASSEMBLED IN THE SAME PACKAGE.
ARE SUPPLIED PRE-ASSEMBLED, IN THE SAME PACKAGE.
5) ITEMS 5 AND 6
6) ITEMS 5 IS SUPPLIED NOT ASSEMBLED IN THE SAME PACKAGE
ITEM 6 IS NOT SUPPLIED
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
A
D.BISETTI
O.CANUTO
03OCT2001
03OCT2001
NAME
TE Connectivity
mm
APVD
A
284743-2
(NOTE 6)
E
284743-1
(NOTE 5)
E
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
0.3
0.3
0.3
-
-
PRODUCT SPEC
APPLICATION SPEC
108-20235
411-20067
-
30'
WEIGHT
SEE TABLE
SEE TABLE
Customer Drawing
A2
00779
SIZE

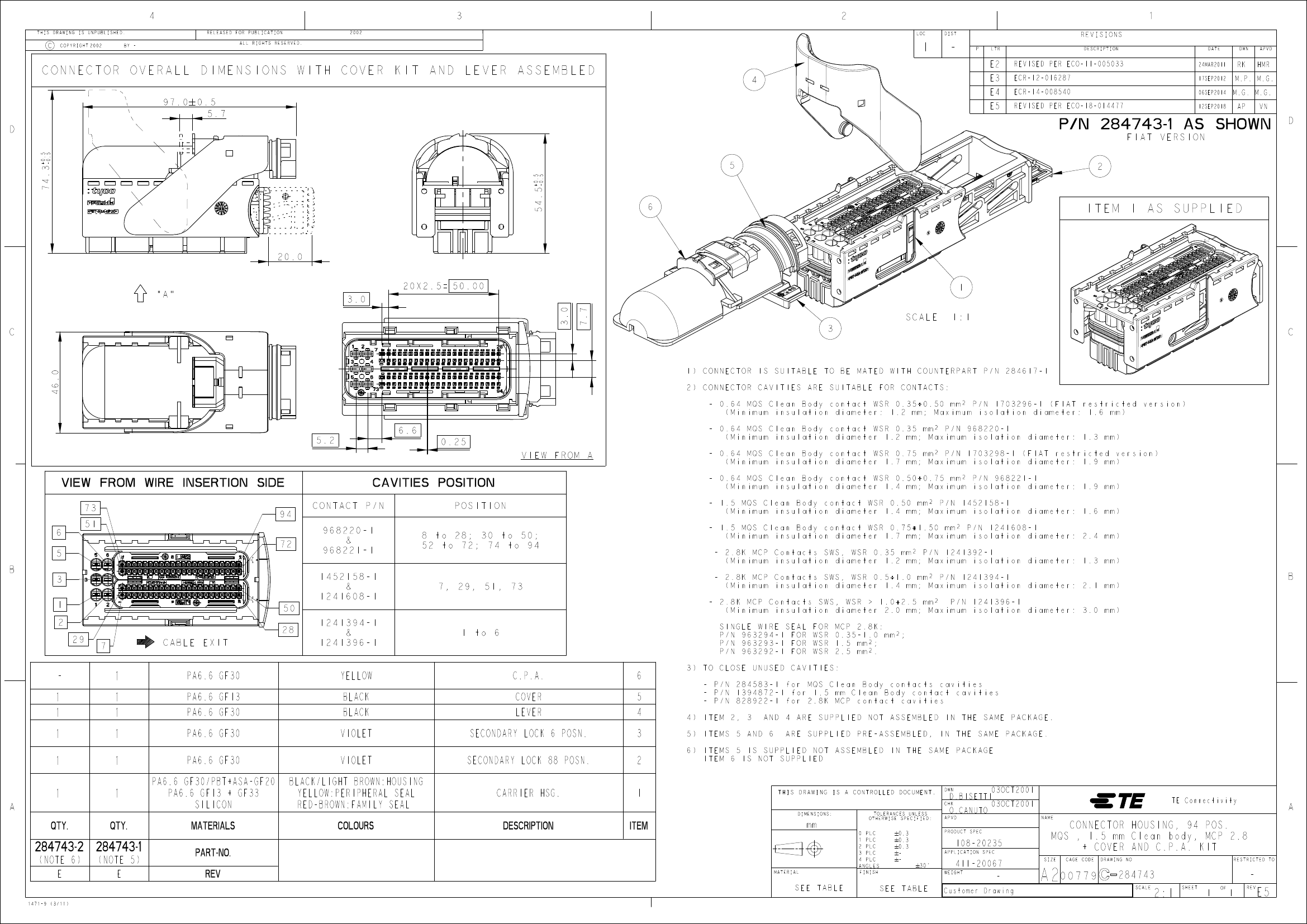

CONNECTOR HOUSING, 94 POS.
MQS , 1.5 mm Clean body, MCP 2.8
+ COVER AND C.P.A. KIT
CAGE CODE
DRAWING NO
RESTRICTED TO
284743
SCALE
1471-9 (3/11)
2:1
SHEET
1
OF
1
REV
-
E5
