3-582151-4 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3-582151-4

Preview

3-582151-4: Description35 AMP BLADE RCPT HSG; CategoryThe connector The connector; File Size476KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-582151-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-582151-4	-	-	View	Buy Now

3-582151-4 Overview

35 AMP BLADE RCPT HSG

3-582151-4 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	15 weeks
Other features	TERMI-POINT
body width	0.4 inch
subject depth	0.745 inch
body length	4.19 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.556 N
Insulator color	GREEN
insulator material	GLASS FILLED DIALLYL PHTHALATE
MIL compliance	NO
Manufacturer's serial number	582151
Plug contact pitch	0.079 inch
Match contact row spacing	0.125 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	3.175 mm
polarization key	POLAR PIN POSITION
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	CRIMP
Total number of contacts	35
Evacuation force-minimum value	4.448 N
Base Number Matches	1

Preview

Download Datasheet

View All

AN

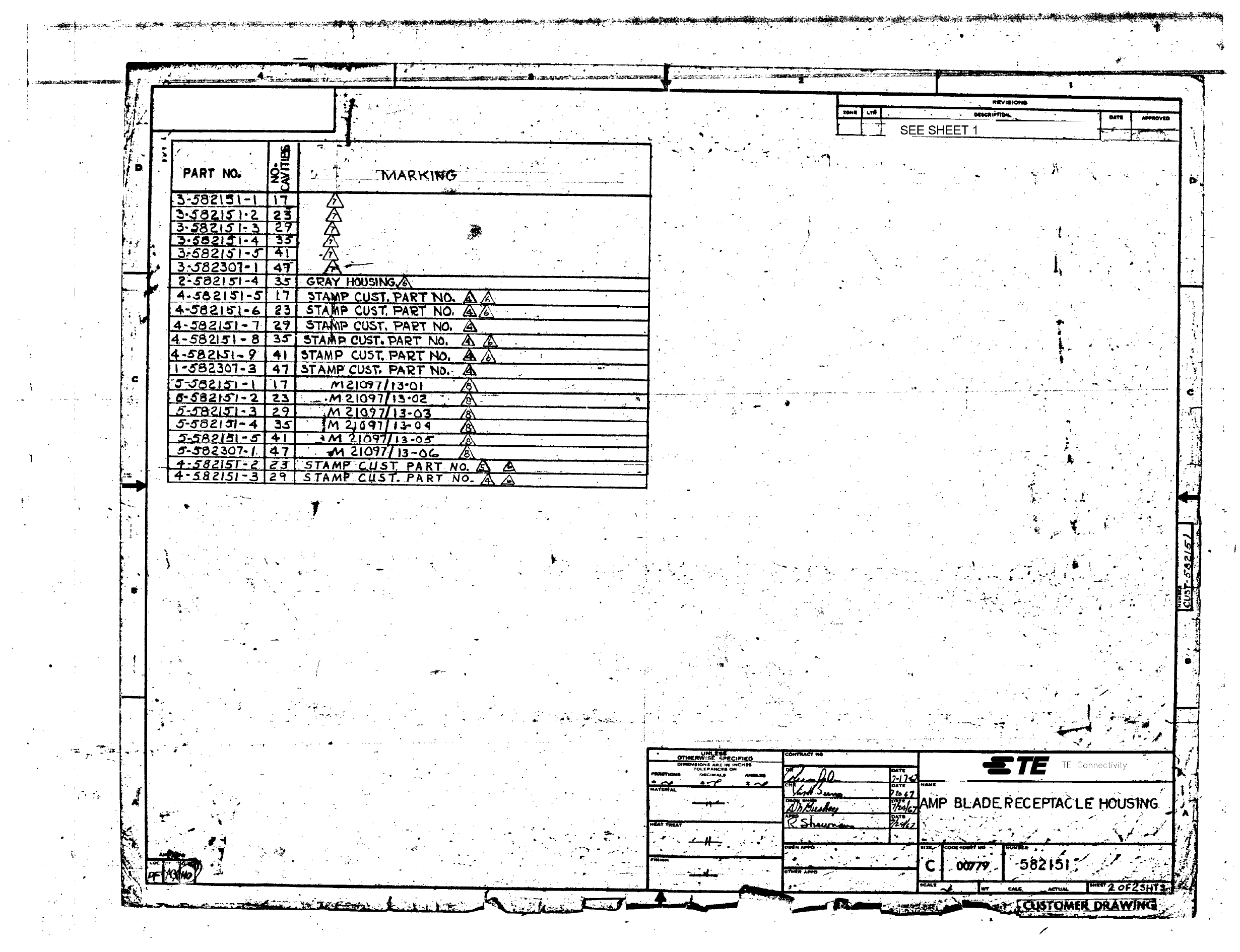

REVISED PER ECO-15-017419

KG

18DEC2015

DE

9

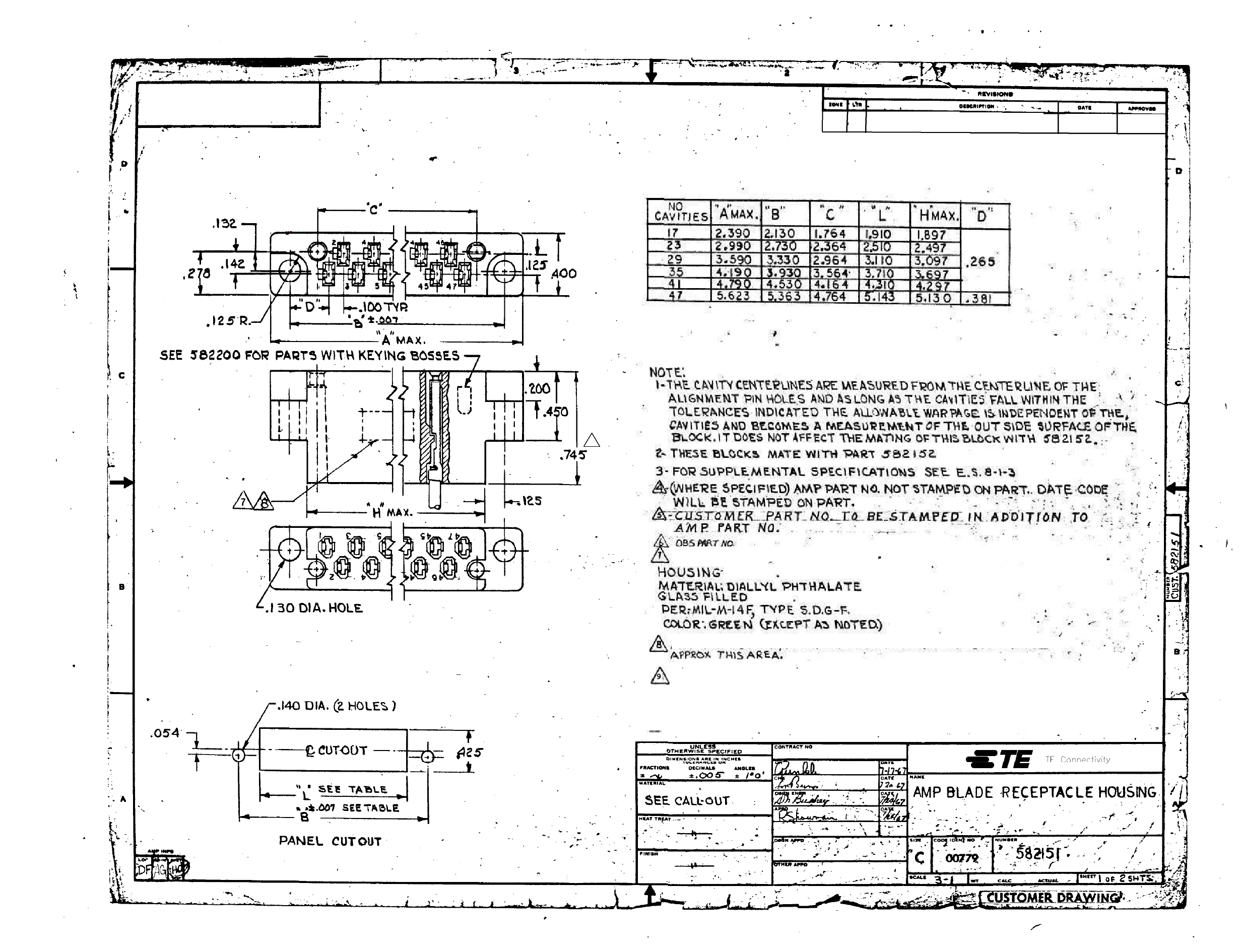

AMP,AMP PART NUMBER AND DATE CODE MARKED APPROX THIS AREA EITHER SIDE.

AMP, AMP PART NUMBER, DATE CODE AND MILITARY NUMBER MARKED

DIMENSION DOES NOT INCLUDE RAISED PADS OR RAISED CHARACTERS.

3-582151-4 Related Products

	3-582151-4	3-582151-1	3-582151-3	3-582151-5	5-582151-5	5-582151-3
Description	35 AMP BLADE RCPT HSG	17 AMP BLADE RCPT HSG	29 AMP BLADE RCPT HSG	41 AMP BLADE RCPT HSG	41 AMP BLADE RCPT HSG/MIL	29 AMP BLADE RCPT HSG/MIL
Brand Name	AMP	AMP	AMP	AMP	AMP	AMP
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	15 weeks	12 weeks	12 weeks	15 weeks	15 weeks	12 weeks
Other features	TERMI-POINT	TERMI-POINT	TERMI-POINT	TERMI-POINT	TERMI-POINT, PANEL MOUNTABLE	TERMI-POINT, PANEL MOUNTABLE
body width	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch
subject depth	0.745 inch	0.745 inch	0.745 inch	0.745 inch	0.745 inch	0.745 inch
body length	4.19 inch	2.39 inch	3.59 inch	4.79 inch	4.79 inch	3.59 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
maximum insertion force	.556 N	.556 N	.556 N	.556 N	.556 N	.556 N
Insulator color	GREEN	GREEN	GREEN	GREEN	GREEN	GREEN
insulator material	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	582151	582151	582151	582151	582151	582151
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	3.175 mm	3.175 mm	3.175 mm	3.175 mm	3.175 mm	3.175 mm
polarization key	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	35	17	29	41	41	29
Evacuation force-minimum value	4.448 N	4.448 N	4.448 N	4.448 N	4.448 N	4.448 N
Base Number Matches	1	-	1	1	1	1
