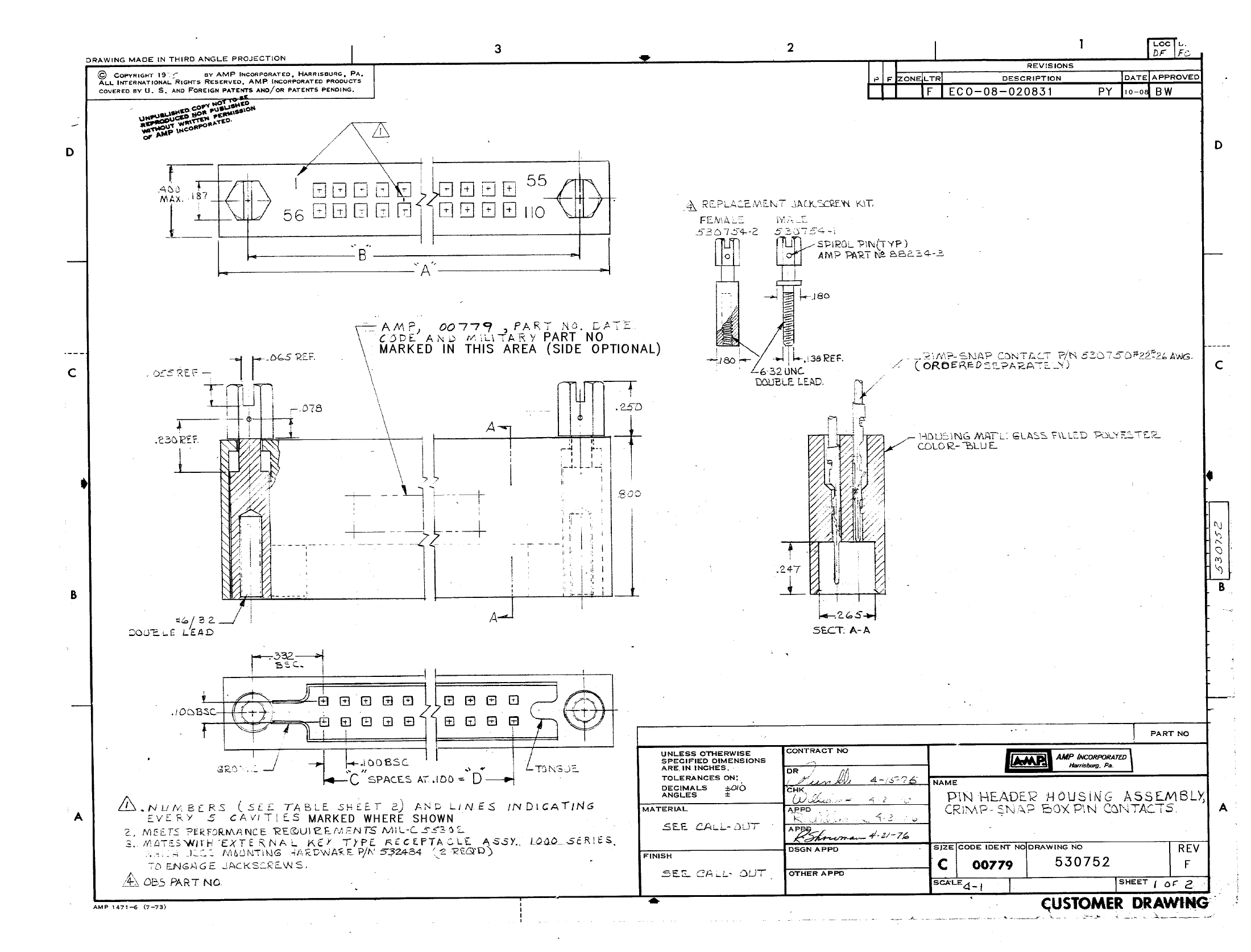

BOX PIN HDR HSG 110 POS 100 C/
| Parameter Name | Attribute value |
| Brand Name | AMP |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Objectid | 1430665871 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Samacsys Description | BOX PIN HDR HSG 110 POS 100 C/ |
| Samacsys Manufacturer | TE Connectivity |
| Samacsys Modified On | 2020-10-09 20:32:13 |
| YTEOL | 0 |
| Other features | STANDARD: MIL-C-55302 |
| body width | 0.4 inch |
| subject depth | 0.8 inch |
| body length | 6.355 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| MIL compliance | YES |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | #6-32 |
| Installation option 2 | JACKSCREW |
| Installation type | CABLE |
| Number of connectors | ONE |
| Number of rows loaded | 2 |
| Options | GENERAL PURPOSE |
| polarization key | SHRD ENDS |
| Termination type | CRIMP |
| Total number of contacts | 110 |

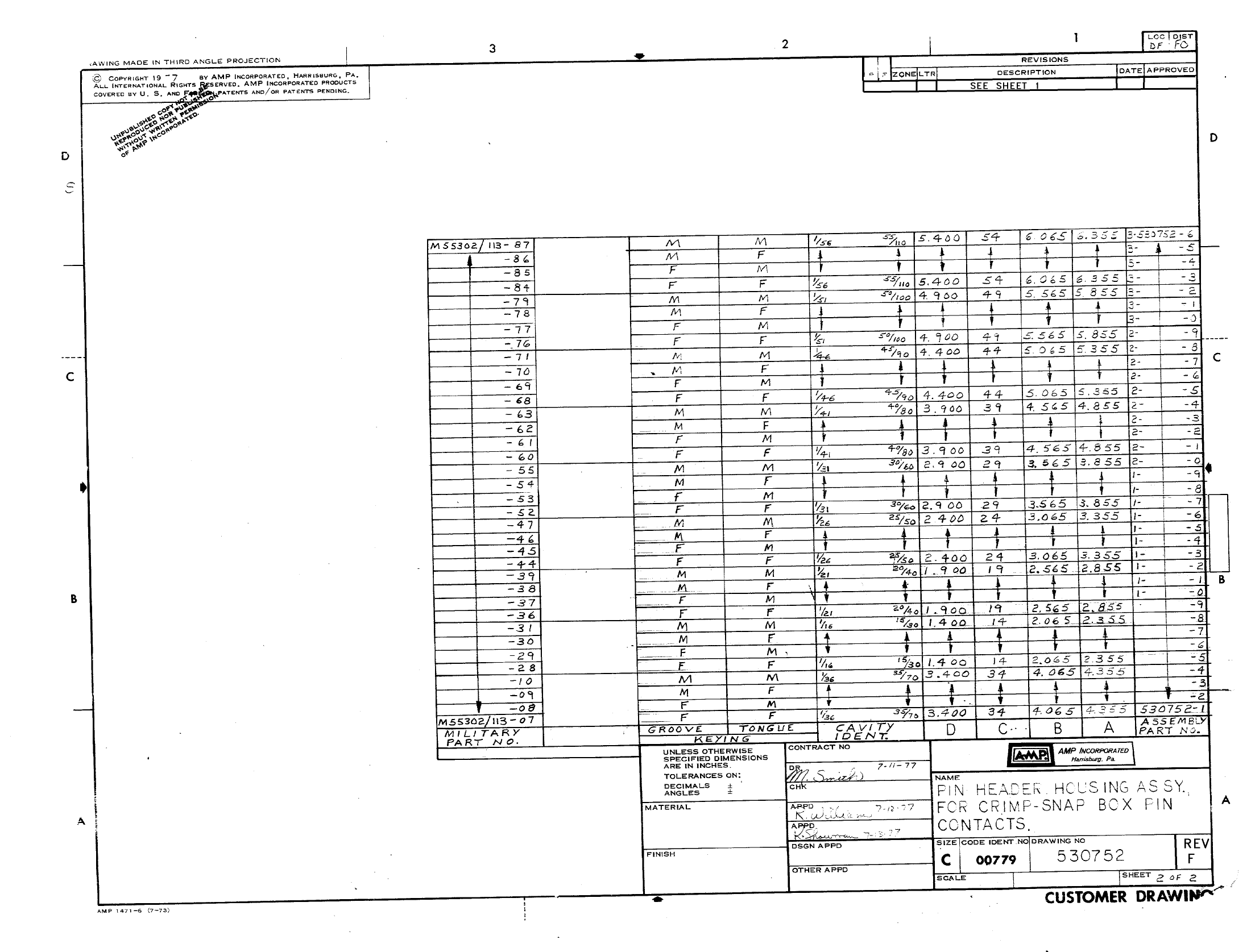

| 3-530752-3 | 530752-8 | 530752-5 | 10121750-0522197LF | 1-530752-7 | M55302/113-10 | M55302/113-28 | M55302/113-29 | M55302/113-84 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | BOX PIN HDR HSG 110 POS 100 C/ | BOX PIN HDR HSG 30 POS 100 C/L | BOX PIN HDR HSG 30 POS 100 C/L | Board Connector, 112 Contact(s), 4 Row(s), Male, Right Angle, Press Fit Terminal, | BOX PIN HDR HSG 60 POS 100 C/L | 70 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, CRIMP | 30 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, CRIMP | 30 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, CRIMP | 110 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, CRIMP |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | unknown | compliant | unknown | compliant |
| Other features | STANDARD: MIL-C-55302 | STANDARD: MIL-C-55302 | STANDARD: MIL-C-55302 | TERMINAL PITCH FOR POWER CONTACTS IS 6.35 | STANDARD: MIL-C-55302 | STANDARD: MIL-C-55302 | STANDARD: MIL-C-55302 | STANDARD: MIL-C-55302 | STANDARD: MIL-C-55302 |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | MALE | MALE | MALE |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| MIL compliance | YES | YES | YES | NO | YES | YES | YES | YES | YES |
| Mixed contacts | NO | NO | NO | YES | NO | NO | NO | NO | NO |
| Installation type | CABLE | CABLE | CABLE | BOARD | CABLE | CABLE | CABLE | CABLE | CABLE |
| Number of rows loaded | 2 | 2 | 2 | 4 | 2 | 2 | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Termination type | CRIMP | CRIMP | CRIMP | PRESS FIT | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP |
| Total number of contacts | 110 | 30 | 30 | 112 | 60 | 70 | 30 | 30 | 110 |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | - | conform to | - | conform to |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | - | - | - | - |
| body width | 0.4 inch | 0.4 inch | 0.4 inch | 0.57 inch | 0.4 inch | - | - | - | - |
| subject depth | 0.8 inch | 0.8 inch | 0.8 inch | 0.93 inch | 0.8 inch | - | - | - | - |
| body length | 6.355 inch | 2.355 inch | 2.355 inch | 8.64 inch | 3.855 inch | - | - | - | - |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | - | NOT SPECIFIED |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | COPPER ALLOY | NOT SPECIFIED | - | NOT SPECIFIED | - | NOT SPECIFIED |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | - | - | - | - |
| Match contact row spacing | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | - | - | - | - |
| Maker | - | - | TE Connectivity | - | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity |
