282959-6

Description
TERMI-BLOK PLUG 6P. 7
CategoryThe connector    terminals
File Size215KB，2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

282959-6 Online Shopping

Suppliers Part Number Price MOQ In stock
282959-6 - - View Buy Now

282959-6 Overview

TERMI-BLOK PLUG 6P. 7

282959-6 Parametric

Parameter NameAttribute value
Brand NameBuch
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
ECCN codeEAR99
Other features94V-0, PA 6-6
Fastening methodSCREW
Installation typeCABLE
Number of layers1
Rows1
Number of channels6
Rated current15 A
Rated voltage300 V
safety certificateUL
Terminal and terminal strip typesMODULAR TERMINAL BLOCK
Conductor cross section2.5 mm2
Wire gauge12 AWG
Base Number Matches1

Preview

Download Datasheet
4
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
-
ALL RIGHTS RESERVED.
20
3
LOC
2
DIST
1
C
COPYRIGHT
20
FT
0
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C3
PN 2-282959-0 INFO ADDED
01AUG2018
RK
PS
D
(DISPOSITIVO DI RITENZIONE)
RETENTION LATCH
D
DIM.A
18.4
1
2
3
10
11
12
1
2
3
1-282959-5 AS SHOWN
(LATO DI ACCOPPIAMENTO)
1-282959-6 AS SHOWN
MATING FACE
CLAMPING SCREW
(VITE DI SERRAGGIO)
C
(SEDE PER LINGUETTE DI CODIFICA)
POLARIZATION KEY SLOT
C
7
AS SHOWN
AS SHOWN
AS SHOWN
/
/
/
/
/
/
GREEN
GREEN
GRAY
13.0
20.5
20.5
2
3
3
2-282959-0
1-282959-9
2-282959-0 AS SHOWN
6
6
GREEN
GREEN
GREEN
GREEN
GREEN
GREEN
GREEN
GREEN
GREEN
GREEN
GREEN
GREEN
BLACK
90.0
20.5
73.0
12
10
12
11
10
9
8
7
6
5
4
3
NO OF POS.
2
3
1-282959-6
1-282959-5
1-282959-4
1-282959-3
(INGRESSO CAVO)
WIRE ENTRY
2.75 REF
OBSOLETE
/
88.0
80.5
1-282959-2
73.0
65.5
58.0
50.5
43.0
35.5
28.0
20.5
13.0
DIM.A
1-282959-1
1-282959-0
282959-9
282959-8
282959-7
282959-6
282959-5
282959-4
282959-3
282959-2
5
B
OBSOLETE
/
/
/
/
/
/
/
B
282959-3 AS SHOWN
7.5 # 0.08
2.75 REF
15.5
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
MARKING
S.SCHLEGEL
R CANTORE
25JUN96
25JUN96
25JUN96
COLOUR
GREEN
PART NUMBER
TE Connectivity
NAME
DIMENSIONS:
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
APVD
A
0
1
2
3
4
MATERIAL
ANGLES
PLC
PLC
PLC
PLC
PLC
-
FINISH
-
-
0.2
0.20
0.001
0.0001
2
PRODUCT SPEC
R CANTORE
APPLICATION SPEC
-
WEIGHT
-
-
CUSTOMER DRAWING
1470-19 (3/11)
A3
00779
SIZE
CAGE CODE

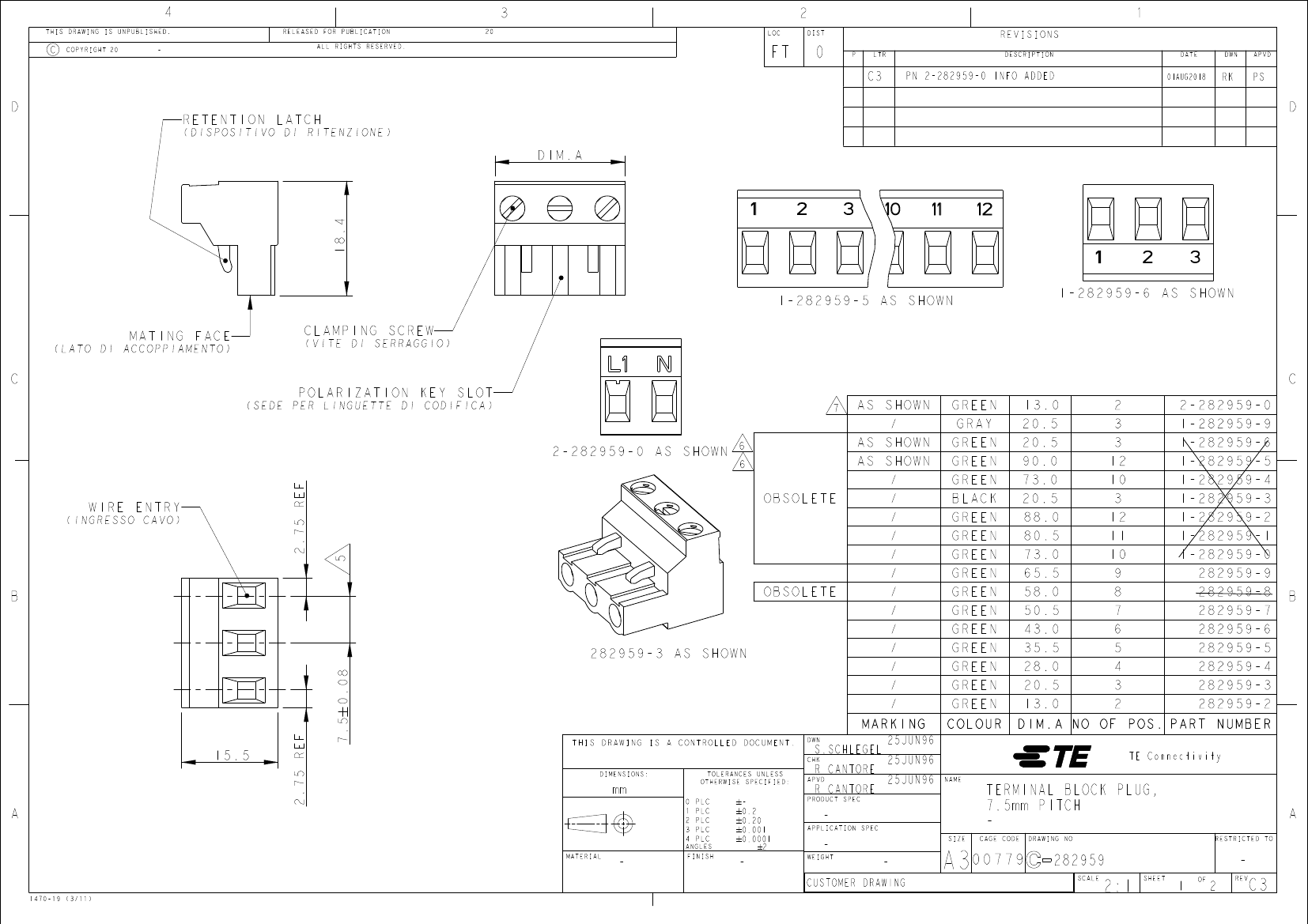

TERMINAL BLOCK PLUG,
7.5mm PITCH
-
DRAWING NO
A
RESTRICTED TO
282959
SCALE
2:1
SHEET
1
OF
2
REV
-
C3
