11020FL210058-02 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 11020FL210058-02

11020FL210058-02: DescriptionBoard Connector, 58 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size53KB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

11020FL210058-02 Overview

Board Connector, 58 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

11020FL210058-02 Parametric

Parameter Name	Attribute value
Objectid	308870710
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.098 inch
subject depth	0.089 inch
body length	1.157 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	110
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.302 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	58

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel.: +49 (0) 5741 23661-0

Fax: +49 (0) 5741 23661-20

E-Mail: info@ratioplast.de

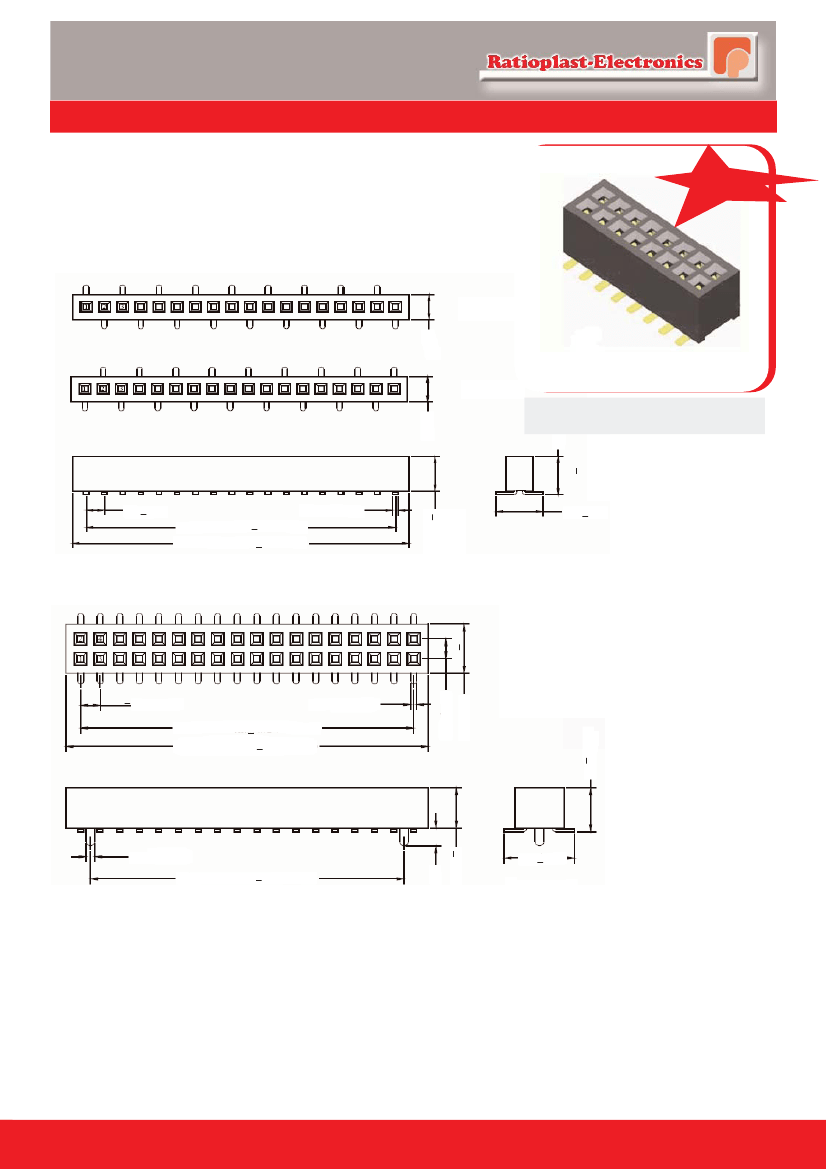

Serie 110

Technische Daten:

Isolierkörper

Farbe

Kontaktmaterial

Nennspannung

Nennstrom

Temperaturbereich

Lötwärmebeständigkeit

SMT BUCHSENLEISTE

SMT FEMALE HEADER

RASTER 1,0mm

PITCH 1,0mm

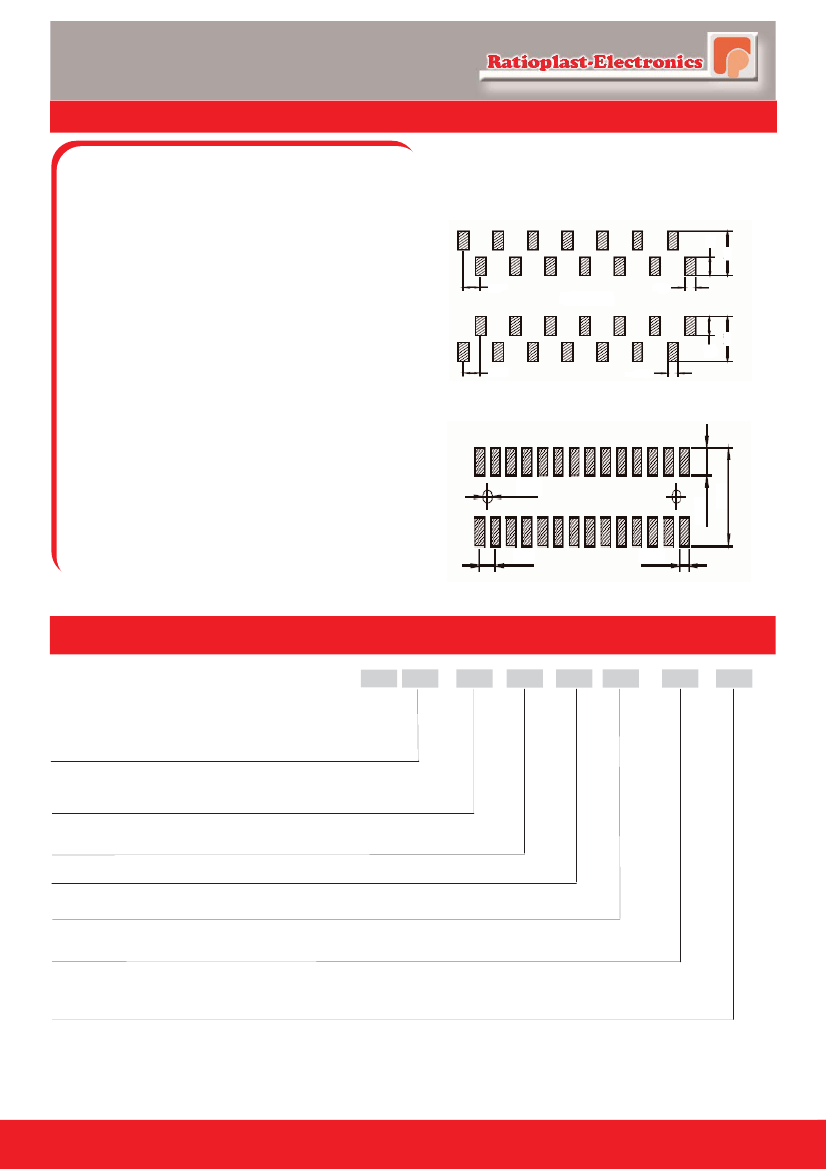

Empfohlenes Leiterplatten-Layout

(Toleranz +0,05)

Recommended P.C.B Layout

(Tolerance +0,05)

Nylon 6T

Hochtemperaturfest, UL94-V0

Schwarz

Messing

500 V AC

- 40°C ... +105°C

235°C (30-60 sek.)

max. 260°C (5 sek.)

Layout Typ A

1,50

1,00

Layout Typ B

0,60

Ø 0,60

1,30

1,00

0,60

1,50

0,60

Technical Data

Insulator

Colour

Contact Material

Current Voltage

Current Rating

Temperature Range

Resistance to soldering

Nylon 6T

High temperature, UL94-V0

Black

Brass

500 V AC

- 40°C ... +105°C

235°C (30-60 sec.)

max. 260°C (5 sec.)

More technical Information on request

BESTELLBEISPIEL

HOW TO ORDER

BITTE ERSETZEN SIE `X` DURCH UNTEN AUFGEFÜHRTEN CODE

PLEASE REPLACE `X`WITH CODING LISTED BELOW

110 XX

10 = 1-reihig Layout “A”

11 = 1-reihig Layout “B”

20 = Ohne Positionierhilfe - Without locating peg

21 = Mit Positinierhilfe - With locating peg

Veredelung - Plating

FL = Flash Vergoldet - Flash gold plated(Au) (Standard)

Andere Veredelungen auf Anfrage - Other plating on request

1 = 1- reihig - 1- row

2 = 2- reihig - 2- row

1 = Liegend - Lying

0 = 1,00 mm Raster - Pitch

9 = Sonderraster - Other pitch

Polzahl - Number of contacts (002...050) (1-reihig - 1-row))

(006...100) (2-reihig - 2-row))

XXX - XX

01= Verpackt in Stangen ohne PP-Pad - Packed in tubes without PP-Pad (Standard)

11= Verpackt in Stangen mit PP-Pad (auf Anfrage) - Packed in tubes with PP-Pad (on request)

02 = Verpackt auf Rolle mit PP-Pad (auf Anfrage) - Reel packing with PP-Pad (on request)

Seite: 18

Version 1 / 2011

www.ratioplast.com

4,60

3,60

Weitere technische Informationen zu den Produkten erhalten Sie auf

Anfrage

3,60
