2008R-03GW-U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2008R-03GW-U

2008R-03GW-U: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

2008R-03GW-U Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking

2008R-03GW-U Parametric

Parameter Name	Attribute value
Objectid	308880540
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.201 inch
subject depth	0.364 inch
body length	0.315 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	2008
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	3

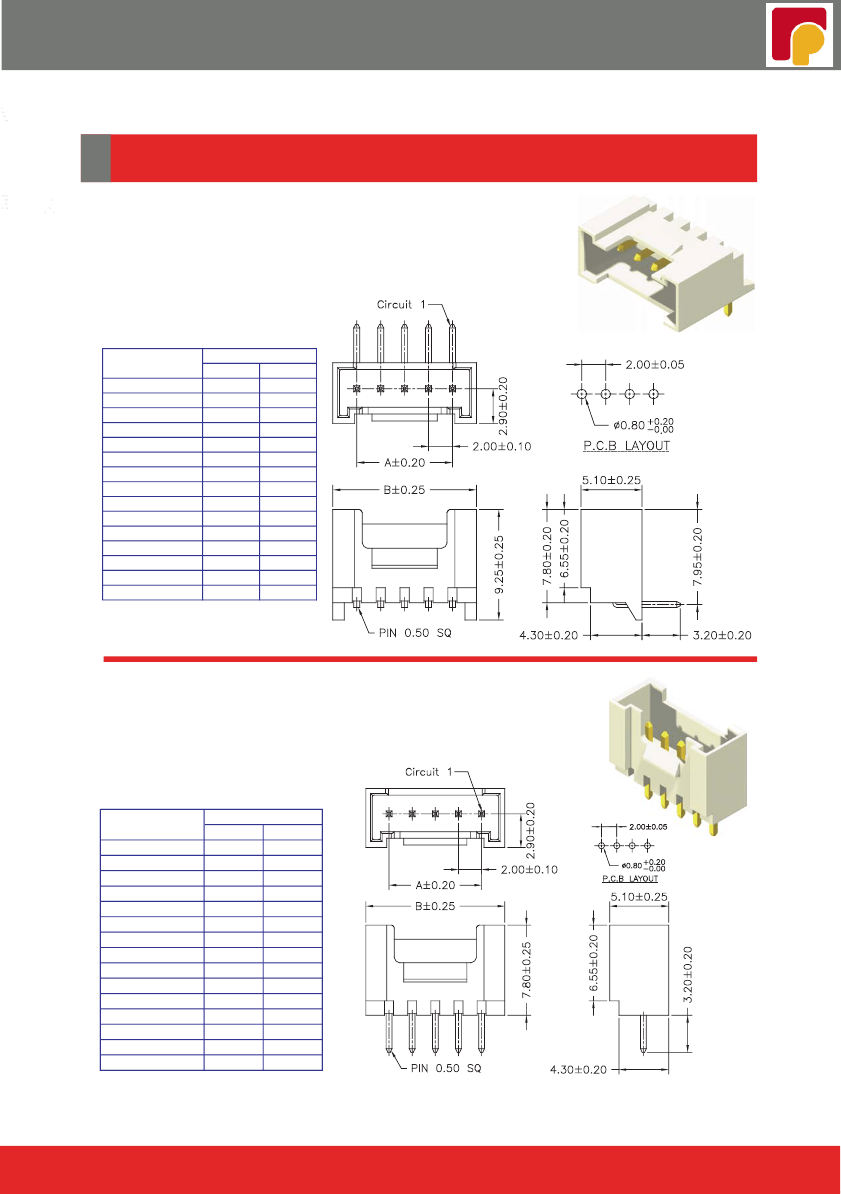

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel:+49 (0) 5741 23661-0

Fax:+49 (0) 5741 23661-20

Ratioplast-Electronics

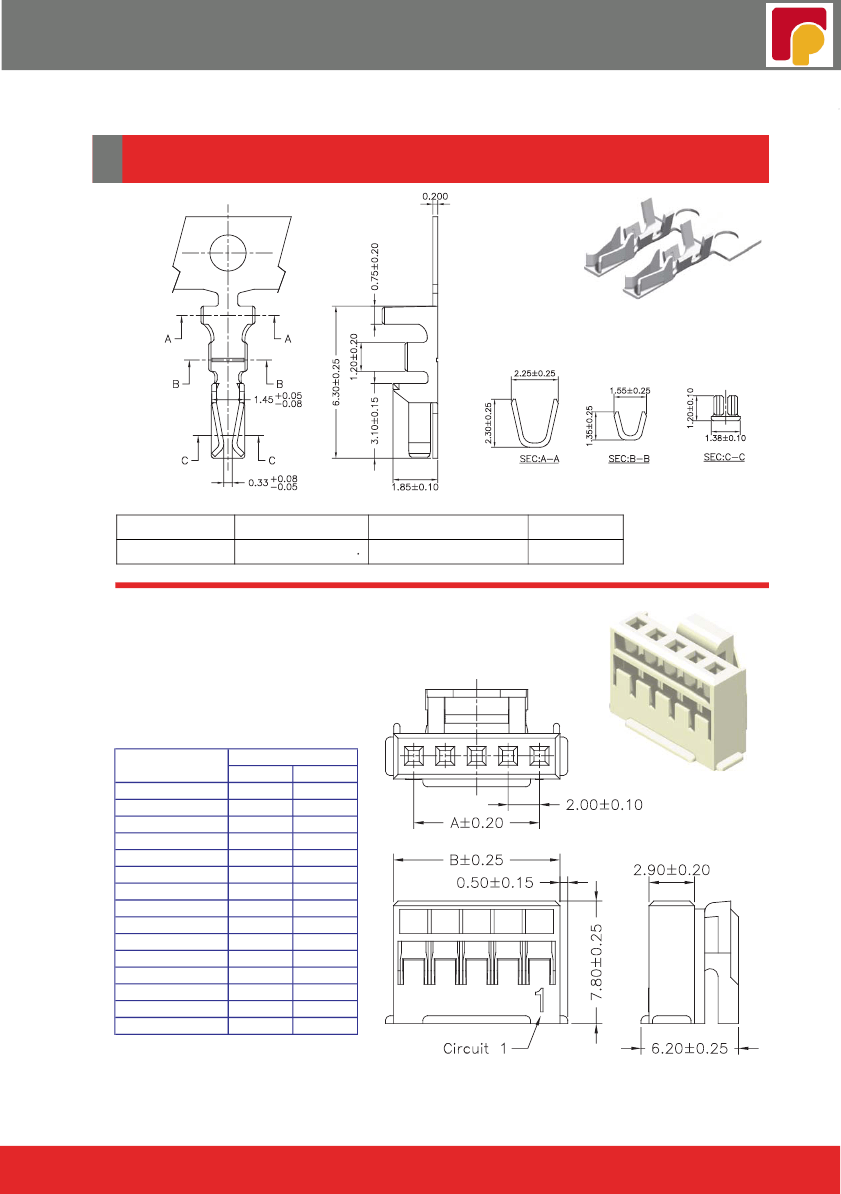

2.0mm Terminal / Housing

Part No.:2211-T-L

Wire Range

AWG#22-#30

Insulation O.D.

1.45mm(max)

Material

Phosphor Bronze

Finish

Tin Plated

Specifications

Current Rating: 3A AC,DC

Voltage Rating: 250V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 30mΩ Max

Insulation Resistance: 1000M

Min

Withstanding Voltage: 1000V AC/minute

Material:Nylon 66,UL94V-0

Part No.

2008H-02W-L

2008H-03W-L

2008H-04W-L

2008H-05W-L

2008H-06W-L

2008H-07W-L

2008H-08W-L

2008H-09W-L

2008H-10W-L

2008H-11W-L

2008H-12W-L

2008H-13W-L

2008H-14W-L

2008H-15W-L

2008H-16W-L

Dimensions

2.00

4.60

4.00

6.60

6.00

8.60

8.00

10.60

10.00

12.60

12.00

14.60

14.00

16.60

16.00

18.60

18.00

20.60

20.00

22.60

22.00

24.60

24.00

26.60

26.00

28.60

28.00

30.60

30.00

32.60

Part No.:2008H-XXW-L

www.ratioplast.com
