U001-0861-203-Z: DescriptionUSB Connector, 4+4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle; CategoryThe connector The connector; File Size213KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

U001-0861-203-Z Overview

USB Connector, 4+4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle

U001-0861-203-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.618 inch
subject depth	0.669 inch
body length	0.571 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	USB, SER A FLAT
Dielectric withstand voltage	1050VAC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	TWO
PCB row number	1+1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL OVER COPPER
Shell material	COPPER ALLOY
Terminal length	0.11 inch
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

ELECTRICAL:

CURRENT RATING: 1A

CONTACT RESISTANCE:

< 30 Milliohm Max.

INSULATION RESISTANCE:

> 1000 Mgeaohm Min.

DIELETRIC WITHSTANDING VOLTAGE:

750V (rms) AC for 1 Minute

OPERATING TEMPERATURE: -55° C to +125° C

CAPACITANCE: 2pF Max.

HOW TO ORDER:

U

0

1

-

0

8

6

1

-

2

0

X

-

Z

MATERIAL:

INSULATOR: Thermoplastic UL94V-0

CONTACTS: Phosphor Bronze

CONTACT PLATING:

Gold Plating over Nickel on Contact Area,

Tin Plating on Terminal

SHELL: Copper Alloy

SHELL PLATING: Nickel Over Copper Alloy

Rev

0 Issued

NUMBER OF CONTACTS:

08 - 8 Pin Dual Port

INSULATOR COLOR:

1 - White

NUMBER OF LOCKS:

0 - Standard 2 Locks

(Top, Bottom, Sides)

RoHS

COMPLIANT

DEFINITION:

6 - Right Angle, Thru Hole

Edge Mount, Mid High

Apv.

WHS

Date

5/30/06

SHELL STYLE:

2 - 2 Front Springs

SELECTIVE CONTACT PLATING:

1 - Gold

3 - 15u" Gold

4 - 30u" Gold

SMP TECHNOLOGY, INC.

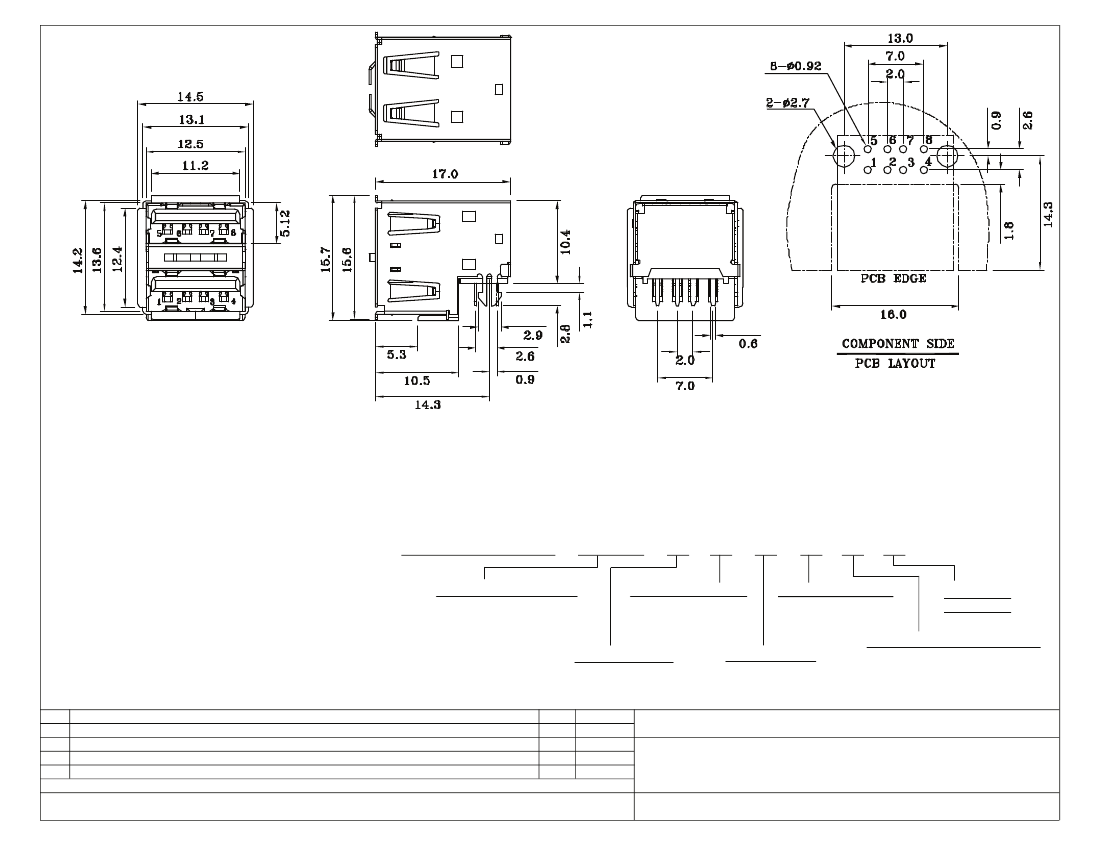

USB Connector, A Type, 8 Position, Dual Stacked,

Thru Hole, w/ Mid High Mounting

SCALE

TOL. DEC.

.X +/- 0.35

MAT'L

.XX +/- 0.25

.XXX +/-

FINISH

ANGLE +/-

UNIT: mm

SERIES: U 0 0 1 - 0 8 6 1 - 2 0 X - Z

Pg: 1

U001-0861-203-Z Related Products

	U001-0861-203-Z	U001-0861-204-Z
Description	USB Connector, 4+4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle	USB Connector, 4+4 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle
Reach Compliance Code	unknow	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.618 inch	0.618 inch
subject depth	0.669 inch	0.669 inch
body length	0.571 inch	0.571 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	USB CONNECTOR	USB CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	30 mΩ	30 mΩ
Contact style	USB, SER A FLAT	USB, SER A FLAT
Dielectric withstand voltage	1050VAC V	1050VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	TWO	TWO
PCB row number	1+1	1+1
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
Plating thickness	15u inch	30u inch
Rated current (signal)	1 A	1 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL OVER COPPER	NICKEL OVER COPPER
Shell material	COPPER ALLOY	COPPER ALLOY
Terminal length	0.11 inch	0.11 inch
Termination type	SOLDER	SOLDER
Total number of contacts	8	8
Base Number Matches	1	1
