305150: Descriptionconn term block din rail 10mm; CategoryThe connector; File Size266KB，1 Pages; ManufacturerAmerican Electric; Websitehttp://www.americanelectric.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

305150 Overview

conn term block din rail 10mm

305150 Parametric

Parameter Name	Attribute value
Datasheets
305150, 445150, 47515x, 495040
Product Photos
305150
Catalog Drawings
3051(2,3,4,5)0
Standard Package	100
Category	Connectors, Interconnects
Family	Terminal Blocks - Din Rail, Channel
Type	Feed Through
Disconnect Type	-
Number of Positions	2
Number of Levels	1
Terminal - Width	10.0mm
Termination Style	Screw
Current - IEC	57A
Voltage - IEC	750V
Current - UL	50A
Voltage - UL	600V
Wire Gauge or Range - AWG	8-16 AWG
Wire Gauge or Range - mm²	1.5-16mm²
Features	-
Col	Beige
Fuse Type	-
Material - Insulati	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Stripping Length	12mm
Dynamic Catalog	PEK Series
Associated Produc	288-1295-ND - CONN TERM BLOCK END BRACKET288-1282-ND - CONN TERM BLOCK JUMPER 10POS288-1281-ND - CONN TERM BLOCK JUMPER 4POS288-1280-ND - CONN TERM BLOCK JUMPER 3POS288-1279-ND - CONN TERM BLOCK JUMPER 2POS288-1259-ND - CONN TERM BLK ENDPLATE PEK2,5-10ADR3515-U7800-ND - DIN RAIL 35MMX15MM UNSLOT 78"ADR3515-U7700-ND - DIN RAIL 35MMX15MM UNSLOT 77"ADR3515-U7600-ND - DIN RAIL 35MMX15MM UNSLOT 76"ADR3515-U7500-ND - DIN RAIL 35MMX15MM UNSLOT 75"ADR3515-U7400-ND - DIN RAIL 35MMX15MM UNSLOT 74"ADR3515-U7300-ND - DIN RAIL 35MMX15MM UNSLOT 73"ADR3515-U7200-ND - DIN RAIL 35MMX15MM UNSLOT 72"ADR3515-U7100-ND - DIN RAIL 35MMX15MM UNSLOT 71"ADR3515-U7000-ND - DIN RAIL 35MMX15MM UNSLOT 70"ADR3515-U6900-ND - DIN RAIL 35MMX15MM UNSLOT 69"ADR3515-U6800-ND - DIN RAIL 35MMX15MM UNSLOT 68"ADR3515-U6700-ND - DIN RAIL 35MMX15MM UNSLOT 67"ADR3515-U6600-ND - DIN RAIL 35MMX15MM UNSLOT 66"ADR3515-U6500-ND - DIN RAIL 35MMX15MM UNSLOT 65"ADR3515-U6400-ND - DIN RAIL 35MMX15MM UNSLOT 64"ADR3515-U6300-ND - DIN RAIL 35MMX15MM UNSLOT 63"ADR3515-U6200-ND - DIN RAIL 35MMX15MM UNSLOT 62"ADR3515-U6100-ND - DIN RAIL 35MMX15MM UNSLOT 61"ADR3515-U6000-ND - DIN RAIL 35MMX15MM UNSLOT 60"ADR3515-U5900-ND - DIN RAIL 35MMX15MM UNSLOT 59"ADR3515-U5800-ND - DIN RAIL 35MMX15MM UNSLOT 58"ADR3515-U5700-ND - DIN RAIL 35MMX15MM UNSLOT 57"ADR3515-U5600-ND

Preview

Download Datasheet

View All

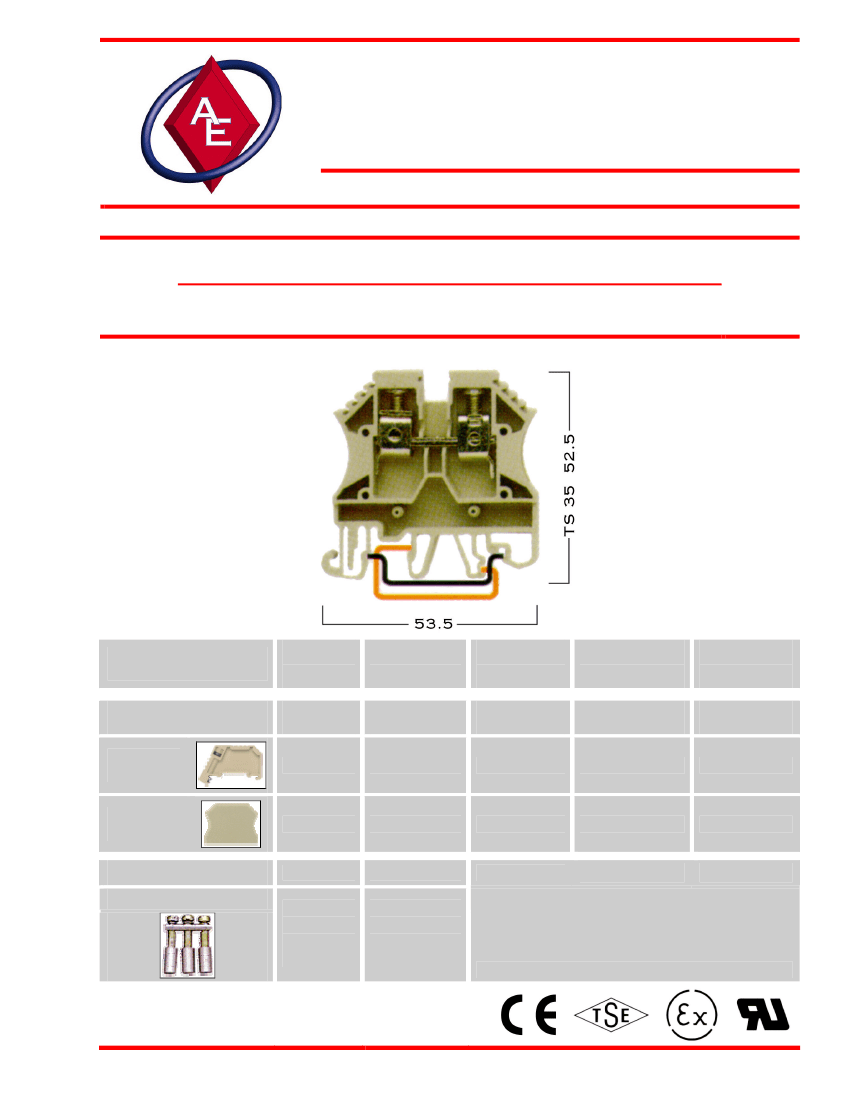

A m e r ic a n

E l e c t r ic a l , In c .

In

In d u s t r ia l El e c t r ic a l Ac c e s s o r ie s

425 Southlake Blvd. • Suite 9-B • R ichm on d, V A 23236 • (804) 379-28 99 • Fax: (804) 379-8935

D IN

R a il M o u n t e d T e r m in a l B l o c k s

P EK 1 0

De s c r ip t io n

AEI

P art N o .

U L Vo l t s

V

Amp s

A

W ir e S iz e

AW G

W id t h

mm

B lo c k

En d

B racket

En d

P la te

305150

495040

6 00

50

16 … 8

10

8 .0

445150

P art N o .

P o le s

1.5

C r o s s C o n n e c t io n

47 5152

47 5153

47 5154

47 5159

2

3

4

10

305150 Related Products

	305150	445150	475152
Description	conn term block din rail 10mm	conn term blk endplate pek2,5-10	conn term block jumper 2pos
Standard Package	100	100	25
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Terminal Blocks - Din Rail, Channel	Terminal Blocks - Accessories	Terminal Blocks - Accessories - Jumpers
Type	Feed Through	End Plate, Rail Type	Terminal Block, Cross Connecti
Number of Positions	2	-	2
Col	Beige	Beige	-
Dynamic Catalog	PEK Series	Terminal Block Accessories - American Electrical Inc	-
For Use With/Related Products	-	PEK Series	PEK Series
For Use With	-	288-1243-ND - CONN TERM BLOCK DIN RAIL 10MM288-1242-ND - CONN TERM BLOCK DIN RAIL 8MM288-1241-ND - CONN TERM BLOCK DIN RAIL 6.5MM288-1240-ND - CONN TERM BLOCK DIN RAIL 6MM	288-1243-ND - CONN TERM BLOCK DIN RAIL 10MM
Other Names	-	288-1259NPP 2,5-10	288-1279UK 10/2
