Part Number

Search

BB02-WA162-KA3-000000

Description
Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Plug
CategoryThe connector    The connector

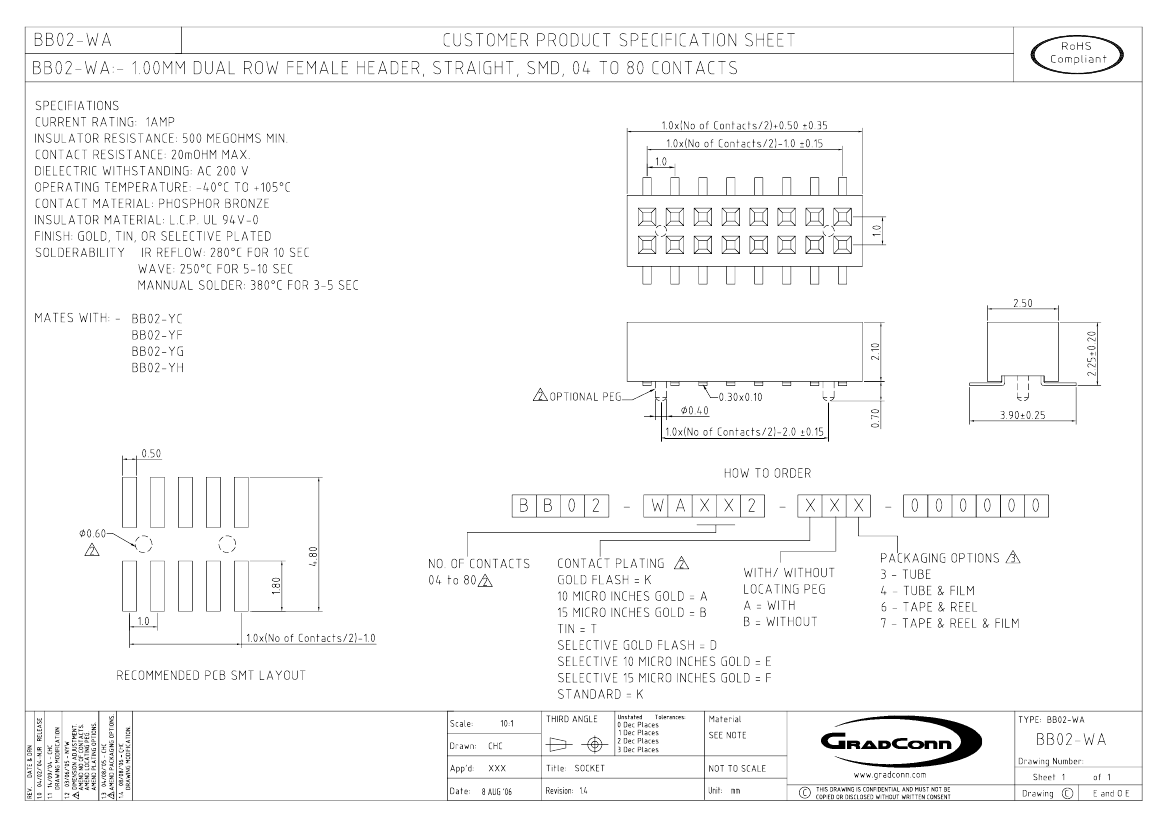

File Size76KB,1 Pages
ManufacturerGradConn Ltd
Download Datasheet Parametric View All

BB02-WA162-KA3-000000 Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Plug

BB02-WA162-KA3-000000 Parametric

Parameter NameAttribute value
Objectid304102691
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresROHS COMPLIANT, TUBE PACKAGING
Board mount optionsPEG
body width0.098 inch
subject depth0.083 inch
body length0.335 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage200VAC V
Insulation resistance500000000 Ω
insulator materialLIQUID CRYSTAL POLYMER
Plug contact pitch0.039 inch
Match contact row spacing0.039 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.9972 mm
Plating thicknessFLASH inch
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.9906 mm
Termination typeSURFACE MOUNT
Total number of contacts16
