CHV1206N3K05R0MCTD datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CHV1206N3K05R0MCTD

CHV1206N3K05R0MCTD: DescriptionCeramic Capacitor, Ceramic,; CategoryPassive components capacitor; File Size972KB，12 Pages; ManufacturerCal-Chip Electronics; Environmental Compliance

Download Datasheet Parametric View All

CHV1206N3K05R0MCTD Overview

Ceramic Capacitor, Ceramic,

CHV1206N3K05R0MCTD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7315314413
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	8.1
capacitance	0.000005 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.8 mm
JESD-609 code	e3
length	3.2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 10/13 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	3000 V
size code	1206
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	TIN OVER NICKEL
Terminal shape	WRAPAROUND
width	1.6 mm

Preview

Download Datasheet

View All

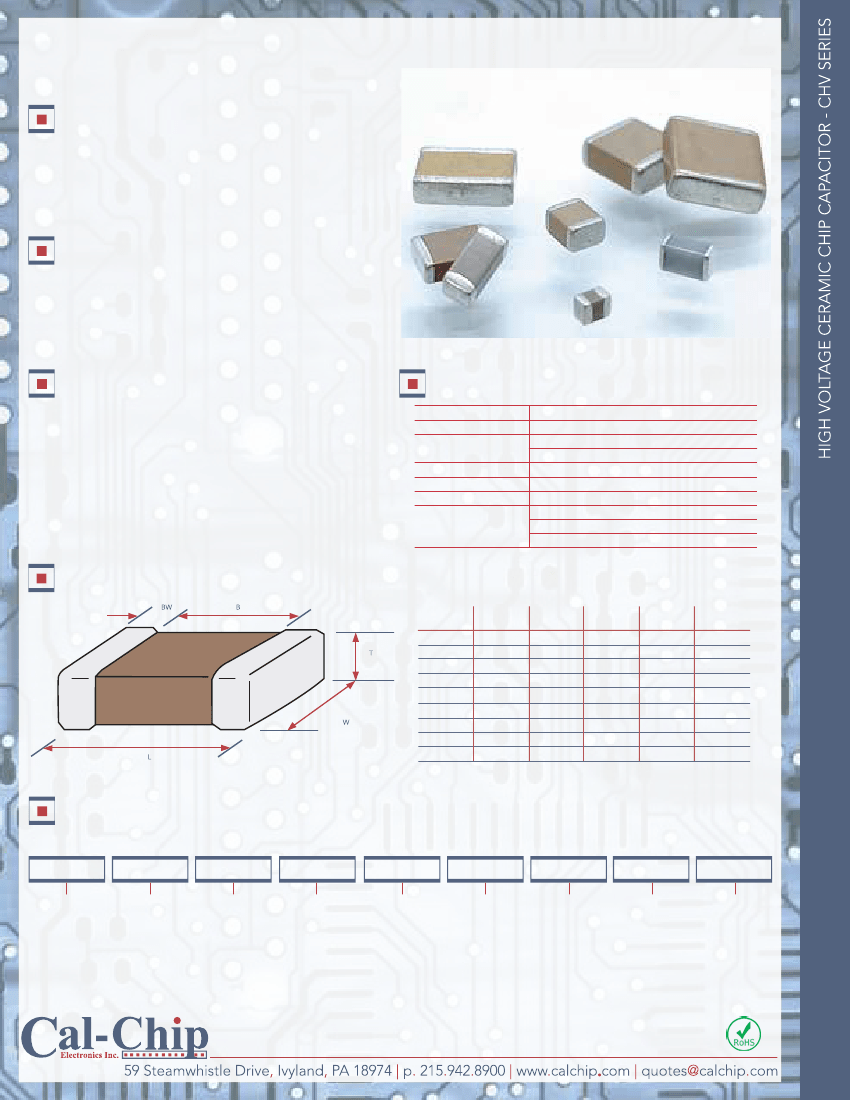

HIGH VOLTAGE CERAMIC CHIP CAPACITOR

CHV SERIES

SCOPE

Cal-Chip's unique construction process ensures excellent

volumetric efficiency and stability of capacitance with

temperature.

Our high voltage capacitors have extended values to

those previously offered.

FEATURES

Special internal electrode design offers the highest

voltage rating.

Surface mount suitable for wave and reflow soldering

High reliability

RoHS compliant

APPLICATIONS

Suitable for LAN/WLAN interface

Back-lighting inverter, DC-DC converters,

Ballast, Modems and Power Supplies

ELECTRICAL SPECIFICATIONS

Operating Temperature

Rating Voltage

Temperature Coefficient

Dissipation Factor

Insulation Resistance

Aging

Dielectric Strength

−55°C to 125°C

100Vdc to 5000Vdc

NPO: ≤±30ppmi/°C, -55°C ~+125°C (EIA Class I)

X7R: ≤±15ppmi/°C, -55°C ~+125°C (EIA Class II)

NPO: Q>1000,

X7R: D.F. ≤2.5%

10GΩ or 500/CΩ whichever is smaller

NPO: 0%, X&R: Typically 1.0% per decade of time

100 ≤ V <500V, 200% Rated Voltage

500 ≤ V <1000V, 150% Rated Voltage

1000≤ V, 120% Rated Voltage

CONSTRUCTION & DIMENSIONS

TYPE

(MM)

0603

0805

1206

1210

1808

1812

1825

2220

2225

(MM)

1.60±0.10

2.00±0.20

3.20±0.30

4.60±0.30

5.70±0.40

(MM)

0.80±0.10

1.25±0.20

1.60±0.20

2.50±0.20

2.00±0.20

3.20±0.30

6.35±0.40

5.00±0.40

6.35±0.40

T (MAX)

(MM)

B (MIN)

(MM)

0.4

0.7

1.5

1.6

2.5

3.5

BW (MIN)

(MM)

0.15

0.20

0.30

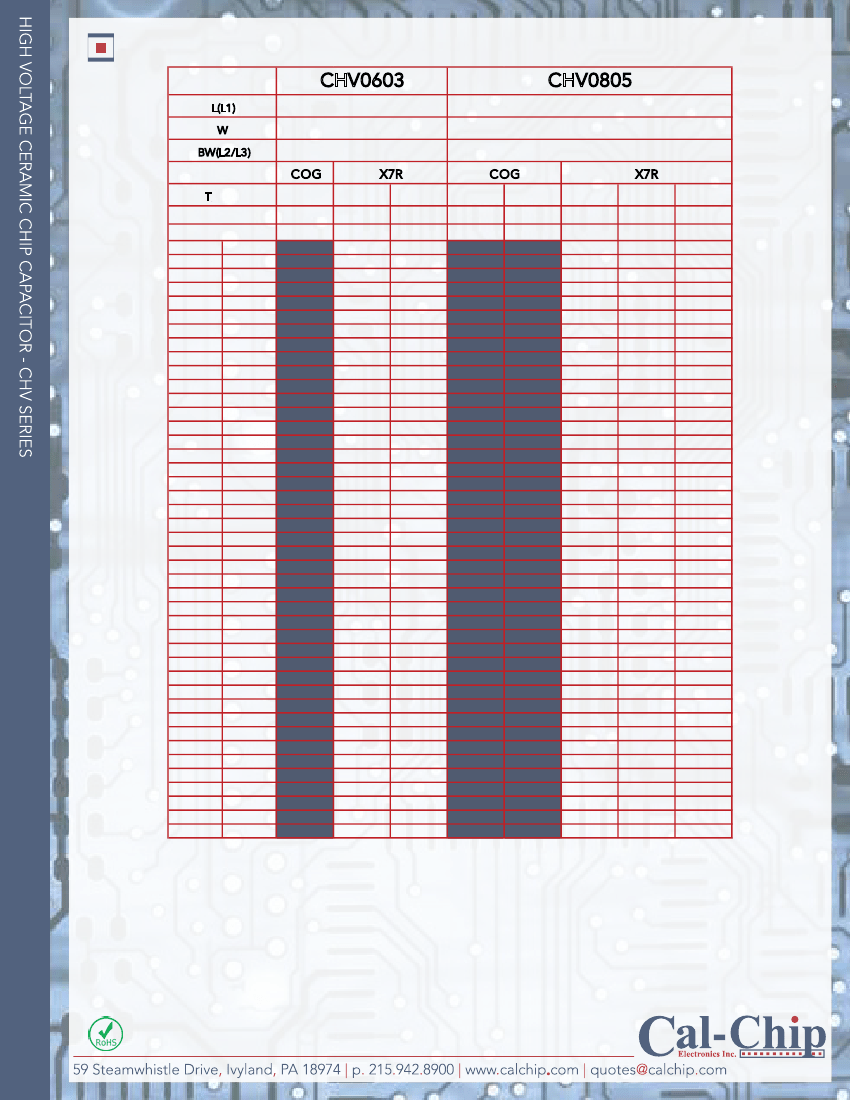

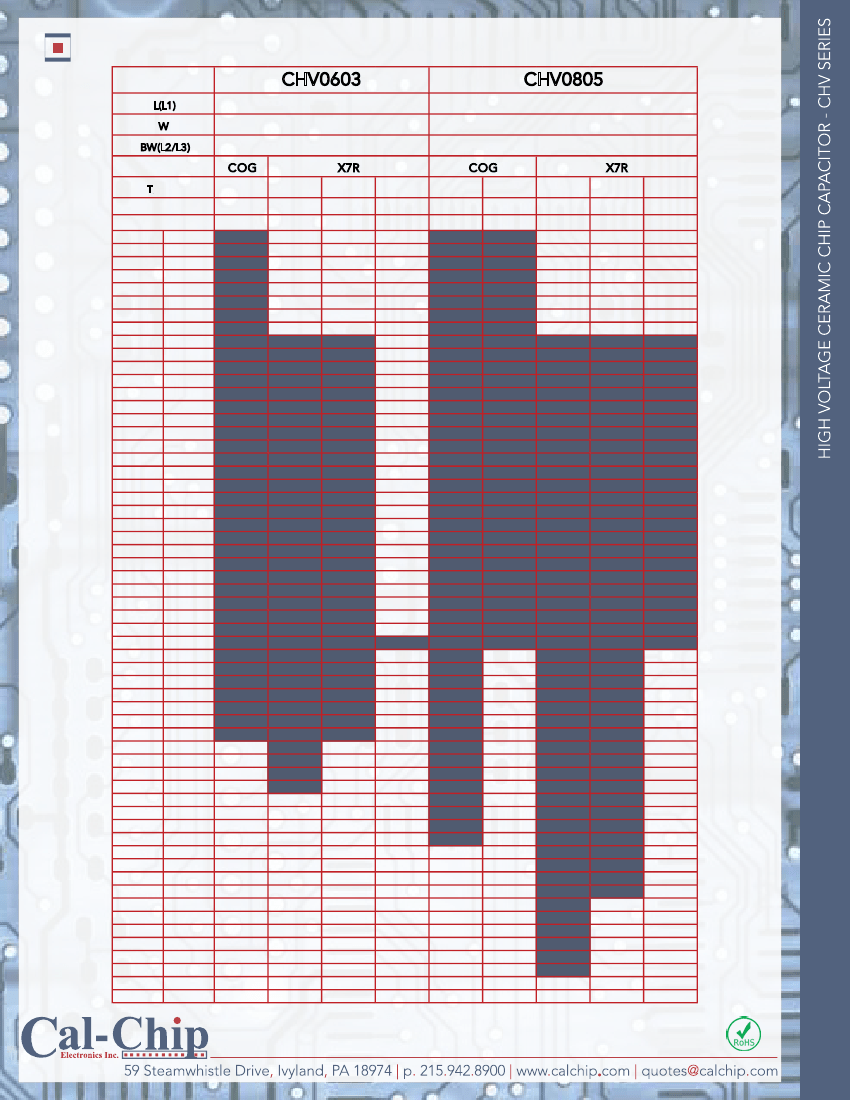

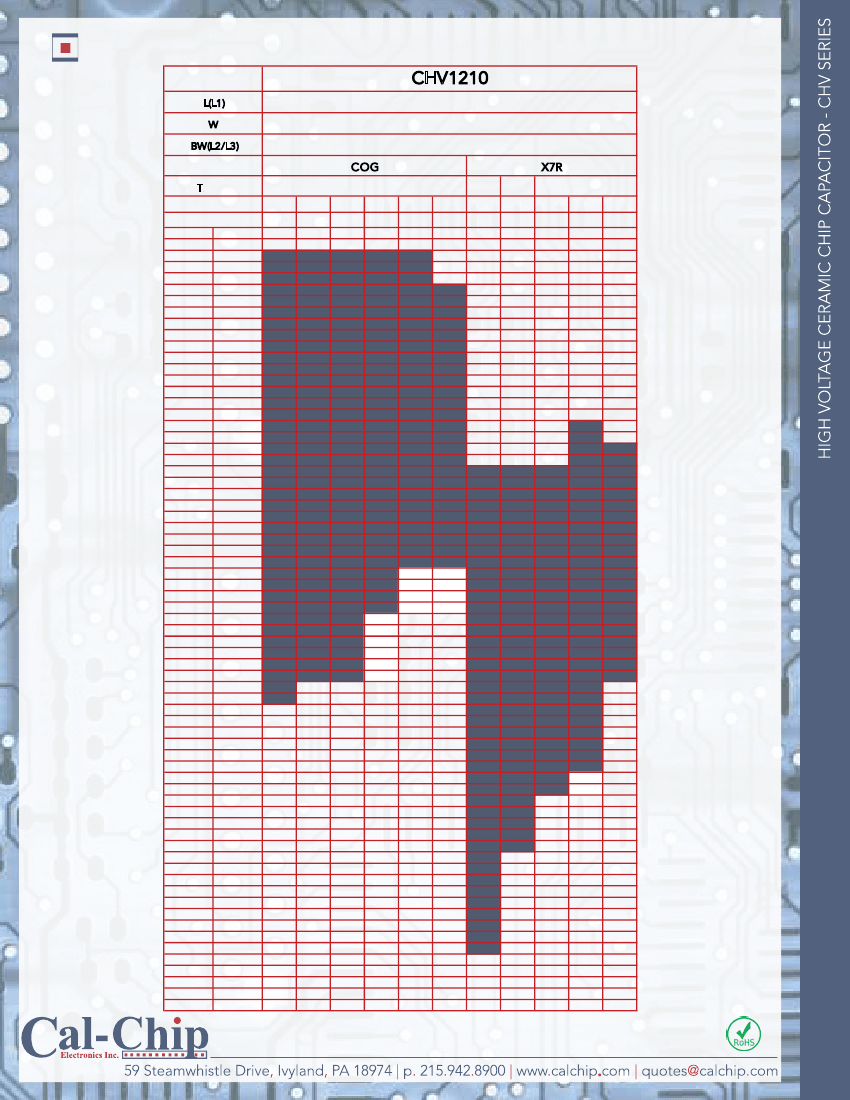

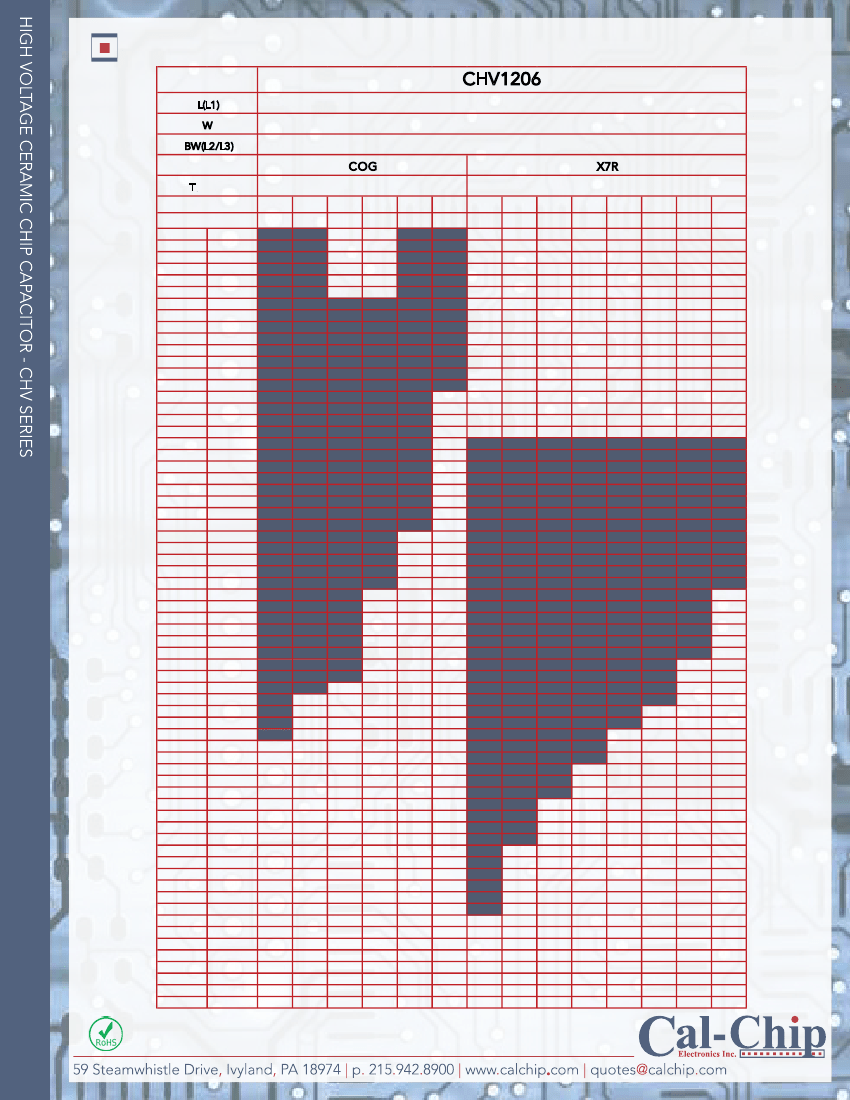

*REFERENCE CHARTS BELOW

ORDERING INFORMATION

CHV

PRODUCT TYPE

0805

SIZE

0603 : 0603

0805 : 0805

1206 : 1206

1210 : 1210

1808 : 1808

1812 : 1812

1825 : 1825

2220 : 2220

2225 : 2225

TERMINATION

OPTIONS

N: Nickel Barrier

X: Nickel Barrier/ Flex

Term.

A: Nickel Barrier/ Arc

Protection

P: Pd/Ag

250

RATED VOLTAGE

250 : 250V

450 : 450V

500 : 500V

630 : 630V

1K0 : 1KV

1K5 : 1.5KV

2K0 : 2KV

2K5 : 2.5KV

3K0 : 3KV

4K0 : 4KV

5K0 : 5KV

6K0: 6KV

103

CAPACITANCE

Two significant

digits followed by

no. of zeros. And

R in place of

decimal point.

TOLERANCE

± 1pF

±0.25pF

±0.50pF

±1%

±2%

±5%

±10%

±20%

DIELECTRIC

C: COG

X: X7R

PACKAGING

T: 7” REEL

PACKAGING

D Optional 10K reel

(from 0603-1210 size)
