284519-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 284519-4

284519-4: Description4P TERMIBLOK HDR DIR VITI 3; CategoryThe connector terminals; File Size249KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

284519-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	284519-4	-	-	View	Buy Now

284519-4 Overview

4P TERMIBLOK HDR DIR VITI 3

284519-4 Parametric

Parameter Name	Attribute value
Brand Name	Buch
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	94V-0, PA66, POLARIZED
Fastening method	CONNECTOR
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	4
Rated current	11 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

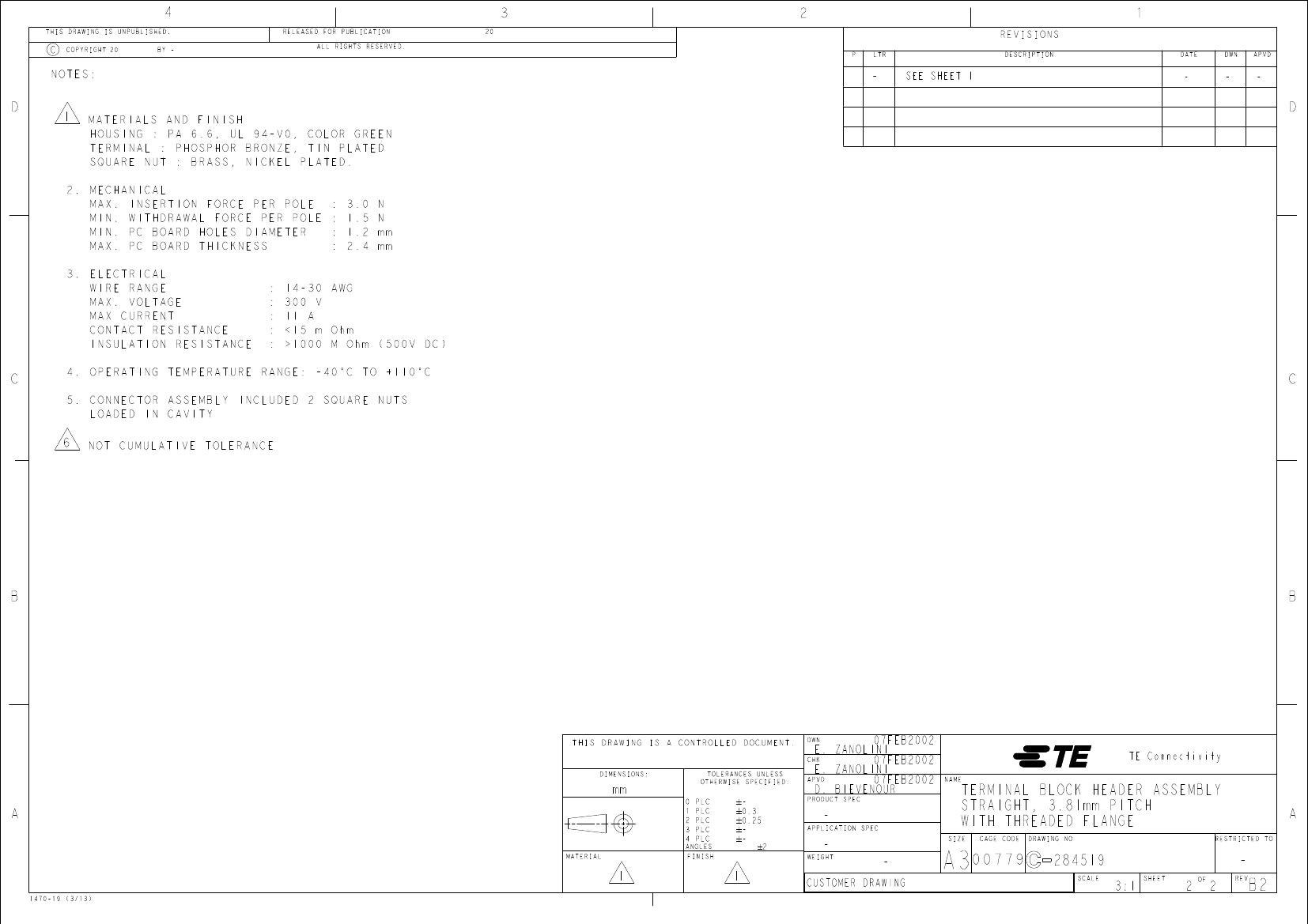

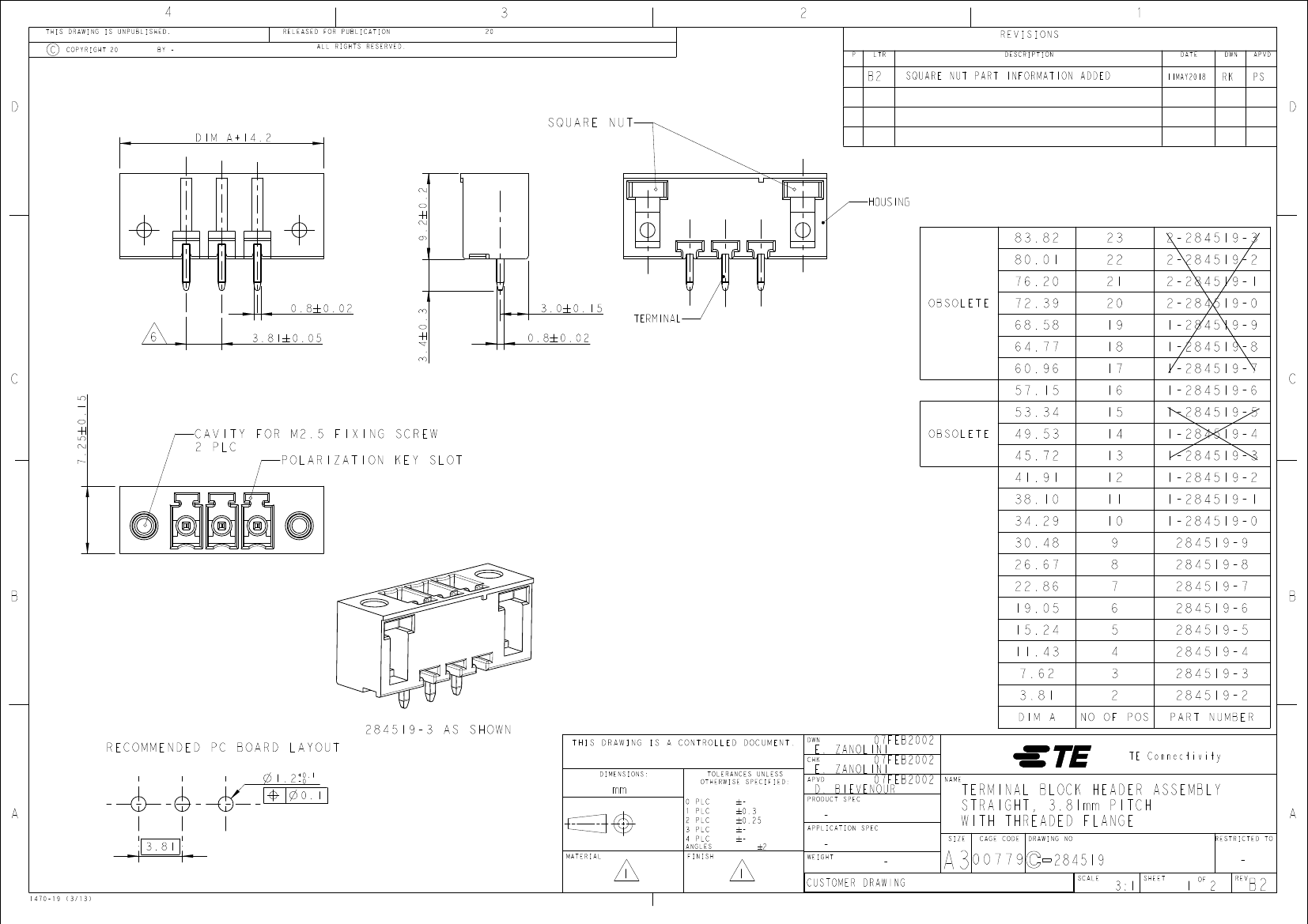

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

SQUARE NUT PART INFORMATION ADDED

11MAY2018

DIM A+14.2

SQUARE NUT

HOUSING

9.2

83.82

80.01

76.20

NO OF POS

2-284519-3

2-284519-2

2-284519-1

2-284519-0

1-284519-9

1-284519-8

1-284519-7

1-284519-6

1-284519-5

1-284519-4

1-284519-3

1-284519-2

1-284519-1

1-284519-0

284519-9

284519-8

284519-7

284519-6

284519-5

284519-4

284519-3

284519-2

PART NUMBER

0.8

3.0

0.8

3.4

TERMINAL

OBSOLETE

72.39

68.58

64.77

60.96

57.15

53.34

3.81

CAVITY FOR M2.5 FIXING SCREW

2 PLC

POLARIZATION KEY SLOT

7.25

OBSOLETE

49.53

45.72

41.91

38.10

34.29

30.48

26.67

22.86

19.05

15.24

11.43

7.62

3.81

DIM A

RECOMMENDED PC BOARD LAYOUT

+0.1

-0

284519-3 AS SHOWN

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

E. ZANOLINI

07FEB2002

NAME

TE Connectivity

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

3.81

MATERIAL

ANGLES

PLC

0.3

0.25

PRODUCT SPEC

07FEB2002

D. BIEVENOUR

APPLICATION SPEC

FINISH

WEIGHT

1470-19 (3/13)

CUSTOMER DRAWING

00779

SIZE

TERMINAL BLOCK HEADER ASSEMBLY

STRAIGHT, 3.81mm PITCH

WITH THREADED FLANGE

CAGE CODE

DRAWING NO

RESTRICTED TO

284519

SCALE

3:1

SHEET

REV

284519-4 Related Products

	284519-4	284519-6	1-284519-6	284519-9	10121750-2636136LF	284519-7	51760-10309216AB	51760-10406416AB
Description	4P TERMIBLOK HDR DIR VITI 3	6P TERMIBLOK HDR DIR VITI 3	16P TERMIBLOK HDR DIR VITI	9P TERMIBLOK HDR DIR VITI 3	Board Connector	7P TERMIBLOK HDR DIR VITI 3	Board Connector, Female, Right Angle, Press Fit Terminal, Guide Pin, Receptacle	Board Connector, Female, Right Angle, Press Fit Terminal, Guide Pin, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	incompatible	incompatible
Reach Compliance Code	compli	compli	compliant	compli	compliant	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Brand Name	Buch	Buch	Buchanan	Buch	-	Buch	-	-
Other features	94V-0, PA66, POLARIZED	94V-0, PA66, POLARIZED	94V-0, PA66, POLARIZED	94V-0, PA66, POLARIZED	-	94V-0, PA66, POLARIZED	-	-
Fastening method	CONNECTOR	CONNECTOR	CONNECTOR	CONNECTOR	-	CONNECTOR	-	-
Installation type	BOARD	BOARD	BOARD	BOARD	-	BOARD	BOARD	BOARD
Number of layers	1	1	1	1	-	1	-	-
Rows	1	1	1	1	-	1	-	-
Number of channels	4	6	16	9	-	7	-	-
Rated current	11 A	11 A	11 A	11 A	-	11 A	-	-
Rated voltage	300 V	300 V	300 V	300 V	-	300 V	-	-
safety certificate	UL	UL	UL	UL	-	UL	-	-
Terminal and terminal strip types	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	-	MODULAR TERMINAL BLOCK	-	-
Base Number Matches	1	1	1	1	-	1	-	-
