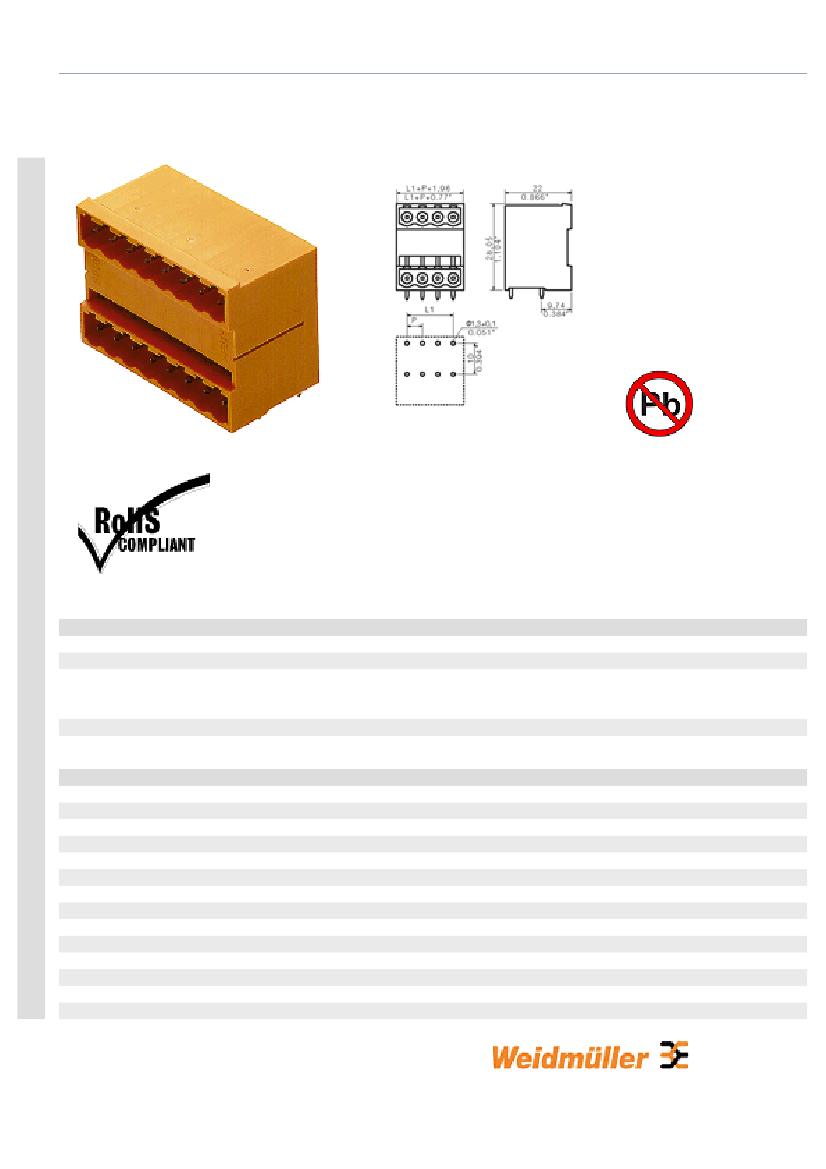

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, solder connection, pitch 5.00/5.08 | SLD 5.00-5.08 | SLD 5.00/90G
System parameters
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
Approvals
Approvals institutes
Safe from back-of-hand touch
PBT
orange
Similar to RAL 2000
I
V-0
>= 600
CuSn
tinned
-25 °C
100 °C
-25 °C
55 °C
80 %
11 A
8.5 A
9.5 A
7A
250 V
4 kV
320 V
4 kV
400 V
4 kV
1 x 1s with 120 A
300 V
10 A
300 V
10 A
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, solder connection, pitch 5.00/5.08 | SLD 5.00-5.08 | SLD 5.00/90G
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
SLD.LIB
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1614360000
1614370000
1614380000
1614390000
1614400000
1614410000
1614420000
1614430000
1614440000
1614450000
1614460000
1614470000
1614480000
1614490000
1614500000
1614510000
1614520000
1614530000
Part designation
SLD 5.00R20/6/3.2SN OR
SLD 5.00R20/8/3.2SN OR
SLD 5.00R20/10/3.2SN OR
SLD 5.00R20/12/3.2SN OR
SLD 5.00R20/14/3.2SN OR
SLD 5.00R20/16/3.2SN OR
SLD 5.00R20/18/3.2SN OR
SLD 5.00R20/20/3.2SN OR
SLD 5.00R20/22/3.2SN OR
SLD 5.00R20/24/3.2SN OR
SLD 5.00R20/26/3.2SN OR
SLD 5.00R20/28/3.2SN OR
SLD 5.00R20/30/3.2SN OR
SLD 5.00R20/32/3.2SN OR
SLD 5.00R20/34/3.2SN OR
SLD 5.00R20/36/3.2SN OR
SLD 5.00R20/38/3.2SN OR
SLD 5.00R20/40/3.2SN OR
Version
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 10, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 18, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 20, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 22, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 24, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 26, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 28, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 30, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 32, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 34, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 36, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 38, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 40, 90°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, solder connection, pitch 5.00/5.08 | SLD 5.00-5.08 | SLD 5.00/90G
1614540000
1614550000
1614560000
1614570000
SLD 5.00R20/42/3.2SN OR
SLD 5.00R20/44/3.2SN OR
SLD 5.00R20/46/3.2SN OR
SLD 5.00R20/48/3.2SN OR
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 42, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 44, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 46, 90°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 5.00 mm, No. of poles: 48, 90°, Box
-4-
