FABRIMEX POWER SUPPLIES
CH-8603 Schwerzenbach/Switzerland
POWER SUPPLIES
Certified
Management-System
ISO 9001
Reg. Nr. 12666

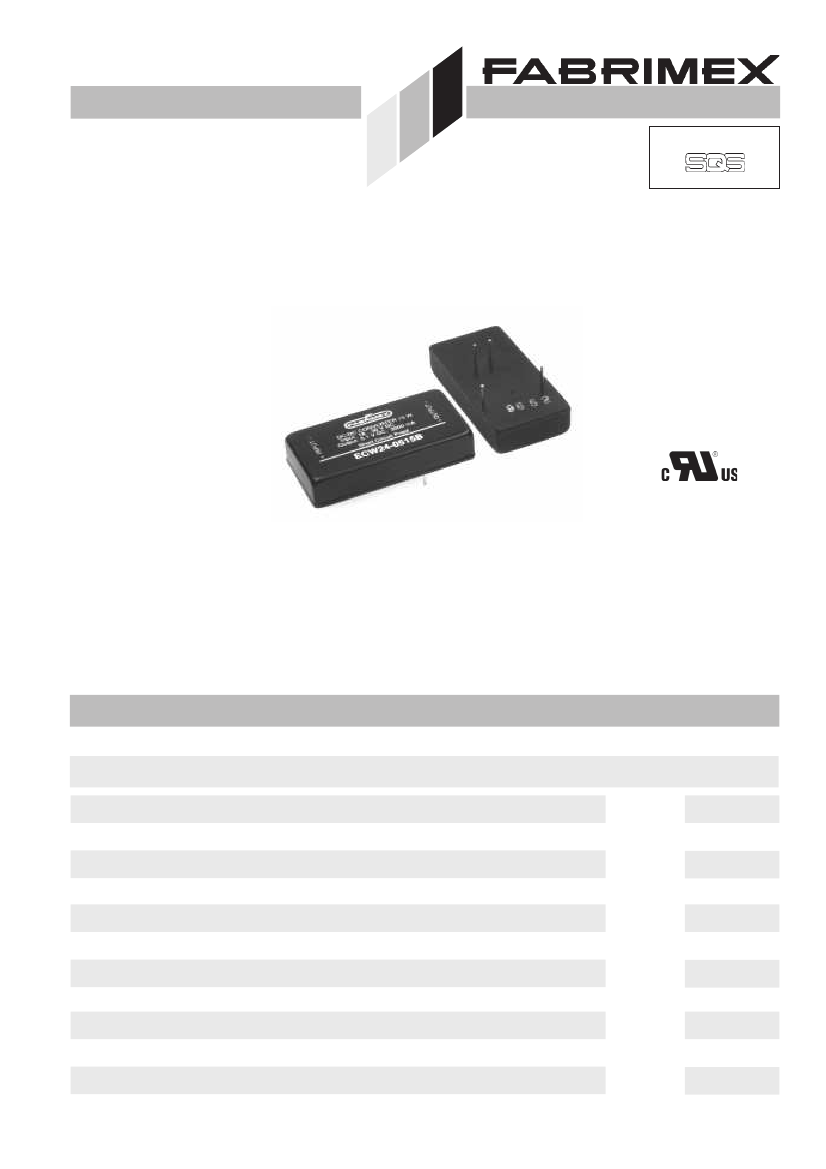

DC/DC Wide Input Converter
UCW 15 Watt "B"
E195564
DC/DC converter module with input to
output isolation of 500 VDC • Pi-filter at
input • Continuous short circuit proof • High
efficiency • No derating up to 70°C • Low
output ripple and spikes • Low silhouette
• Metal case with a non conductive base
plate, six-sides shielded • SMD technology
DC/DC Konverter-Modul mit galvanischer
Trennung Eingang / Ausgang von 500
VDC • Pi-Filter am Eingang •
Dauerkurzschlussfest
•
Hoher
Wirkungsgrad • Keine Lastminderung bis
zu einer Umgebungstemperatur von 70°C
• Gute Werte von Ripple und Spikes •
Geringe Bauhöhe • Metallgehäuse mit
isolierender Bodenplatte, 6seitig
abgeschirmt • SMD Technologie
Module convertisseur CC/CC avec
séparation galvanique entrée sortie 500
VDC • Filtre en Pi à l'entrée • Protection
courts-circuits permanente • Rendement
élevé • Pas de dérive jusqu' à 70°C •
Ondulation résiduelle de sortie très faible
• Profile bas • Boîtier en métal blindé 6
faces avec fond isolé • Technologie CMS
Product range
Model
Typenübersicht
SINGLE OUTPUT
Output
Uout
3.3 VDC
5.1 VDC
12.0 VDC
15.0 VDC
3.3 VDC
5.1 VDC
12.0 VDC
15.0 VDC
3.3 VDC
5.1 VDC
12.0 VDC
15.0 VDC
-1-
Output
Iout
3000 mA
3000 mA
1250 mA
1000 mA
3000 mA
3000 mA
1250 mA
1000 mA
3000 mA
3000 mA
1250 mA
1000 mA
Sommaire des types
No load
input curent
20 mA
20 mA
20 mA
20 mA
20 mA
20 mA
20 mA
20 mA
15 mA
15 mA
15 mA
15 mA
Operating
temperature
For all models:
-25...+71°C
or max. case
temperature of
100°C
Efficiency
typ.
76%
78%
82%
82%
76%
80%
82%
82%
76%
80%
83%
83%
Input Input range
Input current
nominal
max. @ full load
12 VDC
12 VDC
12 VDC
12 VDC
24 VDC
24 VDC
24 VDC
24 VDC
48 VDC
48 VDC
48 VDC
48 VDC
9...18 VDC
9...18 VDC
9...18 VDC
9...18 VDC
18...36 VDC
18...36 VDC
18...36 VDC
18...36 VDC
36...72 VDC
36...72 VDC
36...72 VDC
36...72 VDC
1086 mA
1650 mA
1570 mA
1570 mA
543 mA
800 mA
780 mA
780 mA
272 mA
390 mA
380 mA
380 mA
UCW12-0315B(1)(2)
UCW12-0515B(1)(2)
UCW12-1215B(1)(2)
UCW12-1515B(1)(2)
UCW24-0315B(1)(2)
UCW24-0515B(1)(2)
UCW24-1215B(1)(2)
UCW24-1515B(1)(2)
UCW48-0315B(1)(2)
UCW48-0515B(1)(2)
UCW48-1215B(1)(2)
UCW48-1515B(1)(2)
Model
Input
nominal
12 VDC
12 VDC
12 VDC
24 VDC
24 VDC
24 VDC
48 VDC
48 VDC
48 VDC
DUAL OUTPUT
Input range
Output
Input current
Uout
max. @ full load
9...18 VDC
9...18 VDC
9...18 VDC
18...36 VDC
18...36 VDC
18...36 VDC
36...72 VDC
36...72 VDC
36...72 VDC
1570 mA
1570 mA
1570 mA
780 mA
780 mA
780 mA
380 mA
380 mA
380 mA
±5.1 VDC
±12.0 VDC
±15.0 VDC
±5.1 VDC
±12.0 VDC
±15.0 VDC
±5.1 VDC
±12.0 VDC
±15.0 VDC
Output
Iout
±1500 mA
±625 mA
±500 mA
±1500 mA
±625 mA
±500 mA
±1500 mA
±625 mA
±500 mA
No load
input
30 mA
30 mA
30 mA
25 mA
25 mA
25 mA
20 mA
20 mA
20 mA
Operating
temperature
For all models:
-25...+70°C
or max. case
temperature of
100°C
Efficiency
typ.
80%
83%
83%
81%
83%
83%
83%
83%
83%
UCW12-050515B(1)
UCW12-121215B(1)
UCW12-151515B(1)
UCW24-050515B(1)
UCW24-121215B(1)
UCW24-151515B(1)
UCW48-050515B(1)
UCW48-121215B(1)
UCW48-151515B(1)
(1) Suffix "T" with inhibit (remote on/off control)
(2) Suffix "A" for external output voltage adjustment
Nomenclature
Nomenklatur
Nomenclature
UCW 24 - 05 15 B (1) (2)
Product Series
Nominal Input Voltage
Nominal Output Voltage
Size of Casing
Output Power in Watts
A
= External Output Voltage Adjustment (Trim)
T
= inhibit (remote on/off control)
(Refer to mechanical data on page 5)
EMC information
EMV Informationen
Information CEM

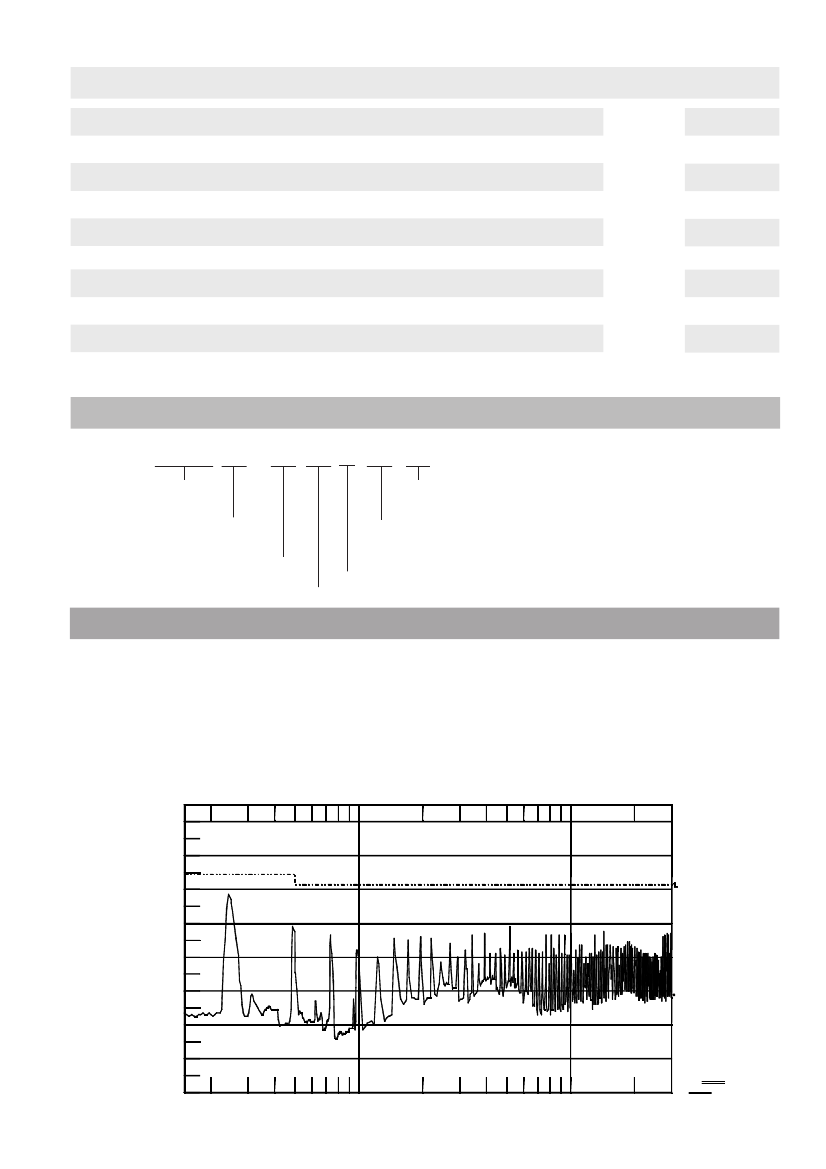

EMC information UCW24-0515B EN55022/11 Class A
Electro-Metrics
EMV Messung
Date :
Technician :
Test Method :
Equipment :
Mode of Op. :
Serial No. :
Comment :
120
110
100
90
10/18/99
U. Luessi
CONDUCTED EMISSION
ECW24-0515B
Normal operation
9920
Time :
Test Equip. :
Test Number :
Sensor Loc. :
Sensor Pol. :
Ext. Atten. :
09:40:14.57
EMC-30 MKIV
1
NA
positiv
0 dB
EMC-30 SETTINGS
Detector
QuasiPeak
Bandwidth
CISPR
Dwell
N/A
RF Atten.
0 dB
IF Atten.
0 dB
SPECS
1) EN 55022 Class A QuasiPeak
24DC input voltage with 220uF capacitor near input
ANTENNA
FILES
LISN_UV.A30
dBuV
80
70
60
50
40
OTHER
FACTORS
CISPR-C2.F30
Amplitude
30
20
10
0
-10
-20
-30
-40
-50
1.
10.
Frequency MHz
30.000
E-M
0.150
-2-
El. characteristics
Output voltage accuracy
Output voltage balance
Ext. output voltage adjustment*
Residual output ripple
(BW 20 MHz)
Short circuit protection
No load input current
El. Eigenschaften
Caractéristiques él.
±1% of Uout nom.
±1%; Dual
±10%
75 mVpp
All values refer to an ambient temperature of 25°C and nominal rated values where nothing else is specified
Ausgangsspannungsgenauigkeit
Abgleich zwischen den Ausgängen
Ext. Ausgangsspannungsabgleich*
Ausgangsspannungsrippel
(BW 20 MHz)
Kurzschlussfestigkeit
Leerlaufeingangsstrom
Précision de la tension de sortie
Balance des sorties
Ajustement ext. de la tension de sortie*
Ondulation résiduelle de sortie
(BW 20 MHz)
Protection courts-circuits
Courant d'entrée à vide
Continuous
20 - 30 mA (ECW12/ECW24)
15 - 20 mA (ECW48)
±0.2%; single,dual
±1.0%; single,dual
(100%...25% load)
500 VDC
> 1 GOhm
typ. 300 kHz
>1'000'000 hrs.
EN55022/11 Class A
with external input capacitor
typ. ±0.02% per °C
-40...+100°C
275°C for 10 sec.
approx. 32 g; Copper Case
six sides shielded
Line regulation (max...min)
Load regulation
Leitungsregulierung (max...min)
Lastregulierung
Régulation ligne (max...min)
Régulation charge
Isolation voltage
Isolation resistance
Switching frequency
MTBF (MIL-HB 217E at 25°C)
EMC
Conducted
Temperature coefficient
Storage temperature
Soldering information
Weight
*) Option
Isolationsspannung
Isolationswiderstand
Schaltfrequenz
MTBF (MIL-HB 217E bei 25°C)
EMV
Leitungsgebunden
Temperaturkoeffizient
Lagertemperatur
Lötinformationen
Gewicht
Tension d'isolement
Résistance d'isolement
Fréquence de découpage
MTBF (MIL-HB 217E à 25°C)
EMC
Emis
Coefficient de température
Température de stockage
Information de soudage
Poids
Case
Gehäuse
Boîtier
View from bottom; Normal tolerance ±1.0 mm; Pin distance tolerance ±0.05 mm
15.2
20.32
3
7.62 5.08
20.32
25.4
1
2
6**
50.8
=
Pin
No.
1
2
3
4
5
6
Single
Output
+ Input
- Input
+ Output
Trim*
- Output
Inhibit**
Dual
Output
+ Input
- Input
+ Output
Common
- Output
Inhibit**
1.0
4*
5
=
5.6
10.2
2.5
* without suffix "T" no pin
** without suffix "A" no pin
-3-
Additional Functions
Remote On/Off Control (Option)
Zusatzfunktionen
Fonctions compl.
Logic Compatibility.......................... CMOS or Open Collector TTL
Output-ON...................................... > +5.5 VDC or Open Collector
Output-OFF....................................................................
< 1.8 VDC
Control Common.................................. Referenced to Input Minus
Own Notes
Notice:
All statements, technical information, and recommendations related to FABRIMEX's products are based on information
believed to be reliable, but the accuracy or completeness thereof is not guaranteed. Before utlizing the product, the user should
determine the suitability of the product for its intended use.
POWER SUPPLIES
Switzerland:
FABRIMEX AG • Industriestrasse 4B • Volketswil
Post Address: P.O.Box • CH-8603 Schwerzenbach
Tel: +41-44-908 13 40 • Fax: +41-44-908 13 00
Internet: www.fabrimex.com
Germany:
CAC FABRIMEX GmbH • D-89543 Gerstetten
Tel: 07323/ 950-0 • Fax: 07323/ 95050
300'079 Rev. A / 11.2006
-4-
