Part Number

Search

3260-8S3

Description
conn receptacle 8 pos smd
CategoryThe connector    The connector
File Size385KB,4 Pages
ManufacturerHirose
Websitehttp://www.hirose-connectors.com/
Download Datasheet Parametric Compare View All

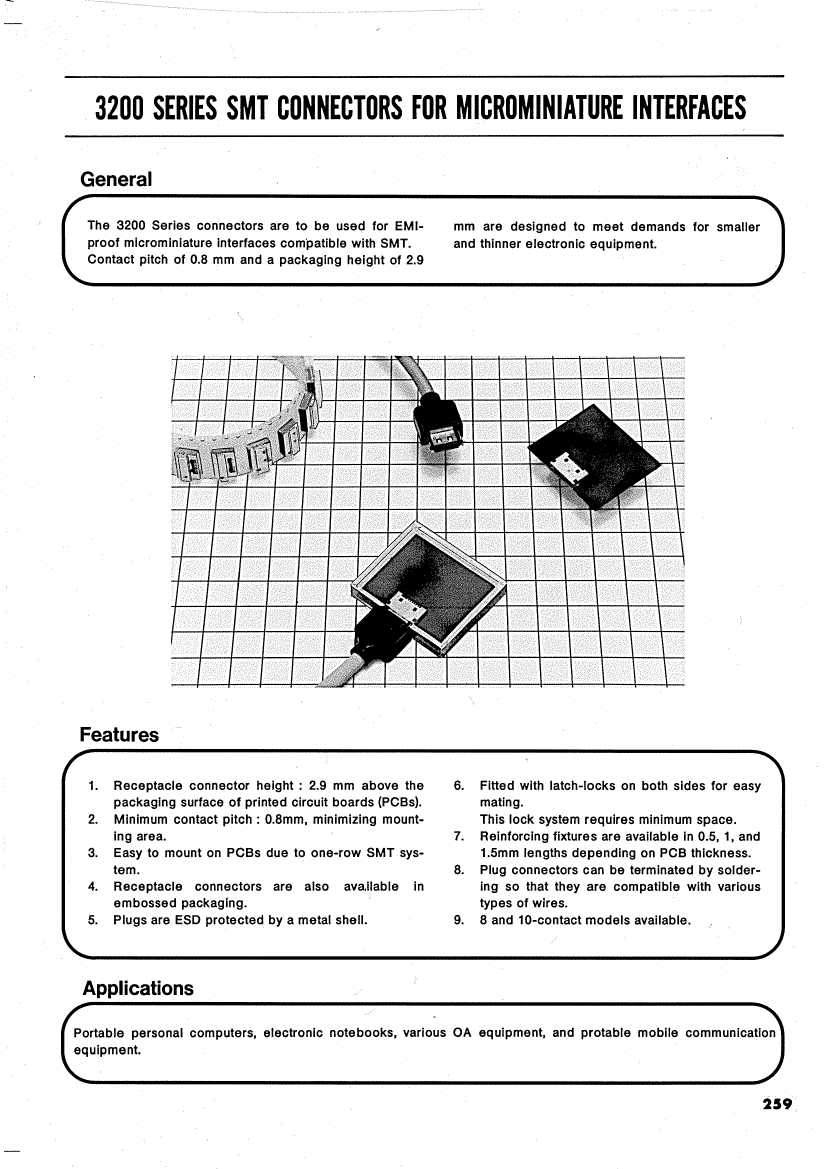

3260-8S3 Overview

conn receptacle 8 pos smd

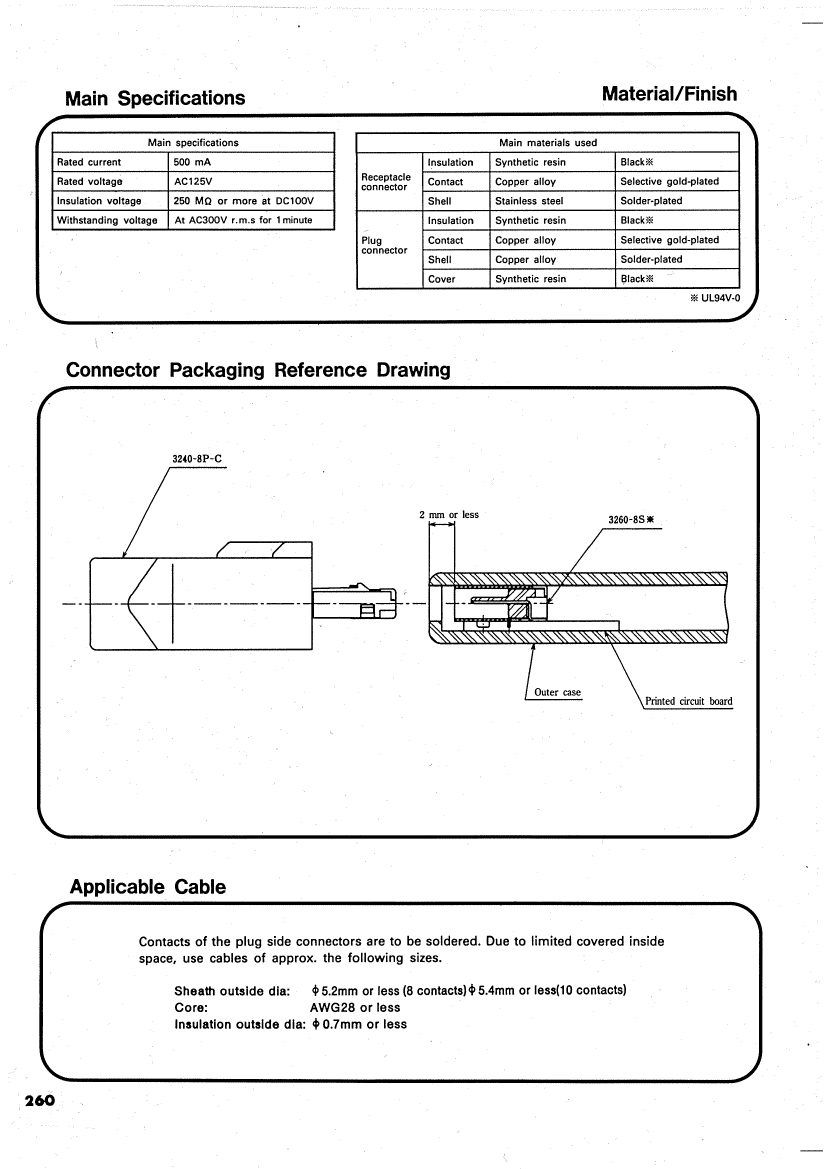

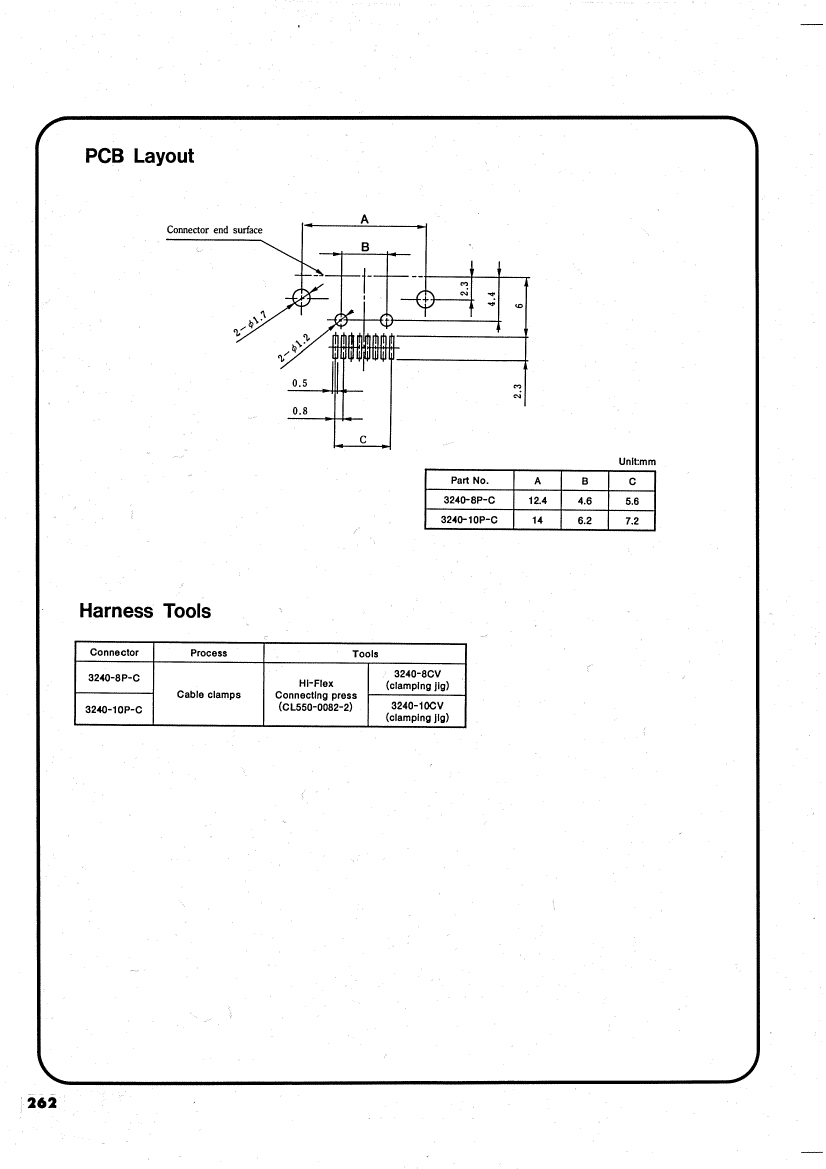

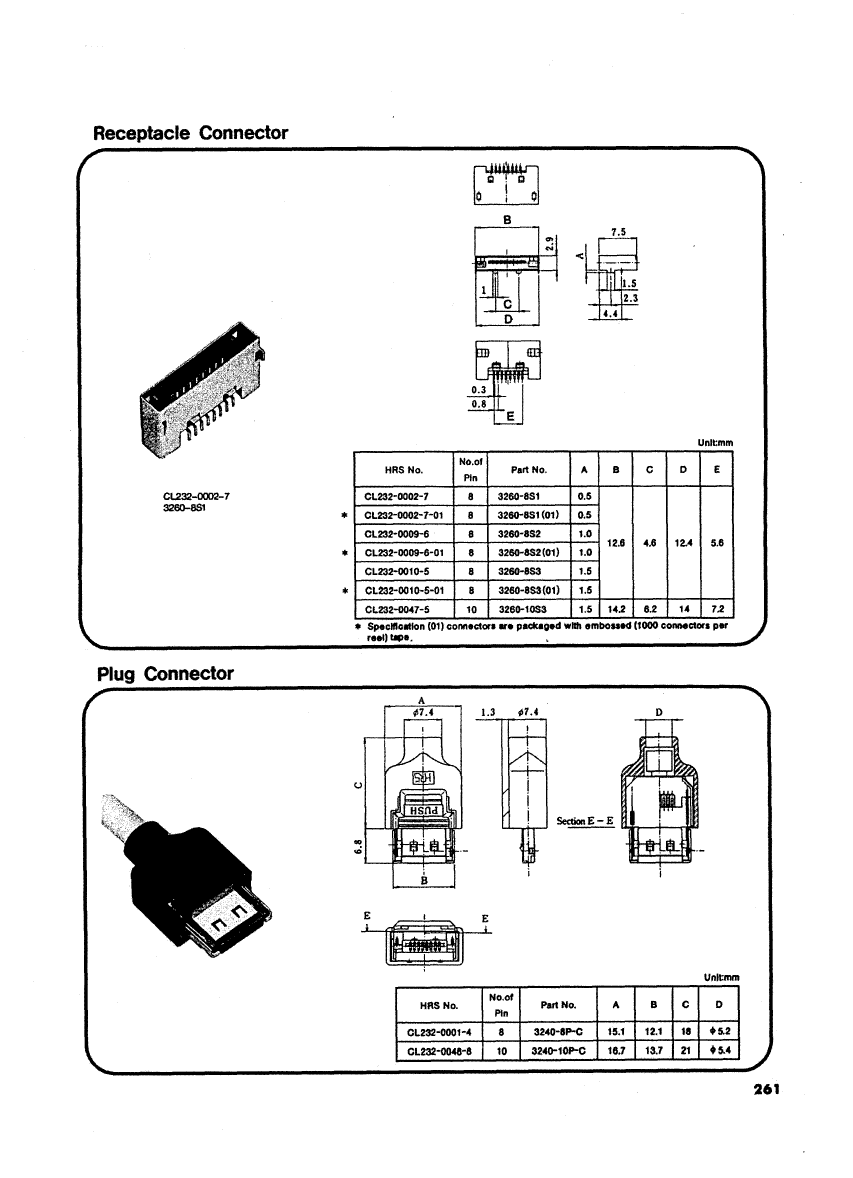

3260-8S3 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresEMI SHIELDED
Board mount optionsLOCATING POSTS
body width0.114 inch
subject depth0.295 inch
body length0.496 inch
Body/casing typeRECEPTACLE
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationAU
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSINGLE PRONG
DIN complianceNO
Dielectric withstand voltage300VAC V
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance250000000 Ω
Insulator colorBLACK
insulator materialSYNTHETIC RESIN
MIL complianceNO
Manufacturer's serial number32
Plug contact pitch0.031 inch
Plug information3240-8P-C
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell materialSTAINLESS STEEL
Terminal length
Terminal pitch0.7874 mm
Termination typeSURFACE MOUNT
Total number of contacts8
UL Flammability Code94V-0
Base Number Matches1

3260-8S3 Related Products

3260-8S3 3240-8P-C 3240-10P-C 3260-10S1 3260-10S2 3260-10S3 3260-8S1 3260-8S2 CL232-0001-4
Description conn receptacle 8 pos smd conn plug 8 pos cable mount conn plug 10 pos cable mount conn receptacle 10 pos smd conn receptacle 10 pos smd conn receptacle 10 pos smd conn receptacle 8 pos smd conn receptacle 8 pos smd Telecom and Datacom Connector, 8 Contact(s), Female, Crimp Terminal, Receptacle
Reach Compliance Code unknow unknow unknow - - unknown unknow unknow unknown
ECCN code EAR99 EAR99 EAR99 - - EAR99 EAR99 EAR99 EAR99
Other features EMI SHIELDED EMI/ESD PROTECTION EMI/ESD PROTECTION - - EMI SHIELDED EMI SHIELDED EMI SHIELDED -
body width 0.114 inch 0.343 inch 0.343 inch - - 0.114 inch 0.114 inch 0.114 inch 0.343 inch
subject depth 0.295 inch 0.976 inch 1.094 inch - - 0.295 inch 0.295 inch 0.295 inch 0.709 inch
body length 0.496 inch 0.594 inch 0.657 inch - - 0.559 inch 0.496 inch 0.496 inch 0.594 inch
Body/casing type RECEPTACLE PLUG PLUG - - RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR - - TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation AU AU AU - - AU AU AU AU
Contact point gender FEMALE MALE MALE - - FEMALE FEMALE FEMALE FEMALE
Contact material COPPER ALLOY COPPER ALLOY COPPER ALLOY - - COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY
contact mode RECTANGULAR RECTANGULAR RECTANGULAR - - RECTANGULAR RECTANGULAR RECTANGULAR -
Contact style SINGLE PRONG SINGLE PRONG SINGLE PRONG - - SINGLE PRONG SINGLE PRONG SINGLE PRONG -
DIN compliance NO NO NO - - NO NO NO -
Dielectric withstand voltage 300VAC V 300VAC V 300VAC V - - 300VAC V 300VAC V 300VAC V 300VAC V
empty shell NO NO NO - - NO NO NO -
Filter function NO NO NO - - NO NO NO -
IEC compliance NO NO NO - - NO NO NO -
Insulation resistance 250000000 Ω 250000000 Ω 250000000 Ω - - 250000000 Ω 250000000 Ω 250000000 Ω 250000000 Ω
Insulator color BLACK BLACK BLACK - - BLACK BLACK BLACK BLACK
insulator material SYNTHETIC RESIN SYNTHETIC RESIN SYNTHETIC RESIN - - SYNTHETIC RESIN SYNTHETIC RESIN SYNTHETIC RESIN SYNTHETIC RESIN
MIL compliance NO NO NO - - NO NO NO -
Plug contact pitch 0.031 inch 0.031 inch 0.031 inch - - 0.031 inch 0.031 inch 0.031 inch -
Plug information 3240-8P-C MULTIPLE MATING PARTS AVAILABLE 3260-810S3 - - 3240-10P-C 3240-8P-C 3240-8P-C -
Mixed contacts NO NO NO - - NO NO NO -
Installation type BOARD CABLE CABLE - - BOARD BOARD BOARD CABLE
Number of connectors ONE - - - - ONE ONE ONE ONE
Number of rows loaded 1 1 1 - - 1 1 1 -
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE - - GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE -
polarization key POLARIZED HOUSING - - - - POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 0.5 A 0.5 A 0.5 A - - 0.5 A 0.5 A 0.5 A 0.5 A
Guideline UL UL UL - - UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL - - COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Shell material STAINLESS STEEL COPPER ALLOY COPPER ALLOY - - STAINLESS STEEL STAINLESS STEEL STAINLESS STEEL COPPER ALLOY
Termination type SURFACE MOUNT SOLDER SOLDER - - SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT CRIMP
Total number of contacts 8 8 10 - - 10 8 8 8
UL Flammability Code 94V-0 94V-0 94V-0 - - 94V-0 94V-0 94V-0 -
Base Number Matches 1 1 1 - - 1 1 1 1
