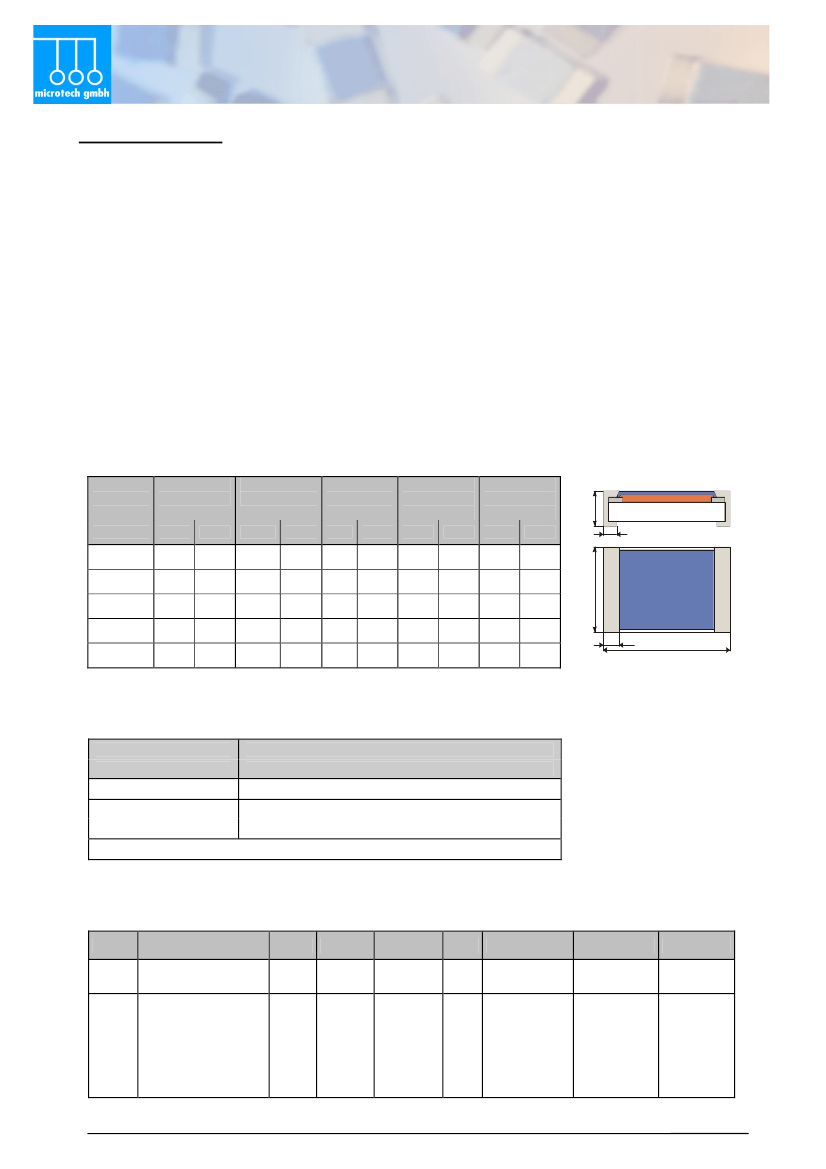

microtech GmbH electronic Teltow
Chip resistors - Made in Germany
High power series
Type: CLF
Sizes: 1210, 1218, 2010, 2512, 2040
Characteristics:
•
•
•
•
•
•
•
•
Chip resistors in thick film technology
Special layout for high electrical load
Resistance area coated with glass and varnish passivation
High stability and reliability
Tight tolerances (≥0,5%) – low temperature coefficient (≥50ppm/K)
RoHS-conform
Customer specific barcodes available - also in 2D
All sizes can be manufactured with the following contact variants
⇒
Electroplated alloy resistant tinned
⇒
Contact with low rest permeability -N
⇒
Epoxy bondable contact -K
⇒
Special corrosive gas resistant contact -S
ISO/TS 16949:2009
Dimensions (in mm):
Size
L
Length
Min
Max
W
Width
Min
Max
H
Depth
Min
Max
t
Contact
back
Min
Max
T
Contact
Front
Min
Max
H
t
1210
1218
2010
2512
2040
3,00
3,00
4,80
6,10
4,90
3,30
3,30
5,20
6,50
5,30
2,35
4,50
2,30
3,00
2,65
4,80
2,70
3,30
0,50
0,50
0,50
0,50
0,75
0,75
0,75
0,75
0,75
0,35
0,35
0,35
0,35
0,35
0,85
0,85
0,85
0,85
0,85
0,25
0,25
0,25
0,25
0,25
0,85
0,85
0,85
0,85
0,85
T
L
W
10,05 10,35 0,50
Packaging units:
Reel
Ø
180 mm
330 mm
Blister tape
acc. EN 60286-3
4 T pcs.
8 T pcs.
16 T pcs.
Samples by bulk into plastic bags up to 50 pcs./value
Ordering information:
CLF
Type
CLF
-N
Contact
Standard (without
add.)
-N (non magnetic)
-K (epoxy bondable)
-S (corrosive gas
resistant)
1210
Size
1210
.
100k
R-Value
1R
.
1
Tolerance
0,5
1
5
100
TC
50
100
N
Marking
N- without
K- with
B
Packaging
B- Blister
tape
S- Bulk
8
Pcs. / Reel
(T Pcs.)
Depends
on size and
packaging
unit
to
.
to
.
2040
10M
Stand: November 2012
Catalog microtech GmbH electronic
microtech GmbH electronic Teltow
ISO/TS 16949:2009
Chip resistors - Made in Germany
High power series
Type: CLF
Sizes: 1210, 1218, 2010, 2512, 2040
Technical data – depending on size:
Size
Nominal voltage
U
max
(V)
200
200
300
500
250
Load
P
70
(W)
0,50
1,00
0,50
1,00
2,00
R-Range
R-Tolerance
(%)
0,5 / 1 / 5
0,5 / 1 / 5
0,5 / 1 / 5
0,5 / 1 / 5
1/5
TC
(ppm/K)
50 / 100
50 / 100
50 / 100
50 / 100
50 / 100
Packaging
P
1210
1218
2010
2512
2040
1R - 10M
1R - 10M
1R - 10M
1R - 10M
1R - 10M
B
x
x
x
x
x
S
x
x
x
x
x
Technical data - general:
Technical data
Operating temperature range
Climatic category acc. EN 60068
Solderability acc. EN 60068-2-58
Soldering heat resistance acc. EN 60068-2-58
Long time stability
Storage 155°C / 1000h
Endurance P
70
/ 70°C / 1000h
Damp heat, steady state (56d / 40°C / 96%)
±( 1,0% + 0,05R )
±( 0,5% + 0,05R )
±( 1,0% + 0,05R )
-55°C … +155°C
55 / 155 / 56
245°C 3s
±( 0,5% + 0,05R ) at 260°C 10s
Data, unless specified, acc. EN 140401-802.
Catalog microtech GmbH electronic
Stand: November 2012
