3-917808-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-917808-2

3-917808-2: DescriptionDYNAMIC D-5200M TAB HSG 4P X-Y; CategoryThe connector The connector; File Size267KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-917808-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-917808-2	-	-	View	Buy Now

3-917808-2 Overview

DYNAMIC D-5200M TAB HSG 4P X-Y

3-917808-2 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	COMPATIBLE CONTACTS: 917802-2; 917802-3; 917804-2; 917804-3; 917803-2
body width	1.051 inch
subject depth	1.85 inch
body length	1.717 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P6
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	2 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	3000VAC V
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	9.7856 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
MIL compliance	NO
Manufacturer's serial number	917808
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	PBT
Termination type	CRIMP
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

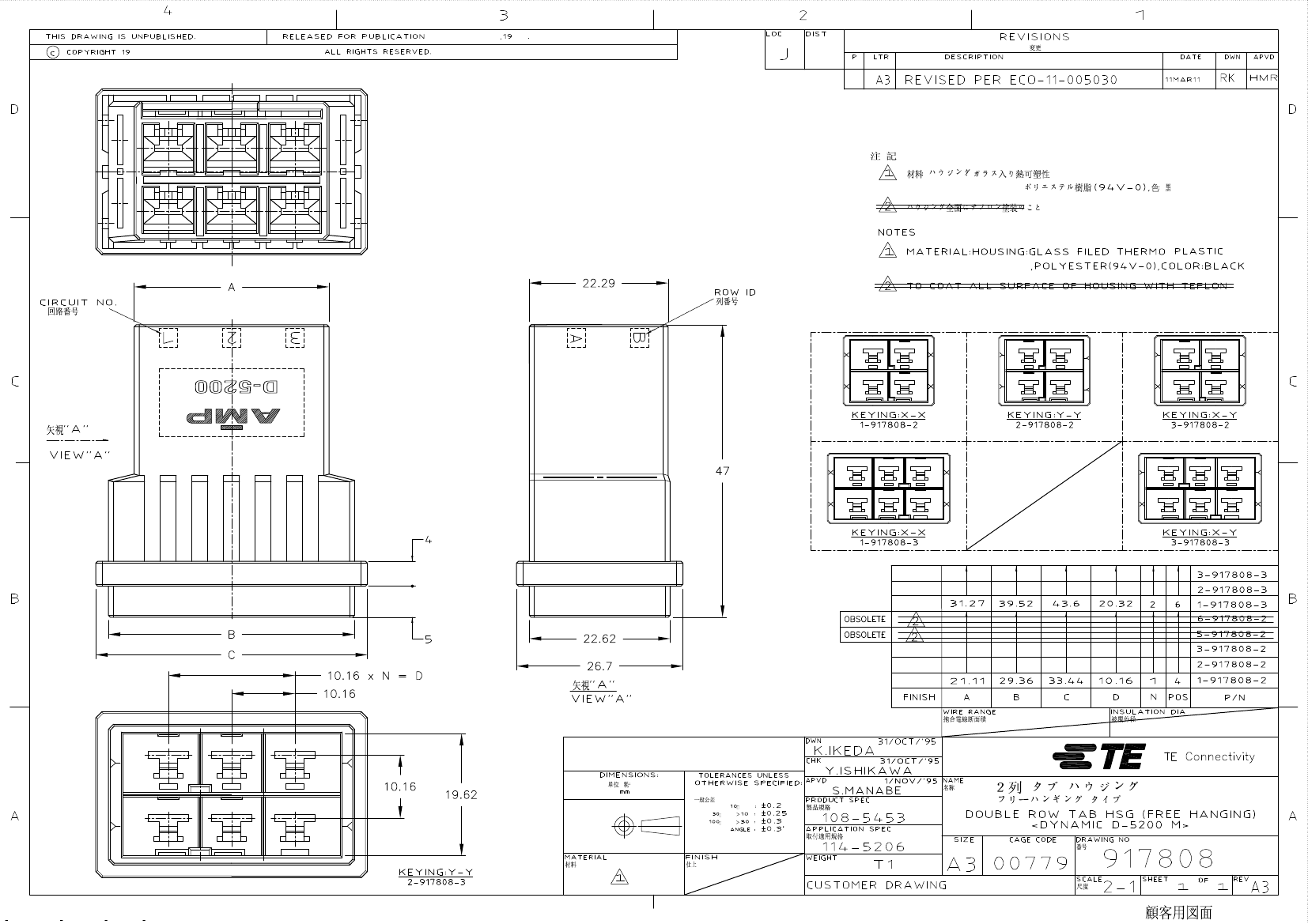

Preview

Download Datasheet

View All

3-917808-2 Related Products

	3-917808-2	2-917808-3	3-917808-3	2-917808-2	1-917808-3	1-917808-2
Description	DYNAMIC D-5200M TAB HSG 4P X-Y	DYNAMIC D-5200M TAB HSG 6P Y-Y	DYNAMIC D-5200M TAB HSG 6P X-Y	DYNAMIC D-5200M TAB HSG 4P Y-Y	DYNAMIC D-5200M TAB HSG 6P X-X	DYNAMIC D-5200M TAB HSG 4P X-X
Brand Name	AMP	AMP	AMP	AMP	AMP	AMP
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Is Samacsys	N	N	N	N	N	N
Other features	COMPATIBLE CONTACTS: 917802-2; 917802-3; 917804-2; 917804-3; 917803-2	COMPATIBLE CONTACTS: 917802-2; 917802-3; 917804-2; 917804-3; 917803-2	COMPATIBLE CONTACTS: 917802-2; 917802-3; 917804-2; 917804-3; 917803-2	COMPATIBLE CONTACTS: 917802-2; 917802-3; 917804-2; 917804-3; 917803-2	COMPATIBLE CONTACTS: 917802-2; 917802-3; 917804-2; 917804-3; 917803-2	COMPATIBLE CONTACTS: 917802-2; 917802-3; 917804-2; 917804-3; 917803-2
body width	1.051 inch	1.051 inch	1.051 inch	1.051 inch	1.051 inch	1.051 inch
subject depth	1.85 inch	1.85 inch	1.85 inch	1.85 inch	1.85 inch	1.85 inch
body length	1.717 inch	1.717 inch	1.717 inch	1.317 inch	1.317 inch	1.317 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P6	S0P6	S0P6	S0P4	S0P4	S0P4
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	2 mΩ	2 mΩ	2 mΩ	2 mΩ	2 mΩ	2 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	3000VAC V	3000VAC V	3000VAC V	3000VAC V	3000VAC V	3000VAC V
empty shell	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
maximum insertion force	9.7856 N	9.7856 N	9.7856 N	9.7856 N	9.7856 N	9.7856 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	917808	917808	917808	917808	917808	917808
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation option 1	LATCH	LATCH	LATCH	LATCH	LATCH	LATCH
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	PBT	PBT	PBT	PBT	PBT	PBT
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	4	6	6	4	6	4
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	-
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99
