BLSMD20-082-860-U

Description
Board Connector, 82 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug
CategoryThe connector    The connector
File Size193KB,1 Pages
ManufacturerMPE-Garry GmbH
Environmental Compliance
Download Datasheet Parametric View All

BLSMD20-082-860-U Overview

Board Connector, 82 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug

BLSMD20-082-860-U Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid304346888
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.2 inch
subject depth0.339 inch
body length4.1 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTin (Sn)
Contact point genderFEMALE
contact modeRECTANGULAR
Contact styleRND PIN-SKT
Dielectric withstand voltage1400VAC V
insulator materialTHERMOPLASTIC
JESD-609 codee3
Manufacturer's serial number431
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing4.699 mm
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.54 mm
Termination typeSURFACE MOUNT
Total number of contacts82
PRODUCT GROUP 7 -
MALE AND FEMALE HEADER 2,54/2,50/2,39 mm

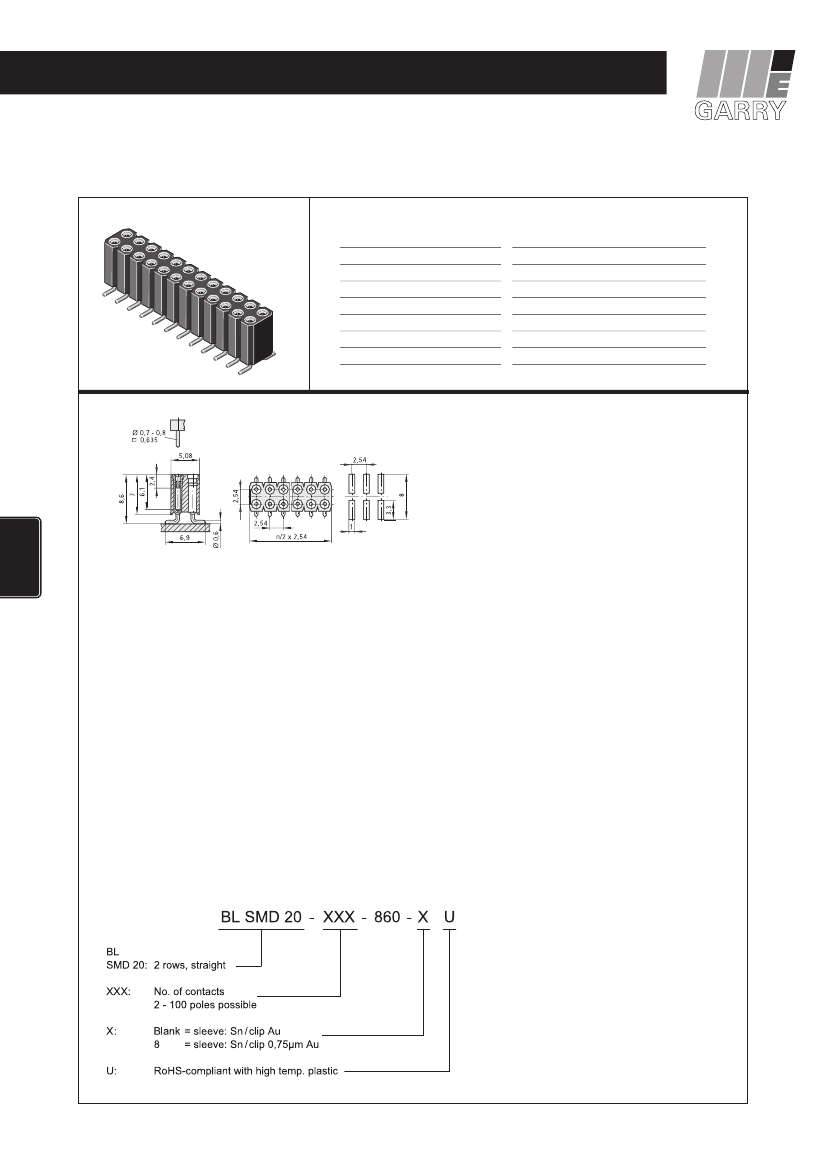

FEMALE HEADER „SMD“
ID: 123
BL SMD 20-XX-860
Series 431
TECHNICAL DATA
Pitch
Insulating Material
Contact Material
Rated Current
Rated Voltage
Withstanding Voltage
Operating Temperature
Maximum Soldering Temperature
2,54 mm
high temp. thermoplast UL94V-0
Brass/BeCu
3 Amp.
100 V
RMS
/150 V
DC
min. 1000 V
RMS
-55°C to +125°C
260°C for 10 seconds
158
7
| 2,54 mm
All dimensions in mm.
Other dimensions upon request.
